Kev piav qhia

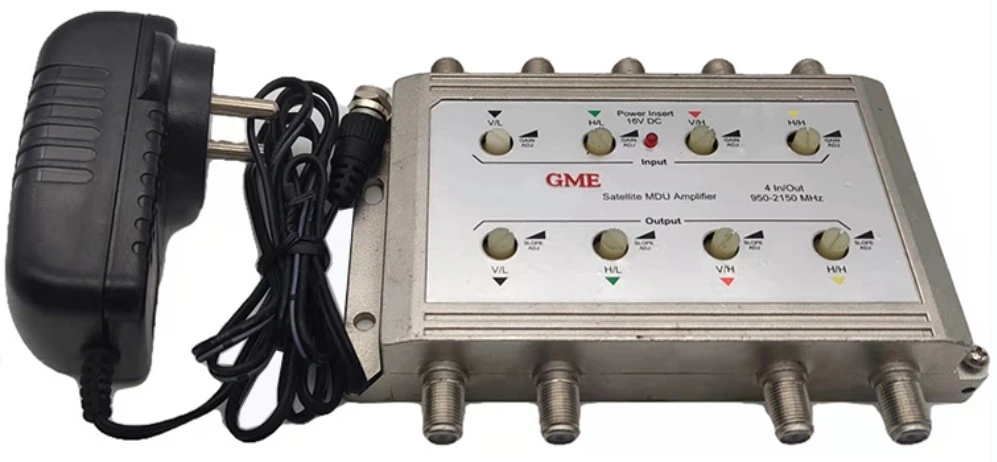

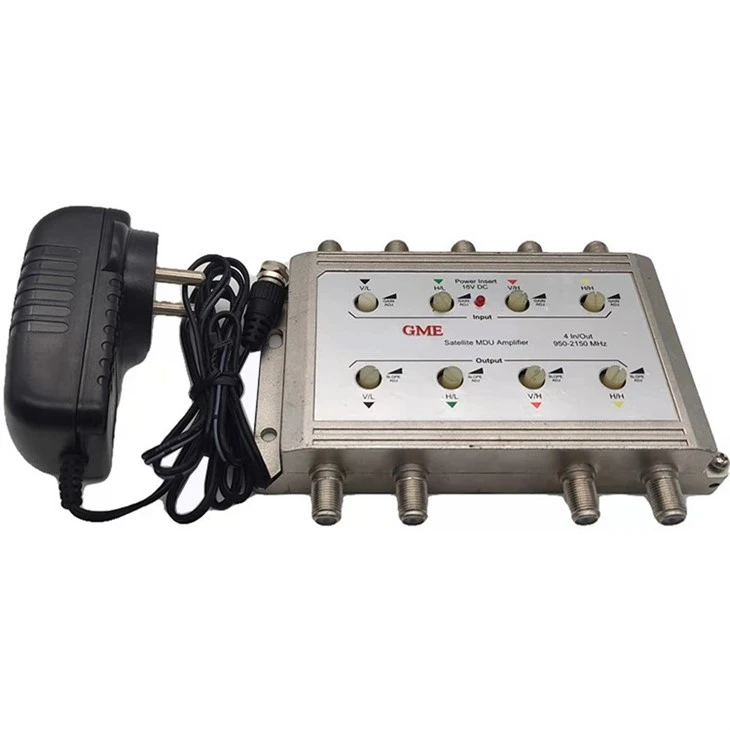

Satellite MDU Amplifier stands raws li lub hom phiaj- tsim cov cuab yeej ua kom zoo zoo los txhim kho cov teeb liab satellite nyob rau hauv qhov chaw ntawm ntau- tsev nyob (MDU) ib puag ncig. Ua haujlwm raws li qhov tseem ceeb ntawm lub teeb liab amplifier, nws lub hom phiaj tseem ceeb yog los lav tias cov neeg nyob hauv lub tsev tuaj yeem coj mus rau hauv lub teeb liab lucid rau lawv cov satellite TV subscriptions. Nyob rau hauv ingeniously nyob rau hauv lub intricate lub web ntawm lub tsev txoj hlua system, lub Satellite MDU Amplifier qhia nws prowess los ntawm distributing ib tug intensified teeb liab hla ntau satellite receivers dispersed thoob plaws hauv tag nrho cov qauv.
Cov cuab yeej sophisticated no ua pov thawj tshwj xeeb hauv thaj tsam ntawm cov vaj tsev siab tshaj plaws uas muaj ntau qhov chaw nyob. Nyob rau hauv xws li architectural toj roob hauv pes, qhov twg sheer ceev ntawm units ua rau muaj kev sib tw, Satellite MDU Amplifier yuav siv sij hawm nruab nrab theem. Nws txoj kev xa tawm ua haujlwm los txo cov teeb liab cuam tshuam, tsim kom muaj qhov chaw zoo rau kev txais tos zoo dua rau txhua tus neeg nyob.
Lub tshuab no tsis yog lub teeb liab txhawb nqa xwb; nws hla kev cia siab los ntawm kev txhawb nqa kev sib haum xeeb ntawm ntau lub satellite txais. Los ntawm kev ua li ntawd, nws ua tau zoo hloov MDU mus rau hauv ib qho chaw muaj kev cuam tshuam kev sib txuas thiab cov teeb liab zoo dua. Lub tswv yim kev koom ua ke ntawm Satellite MDU Amplifier hloov pauv cov kev cov nyom uas tshwm sim los ntawm qhov siab - nce cov qauv mus rau hauv lub cib fim rau kev ua kom pom kev zoo.
Raws li cov vaj tse vaj tse hloov zuj zus mus, qhov kev thov rau seamless satellite TV cov kev pabcuam hauv MDUs loj hlob exponentially. Lub Satellite MDU Amplifier, nrog rau nws qhov kev ua tau zoo ntawm lub teeb liab txhim kho lub peev xwm, tshwm sim los ua lub teeb pom kev zoo ntawm cov thev naus laus zis, kom ntseeg tau tias cov neeg nyob hauv ntau- cov tsev nyob tsis yog kev sib txuas nkaus xwb tab sis muaj kev paub txog theem teeb pom kev pom tseeb thiab txais tos zoo uas txhawb nqa lawv cov kev lom zem mus rau qhov siab tshiab. Hauv qhov tseeb, nws tsis yog ib qho khoom siv xwb; nws yog lub linchpin uas hloov lub tsev mus rau hauv lub hub ntawm uninterrupted satellite connectivity.
Specification
|
Qhov chaw ntawm Keeb Kwm: Guangdong, Suav |
|||
|
Tus Qauv Zauv: GDAMP-016 (4430) |
|||
|
Yam khoom |
TSEEM CEEB |
QC LIMIT |
TSEEM CEEB |
|
No.of satellite inputs |
|
4 |
|
|
No.of satellite outputs |
|
4 |
|
|
Ntau zaus |
|
|
950-2150 MHz |
|
Tau txais |
+30dB |
+28dB Min |
950-2150 MHz |
|
Gain tswj adj |
|
0-20dB |
950-2150 MHz |
|
Slope control adj |
|
0-10dB |
950-2150 MHz |
|
Nrov duab |
|
8 dB max |
Nrog txoj kab nqes min |
|
Kev khiav hauj lwm input theem |
|
-65dBm rau -25dBm |
|
|
Muab cais nyob ib leeg |
|||
|
Input rau input |
-35dB |
-30dB Min |
950-1450 MHz |
|
|
-30dB |
-25dB Min |
1451-2150 MHz |
|
Tso zis rau tso zis |
-35dB |
-30dB Min |
950-1450 MHz |
|
|
-30dB |
-25dB Min |
1451-2150 MHz |
|
Rov qab poob |
|||
|
satellite tswv yim |
-12dB |
-10dB Min |
950-1450 MHz |
|
|
-10dB |
-8dB Min |
1451-2150 MHz |
|
Satellite tso zis |
-10dB |
-8dB Min |
950-1450 MHz |
|
|
-18dB |
-7dB Min |
1451-2150 MHz |
|
Tso zis muaj peev xwm |
|||
|
1 dB compression |
|
-7dBm min |
12 transponders inputs |
|
@ Tau txais kev tswj hwm: Max. Tau txais |
|
|
txhua -34dBm hom. |
|
1 dB compression |
|
-13dBm min |
12 transponders inputs |
|
@ Tau txais kev tswj hwm: Min. Tau txais |
|
|
txhua -16dBm hom. |
|
Pix Forzen |
|
|
12 transponders inputs |
|
@ Tau txais kev tswj hwm: Max. Tau txais |
|
-6.7dBm min |
txhua -7.6dBm typ. |
|
Pix Forzen |
|
|
12 transponders inputs |
|
@ Tau txais kev tswj hwm: Min. Tau txais |
|
-9.0dBm min |
txhua -7.6dBm typ |
|
Composite Triple Beat |
|
-37dBm max. |
Xeem zaus |
|
@ f2+f1 |
|
@2f2-f1: -60dB |
f1:950 MHz |
|
|
|
Thaum tso zis |
f 2: 956 kwg |
|
Tam sim no rau LNB |
|||
|
Muab qhov voltage rau LNB |
|
350mA Min |
|
|
Fais fab adapter |
|
16.5V-19.0VDC |
100-240VAC tswv yim / |
|
|
|
|
18VDC 1A tso zis |
|
Txuas |
|
"F" Hom poj niam |
Txhua qhov chaw nres nkoj |
|
Impedance |
|
7 5 awm |
Txhua qhov chaw nres nkoj |
|
Mounting |
|
|
Mountable nrog screws |
|
Hauv av |
|
|
Terminal rau grounding kom muaj |
FAQ
Q: Koj puas tuaj yeem tsim qhov kev txiav txim nrog tus neeg siv khoom lub npe?
A: Yog lawm, tau kawg. OEM & ODM kev pabcuam yog sov so.
Q: Koj tswj cov khoom zoo li cas?
A: Zoo ua ntej. Tag nrho peb cov khoom raug xaiv raug kuaj xyuas ua ntej ntim thiab xa khoom.
Q: Koj yuav xa cov khoom li cas?
A: Peb feem ntau thauj los ntawm hiav txwv lossis huab cua.
Q: Koj lub lag luam loj yog dab tsi?
A: Tebchaws Europe, North America, South America, Middle East, thiab lwm yam.
