Kev piav qhia

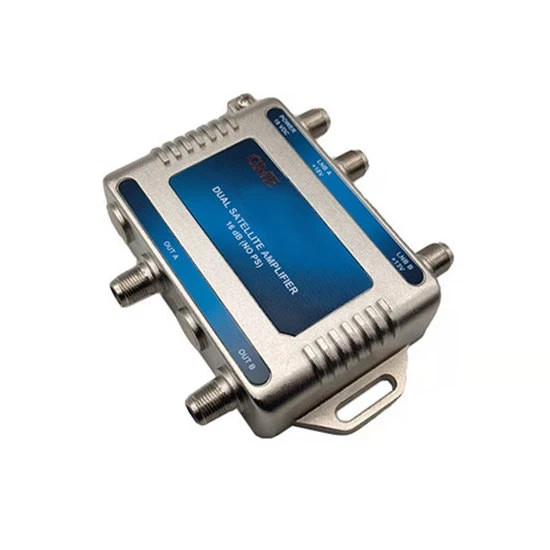

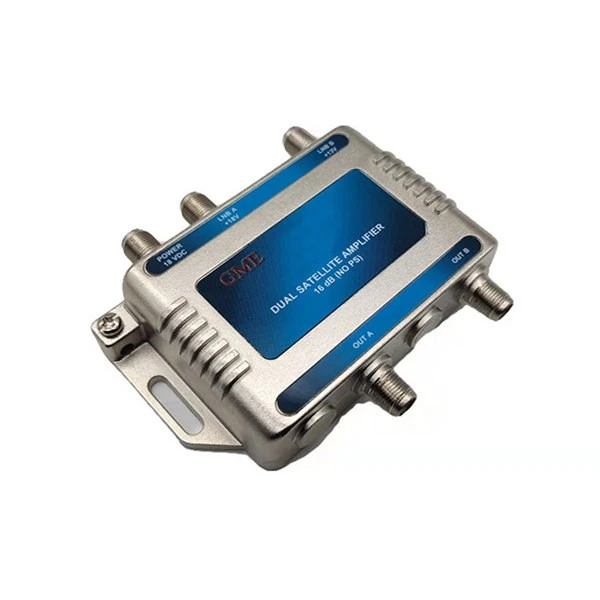

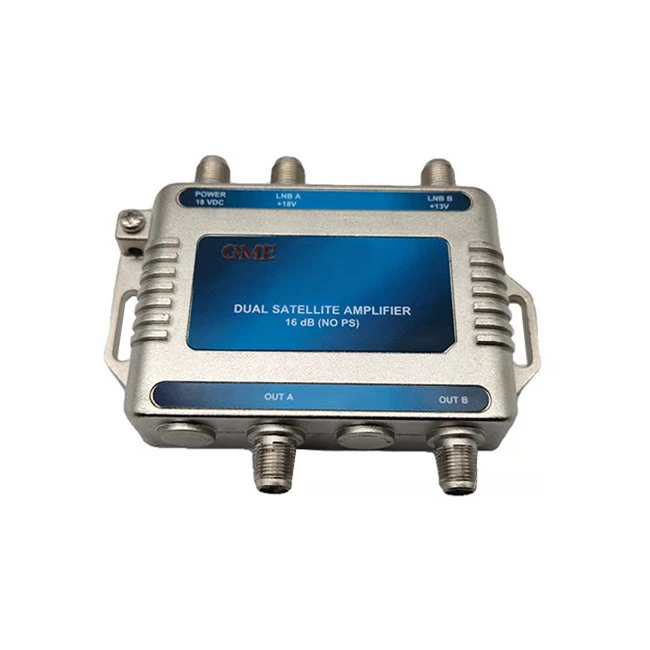

Dual Satellite Yog Amplifier, DBS 950 txog 2150MHz cov teeb liab los ntawm LNB'S lossis cov keyboards xav tau kev nthuav dav rau cov neeg txais kev deb.

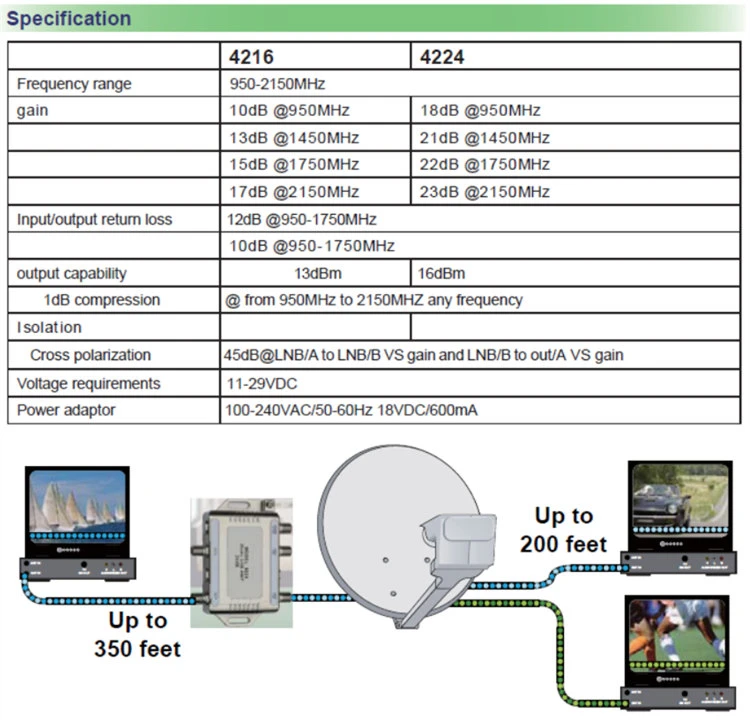

Specification

Qhov chaw ntawm Keeb Kwm: Guangdong, Suav
Tus Qauv Zauv: GDAMP-025 (4216)
Yam khoom	TYPICAL	QC LIMIT	KEV TIV THAIV
1. PASS BAND			950 ~ 2150 MHz
2. YOG	10 dB	9 dB MIN	Hauv 950 MHz
	12dB ib	10 dB MIN	Thaum 1200 MHz
	13dB ib	11 dB MIN	Thaum 1450 MHz
	15dB ib	12 dB MIN	Thaum 1750 MHz
	17dB ib	15 dB MIN	Thaum 2150 MHz
3. Rov qab poob (INPUT)	- 14 dB	-12 dB MIN	950 ~ 1750 MHz
	- 12 dB	-10 dB MIN	1750 ~ 2150 MHz
(TSHIAB)	- 15dB	- 12 dB MIN	950 ~ 1750 MHz
	- 12 dB	- 10 dB MIN	1751 ~ 2150 MHz
4. ISOLATION (LNB/A TO LNB/B)	- 45 dB	- 40 dB MIN	950 ~ 1750 MHz
	- 42 dB	- 38 dB MIN	1751 ~ 2150 MHz
(TSIS TAU TXAIS)	- 47 dB	- 40 dB MIN	950 ~ 1750 MHz
	- 42 dB	- 38dB MIN	1751 ~ 2150 MHz
(Cross POLARIZATION: LNB/A TO OUTB VS GAIN AND LNB/B TO OUTA VS GAIN)	- 47 dB	- 43 dB MIN	950 ~ 1750 MHz
	- 45 dB	- 40dB MIN	1751 ~ 2150 MHz
5. Kev muaj peev xwm tshaj tawm	13dBm ib	10 dBm MIN	1 dB COMPRESSION
		Los ntawm 950 MHz mus rau 2150MHz txhua zaus
6. NOISE DUA	7.2dB ib	8.5dBMAX	950-2150 MHz
7. LNB tso zis hluav taws xob		LNB A: +18VDC LNB B: +13VDC	NTAWM ADAPTER
8. Kev siv tam sim no	150 mA	130-185 mA	ntawm 18.0VDC, tsis suav nrog LNB tam sim no.
9. CONNECTOR		F HOM poj niam	TXHUA PORT
10. IMPEDANCE		75 HMO	TXHUA PORT
