Kev piav qhia

DBS, OTA, CATV, 54 txog 3000 MHz kab powered amplifier nrog rau pem hauv ntej nce thiab sub-band 2 mus rau 42 MHz passive rov qab.

TSEEM CEEB

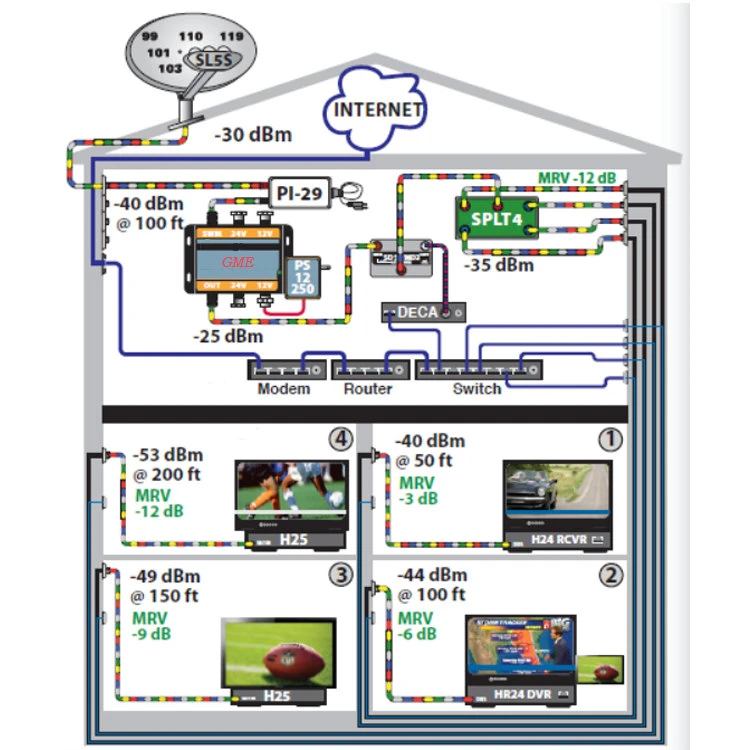

Qhov tso zis ntawm LNB lossis DBS hloov pauv yog faib rau ntau chav lossis chav tsev thiab cov theem teeb liab txais tau qis ntawm qhov chaw nyob deb.

SOLUTION

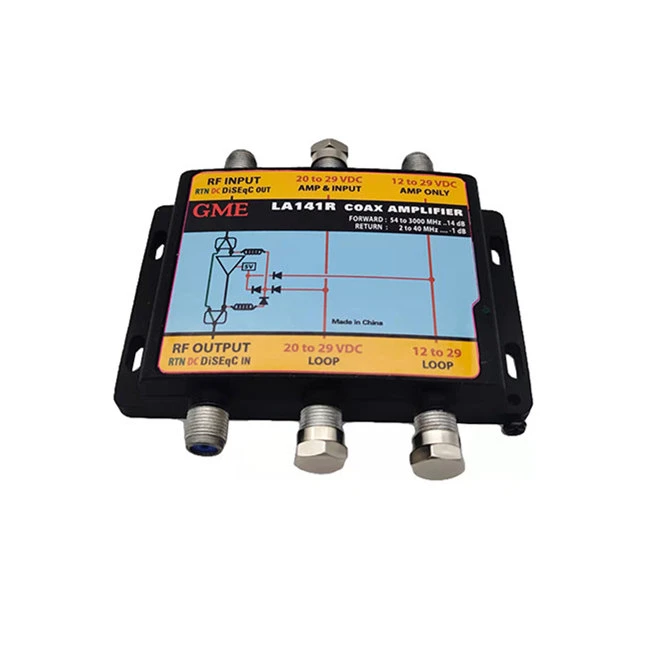

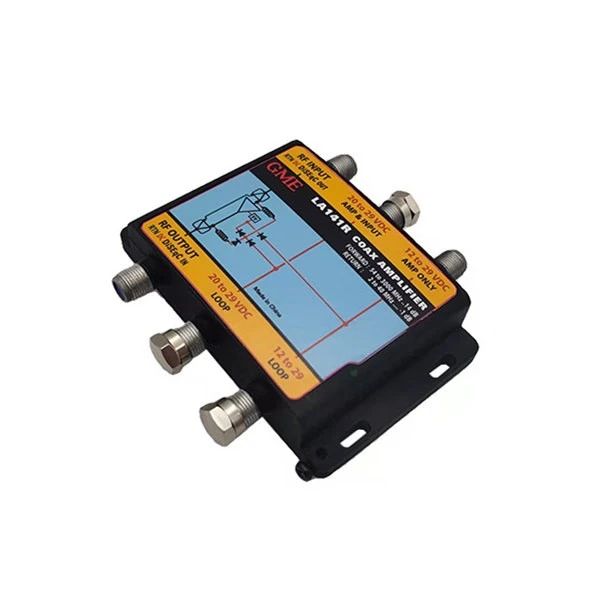

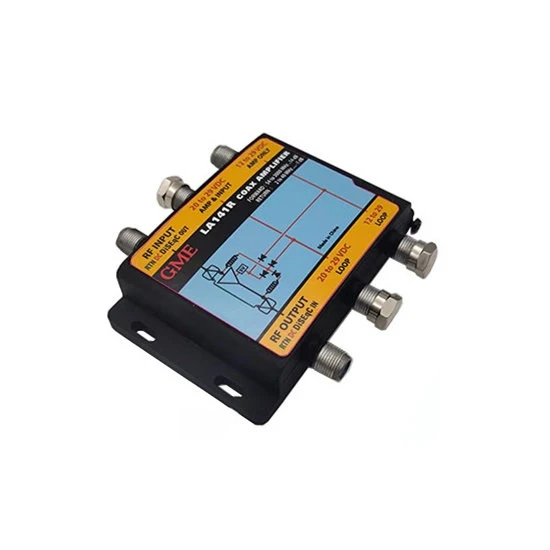

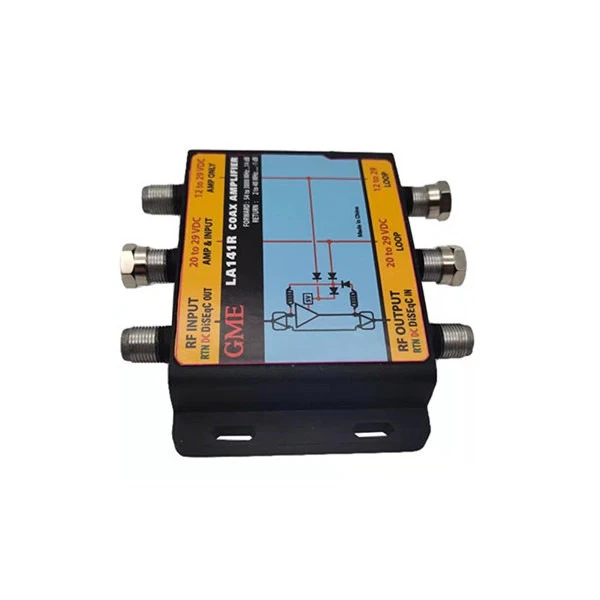

Qauv LA141R SWM Extension Line Amplifier boosts cable thiab DBS teeb liab theem tawm kev teeb tsa qhov poob ntawm 150 ko taw ntawm RG-6 thaum hla cov ntaub ntawv modem thiab receiver tswj cov teeb liab ntawm lub receiver mus rau qhov hloov.

Specification

Qhov chaw ntawm Keeb Kwm: Guangdong, Suav
Qauv nab npawb: GDAMP-024 (LA141R-TA)
Yam khoom	TYPICAL	QC LIMIT	KEV TIV THAIV
FREQ. RANGE
Rov qab txoj kev			2 ~ 42 MHz
FORWARD PATH			54 ~ 3000 MHz
TAU	+4.8 dB	+4 dB MIN.	54 MHz ua
	+8 dB	+6 dB MIN.	100 MHz
	+11 dB	+9 dB MIN.	950 MHz
	+13 dB	+11 dB MIN.	1450 MHz
	+14 dB	+12 dB MIN.	2150 MHz
	+15 dB	+13 dB MIN.	2400 MHz
	+14 dB	+12 dB MIN.	3000 MHz
INSERITION LOSS	- 3.8 dB	-4.8 dB MAX.	2 ~ 42 MHz
Rov Los Los
NPUT	-13 dB	-11 dB MIN.	2 ~ 42 MHz
	-12 dB	-10 dB MIN.	54 ~ 100 MHz
	-15 dB	-12 dB MIN.	101 ~ 1450 MHz
	-12 dB	-10 dB MIN.	1451 ~ 3000 MHz
OUTPUT	-13 dB	-11 dB MIN.	2 ~ 42 MHz
	-12 dB	-10 dB MIN.	54 ~ 3000 MHz
INput muaj peev xwm (1dB COMPRESSION)
	113dBuV ua	111dBuV MIN.	AT 250 MHz input
	112dBuV ua	110dBuV MIN.	AT 950 MHz input
Ua hauj lwm VOLTAGE		12-36 VDC
Kev siv tam sim no		130mA MAX.
POWER PASS			LUB → IN
22K PAUB			LUB → IN
IMPEDANCE			IN / OUT
CONNECTOR			TXHUA PORTS
