Kev piav qhia

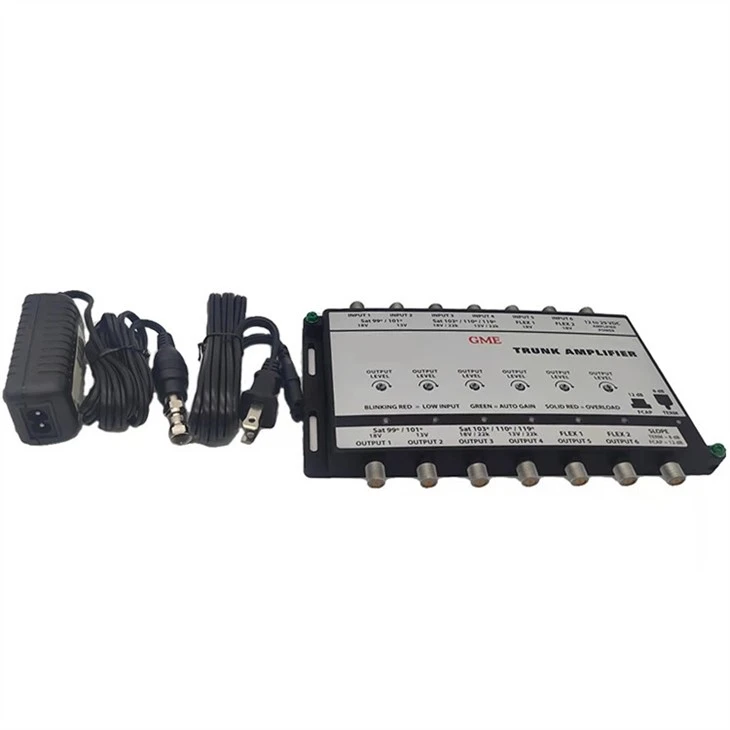

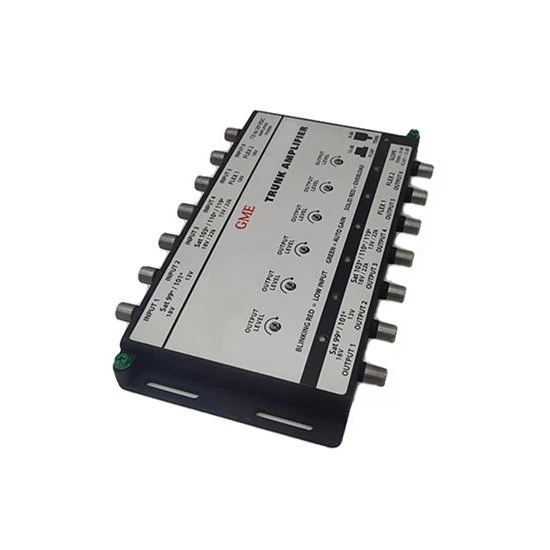

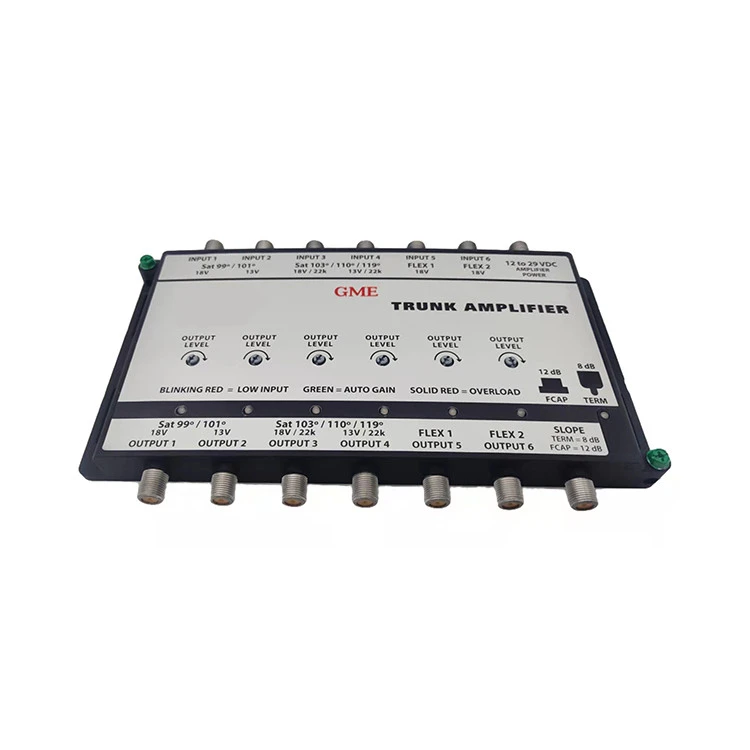

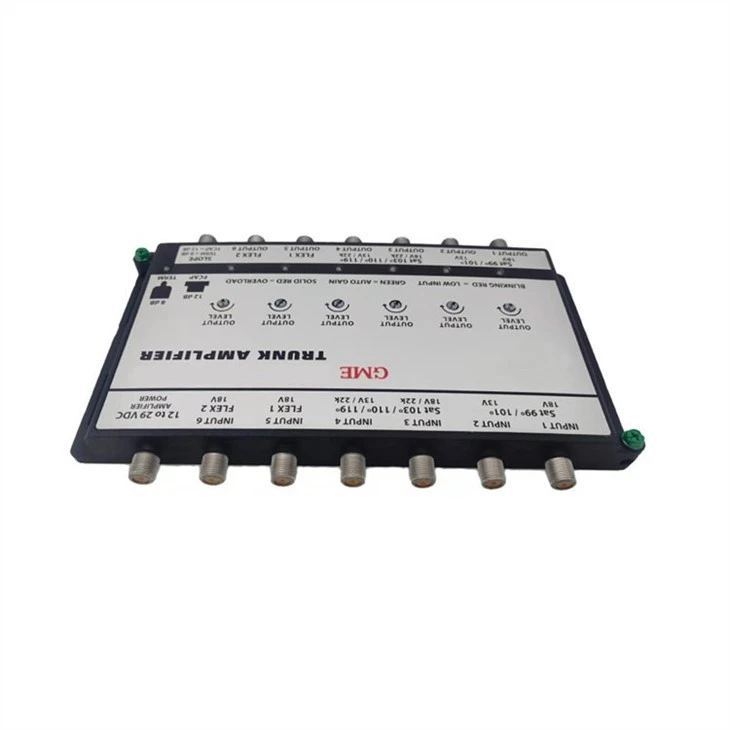

Sab hauv tsev 250 txog 2150 MHz DBS amplifier nrog tsis siv neeg nce, adjustable tso zis thiab xaiv nqes hav.
TSEEM CEEB
DBS signals xav tau amplifi cation mus rau theem tas mus li rau ntau qhov chaw faib khoom.
SOLUTION

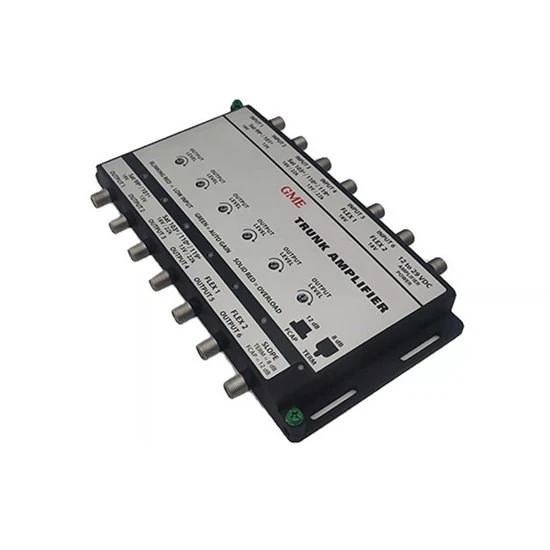

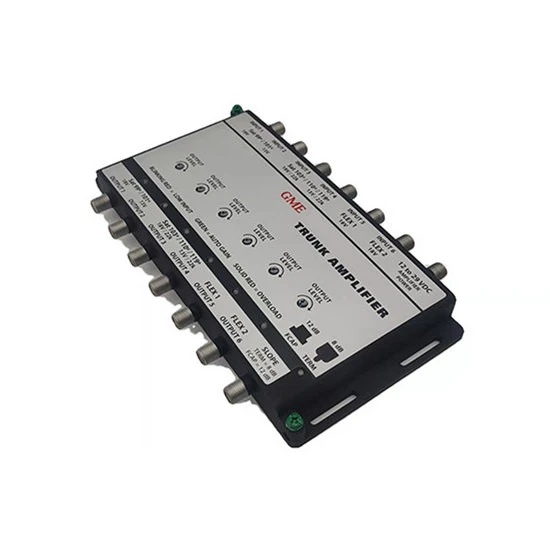

Qauv TAMP 6 DIRECTV Amplifier muab qhov tsis siv neeg nce tswj cov zis uas yog cov neeg siv kho tau los ntawm -15 dBm rau -24 dBm @ 2150 MHz. Txoj kab nqes yog eld xaiv rau 12 dB lossis 8 dB.
Ntawm qhov chaw tso zis yam tsawg kawg nkaus, cov ntsuas LED tig ntsuab nrog qhov tsawg kawg nkaus input ntawm -52 dBm. Ntawm qhov chaw tso zis ntau tshaj plaws, cov ntsuas LED tig ntsuab nrog qhov tsawg kawg nkaus ntawm -44 dBm.
Specification
|
Qhov chaw keeb kwm: Guangdong, Suav |
|||
|
Qauv No.: GDAMP-021 (TAMP-6R03-T12) |
|||
|
Yam khoom |
TSEEM CEEB |
QC LIMIT |
TSEEM CEEB |
|
Freq. Ntau yam |
|
|
54-2150 MHz |
|
Tau txais (Cov tswv yim hauv qab AGC) |
|
|
|
|
|
+19dB |
+17dB Min |
54 MHz |
|
|
+20dB |
+18dB Min |
250 MHz |
|
|
+24dB |
+22dB Min |
950MHz |
|
|
+27dB |
+25dB Min |
1450 MHz |
|
|
+29dB |
+27dB Min |
1750 MHz |
|
|
+32dB |
+30dB Min |
2150 MHz |
|
Muab cais nyob ib leeg |
|
|
|
|
Input rau input |
-40dB |
-35dB Min |
54-1750 MHz |
|
|
-35dB |
-30dB Min |
1751-2150 MHz |
|
Tso zis rau tso zis |
-50dB |
-40dB Min |
54-1750 MHz |
|
|
-35dB |
-30dB Min |
1751-2150 MHz |
|
Hla polarization |
-40dB |
-35dB Min |
54-1750 MHz |
|
|
-35dB |
-30dB Min |
1751-2150 MHz |
|
Rov Los Los |
|
|
|
|
Tswv yim |
-12dB |
-10dB Min |
54-2150 MHz |
|
Tso zis |
-12dB |
-10dB Min |
54-2150 MHz |
|
Cov zis theem |
|
|
|
|
Max pot. |
|
-5dBm |
@-12--38dBm tswv yim |
|
Min lub lauj kaub. |
|
-14dBm |
@ 2050MHz thiab 2052MHz input |
|
Kev tswj txoj kab nqes |
|
|
@-12--38dBm tswv yim |
|
Nrog terminator |
8dB ib |
8 ± 1dB |
@ 2050MHz thiab 2052MHz input |
|
Tsis muaj terminator |
12dB ib |
12 ± 1dB |
|
|
|
|
|
250-2150 MHz |
|
|
|
|
250-2150 MHz |
|
Lub zog LED |
|
|
|
|
Ntsuab |
|
|
Los ntawm "POWER" chaw nres nkoj |
|
RED |
|
|
Los ntawm "OUTPUT" chaw nres nkoj |
|
Nrov duab |
|
10dB max |
54-2150 MHz |
|
Txuas |
|
"F" Hom poj niam |
Txhua qhov chaw nres nkoj |
|
Impedance |
|
7 5 awm |
|
|
Ua haujlwm kub |
|
-30℃- +60 degree |
|
Tuam txhab Profile
Goodmind Electronics (Shenzhen) Co., Ltd. yog tsim nyob rau hauv 1992 nrog ib tug sau npe peev ntawm 18 lab US dollars. Nws tus kheej lub Hoobkas nyob hauv Shenzhen thiab muaj ntau tshaj 1000 tus neeg ua haujlwm. Nws yog lub tuam txhab ua haujlwm siab -tech enterprise integrating R&D, ntau lawm, muag thiab kev pabcuam, Lub tuam txhab tshwj xeeb hauv Kav hlau txais xov / Network Kev sib txuas lus / Bluetooth / AV Accessories / Smart Home / Car Accessories kev tsim lub tuam txhab. Lub Hoobkas yog vertically integrated. Lub Hoobkas muaj kev ua cov yas, hlau stamping, zinc tuag casting, SMT, DIP thiab Assembly center. Lub tuam txhab muaj lub zog nyiaj txiag muaj zog, pab pawg R&D kws tshaj lij, cov cuab yeej tsim khoom zoo tshaj plaws thiab kev tsim khoom lag luam, thiab mob siab rau tsim cov khoom zoo rau cov neeg siv khoom.
Vim li cas kuv thiaj xav tau DIRECTV amplifier?
Tej zaum koj yuav xav tau lub tshuab hluav taws xob DIRECTV yog tias koj ntsib teeb liab poob lossis tsis zoo ntawm lub teeb liab tsis zoo vim qhov ntev cable khiav, ntau lub satellite txais, lossis huab cua tsis zoo.
DIRECTV amplifier ua haujlwm li cas?
Lub amplifier boosts lub teeb liab lub zog ntawm DIRECTV satellite feed, them nyiaj rau cov teeb liab poob los ntawm yam xws li cable ntev thiab kev siv splitter. Nws xyuas kom meej tias lub teeb liab muaj zog thiab meej rau kev pom zoo.
Kuv yuav tsum nruab DIRECTV amplifier qhov twg?
Nruab lub amplifier nyob rau hauv txoj kab nrog cov coaxial cable khiav ntawm koj lub phaj satellite rau koj DIRECTV receiver. Nws yog feem ntau ntsia sab hauv tsev, ze rau lub receiver, thiab powered los ntawm ib tug coaxial cable kev twb kev txuas.

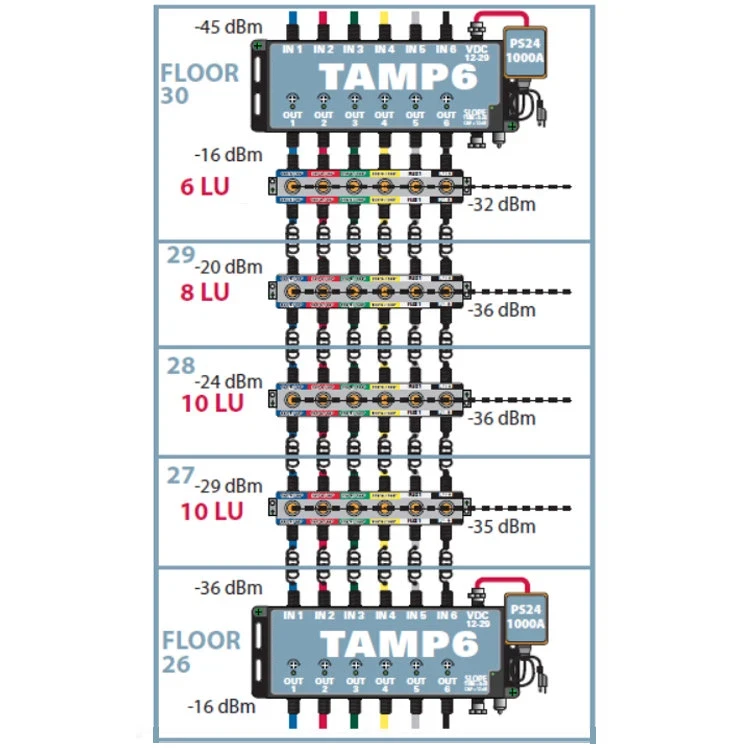

Qauv TAMP 6 DIRECTV Amplifiers yog nyob rau hauv pem teb increments thaum siv nrog cov qauv SDMST6XX kais dej rau hauv pem teb. Tsis siv neeg nce yooj yim rau kev tsim thiab kev teeb tsa paub tias lub amplifi er tso zis raug kaw thaum nrog cov teeb liab theem LED teeb yog Ntsuab.
Tus qauv SDMST6XX kais dej yog siv los ua ob peb lub teeb liab ntawm lub cev. Tus kais tso zis yog tus kais tus nqi tsawg dua li lub cev ntawm qhov taw tes. Txhua tus kais txuas ntxiv qhov poob. Ib qho ntxiv TAMP 6 amplifi er yog ntxiv thaum tus kais theem qis dhau rau SWiM® ntau qhov hloov.
DIRECTV amplifier, tseem hu ua lub teeb liab booster lossis kab amplifier, yog ib qho cuab yeej siv los txhim kho lub zog thiab zoo ntawm lub teeb liab satellite tau txais los ntawm koj lub DIRECTV satellite tais. Nws yog qhov tshwj xeeb tshaj yog nyob rau hauv cov xwm txheej uas lub teeb liab lub zog tsis muaj zog vim muaj cov yam ntxwv xws li ntev cable khiav los yog ntau lub receivers.
FAQ
Q: Lub tshuab hluav taws xob DIRECTV puas tuaj yeem txhim kho cov teeb liab zoo thaum huab cua tsis zoo?
A: Thaum lub tshuab hluav taws xob DIRECTV tuaj yeem pab txo qee lub teeb liab poob thaum huab cua tsis zoo, xws li nag lossis daus, nws yuav tsis tshem tawm tag nrho cov teeb liab degradation los ntawm huab cua hnyav.
Q: Puas yog DIRECTV amplifier siv tau nrog txhua qhov kev teeb tsa DIRECTV?
A: DIRECTV amplifiers yog feem ntau sib xws nrog feem ntau DIRECTV teeb tsa, tab sis nws yog ib qho tseem ceeb kom ntseeg tau tias kev sib raug zoo nrog koj tus qauv tshwj xeeb satellite tais thiab txais. Tshawb xyuas lub amplifier cov lus qhia tshwj xeeb thiab sab laj nrog DIRECTV cov neeg siv khoom txhawb nqa yog tias koj tsis paub meej.
Q: Kuv puas tuaj yeem nruab ntau DIRECTV amplifiers hauv kuv qhov teeb tsa?
A: Nws feem ntau tsis tsim nyog thiab tsis pom zoo rau nruab ntau lub tshuab hluav taws xob hauv ib qho kev teeb tsa DIRECTV. Ib lub amplifier muab tso rau hauv txoj kev teeb liab yuav tsum txaus los daws teeb meem teeb meem.
Q: Puas DIRECTV amplifiers xav tau lub zog?
A: Yog, feem ntau DIRECTV amplifiers xav tau lub zog ua haujlwm. Lawv feem ntau yog siv los ntawm kev sib txuas ntawm coaxial cable los ntawm DIRECTV receiver lossis ib lub hwj huam sib cais.
