Kev piav qhia
DBS, OTA, CATV, 54 txog 3000 MHz kab powered amplifier nrog rau pem hauv ntej nce thiab sub-band 2 mus rau 42 MHz passive rov qab.
TSEEM CEEB

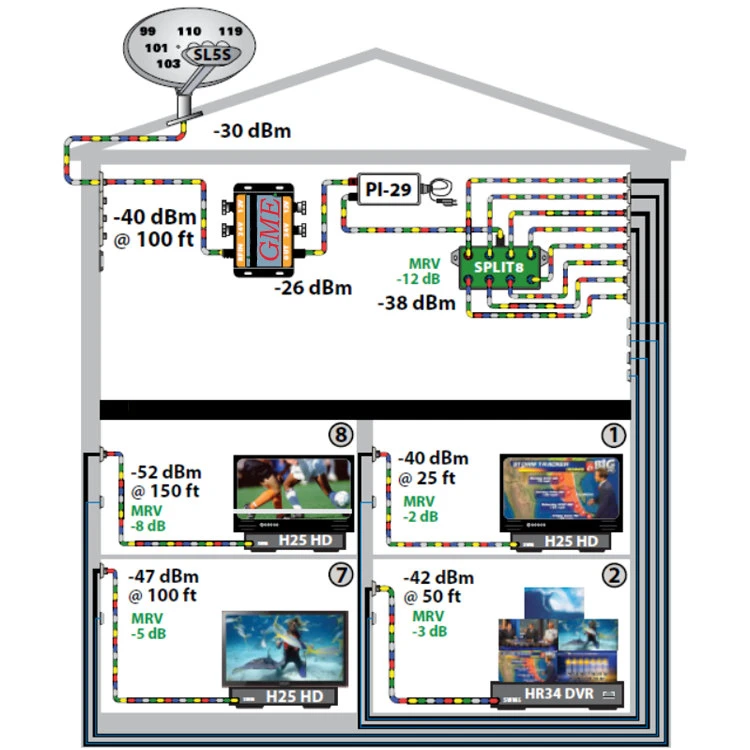

Qhov tso zis ntawm LNB lossis DBS hloov pauv yog faib rau ntau chav lossis chav tsev thiab qhov chaw txais cov teeb liab qis qis ntawm qhov chaw nyob deb.
SOLUTION

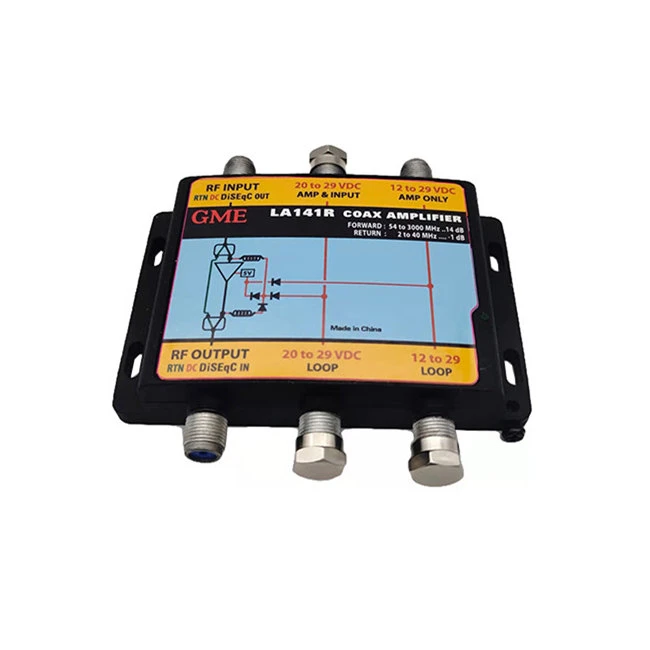

QauvSIB 141Gain In Line Amplifier boosts cable thiab DBS teeb liab theem tawm kev teeb tsa qhov poob ntawm 150 ko taw ntawm RG-6 thaum hla cov ntaub ntawv modem thiab receiver tswj cov teeb liab ntawm lub receiver mus rau qhov hloov.
KEV SIB THAM

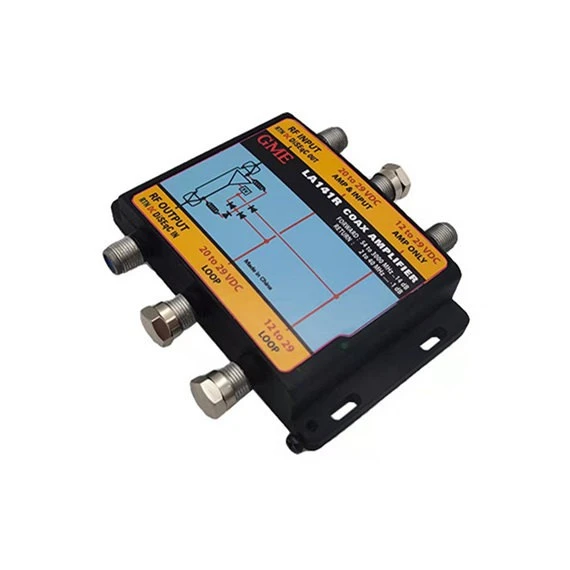

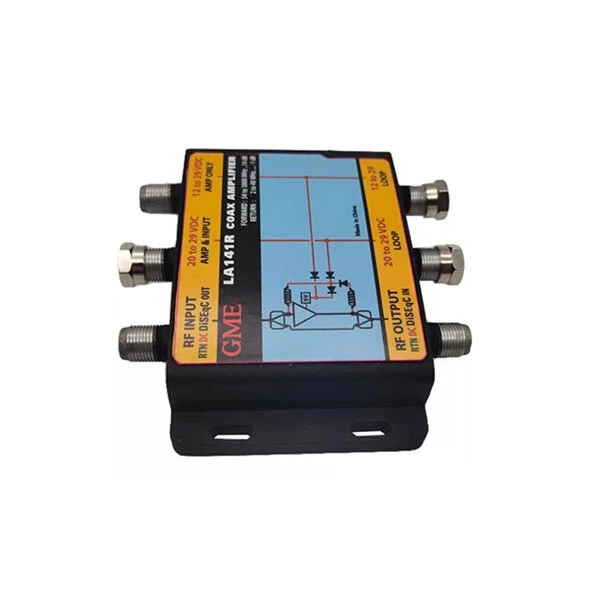

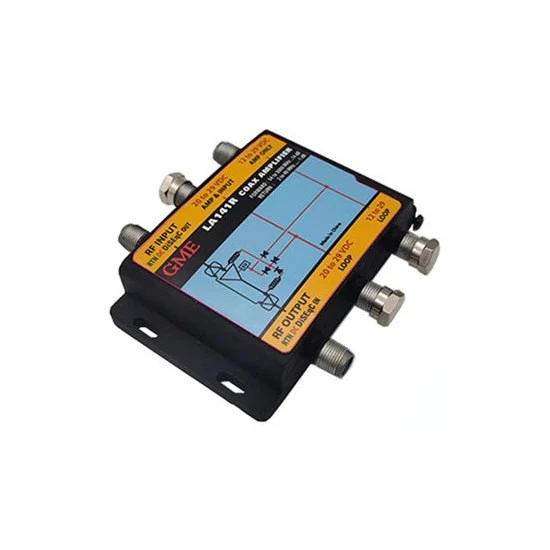

Cov khoom no yog universal coaxial amplifier. Qhov Gain In Line amplifier ua haujlwm nrog OTA, CATV, DBS & SWM. Nws suav nrog passive 22 kHz rau 42 MHz sub-band xa rov qab. Qauv SD SWMA2 bidirectionally hla 2 mus rau 806 MHz, MoCA E band thiab receiver control signals rau daim ntaub ntawv uas MoCA yuav tsum tau ntawm lub amplifi er input thiab tso zis.
Specification
|
Qhov chaw ntawm Keeb Kwm: Guangdong, Suav |
|||
|
Tus Qauv Zauv: GDAMP-009 (LA141) |
|||
|
Yam khoom |
TYPICAL |
QC LIMIT |
KEV TIV THAIV |
|
Freq. Ntau yam |
|
|
|
|
Txoj kev pem hauv ntej |
|
|
950-2150 MHz |
|
Rov qab txoj kev |
|
|
22KHz-3MHz |
|
Tau txais |
|
|
|
|
|
+11dB |
+10dB Min |
950MHz |
|
|
+12dB |
+11dB Min |
1450 MHz |
|
|
+14dB |
+13dB Min |
1750 MHz |
|
|
+15dB |
+14dB Min |
2150 MHz |
|
|
+14dB |
+13dB Min |
2400 MHz |
|
Insertion poob |
-1.2dB |
-2.5dB Max |
22KHz-3MHz |
|
Rov Los Los |
|
|
|
|
Tswv yim |
-15dB |
-12dB Min |
950-2150 MHz |
|
|
-12dB |
-10dB Min |
2151-2400 MHz |
|
Tso zis |
-12dB |
-10dB Min |
950-2150 MHz |
|
|
-13dB |
-11dB Min |
2151-2400 MHz |
|
Input Muaj peev xwm |
|
|
|
|
1 dB compression |
112dBuV ua |
110dBuV Max |
Ntawm 950MHz input |
|
Ua haujlwm voltage |
|
12-21 Vdc |
|
|
Impedance |
|
7 5 awm |
Input/output chaw nres nkoj |
|
Txuas |
|
F Hom poj niam |
Input/output chaw nres nkoj |
