Kev piav qhia

250 txog 2150 MHz DBS amplifi er nrog 25 dB nce, LNB powering thiab nqes nqes them.

Qhov xwm txheej

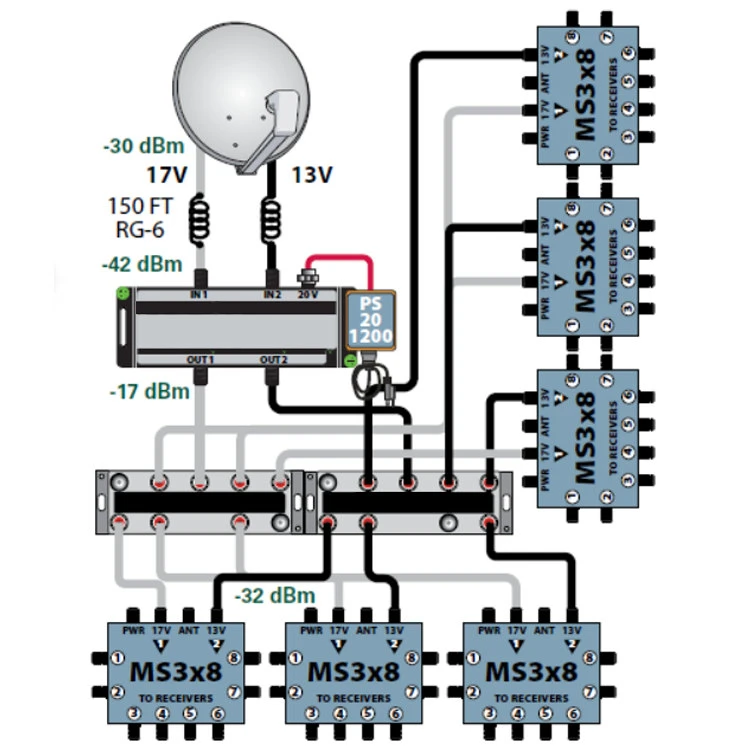

DBS 250 txog 2150 MHz signals los ntawm ib tug dual LNB yuav tsum tau powered, polarity xauv thiab amplifi ed rau pub ntau yam keyboards.

Kev daws

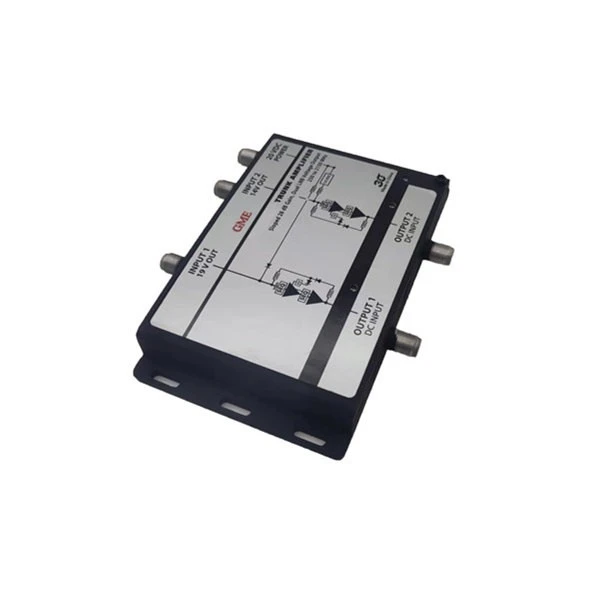

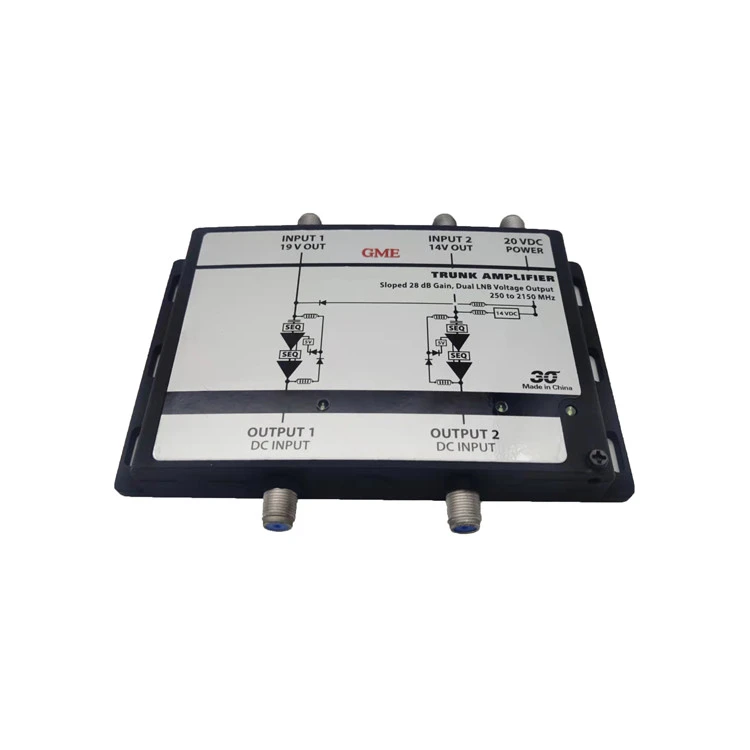

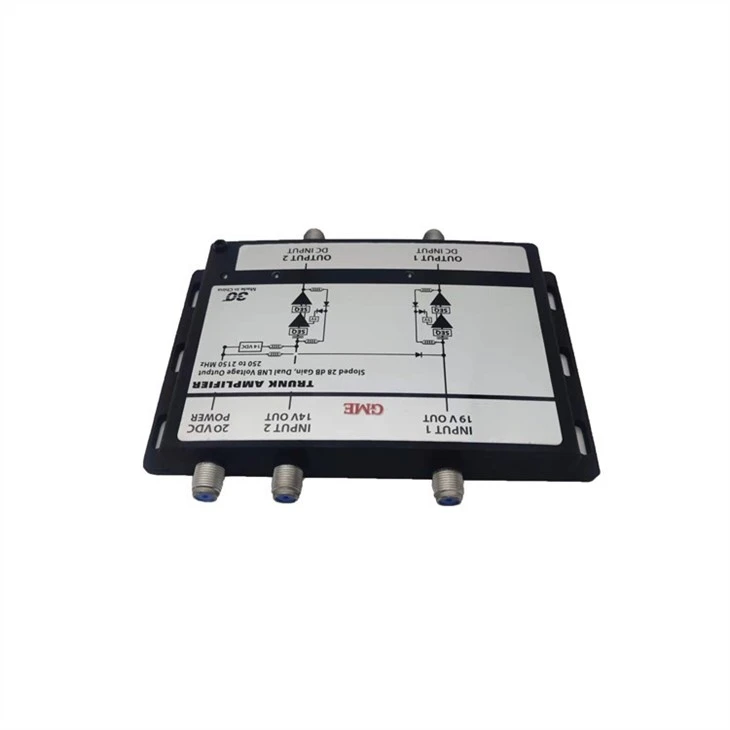

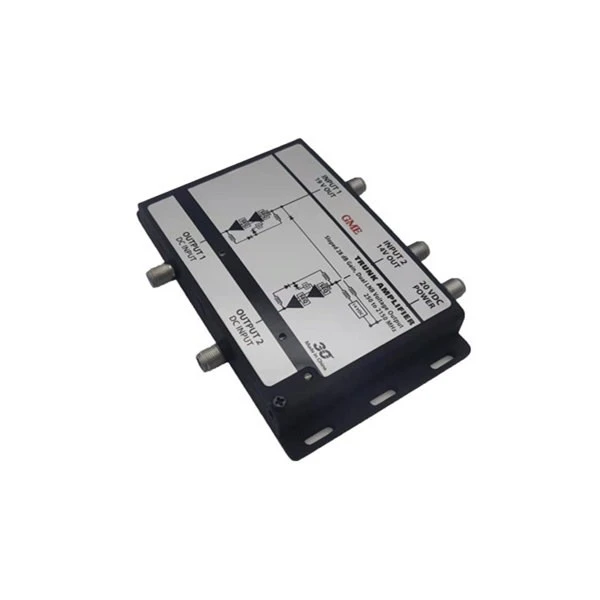

28 dB DUAL LNB Amplifier Model SD TA282-T power a DBS dual LNB, amplifies cov teeb liab thiab ua ntej tseem ceeb heev zaus los them rau txoj kab nqes.

Specification

Qhov chaw ntawm Keeb Kwm: Guangdong, Suav
Qauv nab npawb: GDAMP-018 (SD TA282-T)
Yam khoom	TSEEM CEEB	QC LIMIT	TSEEM CEEB
Freq. Ntau yam			250-2150 MHz
Tau txais
	+20dB	+18dB Min	950MHz
	+24dB	+22dB Min	1750 MHz
	+28dB	+26dB Min	2150 MHz
Flatness
Tsis suav nrog txoj kab nqes	± 0.2dB	± 0.5dB max	Ib qho 24MHz band
nqes hav	6dB ib	5dB Min	250-2150 MHz
Rov qab poob
Input/Output	-12dB	-10dB Min	250-2150 MHz
Muab cais nyob ib leeg
Hla polarization	-35dB	-30dB Min	250-2150 MHz
Nkag mus rau Input	-35dB	-30dB Min	250-2150 MHz
Output rau Output	-35dB	-30dB Min	250-2150 MHz
Input Muaj peev xwm
1 dB compression	96dv wb	95dBuV Max	Ntawm 950MHz input
DC Los ntawm poob voltage		1.2VDC max	Output rau Input
Impedance		7 5 awm	Input/output chaw nres nkoj
Txuas		F Hom poj niam	Txhua qhov chaw nres nkoj
Tawm Voltage ntawm Input Port
Input1 chaw nres nkoj		19 ± 0.5VDC	500mA loading
Input2 chaw nres nkoj		13 ± 0.5VDC	500mA loading

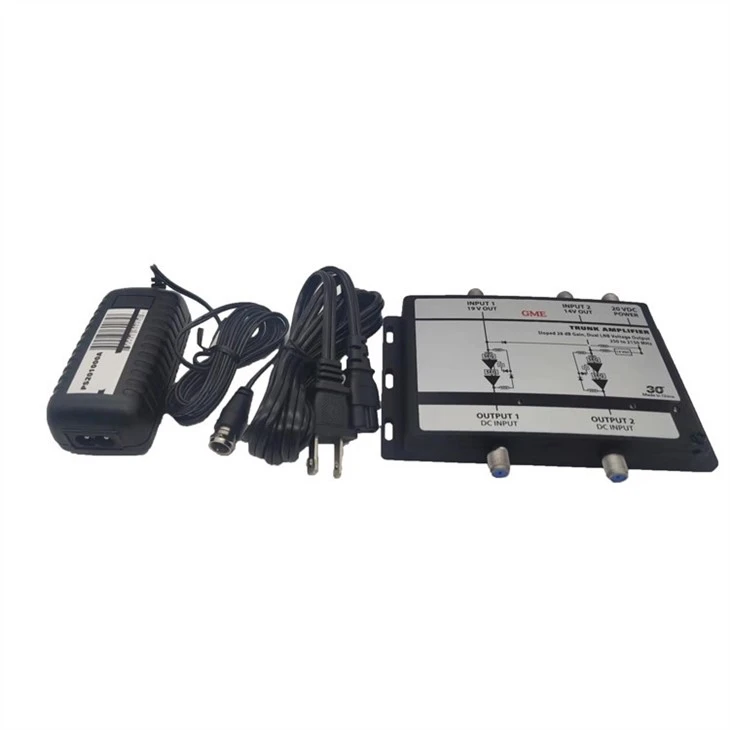

Fais fab Adapter
Tswv yim		100-240VAC, 50/60Hz
Tso zis		20VDC, 1200mA
CEC Qib		VI
