Kev piav qhia

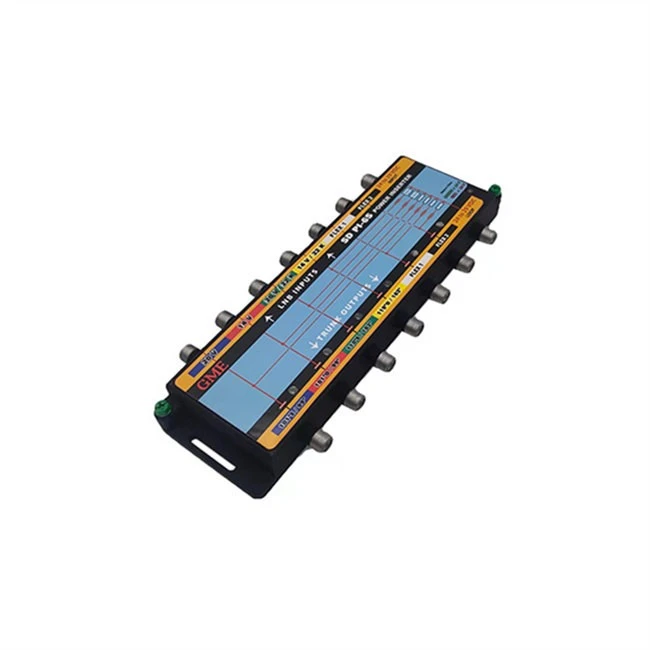

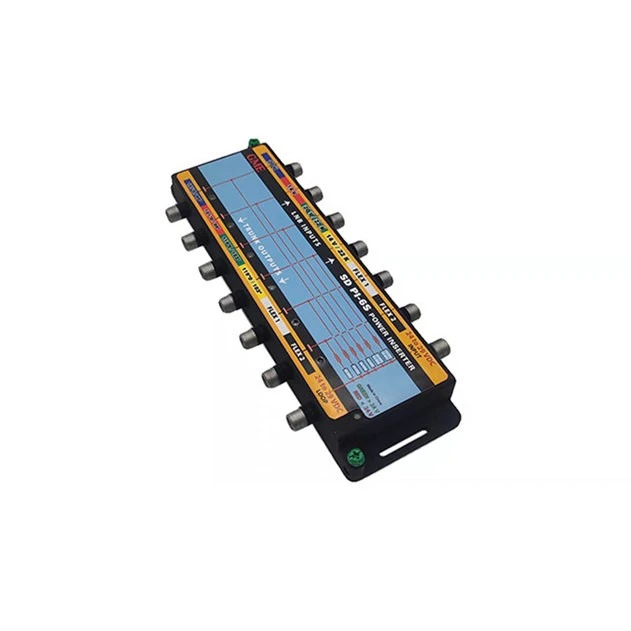

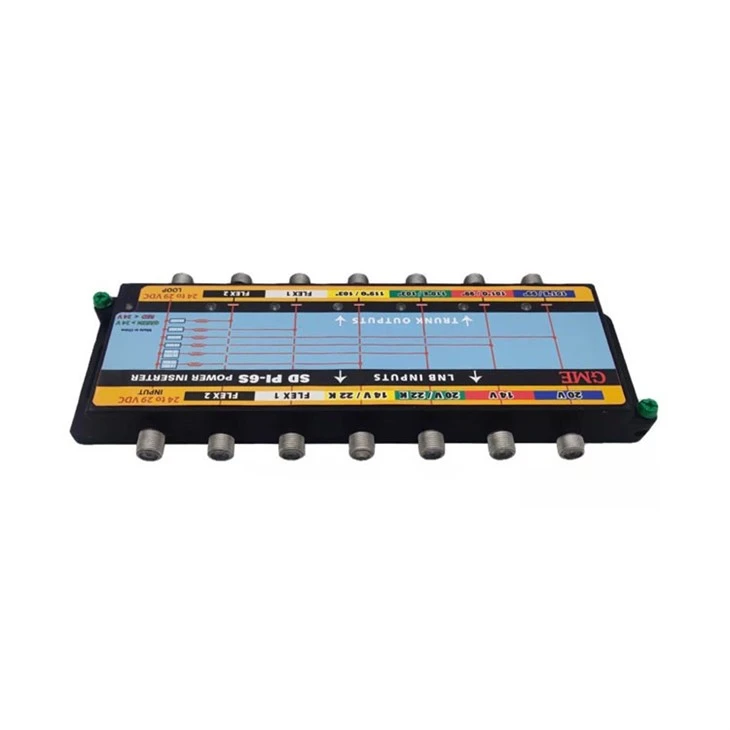

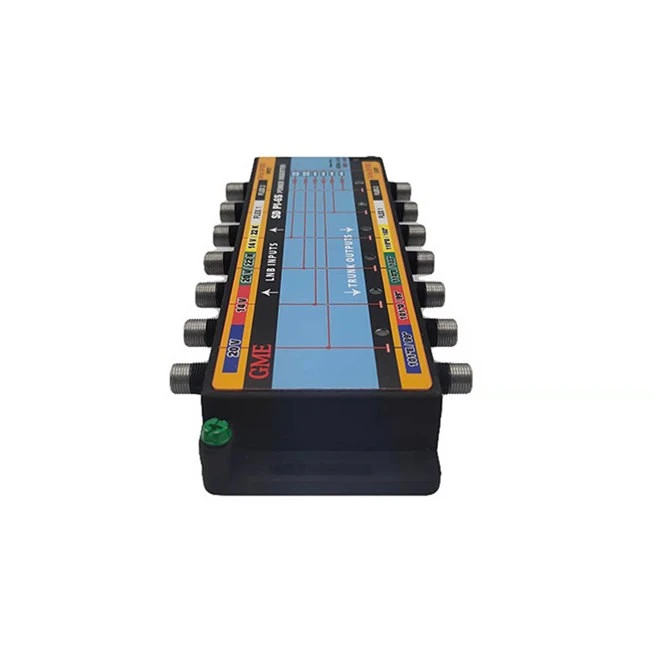

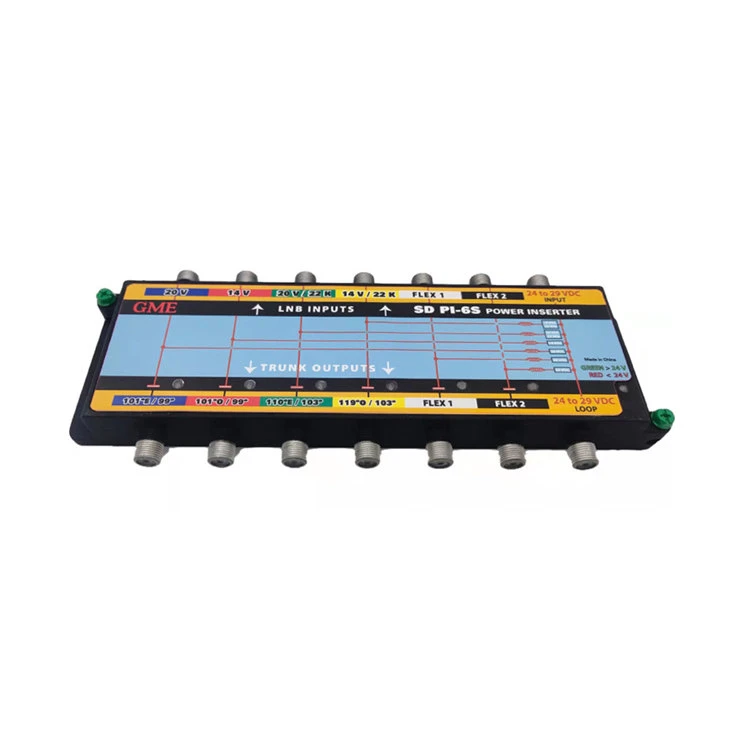

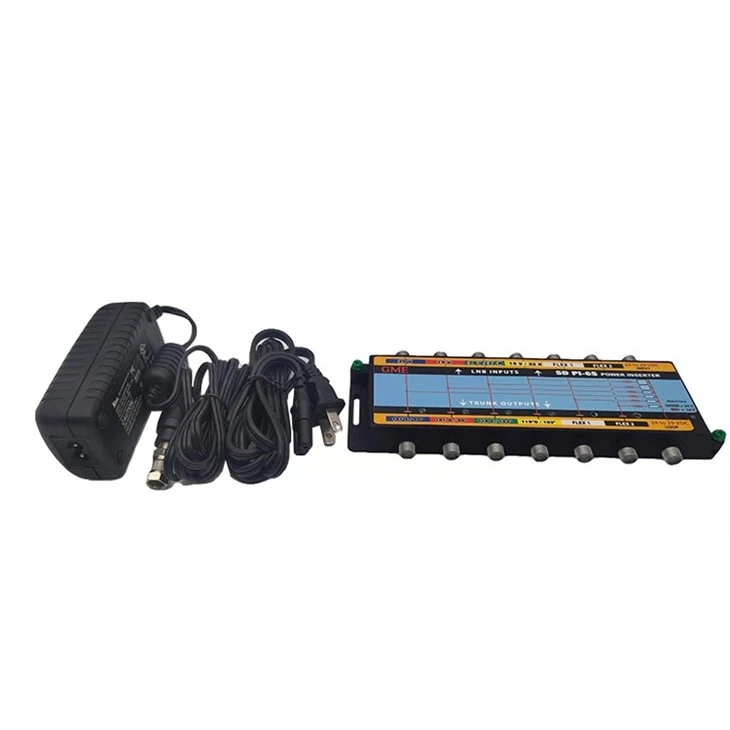

DirecTV Satellite Power Inserter Polarity Locker
Model SDPI6S powers a DIRECTV SL5 LNB, polarity locks plaub lub tso zis tawm thiab muab ob 20 V outputs rau lub hwj chim 95º LNB ntawm DTV66E tais thiab ib tug yav tom ntej polarity. Kab powered amplifiers yuav siv tau los ntawm lub hwj chim inserter. Tag nrho ntawm ob amps ntawm DC yog muaj los ntawm luv luv Circuit Court tiv thaiv fais fab transformer.
Qhov xwm txheej
Cov teeb liab los ntawm DIRECTV® (4) polarity SLSP-F SlimLine® tais nrog SL5 LNB, DTV66E 95º phaj thiab qhov ua tau 6th polarity yog xav tau rau ntau lub keyboards.
Kev daws
Model SD PI-6S powers a DIRECTV® SL5 LNB, polarity locks plaub lub zaub mov tawm thiab muab 20 V FLEX1 thiab 13 V ntawm FLEX2 inputs rau lub zog 95º LNB ntawm DTV66E phaj lossis lwm yam LNBs.
Nta
◆ DIRECTV SL5 Ka / Ku bandwidth 250 txog 2150 MHz
◆ Tsim los ntawm PI-29 lossis PS242000A fais fab adapters
◆ Powers SL5, SL3 thiab Worldview LNBs
◆ Compact case: 1 nti SCTE Indoor F Spacing
◆ Voltage Level Meter ua hauv RED / GREEN
Specification
|
Qhov chaw ntawm Keeb Kwm: Guangdong, Suav |
|||
|
Qauv nab npawb: GDINS-001 (SD PI-6S) |
|||
|
Yam khoom |
TYPICAL |
QCLIMIT |
KEV TIV THAIV |
|
FREQ. RANGE |
|
|
250-2150 MHz |
|
INSERITION LOSS |
|||
|
|
-1.0 dB |
-1.5 dB MAX |
250-2150 MHz |
|
MUAB CAIS NYOB IB LEEG |
|||
|
NROG PORTS |
-40dB |
-35dB MIN |
250-2150 MHz |
|
Rov Los Los |
|
|
|
|
INPUT/OUTPUT |
-12dB |
-10dB MIN |
250-2150 MHz |
|
DC POWER muab cov khoom nkag |
|||
|
PORT #1 (20V 101℃& 99 degree) |
|
20 ± 0.5 VDC |
@50-350 mA |
|
PORT #2 (14V 101℃& 99 degree) |
|
13.5 ± 0.5 VDC |
@50-350 mA |
|
PORT #3 (22KHz & 20V 110℃& 103 degree) |
|
20 ± 0.5 VDC (+22KHz) |
@50-350 mA |
|
PORT #4 (22KHz & 14V 119℃& 103 degree) |
|
13.5 ± 0.5 VDC ({2}}KHz) |
@50-350 mA |
|
PORT #5 (FLEX PORT1) |
|
20 ± 0.5VDC |
@50-350 mA |
|
PORT #6 (FLEX PORT2) |
|
20 ± 0.5VDC |
@50-350 mA |
|
22KHz XOV XWM TSHIAB |
|||
|
FREQ |
|
22 ± 4KHz |
|
|
DUTY CYCLE |
|
±50﹪ |
24.0 VDC |
|
LEVEL |
|
400mVp-p MIN |
24.0 VDC |
|
POWER LED COLOR |
|
RED |
|
|
CEEB TOOM: |
|
Ntsuab |
|
|
POWER SWITCHING |
|
24V-29VDC |
POWER SWITCHING |
|
NPUT |
|
100-240VAC / 50/60Hz |
TXHUA PORTS |
|
OUTPUT |
|
24VDC / 2.08A |
TXHUA PORTS |
|
IMPEDANCE |
|
75 HMO |
(6) SCTE INDOOR F |
|
CONNECTOR |
|
"F"HOM FEMALE |
|
|
QHOV CHAW UA HAUJ LWM / OUTPU PORTS |
|
|
|
Tuam txhab Profile

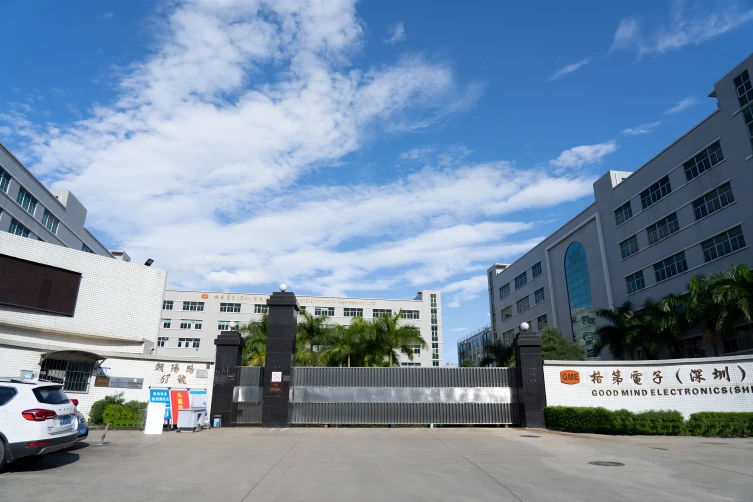

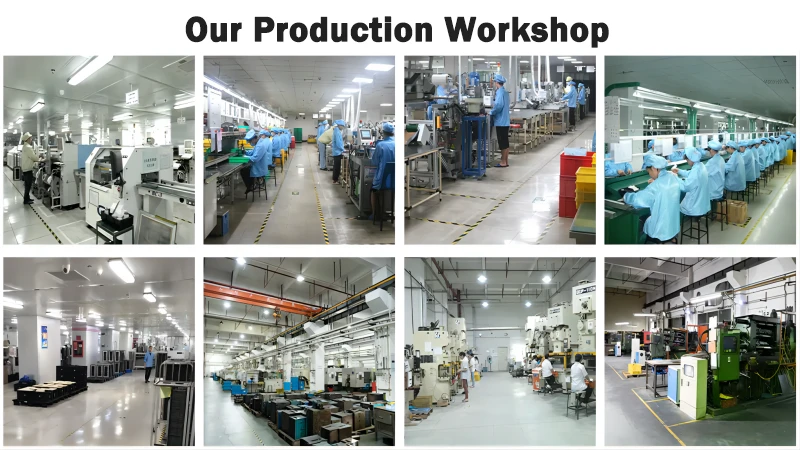

Goodmind Electronics (Shenzhen) Co., Ltd. yog tsim nyob rau hauv 1992 nrog ib tug sau npe peev ntawm 18 lab US dollars. Nws tus kheej lub Hoobkas nyob hauv Shenzhen thiab muaj ntau tshaj 1000 tus neeg ua haujlwm. Nws yog lub tuam txhab ua haujlwm siab -tech enterprise integrating R&D, ntau lawm, muag thiab kev pabcuam, Lub tuam txhab tshwj xeeb hauv Kav hlau txais xov / Network Kev sib txuas lus / Bluetooth / AV Accessories / Smart Home / Car Accessories kev tsim lub tuam txhab. Lub Hoobkas yog vertically integrated. Lub Hoobkas muaj kev ua yas, hlau stamping, zinc tuag casting, SMT, DIP thiab Assembly center. Lub tuam txhab muaj lub zog nyiaj txiag muaj zog, pab pawg R&D kws tshaj lij, cov cuab yeej tsim khoom zoo tshaj plaws thiab kev tsim khoom lag luam, thiab mob siab rau tsim cov khoom zoo rau cov neeg siv khoom.
Satellite Power Inserter ua haujlwm li cas?
Lub Satellite Power Inserter txuas nrog hauv kab nruab nrab ntawm lub receiver satellite thiab satellite tais. Nws tau txais lub zog los ntawm satellite receiver los ntawm coaxial cable thiab xa lub zog no mus rau LNB los ntawm tib lub cable. Lub hwj chim no yog qhov tseem ceeb rau LNB kom nthuav dav thiab hloov cov xov tooj cua satellite tau txais mus rau hauv daim ntawv siv tau rau tus txais.
Lub hom phiaj ntawm Satellite Power Inserter yog dab tsi?
Lub hom phiaj tseem ceeb ntawm Satellite Power Inserter yog muab lub zog rau LNB, uas tsim nyog rau nws ua haujlwm. Yog tsis muaj lub hwj chim muab los ntawm lub inserter, lub LNB yuav tsis muaj peev xwm ua kom lub zog tsis muaj zog uas tau txais los ntawm lub phaj satellite.
Kuv yuav nruab Satellite Power Inserter li cas?
Kev teeb tsa ntawm Satellite Power Inserter feem ntau yog ncaj nraim. Ua ntej, disconnect tus coaxial cable los ntawm satellite receiver. Tom qab ntawd, txuas ib kawg ntawm lub coaxial cable mus rau qhov chaw nres nkoj ntawm lub inserter thiab lwm qhov kawg mus rau qhov chaw tso zis ntawm lub inserter sau "rau LNB" lossis zoo sib xws. Thaum kawg, txuas lub hwj chim ntxig lub hwj chim rau lub qhov hluav taws xob thiab xyuas kom meej tias lub hwj huam hluav taws xob tau txais lub zog.
FAQ
Q: Kuv puas tuaj yeem siv cov Satellite Power Inserter nrog kuv lub satellite?
A: Nws yog ib qho tseem ceeb uas yuav tau siv lub Satellite Power Inserter uas yog sib xws nrog koj lub satellite system thiab LNB. Xyuas kom meej tias lub inserter muab qhov tseeb voltage thiab tam sim no xav tau los ntawm koj LNB, raws li kev siv ib tug incompatible inserter yuav ua rau lub LNB puas los yog ua rau cov teeb liab tsis zoo.
Q: Puas tuaj yeem siv Satellite Power Inserter rau sab nraum zoov?
A: Thaum Satellite Power Inserters feem ntau yog tsim los siv sab hauv tsev, muaj cov qauv tsis muaj huab cua uas tuaj yeem siv sab nraum zoov. Yog tias koj xav tau nruab lub ntxig ntxig rau sab nraum zoov, xyuas kom meej tias koj siv cov ntaub thaiv huab cua los yog npog los tiv thaiv nws ntawm cov khoom thiab tiv thaiv dej puas.
Q: Kuv tuaj yeem yuav lub Satellite Power Inserter nyob qhov twg?
A: Satellite Power Inserters muaj rau kev yuav khoom los ntawm ntau lub khw muag khoom hluav taws xob, khw hauv online, thiab cov chaw muag khoom siv satellite. Nco ntsoov xaiv tus neeg muag khoom muaj npe nrov thiab xyuas kom meej tias cov khoom ntxig tau sib haum nrog koj lub satellite ua ntej ua kev yuav khoom.
