Kev piav qhia

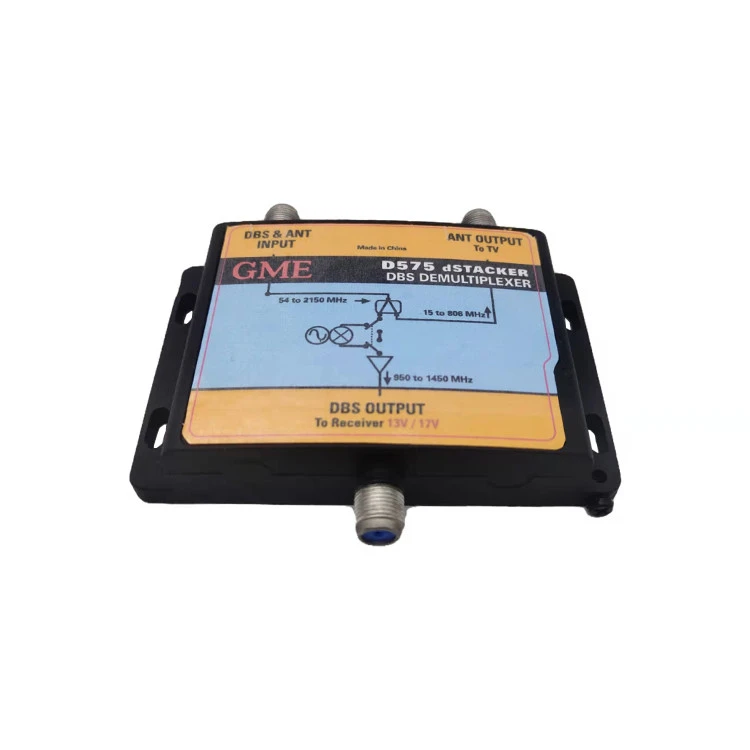

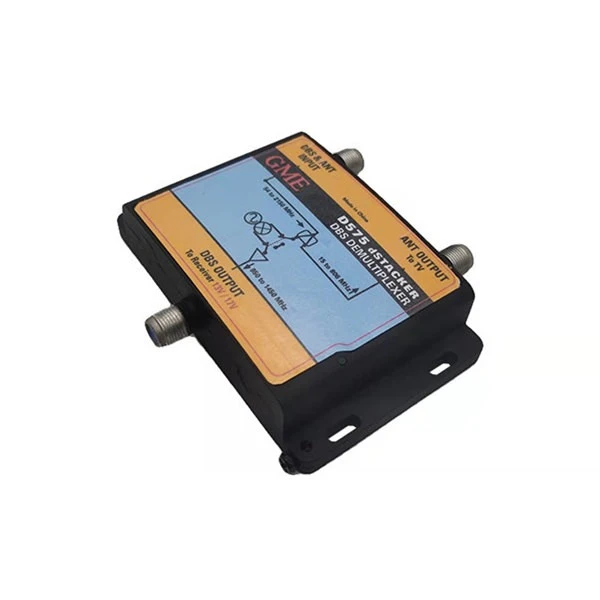

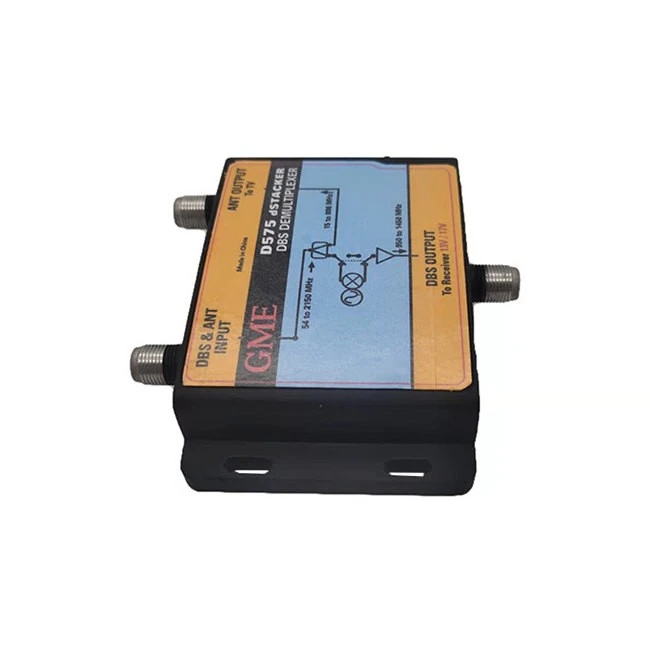

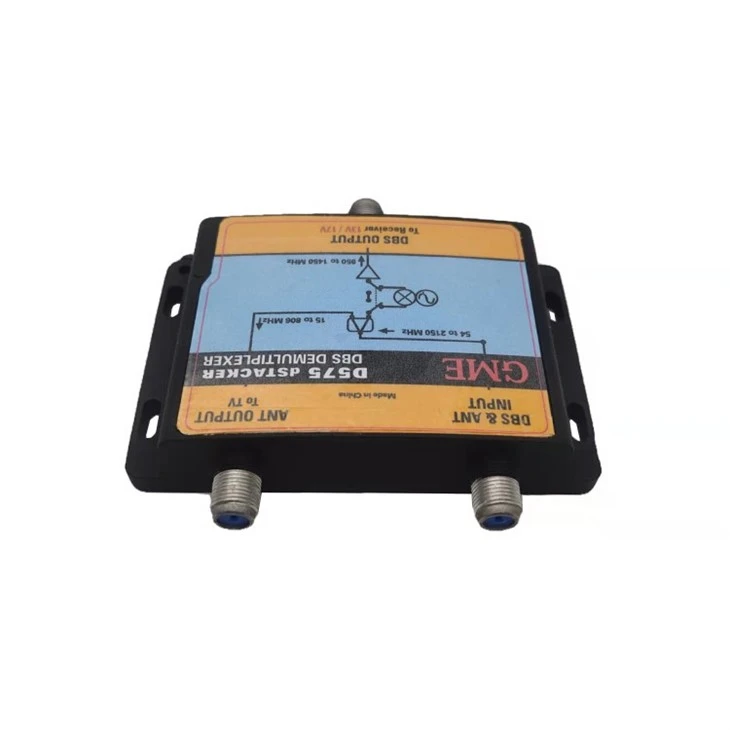

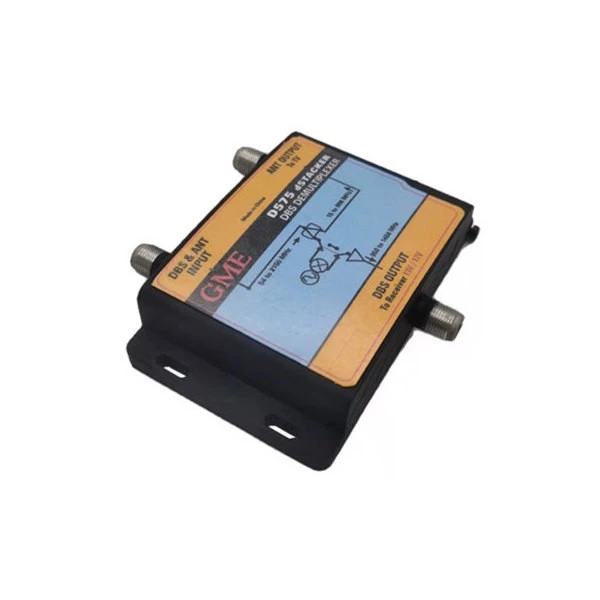

Sab hauv / Sab nraum zoov 54 txog 2150 MHz de-stacker thiab tawm -air diplexer.
Qhov xwm txheej
DBS Demultiplexer 950 txog 1450 MHz polarities yuav tsum tau nyob ntawm ntau qhov chaw txuas ntawm ib qho coax cable. Cov neeg txais khoom thaum kawg ntawm coax yuav tsum xaiv ib qho ntawm ob qho ntawm 950 txog 1450 MHz band.
Kev daws

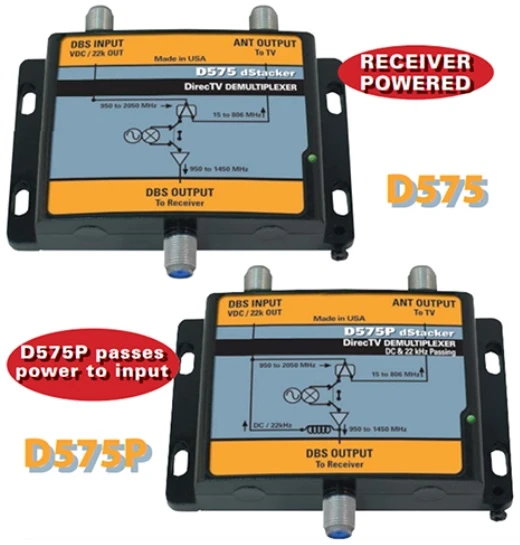

Cov qauv D575 & D575P xaiv ntawm ob lub polarities rau cov zis hauv 950 txog 1450 MHz band raws li kev tswj qhov hluav taws xob los ntawm lub receiver.
Specification
|
Qhov chaw ntawm Keeb Kwm: Guangdong, Suav |
|||
|
Tus Qauv Zauv: GDDEM-001 (D575) |
|||
|
Yam khoom |
TYPICAL |
QC LIMIT |
KEV TIV THAIV |
|
Freq. Ntau yam |
|||
|
DBS Input |
|
|
15-2150 MHz |
|
ANT tso zis |
|
|
15-800 MHz |
|
DBS UAS |
|
|
950-1450 MHz |
|
Insertion GAIN (LOS) |
|||
|
DBS Input rau ANT Output |
-2 dB |
-3dB Max |
15-800 MHz |
|
DBS Input rau DBS Output |
+6dB |
+5dB Min |
950-1450 MHz |
|
Hla Band Flatness |
|||
|
|
0.2dB ua |
0.5dB Max |
Ib qho 24MHz Band |
|
Rov Los Los |
|||
|
DBS Input |
-10dB |
-9dB Min |
950-2025 MHz |
|
ANT tso zis |
-12dB |
-11dB Min |
15-750 MHz |
|
DBS tso zis |
-10dB |
-9dB Min |
950-1450 MHz |
|
Kev tsis lees paub |
|||
|
DBS Input rau DBS Output |
-27 dB |
-25dB Min |
1695-1700 MHz |
|
|
-22 dB |
-20dB Min |
1701-2025 MHz |
|
Kev ua haujlwm ib puag ncig |
|
Sab hauv / Sab nraum zoov |
|
|
Ambient kub |
|
-30℃rau +70 degree |
|
|
Cov khoom siv hluav taws xob |
|
11 rau 18VDC |
|
|
Txuas |
|
"F" Hom Poj Niam |
|
|
Impedance |
|
7 5 awm |
|
