Kev piav qhia

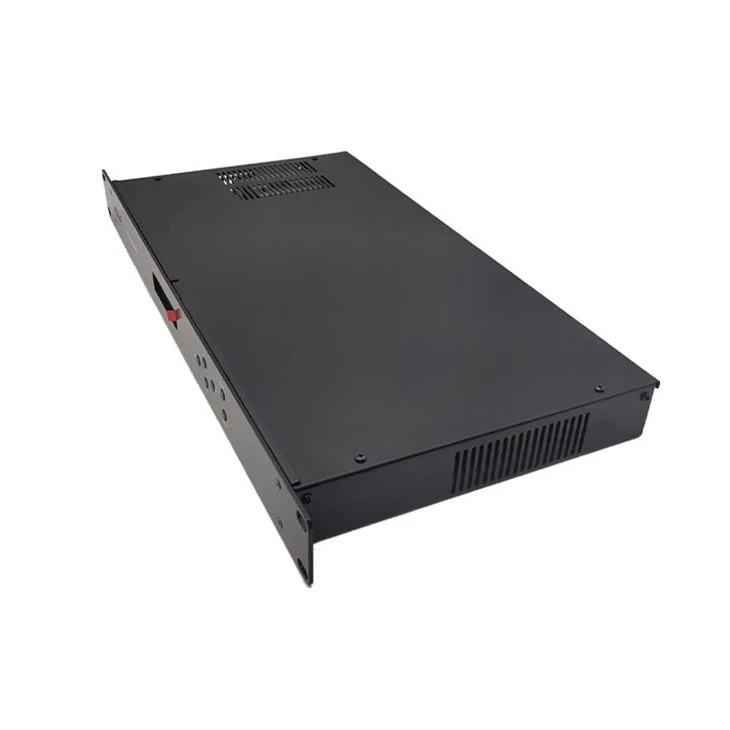

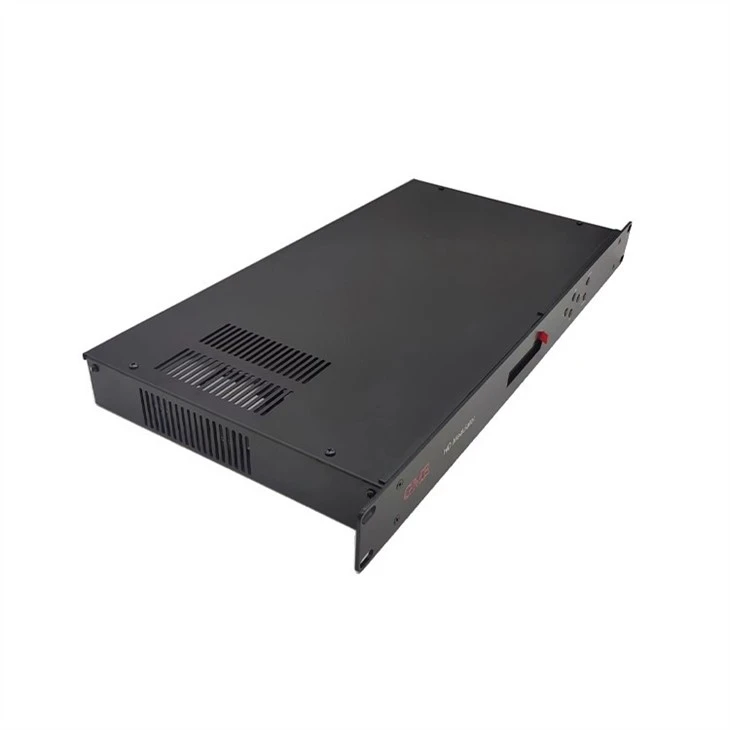

GTM-8608Q digital modulator muab quad HDMI rau DVB-T RF system. Nws yog tsim los rau cov qauv tshaj tawm digital hauv DVB-T HD. Lub modulator ua haujlwm, channel thiab RF teeb tsa tuaj yeem teeb tsa los ntawm LCD pem hauv ntej vaj huam sib luag lossis los ntawm LAN kev sib txuas los ntawm tus qauv browser.

3 CH HDMI TO DVB-T Rf Modulator Nrog 3 HDMI inputs thiab H.264 AVC encoding, GTM-8608Q yog qhov tsim nyog rau MDU lossis kev siv hauv TV tshaj tawm hauv zos.

Specification

Qhov chaw ntawm Keeb Kwm: Guangdong, Suav
Tus Qauv Zauv: GDM-030 (GTM-8608Q)
TSEEM CEEB
Input Channel	3
Video	HDMI 1.4
Video System	480i/p, 576i/p, 720p, 1080i/p
Suab	HDMI
COMPRESSION
Video	H.264 Lub hauv paus Profile Qib 4.0
Video daws teeb meem	1080p 25/30 Max
Video ntsis tus nqi	6.5 Mbps Max.
Suab	MPEG-2 / AAC
Kho tau teb	Kev Pabcuam Lub Npe, Lub Npe Network, TS ID, Network ID, Original NET ID, LCN, NIT Version, Cov Ntaub Ntawv Tus Kheej, Lub Tebchaws
MODULATION
Txuj	DVBT (ETSI EN 300 744)
Lub hnub qub	64 QAM
Guard Interval	1/32
Tus lej Code	7/8
FFT Carrier Hom	8K
Bandwidth	6MHz, 7MHz, 8MHz
DIMENSION	19" x 9" x 1.75"
RF tawm
Hom	1 Multiplex DVB-T nrog cov kev pabcuam digital TV
Ntau zaus	177 ~ 858 MHz
MER	30 dB Min.
Cov zis theem	95dv wb
RF Qib Adj	0 dB ~ -30dB
Kauj ruam attenuation	1 dB ib kauj ruam
Kev sib txuas
HDMI hauv	HDMI hauv
RF tso zis	1 DVBT RF tso zis
RF nkag	RF sib txuas
LAN	Web Management
POWER SUPPLY	AC 100 ~ 240V 50/60Hz
DISPLAY	LCD vaj huam sib luag @ 2 x 16 cim
ENVIRONMENTAL rau kev ua haujlwm
Kub	5℃- 40 degree
txheeb ze humidity	80% @ 30 degree
CONFIGURATION
6 Cov yuam sij hauv zos nyob rau pem hauv ntej vaj huam sib luag
MENU Key	Xaiv cov ntawv qhia zaub mov.
ENTER Key	Xaiv qhov parameter, lossis ntawv qhia zaub mov.
L / R Cov Ntsiab Lus	Tsiv zaub mov, los yog cim.
Up / down	Xaiv tus nqi ntawm daim duab, lossis daim teb.
