Kev piav qhia
GTM-860E-4K module tuaj yeem tsim lub teeb liab hauv DVB-T hom (Digital Terrestrial TV) los ntawm HDMI cov tswv yim.

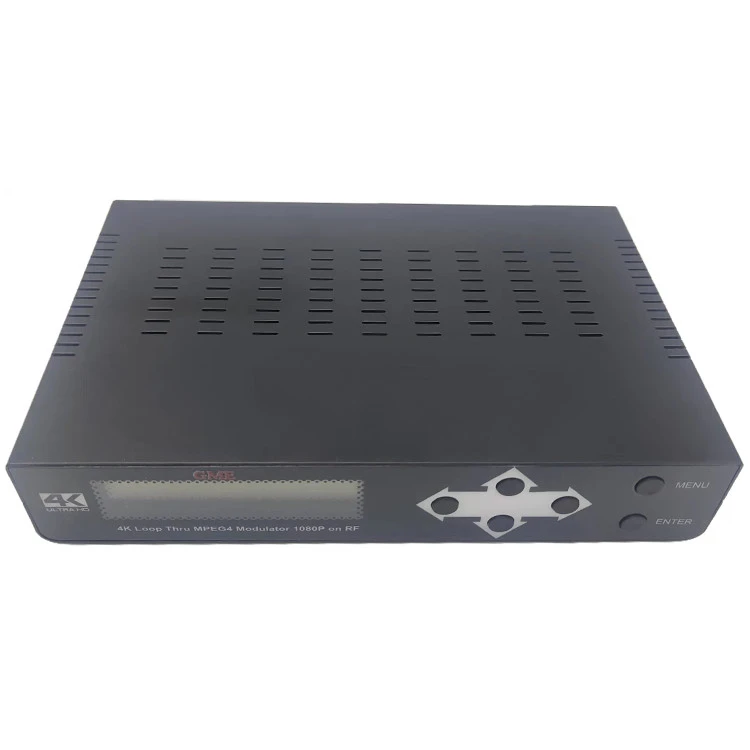

4K HD DVB-T Modulator yog H264 encoding, DVB-T modulation integrated ntaus ntawv los hloov.
4K Pass FHD HDMI teeb liab rau DVB-T RF tawm. Nws tau nruab nrog ib channel HDMI input, ib HDMI tawm (4K dhau-txawm yog) thiab ib DVB-T RF tawm.
Lub GTM-860E-4K module kho tus nqi compression rau qhov muaj bandwidth, siv cov kev hloov pauv DVB-T tsis.
Specification
|
Qhov chaw ntawm Keeb Kwm: Guangdong, Suav |
|||
|
Tus Qauv Zauv: GDM-002 (GTM-860E-4K) |
|||
|
Yam khoom |
TYPICAL |
QC LIMIT |
KEV TIV THAIV |
|
1. RF tso zis |
|||
|
Txuas |
Poj niam HOM-F |
|
|
|
Impedance |
7 5 awm |
|
|
|
Tso zis ntau zaus |
Txc5-CH74 |
177.5 MHz ~ 851.5 MHz |
|
|
Tsawg Band CH5 ~ CH12 |
177.5 MHz ~ 226.5 MHz |
|
|
|
Siab Band CH20 ~ CH74 |
473.5MHz ~ 851.5MHz |
|
|
|
RF tawm Level |
97db wb |
97dBµV ± 5dBµV |
|
|
RF Tawm Qib ADJ |
|
0dBm ~ -30dBm |
|
|
MER |
|
>30dB ib |
|
|
2. RF nkag |
|||
|
Txuas |
Poj niam HOM-F |
|
|
|
Impedance |
7 5 awm |
|
|
|
FREQ. RANGE |
|
|
50 ~ 950 MHz |
|
INSERITION LOSS |
- 4.8dB |
- 4.8 dB MAX. |
|
|
3. HDMI input |
|||
|
Txuas |
HDMI Jack |
|
|
|
Tau tshaj hom |
|
Pib / 480I / 480P / 576I / 576P / 720P / 1080I / 1080P / 4K |
|
|
4. HDMI tso zis |
|||
|
Txuas |
HDMI Jack |
|
|
|
Xav tau cov duab thiab suab rau export |
|
Yuav tsis muaj mosaic thiab lub suab yog distorted |
|
|
Tau tshaj hom |
|
Pib / 480I / 480P / 576I / 576P / 720P / 1080I / 1080P / 4K |
|
|

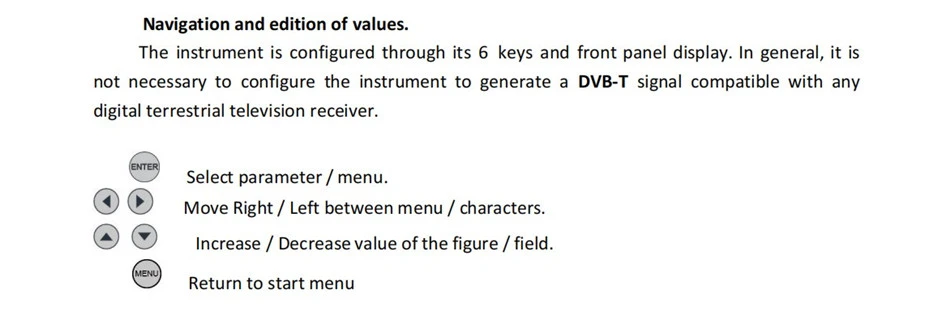

5. Pem hauv ntej vaj huam sib luag muaj nuj nqi |
|||
|
Khawm
|
|
MENU |
|
|
|
ENTER |
|
|
|
|
▲ UA |
|
|
|
|
▼ Nyem |
|
|
|
|
◀ Sab laug |
|
|
|
|
▶ Yog |
|
|
|
Zaub |
|
LCD |
|
|
6. USB 2.0 |
|||
|
Txuas |
USB 2.0 jack |
|
|
|
Teeb liab |
|
|
Firmware Update |
|
7. Cov ntaub ntawv dav dav |
|||
|
Software |
|
Software Version |
|
|
Cov khoom siv hluav taws xob |
|
AC100V ~ 240V |
|
|
Kev siv hluav taws xob Max |
|
10W |
10W Max hauv AC input |
|
Ua haujlwm kub |
|
+5℃rau + 40 degree |
|
|
Cia Kub |
|
-20℃rau + 65 degree |
|
|
Ib puag ncig |
|||
|
Kub |
|
0℃rau + 40 degree |
|
|
Cov av noo |
|
40RH rau 90RH |
|
|
Mechanical Specification |
|||
|
Qhov ntev |
|
172 * 126 * 32mm |
|
|
Qhov hnyav |
|
0.6Kg kwv |
|

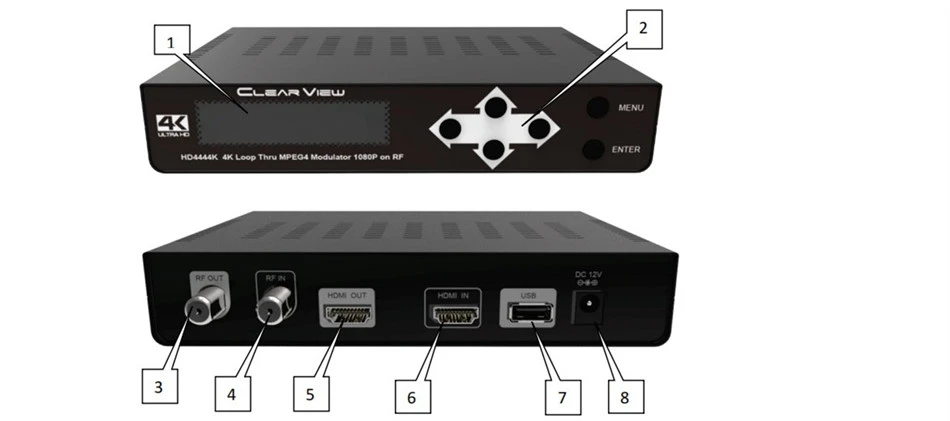

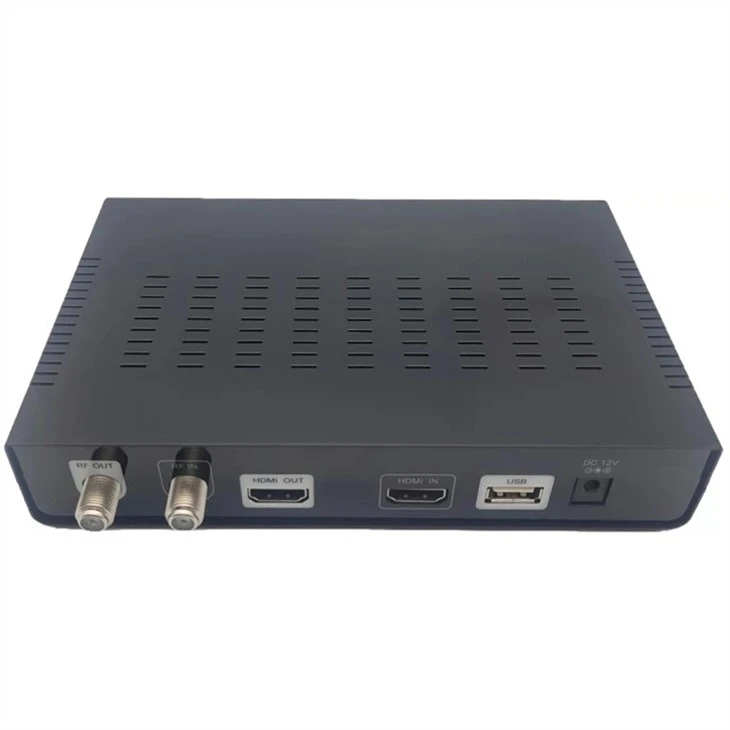

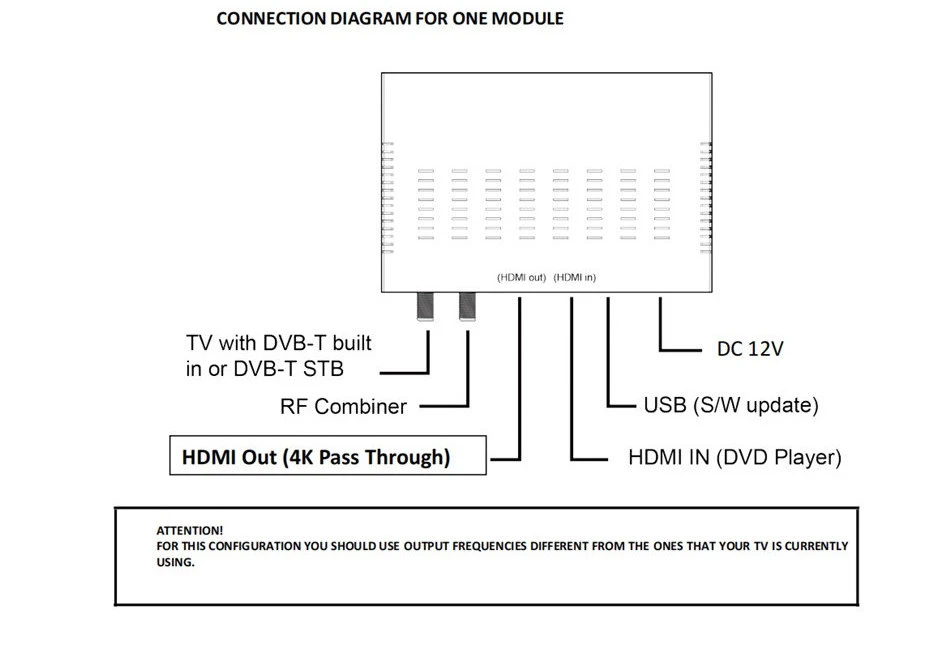

Kev piav qhia ntawm Kev Tswj thiab Cheeb Tsam
1. - Zaub (LCD)
2. - Cov ntawv qhia zaub mov navigation keys
3. - TV COFDM Output
4. - RF Combiner
5. - 4K Hla dhau
6. - HDMI nyob rau hauv
7. - USB: S/W hloov tshiab

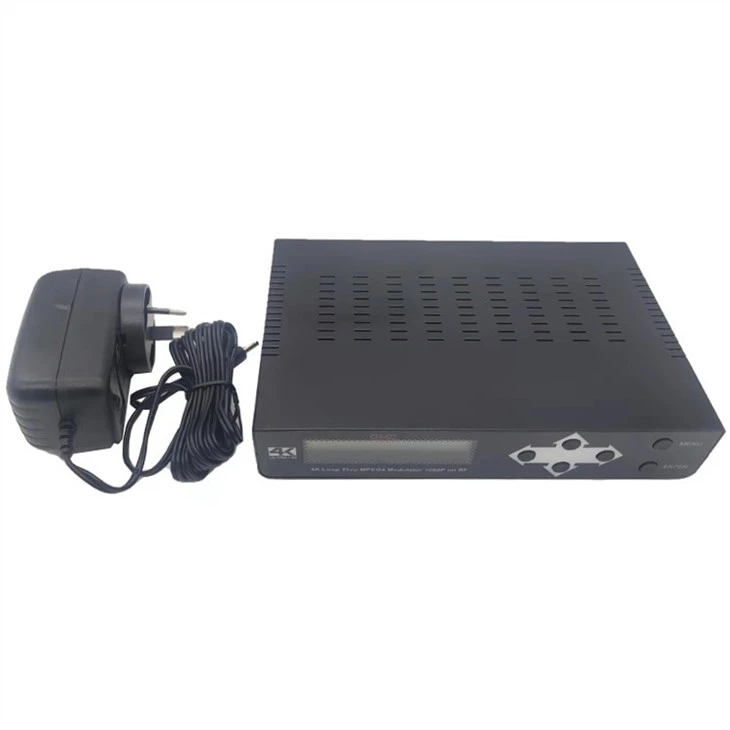

8. - Input 12V DC fais fab adapter (nrog)
