Kev piav qhia
GTM-8608B module tuaj yeem tsim lub teeb liab hauv DVB-T hom (Digital Terrestrial TV) los ntawm HDMI cov tswv yim.

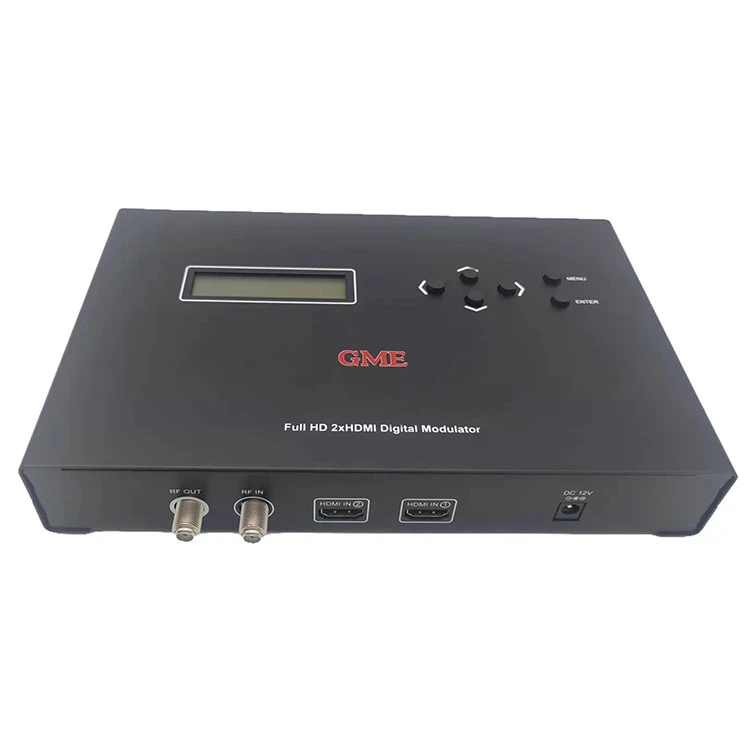

Full HD 2 HDMI Digital Modulator GTM-8608B is MPEG-4 encoding, DVB-T modulation integrated device to convert HDMI signal to DVB-T RF out.
Lub GTM-8608B module kho tus nqi compression mus rau qhov muaj bandwidth, siv cov modulation DVB-T tsis.
Specification
|
Qhov chaw ntawm Keeb Kwm: Guangdong, Suav |
|||
|
Tus Qauv Zauv: GDM-011 (GTM-8608B) |
|||
|
Yam khoom |
TYPICAL |
QC LIMIT |
KEV TIV THAIV |
|
1. RF tso zis |
|||
|
Txuas |
Poj niam HOM-F |
|
|
|
Impedance |
7 5 awm |
|
|
|
Tso zis ntau zaus |
Txc5-CH69 |
177.5MHz ~ 858 MHz |
|
|
Tsawg Band CH5 ~ CH12 |
177.5MHz ~ 226.5MHz |
|
|
|
Siab Band CH21 ~ CH69 |
474 MHz ~ 858 MHz |
|
|
|
RF tawm Level |
97db wb |
97dBµV ± 5dBµV |
|
|
RF zog Level ADJ |
|
70 dBµV ~ 100 dBµV |
|
|
MER |
|
>30dB ib |
|
|
2. RF nkag |
|||
|
Txuas |
Poj niam HOM-F |
|
|
|
Impedance |
7 5 awm |
|
|
|
FREQ. RANGE |
|
|
50 ~ 950 MHz |
|
INSERITION LOSS |
- 4.8dB |
- 4.8 dB MAX. |
|
|
3. HDMI input |
|||
|
Txuas |
HDMI Jack |
|
|
|
Tau tshaj hom |
|
Pib / 480I / 480P / 576I / 576P / 720P / 1080I / 1080P |
|
|
4. Qhov System |
|||
|
Local Interface |
LCD + tswj cov nyees khawm |
|
|
|
Kev tswj chaw taws teeb |
|
Web Management |
|
|
Ethernet chaw nres nkoj |
|
RJ45, 100 M |
|
|

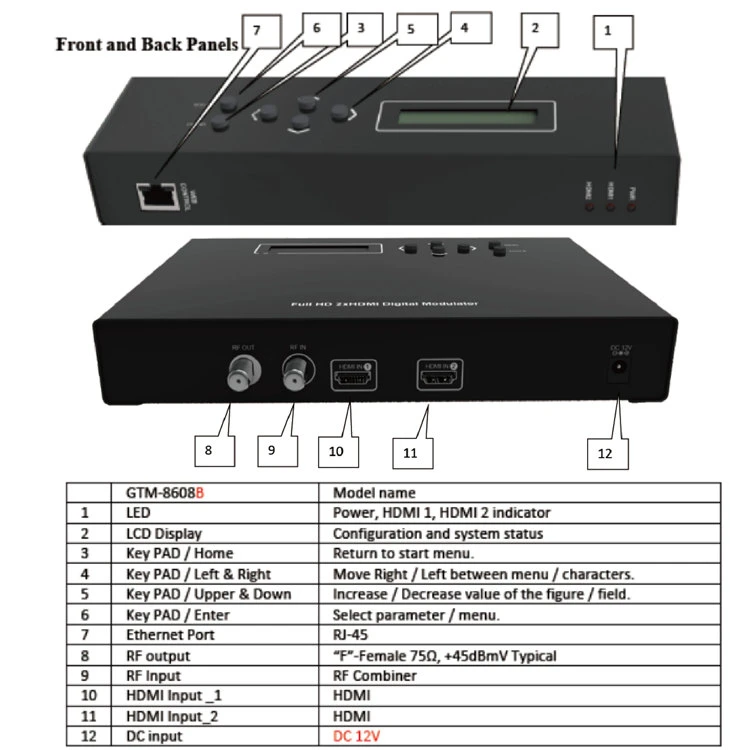

5. Pem hauv ntej vaj huam sib luag muaj nuj nqi |
|||
|
Khawm |
|
MENU |
|
|
|
ENTER |
|
|
|
|
▲ UA |
|
|
|
|
▼ Nyem |
|
|
|
|
◀ Sab laug |
|
|
|
|
▶ Yog |
|
|
|
Zaub |
|
LCD |
|
|
6. Cov ntaub ntawv dav dav |
|||
|
Software |
|
Software Version |
|
|
Cov khoom siv hluav taws xob |
|
AC100V ~ 240V |
|
|
Kev siv hluav taws xob Max |
|
24W |
24W Max hauv AC input |
|
Ua haujlwm kub |
|
+5℃rau + 40 degree |
|
|
Cia Kub |
|
-20℃rau + 65 degree |
|
|
Ib puag ncig |
|||
|
Kub |
|
0℃rau + 40 degree |
|
|
Cov av noo |
|
40RH rau 90RH |
|
|
Mechanical Specification |
|||
|
Qhov ntev |
|
266 * 162 * 40mm |
|
|
Qhov hnyav |
|
1 078g kb |
|
FAQ
Q: Koj puas tuaj yeem tsim qhov kev txiav txim nrog tus neeg siv khoom lub npe?
A: Yog lawm, tau kawg. OEM & ODM kev pabcuam yog sov so.
Q: Koj tswj cov khoom zoo li cas?
A: Zoo ua ntej. Tag nrho peb cov khoom raug xaiv raug kuaj xyuas ua ntej ntim thiab xa khoom.
Q: Koj yuav xa cov khoom li cas?
A: Peb feem ntau thauj los ntawm hiav txwv lossis huab cua.
Q: Koj lub lag luam loj yog dab tsi?
A: Tebchaws Europe, North America, South America, Middle East, thiab lwm yam.
