Kev piav qhia

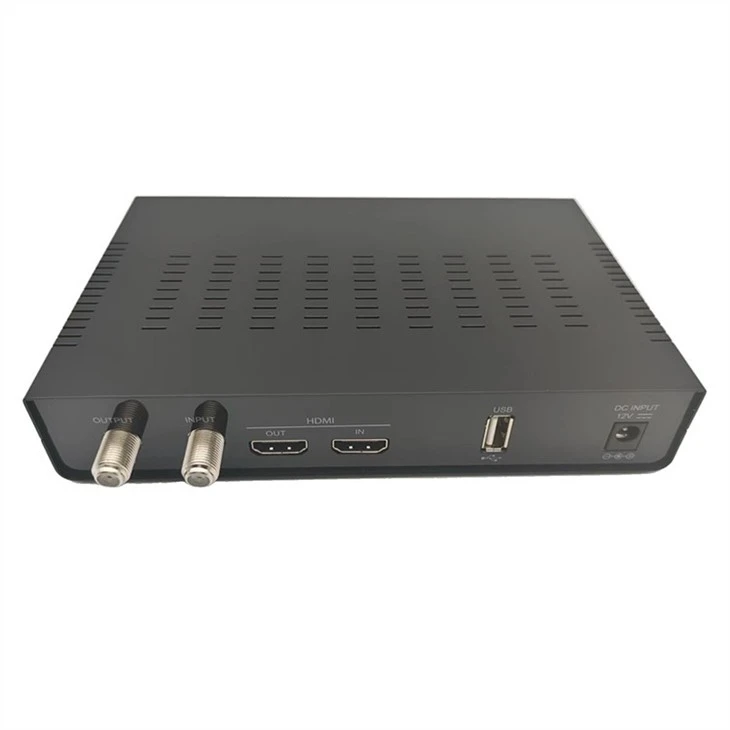

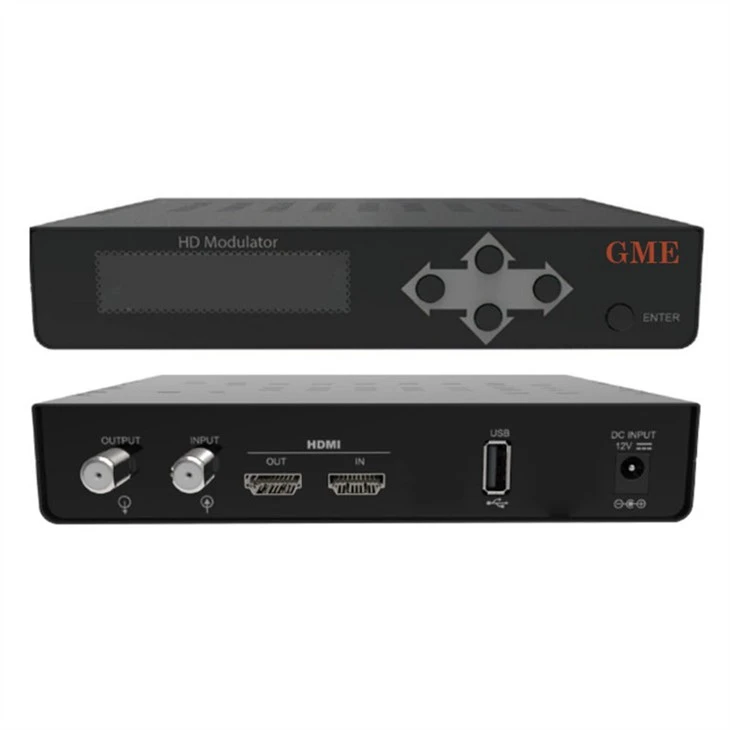

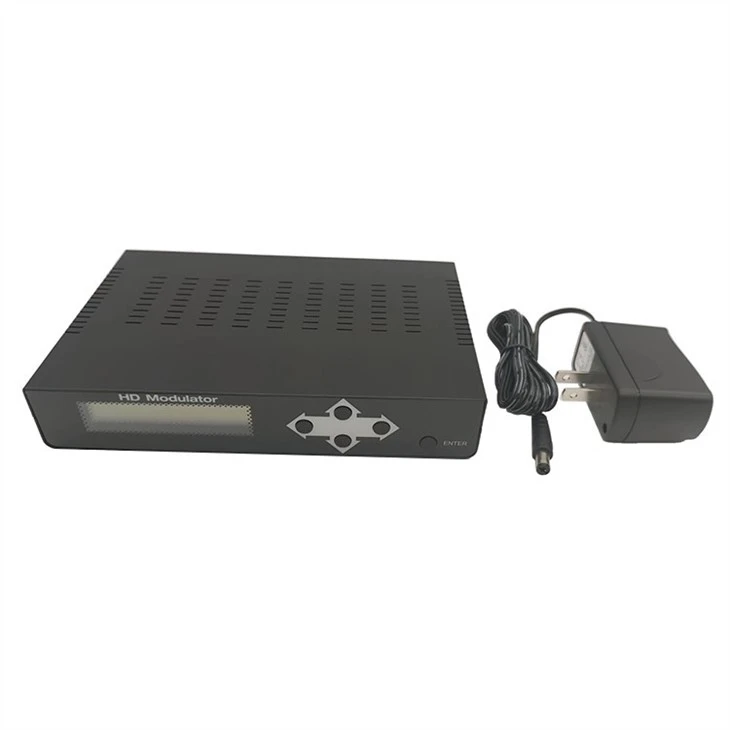

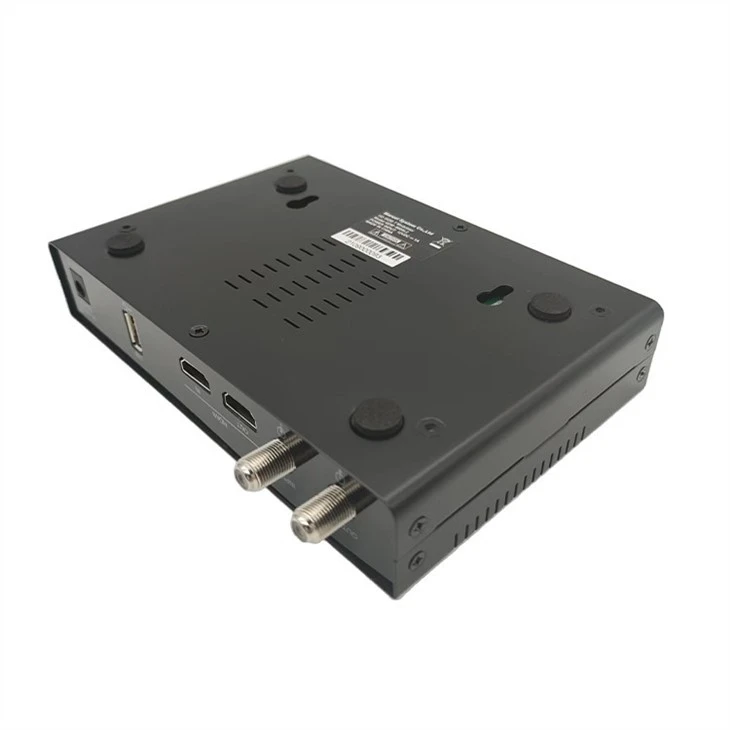

MPEG-2 HD encoder modulator no yog tsim los rau MPEG tshwj xeeb-2 daim ntawv thov kev lag luam. HD 1CH ISDB-T Modulator Nrog built-in MPEG-2 Full HD encoder, lub encoder modulator no haum rau ntau daim ntawv thov xws li tsev so, tsev kawm ntawv, motels thiab MDUs.
Specification
|
Qhov chaw ntawm Keeb Kwm: Guangdong, Suav |
|||
|
Tus Qauv Zauv: GDM-024 (GDM-860AL2) |
|||
|
Yam khoom |
TYPICAL |
QC LIMIT |
KEV TIV THAIV |
|
1. Tshooj lus encoding |
|||
|
Video |
|
|
|
|
Encoding |
MPEG 2 |
|
MPEG-2 MP@HL |
|
Tswv yim |
HDMI |
|
|
|
Tus nqi qis |
|
18 Mbps Max |
|
|
Kev daws teeb meem |
|
1080p 25/30 Max |
Qhov siab: 1080p |
|
Suab |
|
|
|
|
Encoding |
MPEG2/AAC/AC3 |
|
|
|
Tus nqi piv txwv |
|
48 KHz |
|
|
Tus nqi qis |
|
128 kbps |
|
|
2. ISDB-T Modulator |
|||
|
Txuj |
|
|
ARIB STD-B31 |
|
FFT hom |
2K,4K,8K |
|
|
|
Bandwidth |
6M |
|
|
|
Lub hnub qub |
QPSK, 16 QAM, 64 QAM |
|
|
|
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
|
|
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
|
|
|
MER |
Ntau dua lossis sib npaug li 30dB |
|
|
|
RF zaus |
93.14 - 803.14 MHz |
|
|
|
INSERITION LOSS |
-3dB |
-4.8dB Max |
RF hauv RF tawm |
|
RF tso zis theem |
90dBm wb |
85dBµV Min |
|
|
RF Qib Adj |
|
0dB ~ -26dB |
|
|
Kauj ruam attenuation |
|
1 dB ib kauj ruam |
|
|
3. Qhov System |
|||
|
Local Interface |
LCD + tswj cov nyees khawm |
|
|
|
HDMI OUT |
|
HDMI hla dhau |
|
|
USB |
|
S/W hloov tshiab |
|
|
4. General |
|||
|
Fais fab mov |
|
AC tswv yim: 100V ~ 240V 50/60Hz |
|
|
Kev ua haujlwm kub |
|
5℃- 40 degree |
|
|
txheeb ze humidity |
|
80% @ 30 degree |
|
|
Qhov ntev |
|
117 * 114 * 32mm |
|
|
Qhov hnyav |
|
0.5 Kg |
|
FAQ
Q: Koj puas tuaj yeem tsim qhov kev txiav txim nrog tus neeg siv khoom lub npe?
A: Yog lawm, tau kawg. OEM & ODM kev pabcuam yog sov so.
Q: Koj tswj cov khoom zoo li cas?
A: Zoo ua ntej. Tag nrho peb cov khoom raug xaiv raug kuaj xyuas ua ntej ntim thiab xa khoom.
Q: Koj yuav xa cov khoom li cas?
A: Peb feem ntau thauj los ntawm hiav txwv lossis huab cua.
Q: Koj lub lag luam loj yog dab tsi?
A: Tebchaws Europe, North America, South America, Middle East, thiab lwm yam.
Hot Tags: hd 1ch isdb-t modulator, Tuam Tshoj hd 1ch isdb-t modulator manufacturers, lwm tus neeg, Hoobkas
