Kev piav qhia

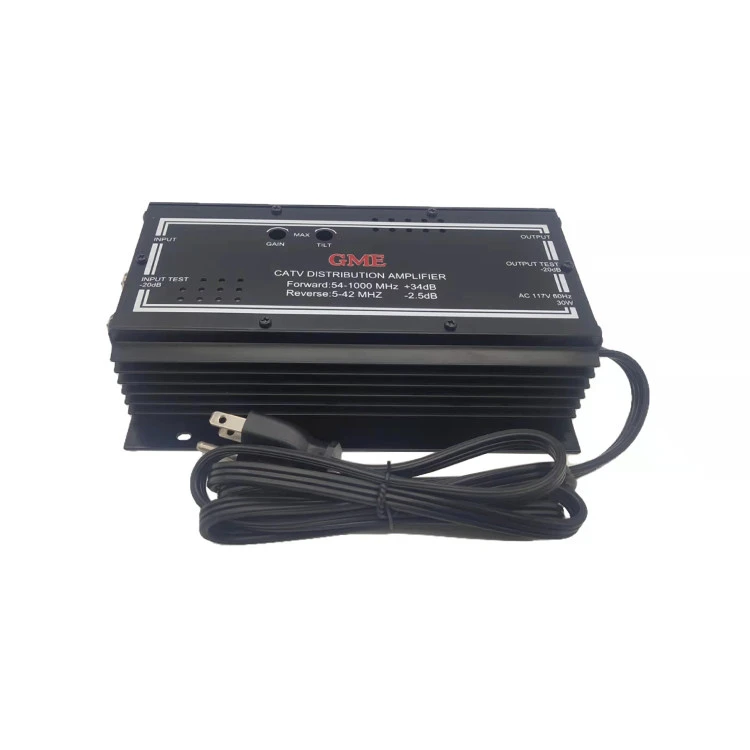

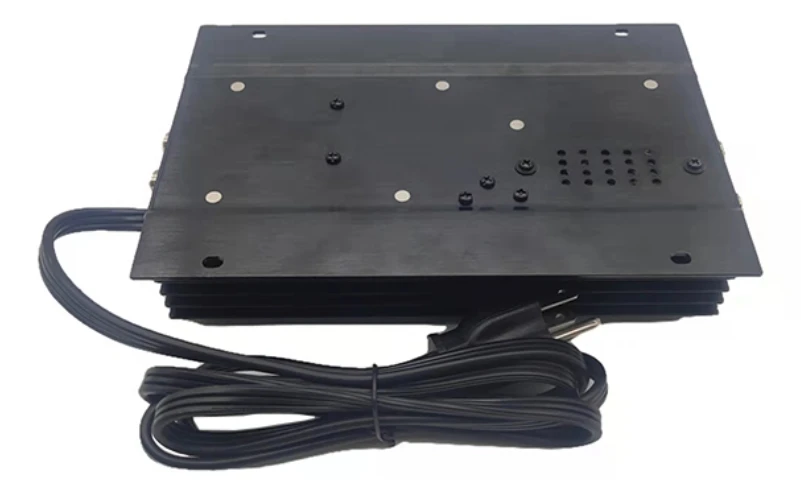

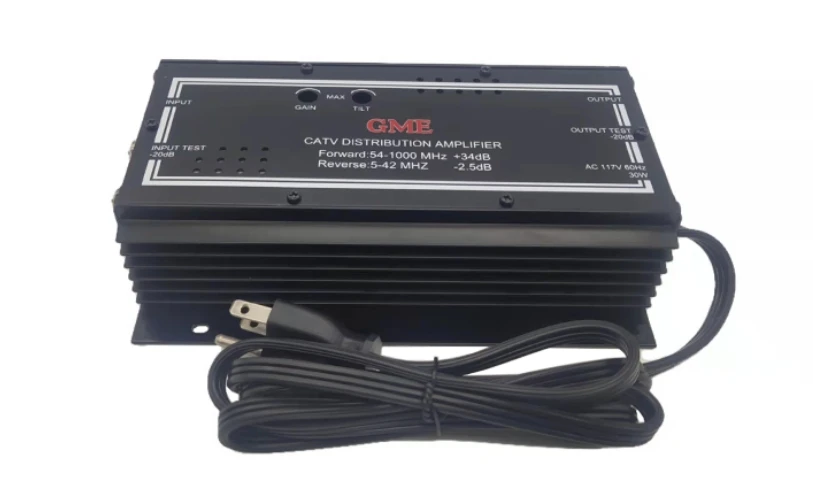

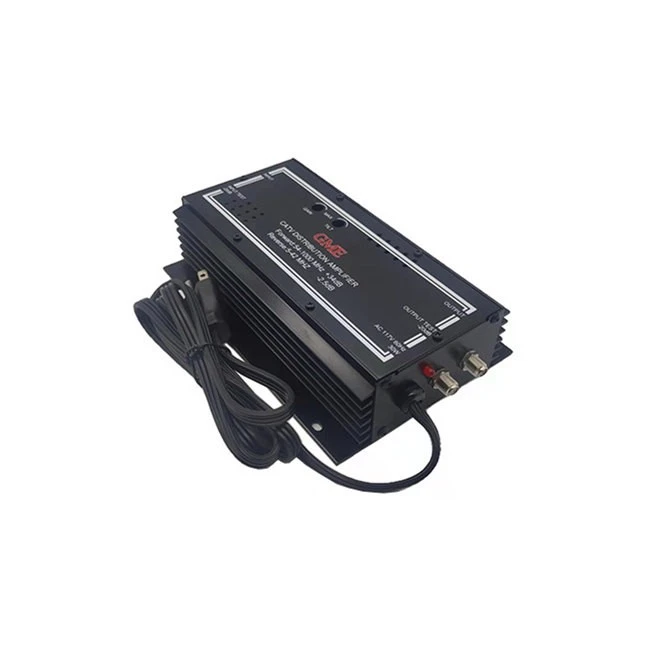

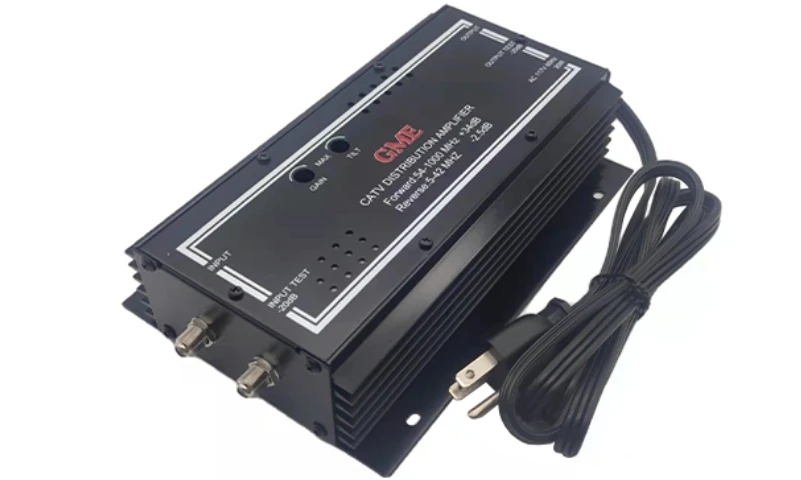

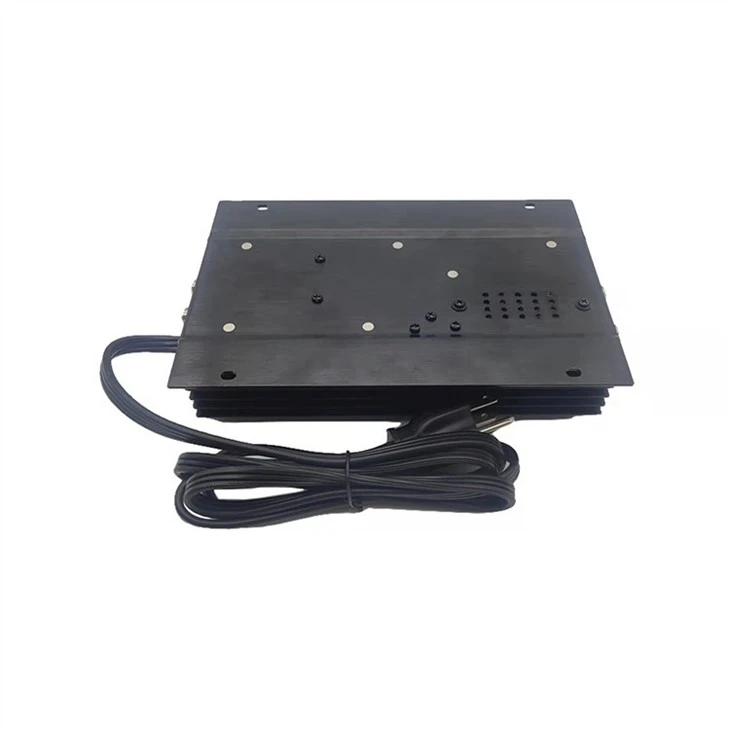

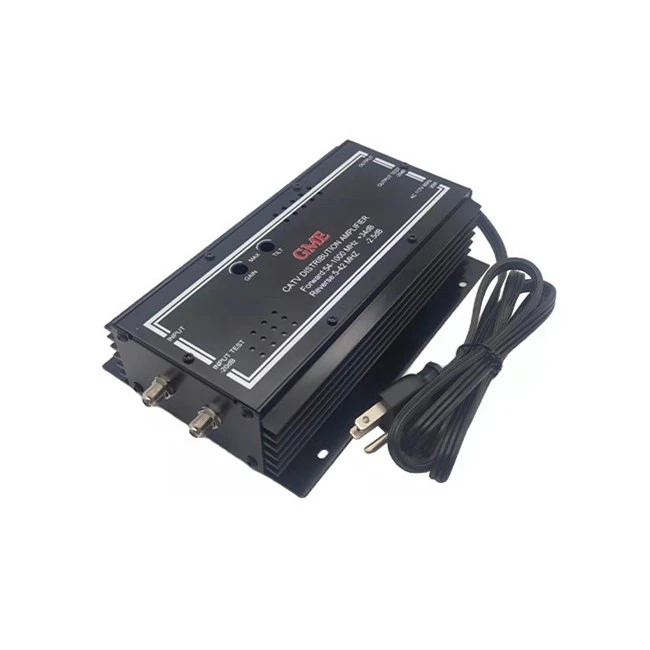

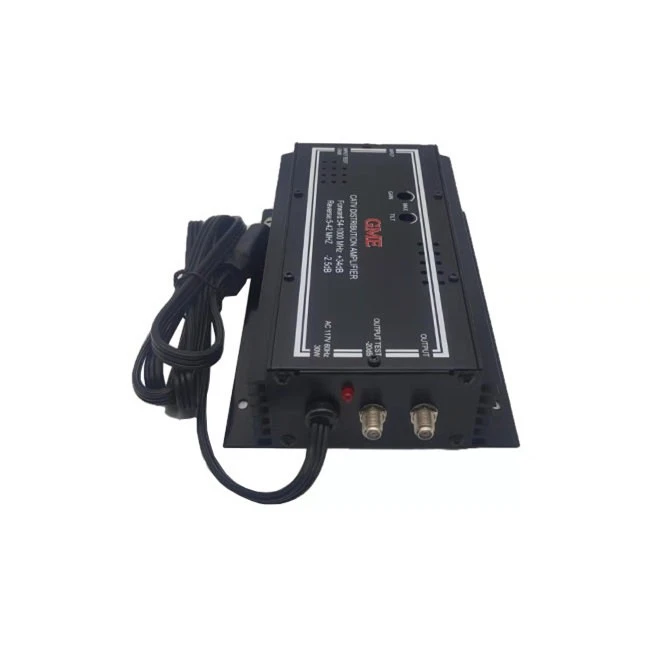

GCA-35PR/1000 yog Phab Ntsa Mount Distribution Amplifier tsim cov teeb liab uas tsis tshua muaj kev cuam tshuam thiab cov ntsiab lus sib haum xeeb. Chav tsev muaj peev xwm ua haujlwm puv channel ntawm 54MHz txog 1000 MHz.

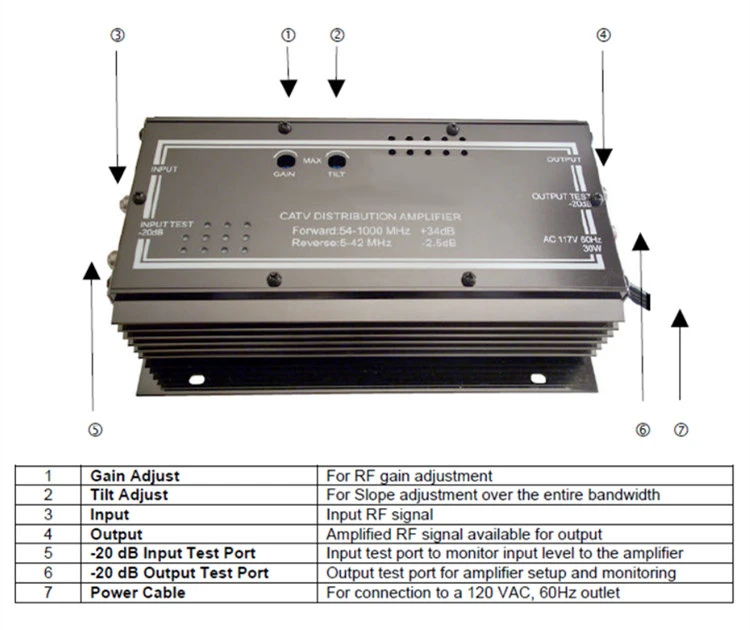

GCA-35PR/1000's low-noise and low distortion specs cia nws siv nyob rau hauv cov tes hauj lwm loj uas yuav tsum tau amplifier cascading. Cov yam ntxwv tseem ceeb muaj xws li: kev tswj txoj kab nqes, adjustable nce tswj, input thiab output test ports, tswj tau yooj yim, thiab shielded RFI enclosures.
Specification
|
Qhov chaw ntawm Keeb Kwm: Guangdong, Suav |
|||
|
Qauv nab npawb: GDAMP-006 (GCA-35PR/1000) |
|||
|
Yam khoom |
TYPICAL |
QC LIMIT |
KEV TIV THAIV |
|
FREQ RANGE |
|||
|
FORWARD PATH |
|
|
54 ~ 1000MHz |
|
Rov qab txoj kev |
|
|
5 ~ 42 MHz |
|
TAU TXAIS RAU WARD PATH |
32dB ib |
30 dB MIN. |
54 ~ 550 MHz |
|
|
30dB ib |
28 dB MIN. |
551 ~ 1000 MHz |
|
LOSS RETURN PATH |
- 2.5 dB |
- 3.5 dB MAX. |
5 ~ 42 MHz |
|
FLATNESS FORWARD PATH |
± 1.0 dB |
± 1.5dB MAX. |
100 MHz Band |
|
Rov qab txoj kev |
± 1.0 dB |
± 1.5dB MAX. |
5 ~ 42 MHz |
|
INPUT muaj peev xwm 1dB COMPRESSION |
105 dBuV |
102 dBuV MIN. |
AT: 55.25 MHz input |
|
Rov Los Los |
|||
|
FORWARD PATH INPUT |
- 10 dB |
- 8 dB MIN. |
54 ~ 1000 MHz |
|
FORWARD PATH OUTPUT |
- 10 dB |
- 7 dB MIN. |
54 ~ 1000 MHz |
|
Rov qab PATH IN / OUT |
- 10 dB |
- 8 dB MIN. |
5 ~ 42 MHz |
|
NOISE FIGURE |
6 dB ib |
7 dB MAX. |
54 ~ 550 MHz |
|
|
7.5dB ib |
8.0 dB MAX. |
551 ~ 1000 MHz |
|
TAU TXAIS TSEV |
16 dB |
15 dB MIN. |
54 ~ 1000 MHz |
|
SLOPE COMPENSATION |
15dB ib |
14 dB MIN. |
54 MHz ua |
|
COMPOSITE TRIPE BEAT (CTB) |
|
- 60 dBC |
|
|
COMPOSITE 2 ORDER (CSO) |
|
- 60 dBC |
|
|
IN / OUT TEST POINT |
|
20 dB ± 3dB MAX. |
|
|
Kev ua haujlwm kub |
|
- 10 txog 55 degree |
|
|
CONNECTOR |
|
HOM: "F" FEMALE |
TXHUA PORT |
|
IMPEDANCE |
|
75 HMO |
TXHUA PORT |
|
PINER YUAV TSUM |
|
117VAC / 60Hz |
|

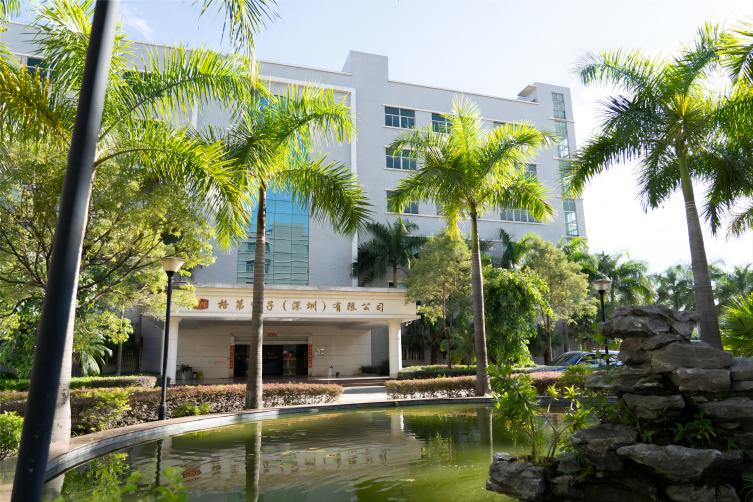

Goodmind Electronics (Shenzhen) Co., Ltd.
Goodmind Electronics (Shenzhen) Co., Ltd. yog tsim nyob rau hauv 1992 nrog ib tug sau npe peev ntawm 18 lab US dollars. Nws tus kheej lub Hoobkas nyob hauv Shenzhen thiab muaj ntau tshaj 1000 tus neeg ua haujlwm. Lub tuam txhab yog siab -tech thiab integrates R&D, ntau lawm, muag, thiab kev pab cuam. Kev tsim khoom lag luam tshwj xeeb hauv Kav hlau txais xov, Kev sib txuas lus Network, Bluetooth, AV Accessories, Ntse Tsev, thiab Tsheb Accessories. Muaj ntsug kev koom ua ke hauv lub Hoobkas. Cov nroj tsuag muaj SMT, DIP, kev ua yas, hlau stamping, zinc tuag casting, thiab kev pabcuam sib dhos. Nrog cov cuab yeej tsim khoom zoo tshaj plaws, pab pawg R & D txawj ntse, tsim kev lag luam lean, thiab kev txhawb nqa nyiaj txiag, lub tuam txhab tau cog lus los tsim cov khoom zoo siab rau nws cov neeg siv khoom.
ntawm kev lag luam kev paub
thaj chaw tsim khoom
rhiav ntau lawm tus neeg ua haujlwm
R & D cov neeg ua haujlwm
Khoom Taw Qhia
Puas yog Phab Ntsa Mount Distribution Amplifier xav tau lub hwj chim?
Yog lawm, feem ntau Phab ntsa Mount Distribution Amplifiers xav tau lub zog los ua haujlwm. Lub hwj chim mov yog feem ntau suav nrog lub amplifier, thiab nws yuav txuas mus rau lub qhov hluav taws xob txheem.
Lub Phab Ntsa Mount Distribution Amplifier puas tuaj yeem siv nrog cov teeb liab, xws li HDTV?
Yog lawm, ntau niaj hnub Phab ntsa Mount Distribution Amplifiers tau sib xws nrog cov teeb liab digital, suav nrog siab -txhais TV (HDTV). Lawv tau tsim los tswj ntau qhov ntau zaus los txhawb kev nthuav tawm suab thiab video niaj hnub.
Dab tsi yog cov lus qhia daws teeb meem rau Phab Ntsa Mount Distribution Amplifiers?
Cov teeb meem tshwm sim muaj xws li kev sib txuas xoob, kev siv hluav taws xob tsis raug, lossis teeb liab dhau. Cov neeg siv yuav tsum xyuas cov kev sib txuas, xyuas kom meej tias cov khoom siv hluav taws xob ua haujlwm, thiab kho cov teeb tsa amplifier yog tias tsim nyog. Yog tias muaj teeb meem tshwm sim, kev sab laj cov khoom siv phau ntawv lossis hu rau kev txhawb nqa yuav tsim nyog.

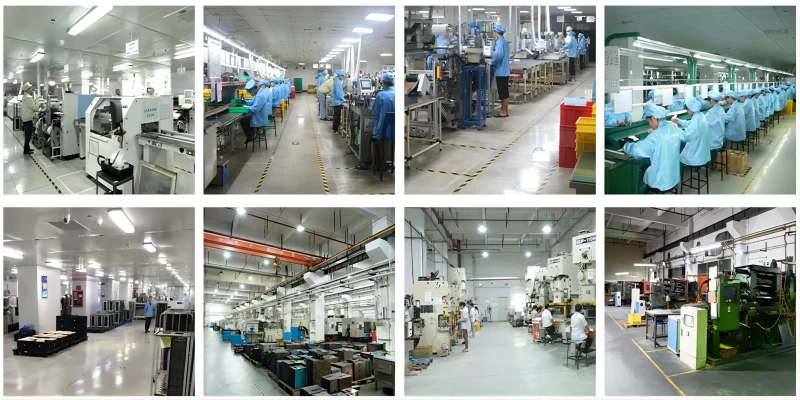

Peb lub Hoobkas tsim khoom
Peb daim ntawv pov thawj
FAQ
Q: Dab tsi yog Phab Ntsa Mount Distribution Amplifier?
A: Lub Phab Ntsa Mount Distribution Amplifier yog ib lub cuab yeej tsim los ua kom nrov nrov thiab faib cov suab lossis cov yeeb yaj kiab rau ntau qhov tso tawm. Nws feem ntau yuav siv ib lub teeb liab tawm tswv yim thiab ua kom nws muaj zog kom ntseeg tau tias muaj zog thiab zoo ib yam teeb liab hla ntau yam khoom siv sib txuas.
Q: Hom teeb liab twg tuaj yeem ua rau Phab Ntsa Mount Distribution Amplifier?
A: Phab ntsa Mount Distribution Amplifiers feem ntau yog siv los faib ntau yam teeb liab, suav nrog cable TV, satellite TV, kav hlau txais xov teeb liab, thiab suab / video teeb liab los ntawm cov khoom siv xws li DVD players lossis koob yees duab kev ruaj ntseg.
Q: Vim li cas thiaj siv Phab Ntsa Mount Distribution Amplifier?
A: Lub hom phiaj tseem ceeb yog kom kov yeej cov teeb liab degradation uas tshwm sim thaum sib faib lub teeb liab hla ntau yam khoom siv. Lub amplifier xyuas kom meej tias txhua qhov tso zis tau txais lub teeb liab muaj zog thiab meej, tiv thaiv cov teeb liab poob thiab tswj cov teeb liab zoo.
Q: Lub Phab Ntsa Mount Distribution Amplifier tau teeb tsa li cas?
A: Kev teeb tsa feem ntau suav nrog kev sib txuas cov teeb liab tawm tswv yim (piv txwv li, cable lossis kav hlau txais xov) mus rau lub tshuab hluav taws xob qhov chaw nres nkoj thiab tom qab ntawd txuas cov chaw nres nkoj tawm mus rau ntau yam khoom siv (TVs, receivers) uas xav tau lub teeb liab amplified. Lub amplifier yog ntsia rau ntawm phab ntsa kom yooj yim.
Q: Lub Phab Ntsa Mount Distribution Amplifier puas siv tau rau ob qho tib si TV thiab xov tooj cua?
A: Yog, ntau lub Phab Ntsa Mount Distribution Amplifiers yog tsim los tswj ob lub TV thiab xov tooj cua zaus. Lawv tuaj yeem faib ntau zaus rau ntau qhov kev tso tawm.
