Kev piav qhia

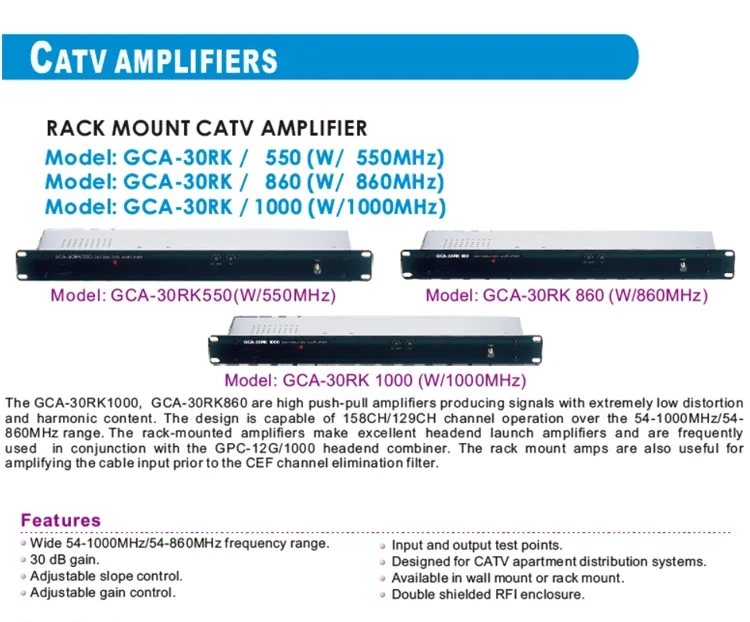

GCA-30RK/1000 yog Broadband Push Pull Headend Amplifier tsim cov teeb liab uas tsis tshua muaj kev cuam tshuam thiab cov ntsiab lus sib haum xeeb. Chav tsev muaj peev xwm ntawm 135-channel ua haujlwm ntawm 54MHz txog 1000MHz. Lub GCA-30RK / 1000 yuav siv tau rau hauv kev sib txuas headend sib txuas xws li Cabletronix CTHC-12G (12-chaw nres nkoj) thiab CTHC-24G (24-chaw nres nkoj). Cov yam ntxwv tseem ceeb muaj xws li: kho txoj kab nqes tswj, kho qhov nce tswj, tso zis qhov chaw nres nkoj, thiab ob chav thaiv RFI enclosures.

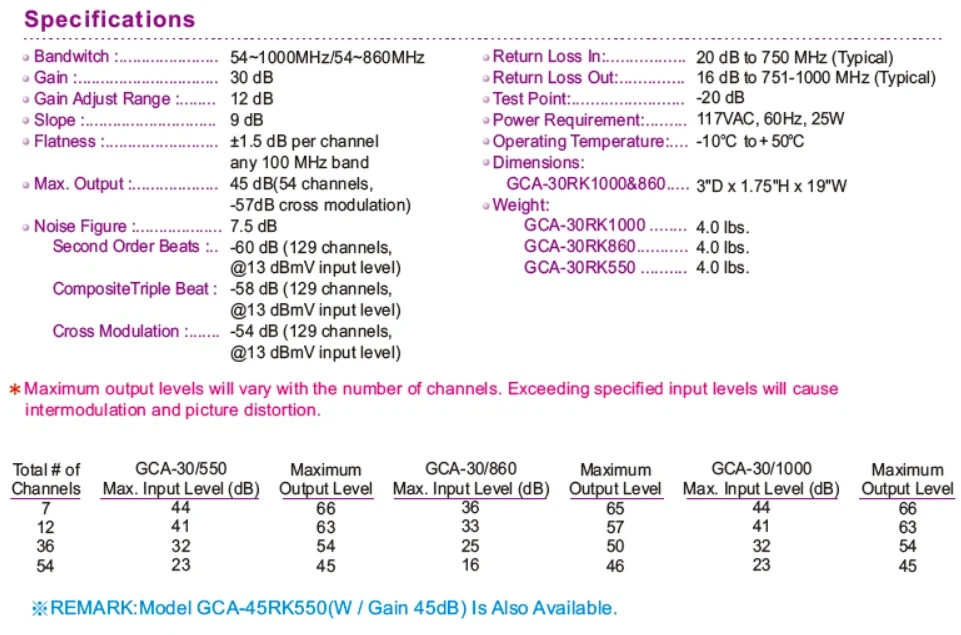

Specification
|
Qhov chaw ntawm Keeb Kwm: Guangdong, Suav |
|||
|
Qauv nab npawb: GDAMP-005 (GCA-30RK/1000) |
|||
|
Yam khoom |
TYPICAL |
QC LIMIT |
KEV TIV THAIV |
|
FREQ. RANGE |
|
|
50 ~ 1000 MHz |
|
TAU |
30dB ib |
27 dB MIN. |
50 ~ 1000 MHz |
|
TSEEM CEEB |
10dB ib |
8 dB MIN. |
50-1000MHz |
|
TXAUS SIAB |
10dB ib |
8 dB MIN. |
50 ~ 1000 MHz |
|
HLUB |
|
|
|
|
(Txhua 100MHz Band) |
|
± 1dB |
50 ~ 750 MHz |
|
|
|
± 1.5dB |
751 ~ 1000 MHz |
|
Rov Los Los |
-14dB |
-10dB MIN. |
50 ~ 860MHz |
|
IN/OUT |
-10dB |
-8dB MIN. |
861 ~ 1000MHz |
|
Hwj chim |
AC117V / 60Hz |
108-125VAC |
|

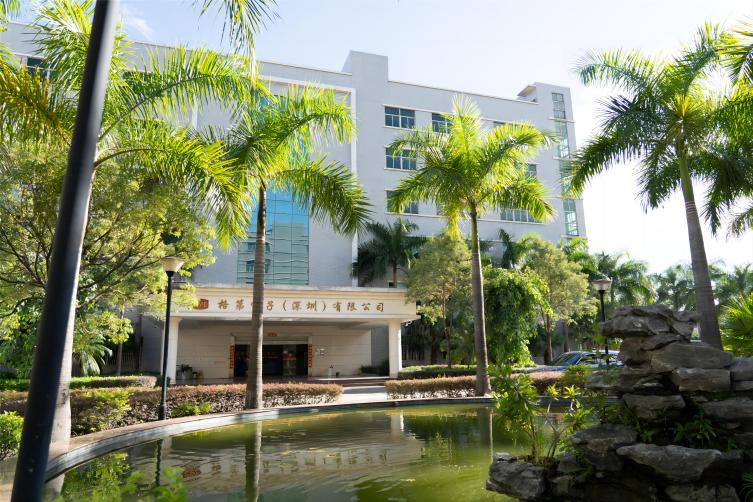

Tuam txhab Profile

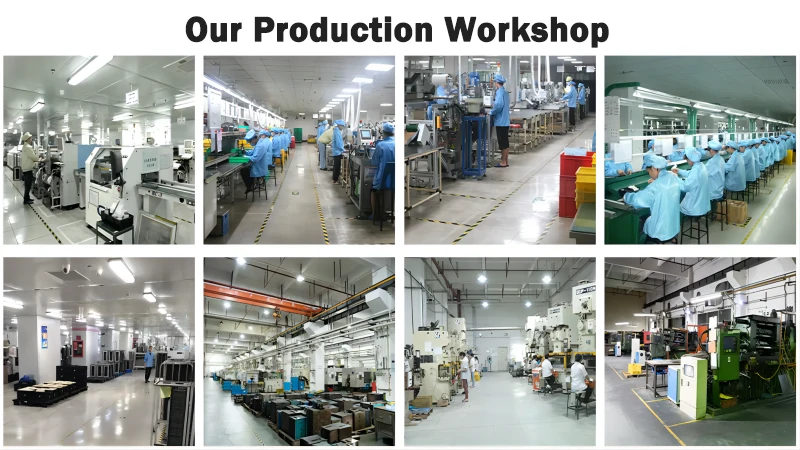

Goodmind Electronics (Shenzhen) Co., Ltd. yog tsim nyob rau hauv 1992 nrog ib tug sau npe peev ntawm 18 lab US dollars. Nws tus kheej lub Hoobkas nyob hauv Shenzhen thiab muaj ntau tshaj 1000 tus neeg ua haujlwm. Nws yog lub tuam txhab ua haujlwm siab -tech enterprise integrating R&D, ntau lawm, muag thiab kev pabcuam, Lub tuam txhab tshwj xeeb hauv Kav hlau txais xov / Network Kev sib txuas lus / Bluetooth / AV Accessories / Smart Home / Car Accessories kev tsim lub tuam txhab. Lub Hoobkas yog vertically integrated. Lub Hoobkas muaj kev ua cov yas, hlau stamping, zinc tuag casting, SMT, DIP thiab Assembly center. Lub tuam txhab muaj lub zog nyiaj txiag muaj zog, pab pawg R&D kws tshaj lij, cov cuab yeej tsim khoom zoo tshaj plaws thiab kev tsim khoom lag luam, thiab mob siab rau tsim cov khoom zoo rau cov neeg siv khoom.
ib - nres kev daws teeb meem
pab neeg tshaj lij
siab zoo

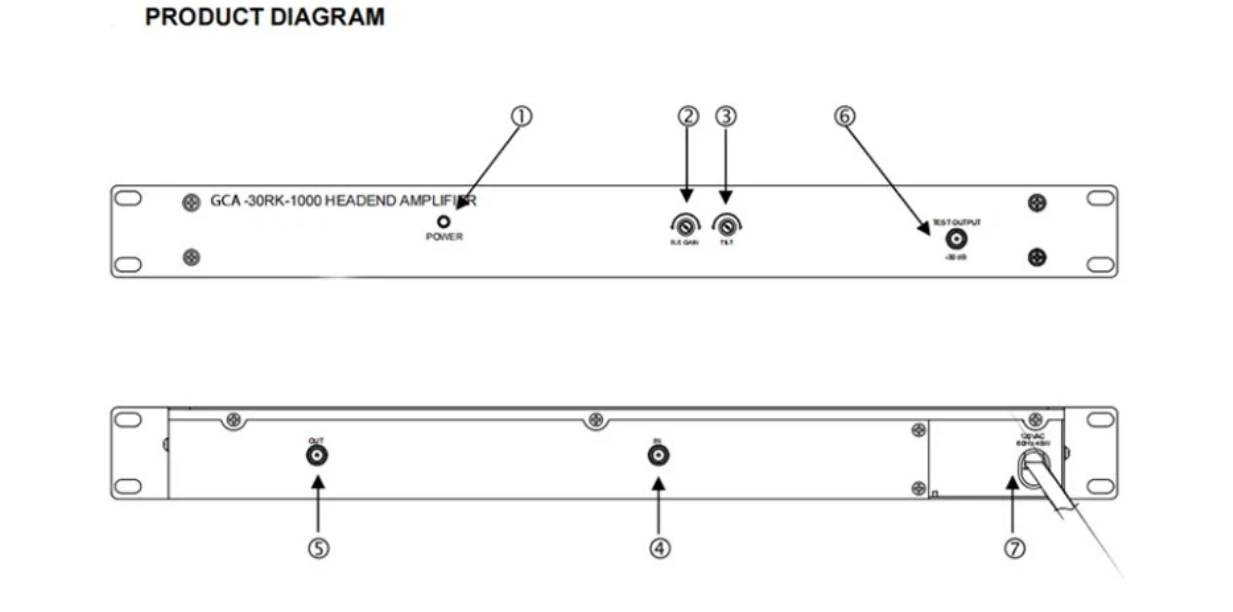

1- Lub zog:"Power-On" qhia lub teeb
2-Gauin Adjust:Rau RF nce kev hloov kho
3-Tilt Kho:Rau kev kho Slope tshaj tag nrho cov bandwidth
4- Cov tswv yim:Input RF teeb liab los ntawm headend combiner txuas nrog rau qhov chaw nres nkoj no
5- Cov zis:Amplified RF teeb liab muaj rau lub ntsiab RF faib network los ntawm qhov chaw nres nkoj no
6-Test Port:-30dB tso zis kuaj chaw nres nkoj rau kev saib xyuas
7- Fais fab Cable:Rau kev txuas mus rau 115 VAC, 60Hz qhov hluav taws xob
Kev daws zaum kawg
Dab tsi ntawm cov teeb liab tuaj yeem ua Rack Mount Distribution Amplifier?
RMDAs muaj ntau yam thiab muaj peev xwm tswj tau ntau hom teeb liab, suav nrog suab, video, RF (xov tooj cua zaus), thiab cov ntaub ntawv qhia.
Dab tsi yog qhov khib loj rau cov amplifiers?
Rack Mount Distribution Amplifiers feem ntau ua raws li cov qauv khib nyiab, xws li 19 nti dav. Qhov siab (tus naj npawb ntawm cov khib nyiab lossis "U") tuaj yeem sib txawv nyob ntawm tus qauv tshwj xeeb thiab nta.
Lawv siv zog li cas?
RMDAs feem ntau yog siv los ntawm cov qauv AC fais fab. Qee cov qauv kuj tseem tuaj yeem txhawb nqa kev xaiv lub zog siv hluav taws xob ntxiv kom muaj kev ntseeg siab ntxiv.
FAQ
Q: Dab tsi yog Rack Mount Distribution Amplifier (RMDA)?
A: Rack Mount Distribution Amplifier yog ib lub cuab yeej tsim los ua kom nrov thiab faib cov cim, feem ntau siv hauv kev tshaj tawm, kev sib txuas lus, thiab kev siv suab / video. Nws yog mounted nyob rau hauv ib tug standard khoom khib rau yooj yim installation.
Q: Qhov twg Rack Mount Distribution Amplifiers siv?
A: RMDAs feem ntau siv nyob rau hauv headend chaw, cov chaw zov me nyuam, cov chaw tshaj tawm xov xwm, thiab txhua qhov chaw uas cov teeb liab yuav tsum tau muab faib rau ntau qhov chaw.
Q: Lub hom phiaj ntawm kev siv Rack Mount Distribution Amplifier yog dab tsi?
A: Lub hom phiaj tseem ceeb yog txhawm rau nthuav tawm cov teeb liab thiab tswj hwm lawv qhov zoo thaum lawv muab faib rau ntau qhov txiaj ntsig. Qhov no yog qhov tseem ceeb los xyuas kom meej tias txhua qhov chaw tau txais lub teeb liab muaj zog thiab meej.
Q: Nws txawv ntawm lwm yam amplifiers li cas?
A: Rack mount tis amplifiers yog tsim tshwj xeeb rau mounting hauv cov khoom siv racks. Lawv feem ntau muaj ntau qhov chaw tso zis rau faib cov cim rau ntau lub cuab yeej lossis lub tshuab.
