Kev piav qhia

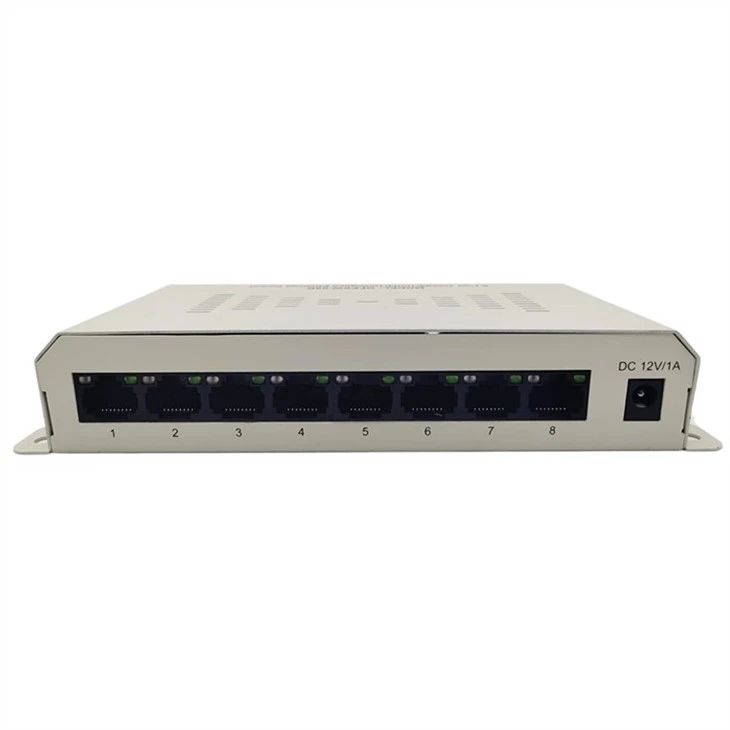

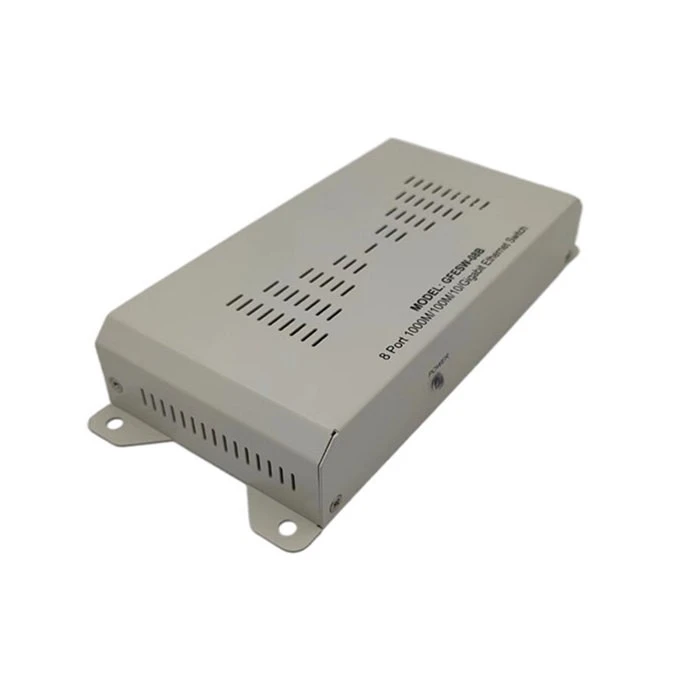

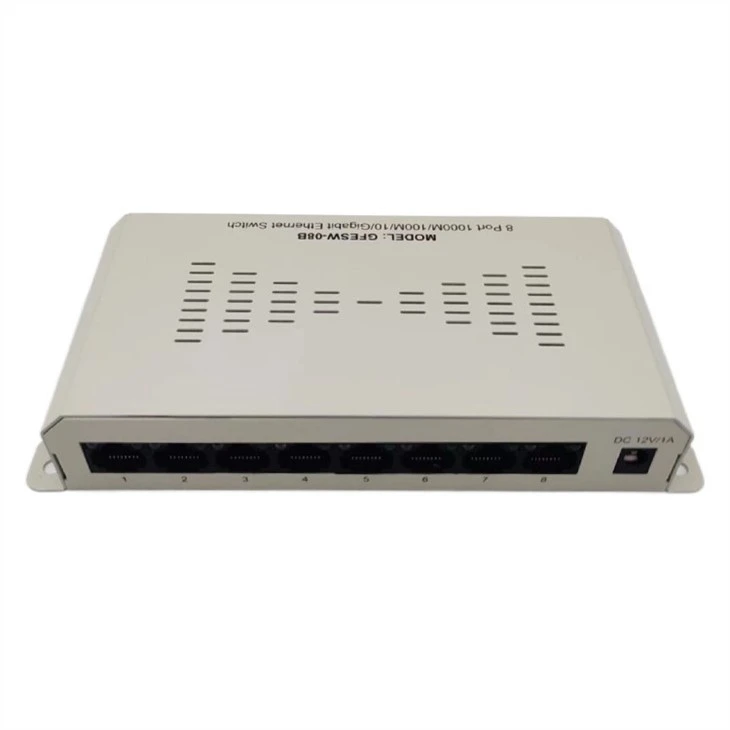

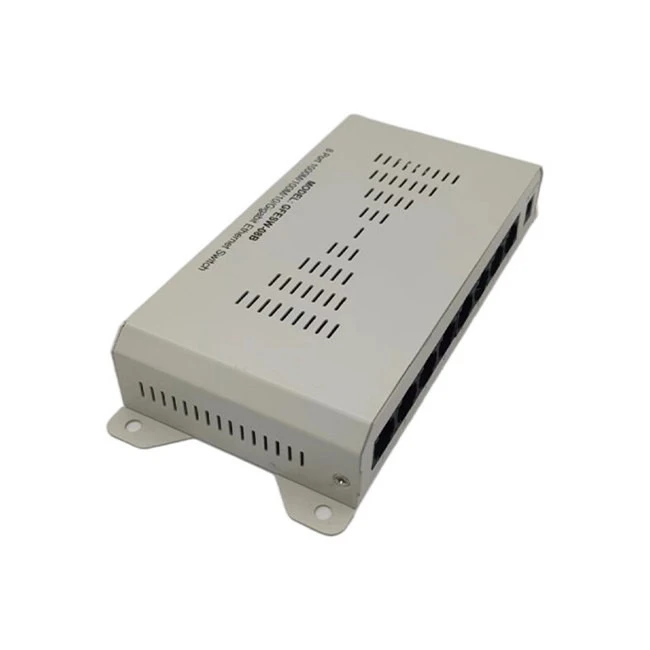

Gigabit Switching Hub 8 chaw nres nkoj. Tag nrho - lub plhaub hlau hlau yog saws, uas muaj zog ua kom sov dissipation kev ua tau zoo thiab ua kom lub tshuab ua haujlwm ruaj khov.
Yim 10/100/1000M tus kheej-hloov RJ45 chaw nres nkoj, txhua qhov chaw nres nkoj txhawb nqa tag nrho cov kab-kev xa mus nrawm ntawm MDI/MDIX tus kheej-adaptive muaj nuj nqi, txhawb IGMP muaj nuj nqi, txhawb IEEE802.3x puv/ib nrab duplex hom nws tus kheej -adaptation, tsis tas yuav tsum tau adaptation.
Specification
|
Qhov chaw ntawm Keeb Kwm: Guangdong, Suav |
||
|
Qauv TSIS MUAJ: GDSW-008 (GFESW-08B) |
||
|
Lub npe |
Gigabit Hloov HUB |
|
|
Txheej txheem cej luam |
1000M / 100M / 10M Swithing HUB 8 Chaw nres nkoj Hlau vaj tse, bulit-nyob rau hauv hwj chim suplly, hwj chim tswj muaj nuj nqi |
|
|
Txhawb nqa cov qauv |
IEEE 802.3ab (1000BASE-T) |
|
|
IEEE 802.3u (100BASE-TX) |
||
|
IEEE 802.3 (10BASE-T) |
||
|
IEEE 802.3x (Flow Control) |
||
|
Tau txais Standard |
VCCI ClassB |
|
|
Interface |
Txuj |
1000BASE-T/100BASE{{3}TX/10BASE-T |
|
Chaw nres nkoj |
RJ45 x 14 chaw nres nkoj |
|
|
Kev ua tau zoo |
Txoj kev nkag |
CSMA/CD |
|
Hloov hom |
Tshuag & rau pem hauv ntej |
|
|
Hloov ntaub |
16 Gbps |
|
|
jumbo kev |
16 Kbytes |
|
|
Pob ntawv tsis |
192 Kbyte |
|
|
MAC chaw nyob WNTRY |
8000 (max) |
|
|
Kev sib kis muaj nuj nqi |
BPDU, EAPOL |
|
|
Multicast |
IGMP v1/v2/v3/MLD v1/v2 |
|
|
Cov xwm txheej LED |
Hwj chim (ntsuab) × 1, txuas / Txoj Cai (ntsuab) × 8, ceev (ntsuab / txiv kab ntxwv) × 8 Multicast (liab) |
|
|
Txias kiv cua |
|
nrog tawm |
|
Fais fab mov |
|
DC 12V 1A |
|
Kev siv hluav taws xob siab tshaj plaws |
3.3W |
|
|
Ib puag ncig tej yam kev mob |
Lub sijhawm ua haujlwm |
Kub 0 txog 50 degrees Celsius, av noo 90% los yog tsawg dua |
|
Thaum khaws cia |
Kub - 20 - 70 degrees Celsius, av noo 95% lossis tsawg dua |
|
|
Qhov tshwm sim |
Ntiv txoj kev |
W185 × D85 × H32 (mm) |
|
Zoo |
482g (nrog rau mounting fittings) |
|
|
Khoom siv |
Fais fab qaum thiab phau ntawv qhia |
|
Tuam txhab Profile

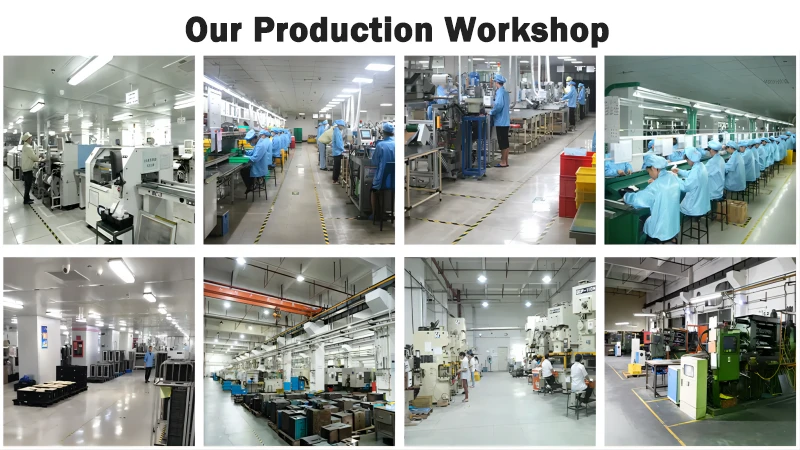

Goodmind Electronics (Shenzhen) Co., Ltd. yog tsim nyob rau hauv 1992 nrog ib tug sau npe peev ntawm 18 lab US dollars. Nws tus kheej lub Hoobkas nyob hauv Shenzhen thiab muaj ntau tshaj 1000 tus neeg ua haujlwm. Nws yog lub tuam txhab ua haujlwm siab -tech enterprise integrating R&D, ntau lawm, muag thiab kev pabcuam, Lub tuam txhab tshwj xeeb hauv Kav hlau txais xov / Network Kev sib txuas lus / Bluetooth / AV Accessories / Smart Home / Car Accessories kev tsim lub tuam txhab. Lub Hoobkas yog vertically integrated. Lub Hoobkas muaj kev ua cov yas, hlau stamping, zinc tuag casting, SMT, DIP thiab Assembly center. Lub tuam txhab muaj lub zog nyiaj txiag muaj zog, pab pawg R&D kws tshaj lij, cov cuab yeej tsim khoom zoo tshaj plaws thiab kev tsim khoom lag luam, thiab mob siab rau tsim cov khoom zoo rau cov neeg siv khoom.
Dab tsi yog qhov zoo ntawm kev siv Gigabit Switching Hub?
Gigabit Switching Hubs muab cov ntaub ntawv hloov pauv sai dua piv rau cov keyboards Ethernet ib txwm muaj, uas ua haujlwm ntawm qis qis xws li 10/100 Mbps. Lawv yog qhov zoo tagnrho rau kev xa cov ntaub ntawv loj, streaming HD video, thiab lwm yam kev ua haujlwm siab -bandwidth.
Kuv puas tuaj yeem siv Gigabit Switching Hub los nthuav kuv lub network?
Yog lawm, koj tuaj yeem siv Gigabit Switching Hub los nthuav koj lub network los ntawm kev sib txuas ntxiv rau nws. Tsuas txuas cov cuab yeej koj xav ntxiv rau koj lub network rau ib qho ntawm cov chaw nres nkoj muaj nyob ntawm lub hub.
Puas yog Gigabit Switching Hub haum rau siv hauv tsev lossis chaw ua haujlwm?
Yog lawm, qhov Gigabit Switching Hub no haum rau siv hauv tsev thiab chaw ua haujlwm. Nws muab siab -kev sib txuas ceev rau tag nrho koj cov khoom siv, ua rau nws zoo tagnrho rau ob qho tib si ntawm tus kheej thiab kev ua haujlwm ib puag ncig.
FAQ
Q: Muaj pes tsawg lub chaw nres nkoj no Gigabit Switching Hub muaj?
A: Qhov Gigabit Switching Hub no muaj 8 qhov chaw nres nkoj, tso cai rau koj txuas mus txog 8 cov khoom siv rau koj lub network.
Q: Puas yog Gigabit Switching Hub txhawb nqa ntsaws -thiab-play installation?
A: Yog, Gigabit Switching Hub no txhawb nqa plug-thiab-play installation, uas txhais tau hais tias koj tuaj yeem txuas rau koj lub network yooj yim thiab nws yuav cia li teeb tsa nws tus kheej. Tsis tas yuav muaj cov txheej txheem teeb tsa nyuaj.
Q: Kuv puas tuaj yeem siv Gigabit Switching Hub los ua qhov tseem ceeb hauv kev sib txuas hauv network?
A: Qee qhov Gigabit Switching Hubs tuaj nrog cov yam ntxwv xws li Cov Kev Pabcuam Zoo (QoS) uas tso cai rau koj ua qhov tseem ceeb hauv kev sib txuas lus raws li cov qauv tshwj xeeb. Txheeb xyuas cov khoom specifications kom pom tias qhov no feature puas txaus siab.
Q: Lub sijhawm lav rau Gigabit Switching Hub yog dab tsi?
A: Lub sijhawm lav rau Gigabit Switching Hub no yuav txawv nyob ntawm cov chaw tsim khoom. Xyuas cov ntaub ntawv cov khoom lossis hu rau cov chaw tsim khoom kom paub txog kev tiv thaiv kev tiv thaiv.
