Qhov ONU no yog tsim los rau FTTH. Nws txhawb XPON dual-hom thev naus laus zis (EPON thiab GPON), Nrog WiFi nrawm txog 3000Mbps, nws kuj txhawb IEEE 802.11b/g/n/ac/ax technology thiab lwm yam txheej txheej 2/Layer 3 nta, Nws yog dav siv tau nrog lub ntiaj teb mainstream OLT6} hom, kev txhawb nqa, thiab kev txhawb nqa {6{9} OLT6}, plug{6 tej thaj chaw deb tu nta.
- Txhawb ntau -SSID (Ntau tshaj 4 SSID)
- Txhawb chaw nres nkoj xa mus
- Txhawb QOS configuration
- Txhawb chaw nres nkoj khi
- Txhawb ACL kom teeb tsa cov ntaub ntawv pob ntawv lim tau yooj yim
- Txhawb TR069 rau ACS (Auto Config Server)
- Ua raws li IEEE802.3ah & ITU-T G.984 tus qauv
- Txhawb cov ntaub ntawv encryption, pab pawg tshaj tawm, chaw nres nkoj VLAN sib cais, thiab lwm yam.
- Txhawb nqa Dynamic Bandwidth Allocation (DBA)
- Txhawb ONU pib - tshawb pom/Txuas kev tshawb nrhiav/cov chaw taws teeb hloov kho software
- Txhawb kev ruaj ntseg wireless ntawm 64/128 ntsis WEP, 802.1x, WPA thiab WPA2

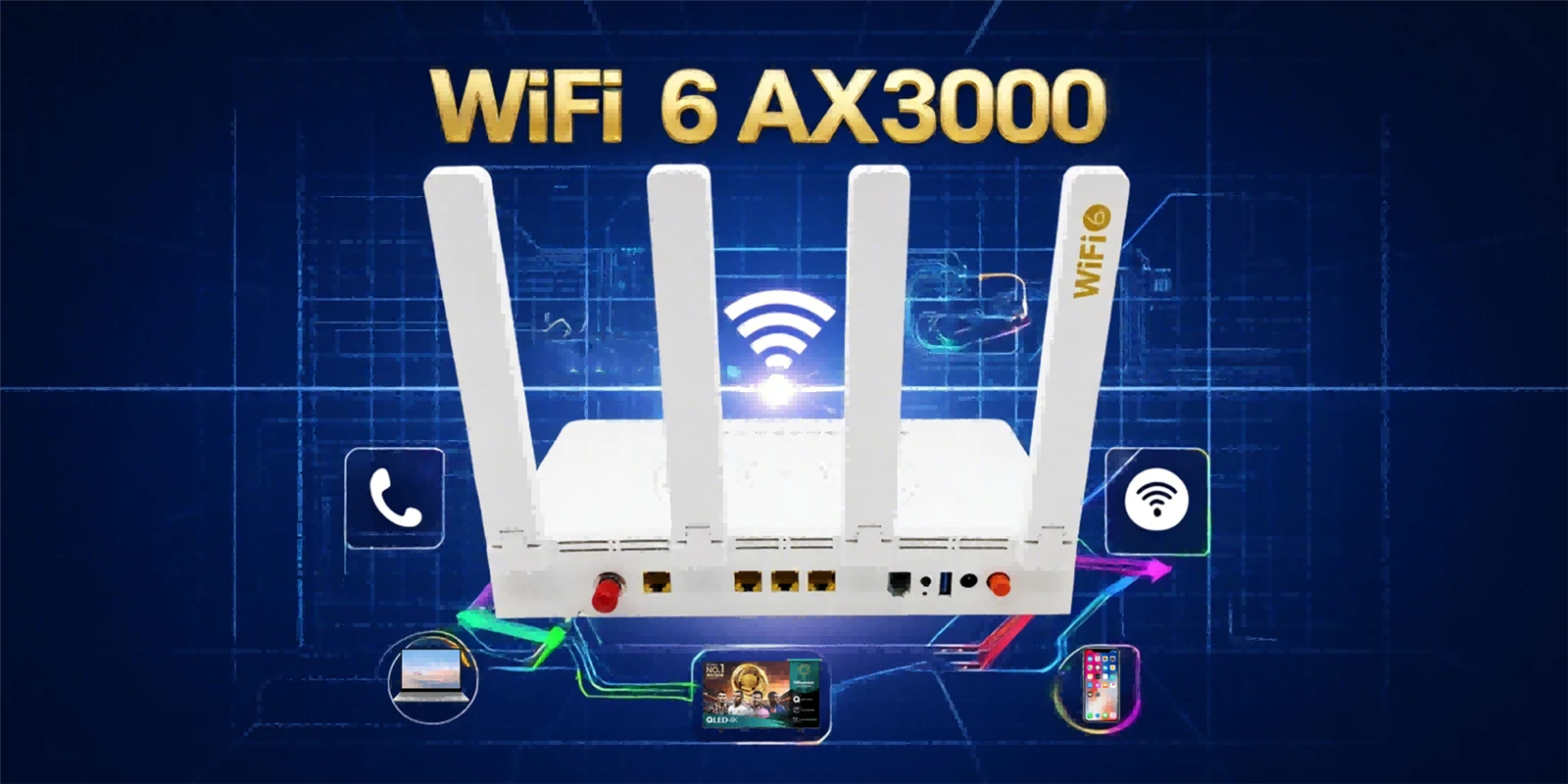

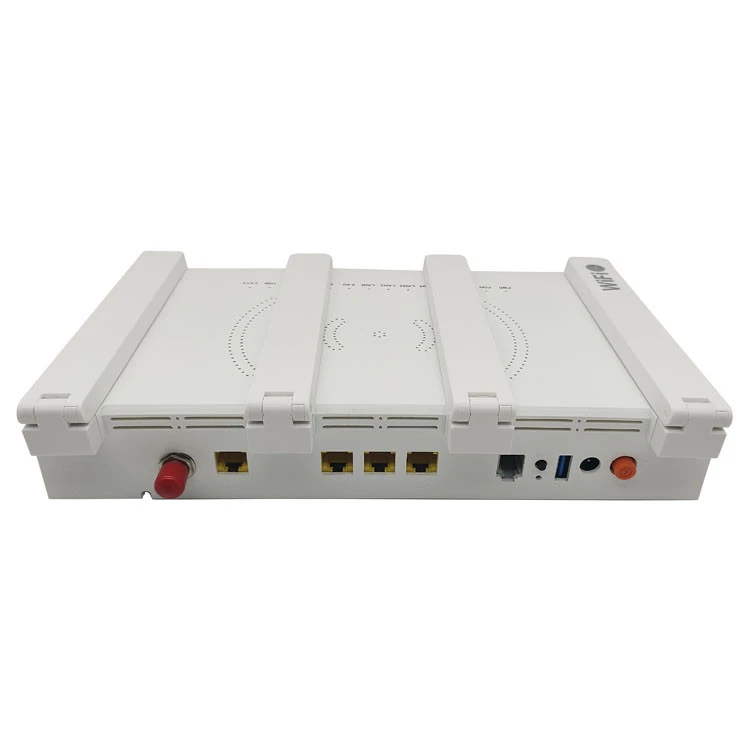

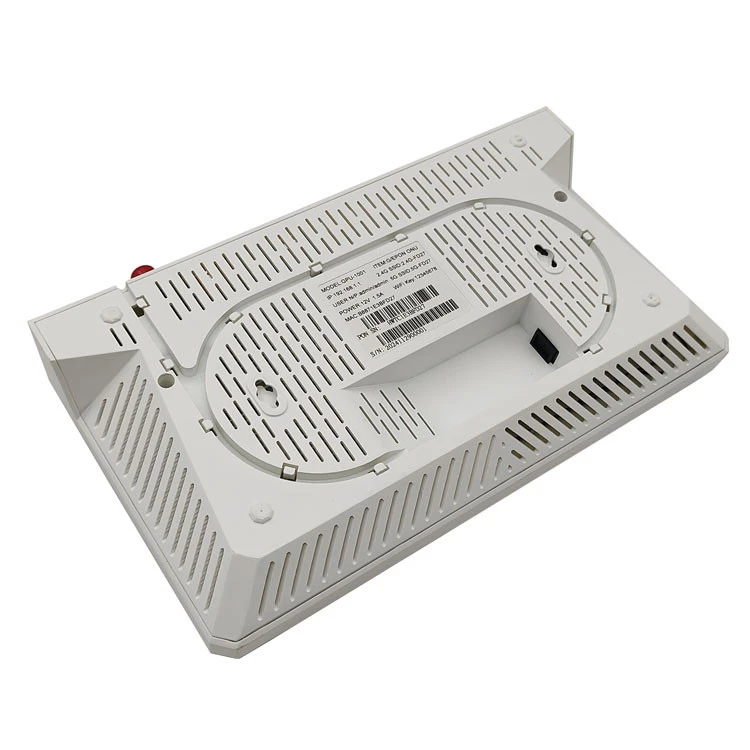

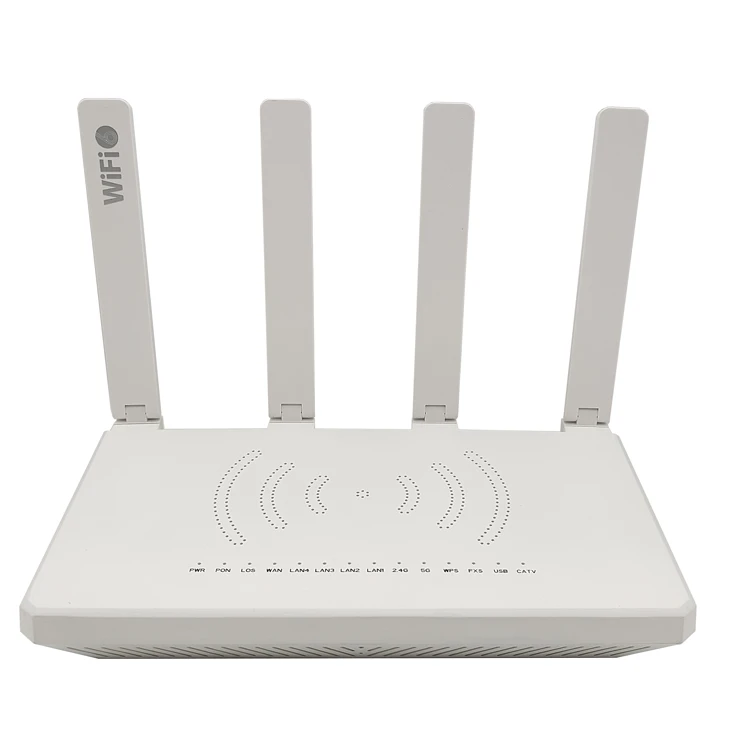

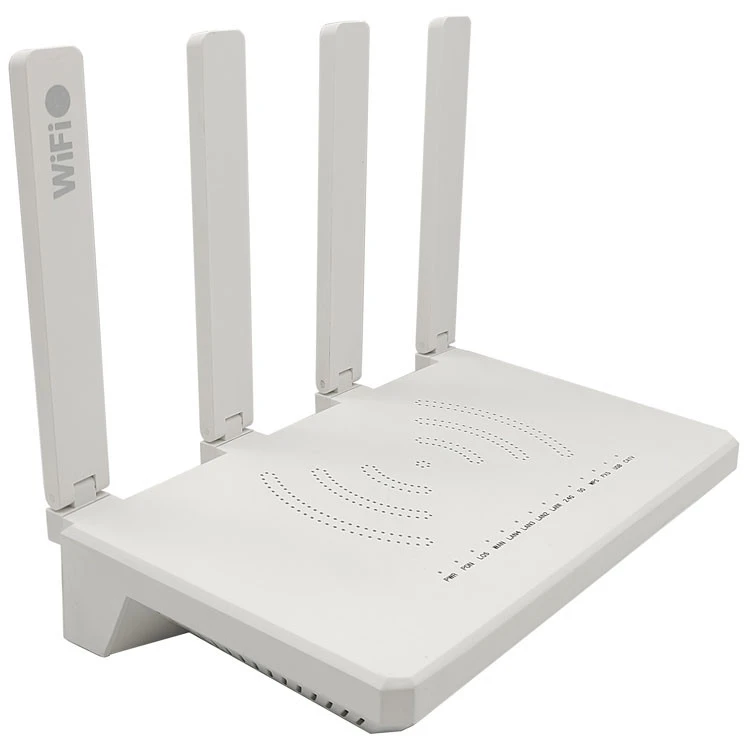

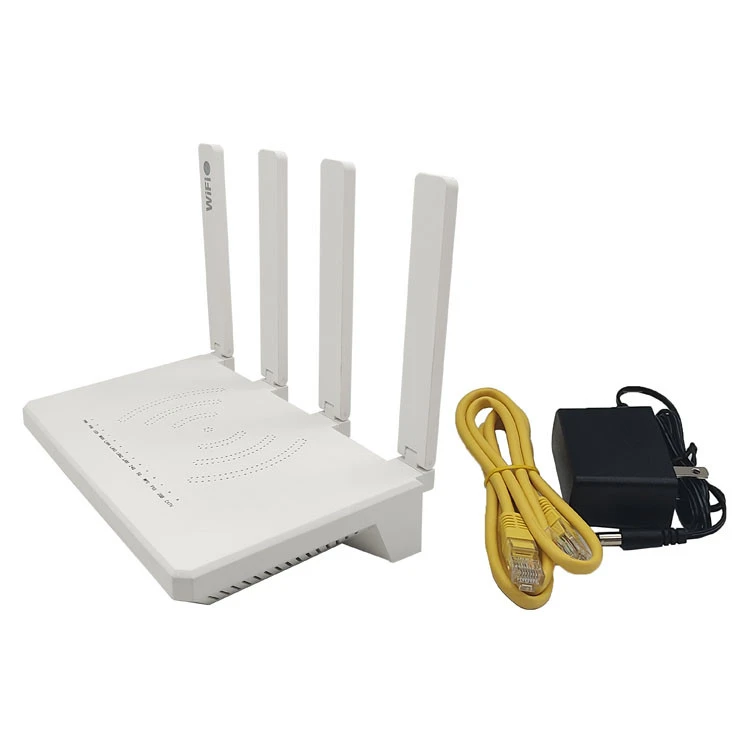

WiFi 6 AX3000 Optical Network Terminal
XPON dual hom|Tus nqi -zoo AX3000 WiFi6|CATV nrog AGC Kev them nyiaj yug|Tais -mounted Fiber Structure
Vim li cas thiaj xaiv GPU 6255
Ua kom zoo rau FTTH kev xa tawm thiab triple - ua si kev xa khoom, ua tau raws li cov kev xav tau ntawm cov neeg ua haujlwm broadband ruaj khov.
Specification
|
DESCRIPTION: XPON+4GE+1POTS+1USB3.0+CATV+WiFi6 HGU ONT
|
|
|
Dimension
|
260.5mm × 149mm × 53mm (L × W × H)
|
|
Net nyhav
|
950g
|
|
Kev ua haujlwm
|
Ua haujlwm kub: -10 ~ +55 degree
Kev khiav dej num: 5 ~ 95% (tsis yog -condensing) |
|
Kev khaws cia
|
Cia kub: -40 ~ +70 degree
Cia cov av noo: 5 ~ 95% (tsis yog -condensing) |
|
Fais fab adapter
|
DC 12V / 1.5A
|
|
Fais fab mov
|
Tsawg dua lossis sib npaug li 18W
|
|
Qhov taw qhia
|
PWR, PON, LOS, WAN, LAN1 ~ 4, 2.4G, 5G, WPS, FXS, USB, CATV
|
|
PON interface
|
1XPON chaw nres nkoj (EPON PX20+ thiab GPON Class B+)
SC ib hom, SC / APC connector TX optical zog: 0.5-+4dBm RX rhiab heev: -28dBm Overload optical zog: -3dBm (EPON) lossis -8dBm (GPON) Transmission nrug: 20KM wavelength: TX 1310nm, RX1490nm |
|
Cov neeg siv
|
4 × GE, Auto-kev sib tham, RJ45 chaw nres nkoj
1 × POTS RJ11 Connector |
|
Kav hlau txais xov
|
2.4GHz 2T2R, 5GHz 3T3R
|
|
CATV
|
Optical txais wavelength: 1550 ± 10nm
Optical input range: +2--18dBm Optical reflection poob: Ntau dua lossis sib npaug li 40dB RF zaus ntau: 47-1000MHz RF tso zis impedance: 75Ω RF tso zis ntau dua los yog sib npaug rau 75 ± 2dBuv Txhawb AGC tswj MER: Ntau dua lossis sib npaug rau 32dB (-14dBm optical input) |
|
O&M
|
WEB/TELNET/OAM/OMCI/TR069
Txhawb nqa tus kheej OAM / OMCI raws tu qauv |
|
Kev sib txuas hauv Is Taws Nem
|
Txhawb Routing Hom
|
|
Multicast
|
IGMP v1/v2/v3, IGMP snooping
MLD v1/v2 snooping |
|
VoIP
|
SIP thiab IMS SIP
G.711a/G.711u/G.722/G.729 Codec Echo tshem tawm, VAD / CNG, DTMF Relay Kev Qhia Tus Neeg Hu / Hu Tos / Hu Rau Forwarding / Hu Hloov / Hu Xov Tooj / 3-txoj Kev Sib Tham Kev kuaj kab raws li GR-909 |
|
WIFI
|
WIFI6: 802.11a/n/ac/ax 5GHz, 2.4GHz
WIFI: 2.4G 2X2,5G 3X3,5 kav hlau txais xov.Multiple SSID WiFi encryption: WPA/WPA2/WPA3 Txhawb OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM Ntse Txuas rau ib qho Wi-Fi lub npe - Ib qho SSID rau 2.4GHz thiab 5GHz dual band |
|
Firewall
|
Anti-DDOS, Lim Raws li ACL/MAC /URL
|
Kev siv ib puag ncig
Lub CATV WiFi6 ONU sib txuas cov fiber ntau thiab coaxial technologies rau ntau yam kev xa mus siv.

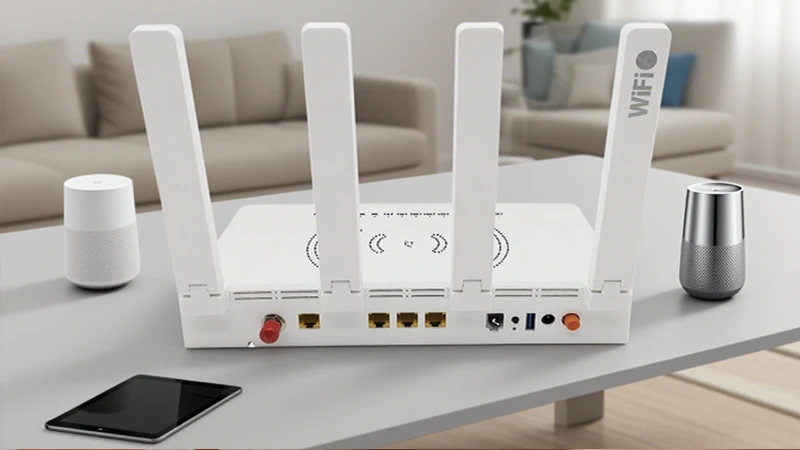

Tsev Broadband
- Triple -ua si kev koom ua ke: MuabGigabit broadband + CATV TV + VoIP suablos ntawm ib qho khoom siv
- Tag nrho -kev sib txuas ntse hauv tsev: WiFi 6 txhawb kev sib txuas ruaj khov rau ntau yam khoom siv, ua tau raws li qhov xav tau ntawm siab -txhais video thiab cov ntawv thov hauv tsev ntse.

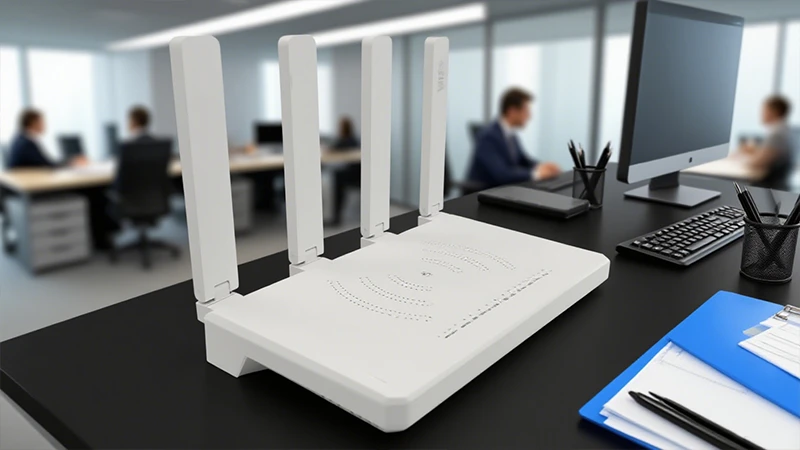

SMEs / Office Networks
- Multi-device Access: 4 GE cov chaw nres nkoj tuaj yeem txuas cov khoom siv hauv chaw ua haujlwm xws li khoos phis tawj, tshuab luam ntawv, thiab IP xov tooj, thaum WiFi 6 npog thaj chaw ua haujlwm, txhawb kev nkag siab siab -qhov dav hlau nkag.
- Tej thaj chaw deb rooj sib tham/Cloud Office: Qhov qis latency thiab siab dhau ntawm AX3000 WiFi 6 kom ntseeg tau tias kev sib tham video zoo thiab kev sib koom ua ke huab.
Tsev so/Apartments/Dormitories
- Rau -Kev Txuas Chav: 4 GE chaw nres nkoj muab kev ywj pheej xaim tes hauj lwm rau txhua chav, thaum WiFi 6 suav nrog thaj chaw.
- Kev Pabcuam Suab: POTS interface txhawb nqa xov tooj hauv xov tooj hauv chav tsev so lossis kev sib txuas lus xwm txheej ceev.
- Kev Pabcuam TV: Lub CATV interface muab cov kab ke ib txwm siv rau TV lossis IPTV teeb liab rau cov chav qhua.
Campus Networks/Educational Scenarios
- Kev Qhia Multimedia: Txhawb siab - bandwidth daim ntawv thov xws li cov chav kawm online thiab yees duab- ntawm- xav tau.
- Dormitory Networks: WiFi 6 ua tau raws li cov tub ntxhais kawm ntau - cov kev xav tau ntawm kev sib txuas ntawm cov khoom siv, thaum lub USB interface tso cai rau kev nthuav dav ntxiv rau kev sib koom cov kev kawm.

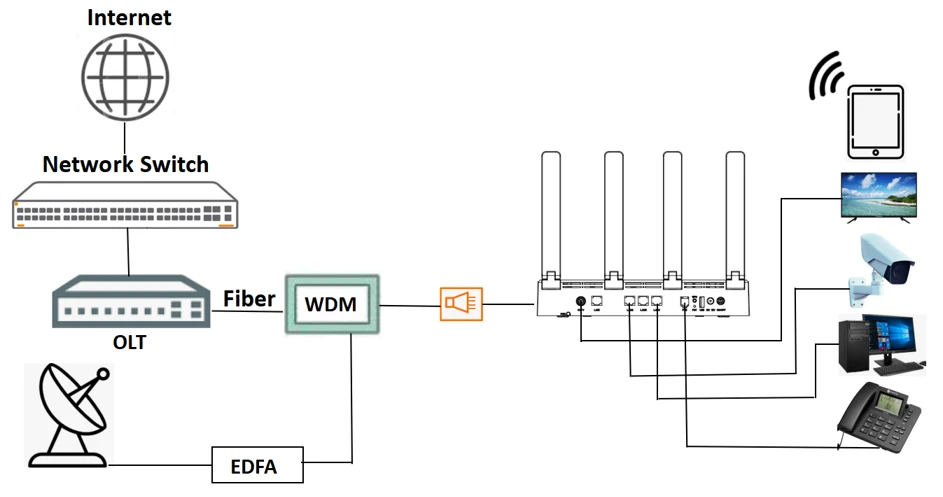

FTTx applacation

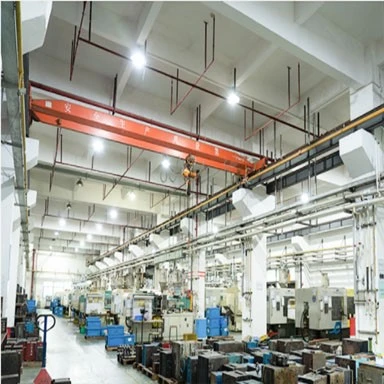

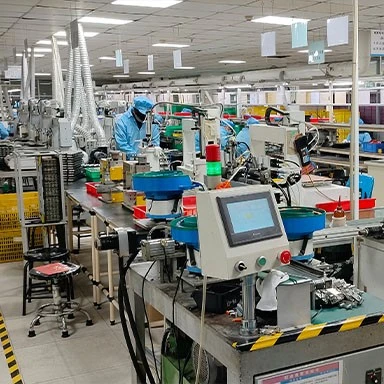

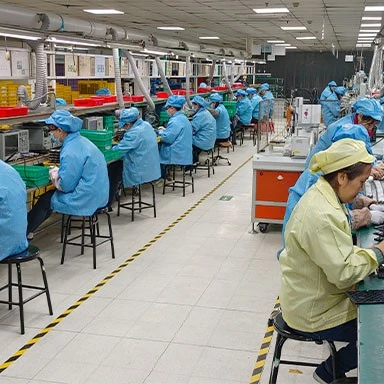

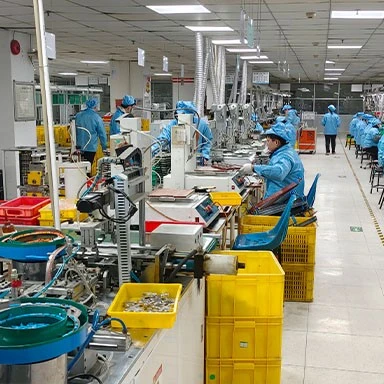

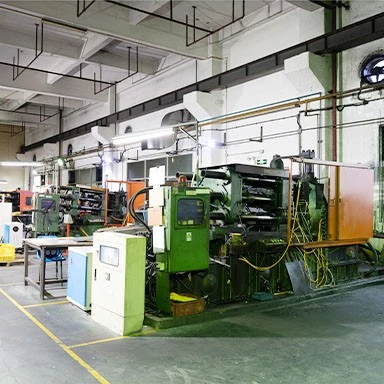

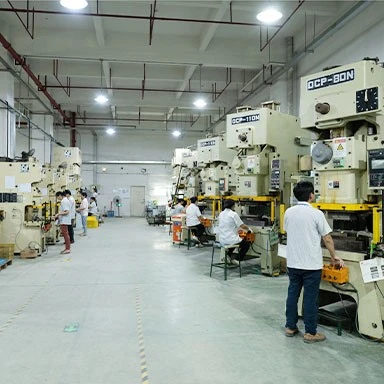

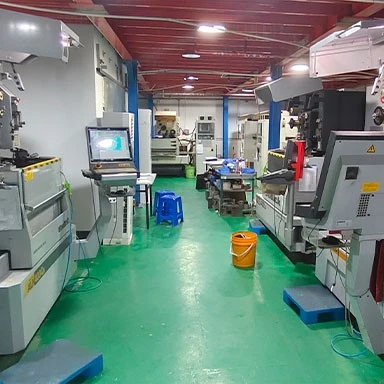

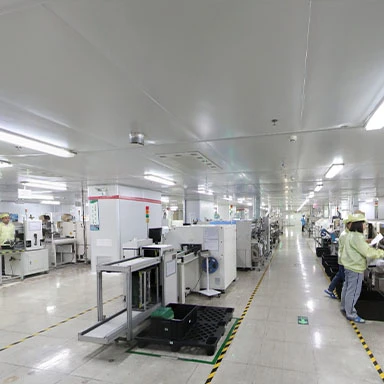

Peb lub Hoobkas tsim khoom
Peb Daim Ntawv Pov Thawj
txoj kev them nyiaj
Ntim & Thauj
Ntim & Thauj
Ntim
Peb yuav ntim peb cov khoom kom nruj kom ntseeg tau tias lawv tsis muaj kev puas tsuaj hauv kev thauj mus los.

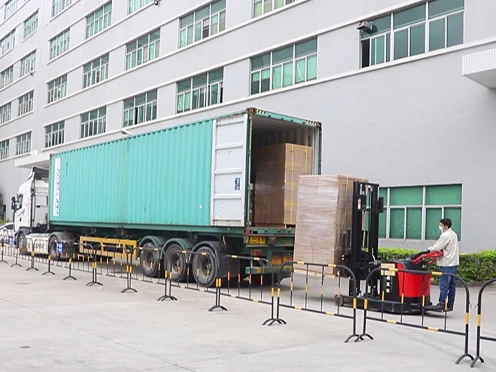

Kev thauj mus los
Peb txhawb nqa peb txoj kev thauj mus los loj los ntawm hiav txwv, av thiab huab cua kom ntseeg tau tias koj cov khoom tuaj yeem tuaj txog raws sijhawm.
FAQ
Q: Koj puas yog Hoobkas lossis tuam txhab lag luam?
A: Peb yog 100% Hoobkas thiab tseem ua lag luam online
Q: Koj txoj kev xa khoom yog dab tsi?
A: Peb feem ntau xa tuaj ntawm DHL / UPS / Fedex / TNT / Aramex. yog tias koj muaj ntau ntau -ty, koj tuaj yeem xaiv Air lossis Sea shipping.
Q: Koj lub sijhawm them nyiaj yog dab tsi?
A: T / T xaim txhab nyiaj hloov pauv, L / c, thiab lwm yam.
Q: Koj tuaj yeem tiv thaiv qhov teeb meem li cas yog tias peb tau txais cov khoom tsis raug?
A: Xa peb cov duab lossis video thawj zaug, peb xav muab kev hloov pauv dawb. muab cov khoom rau koj.
Q: Puas tuaj yeem coj tus qauv rau kev kuaj xyuas zoo?
A: Yog lawm, peb tuaj yeem muab cov qauv rau koj kuaj.
Q: Peb puas tuaj yeem muaj peb lub logo lossis lub npe tuam txhab luam tawm ntawm koj cov khoom lossis cov khoom?
A: Yog, koj paub tseeb. Peb lees txais OEM / ODM xaj thiab muab kev pabcuam rau kev luam ntawv logo, cov cim thawv nrog rau kev ntim khoom tsim.Koj tuaj yeem xa peb cov duab kos los ntawm email hauv jPG, TIF, Al, EPS, TIFF ntawm CorelDraw rau -mats Logo luam ntawv yuav xav tau MOQ uas yuav txawv ntawm txawv mod-el.Thov hu rau peb kom paub meej.
