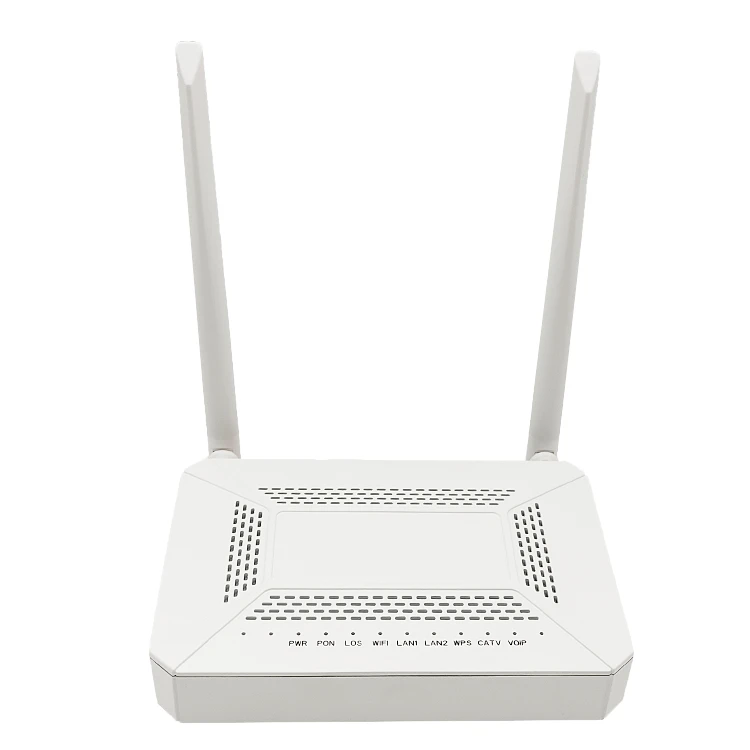

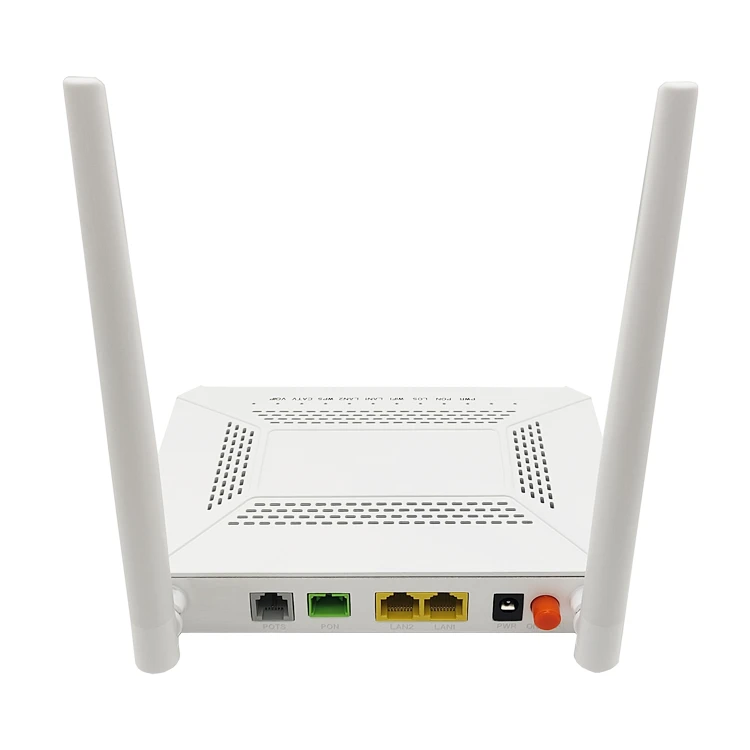

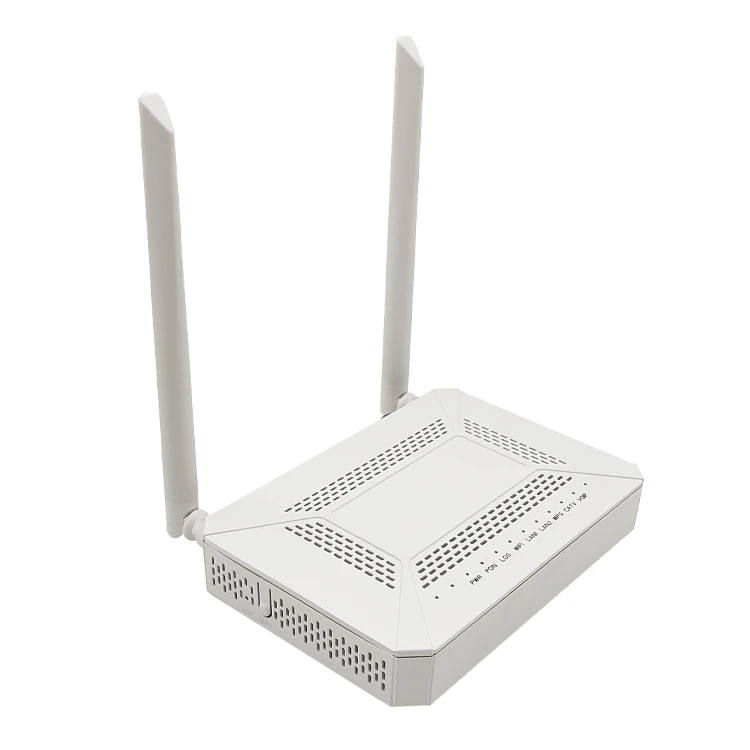

Lub WiFi 4 ONU yog ib qho tseem ceeb hauv fiber ntau -rau--tsev (FTTH) tes hauj lwm, ua rau ISPs xa high- internet ceev ntawm optical fiber. Nws ua haujlwm raws li modem + Wi-Fi router, hloov kho qhov muag teeb liab rau hauv wired (Ethernet) thiab wireless (Wi-}Fi 4) kev sib txuas rau cov neeg siv kawg.
Technical Parameter
| Tus neeg siv interface |
1 * 10/100/1000M RJ45 1 * 10/100M RJ45 1 * POV 2.4G wifi |
| PON |
EPON & GPON hom hloov kho Hom interface: SC-APC/SC-UPC Network coverage vojvoog: 20KM
GPON: nce 1.25Gbps / downstream 2.5Gbps Optical txais rhiab heev: -7dBm ~ -28dBm Lub teeb hluav taws xob txuas ntxiv: 0.5dBm ~ +5dBm
EPON: sab sauv 1. 25Gbps/downstream 1.25Gbps Optical txais rhiab heev: -7dBm ~ -27dBm Lub teeb hluav taws xob txuas ntxiv: 0dBm ~ 4dBm |
| POTS Chaw nres nkoj |
1 * RJ11 nrog 3REN Max 1 km nrug Lub nplhaib sib npaug, 55V RMS |
| Loj | 140mm (L) × 90mm (W) × 30mm (H) |
| Ib puag ncig |
Ua haujlwm kub: 0 ° -60 ° C Kev khiav dej num: 10% -85% (tsis-condensing) Cia kub: -40℃-80 degree Cia cov av noo: 5% -95% (tsis-condensing) |
| Fais fab mov |
DC 12V / 1A Fais fab interface loj: 2.1mm / 5.5mm |
| Hwj chim | < 8W |
| Kev tswj hwm | WEB / TELNET / TR069 / OMCI / OAM |
