Kev piav qhia

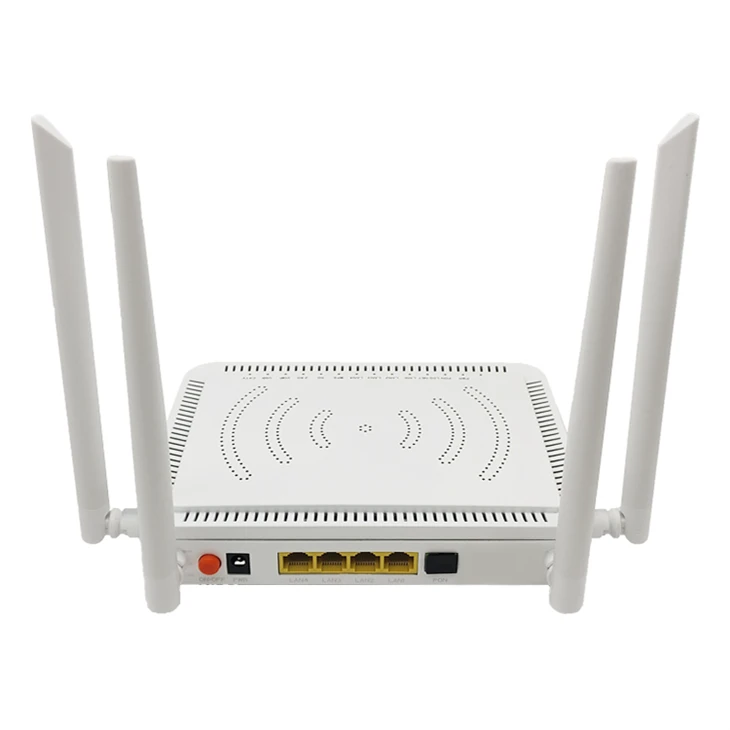

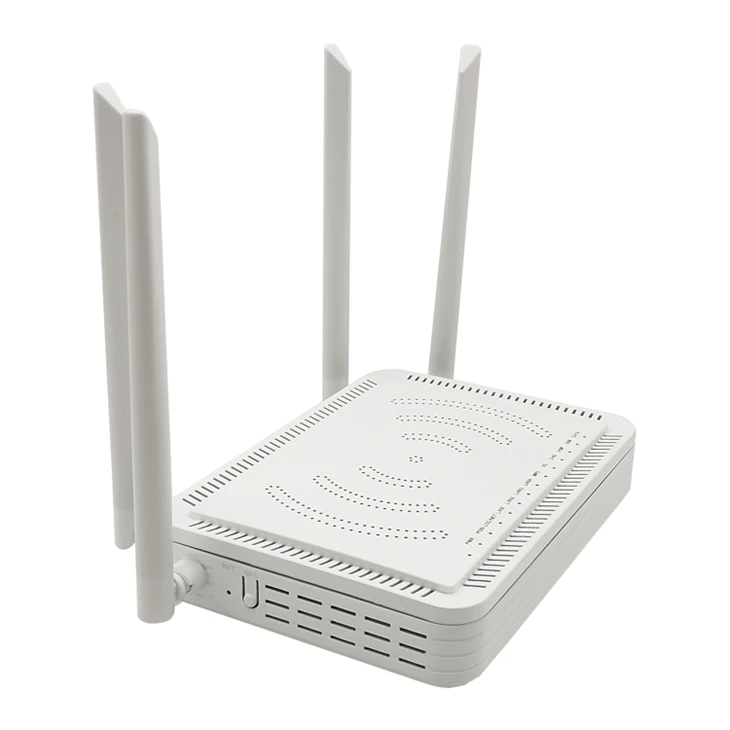

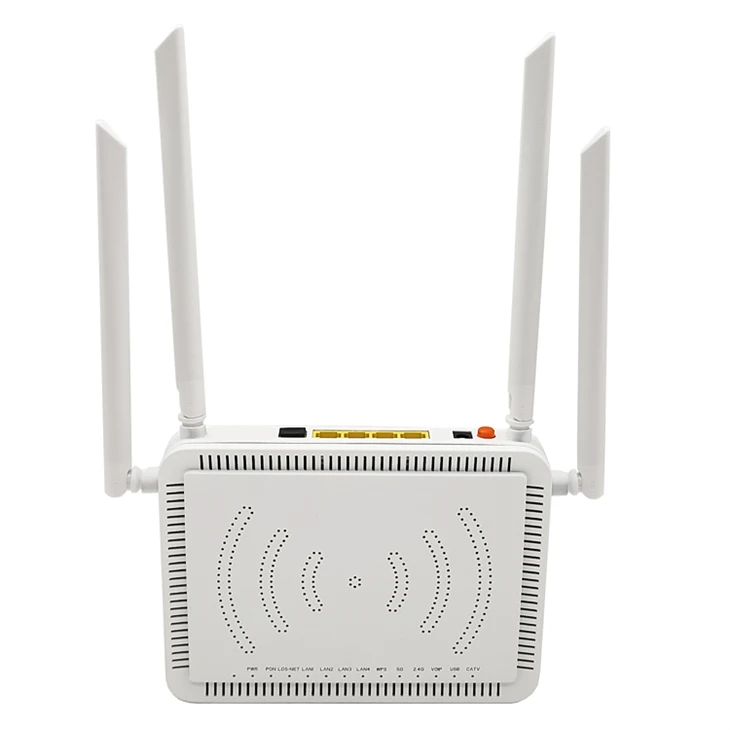

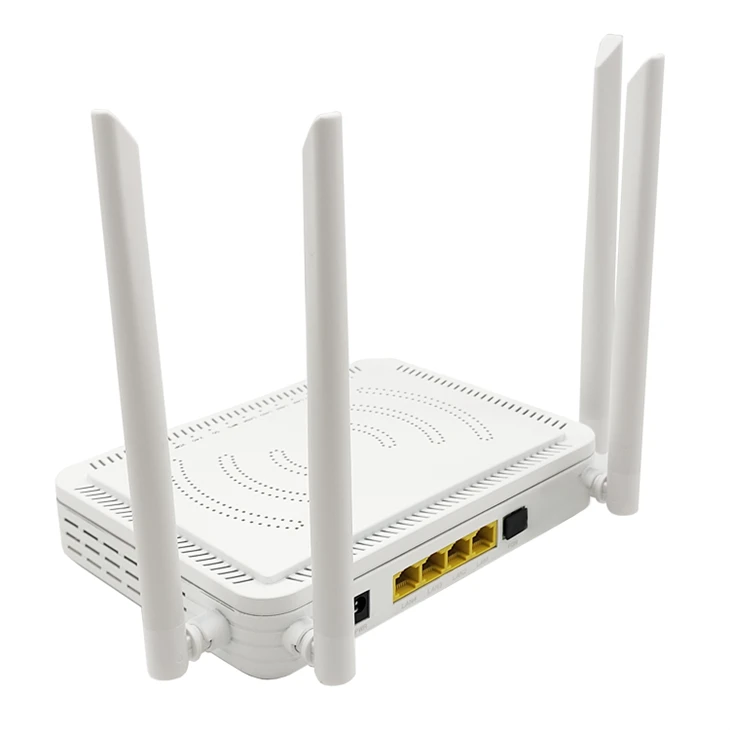

Qhov FTTH ONU no nta dual -mode XPON kev txhawb nqa (tshaj nrog ob qho tib si EPON thiab GPON cov qauv) thiab xa WiFi ceev txog li 1200Mbps siv IEEE 802.11b/g/n/ac technology. Nruab nrog cov txheej txheem siab tshaj 2 thiab Txheej 3 muaj peev xwm, nws muaj kev cuam tshuam dav nrog OLT hom loj thoob ntiaj teb. Cov cuab yeej tso cai rau ntsaws- thiab- ua si xa tawm thiab tuaj yeem tswj tau nyob deb ntawm ob qho tib si OMCI thiab TR069 raws tu qauv.
Nta:
- Txhawb QOS configuration
- Txhawb chaw nres nkoj khi
- Txhawb ACL kom teeb tsa cov ntaub ntawv pob ntawv lim tau yooj yim
- Txhawb TR069 rau ACS (Auto Config Server)
- Ua raws li IEEE802.3ah & ITU-T G.984 tus qauv
- Txhawb cov ntaub ntawv encryption, pab pawg tshaj tawm, chaw nres nkoj VLAN sib cais, thiab lwm yam.
- Txhawb nqa Dynamic Bandwidth Allocation (DBA)
- Txhawb ONU pib - tshawb pom/Txuas kev tshawb nrhiav/cov chaw taws teeb hloov kho software
- Txhawb kev ruaj ntseg wireless ntawm 64/128 ntsis WEP, 802.1x, WPA thiab WPA2
| PON | Tsis muaj |
| · XPON chaw nres nkoj (EPON PX20+ thiab GPON Class B+) | Qhov Loj: 186 × 136 × 33.5mm (L × W × H) |
| · SC ib hom, SC / APC connector | Net nyhav: 0.35Kg |
| ·TX optical zog: 0.5 ~ +4dBm | · Ua haujlwm kub: -10 ~ +55 degree |
| RX rhiab heev: -28dBm | Kev khiav dej num:: 5-95% |
| Lub zog kho qhov muag: -3dBm (EPON) lossis -8dBm (GPON) | · Cia kub:-40 ~ +70 degree |
| · kis nrug: 20KM | · Khaws cov av noo: 5 ~ 95% |
| Lub wavelength: TX1310nm, RX1490nm | |
| · Ua raws li IEEE802.3ah & ITU-T G.984 tus qauv | |
| WiFi | |
| WIFI5: 802.11b/g/n/a/ac 5GHz, 2.4GHz | |
| · Txhawb OFDM, MU-MIMO, Dynamic QoS, 256-QAM | |
| · Ntse Txuas rau ib qho Wi-Fi lub npe-Ib qho SSID rau 2.4GHz thiab 5GHz dual band | |
| 2.4GHz 2T2R, 5GHz 2T2R | |

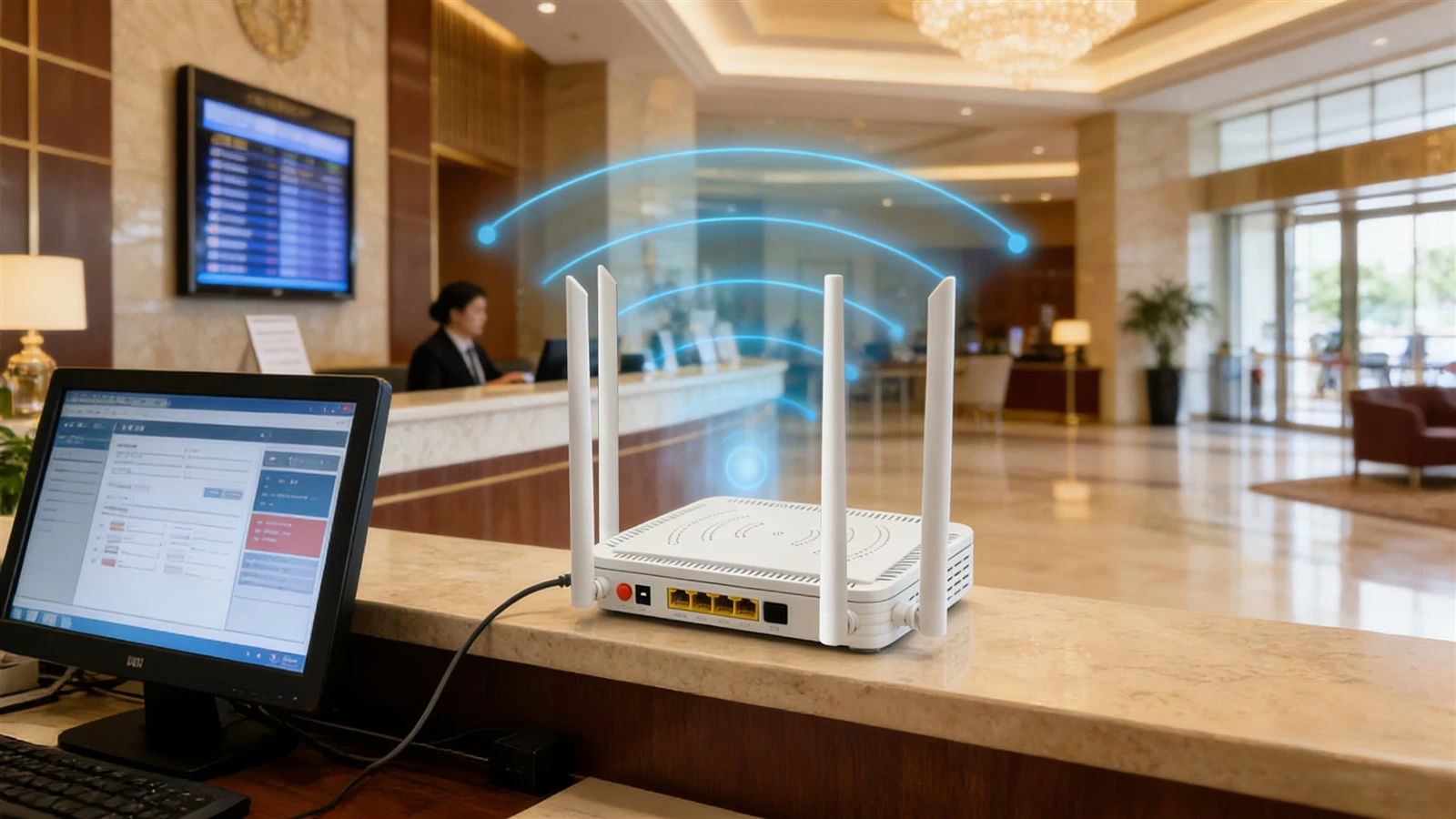

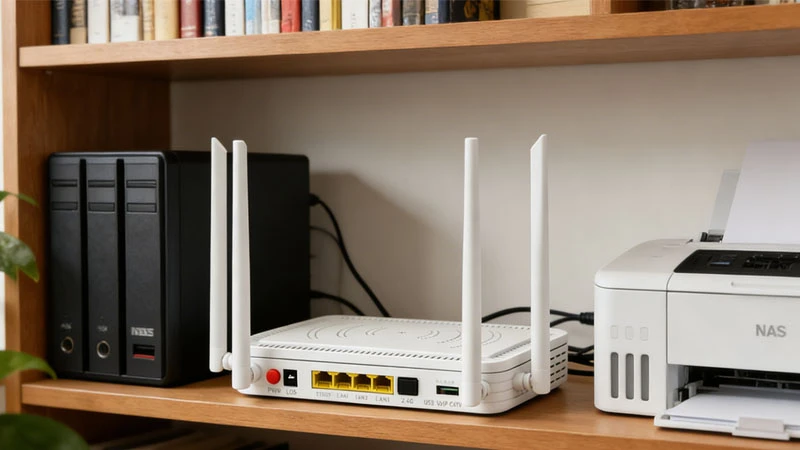

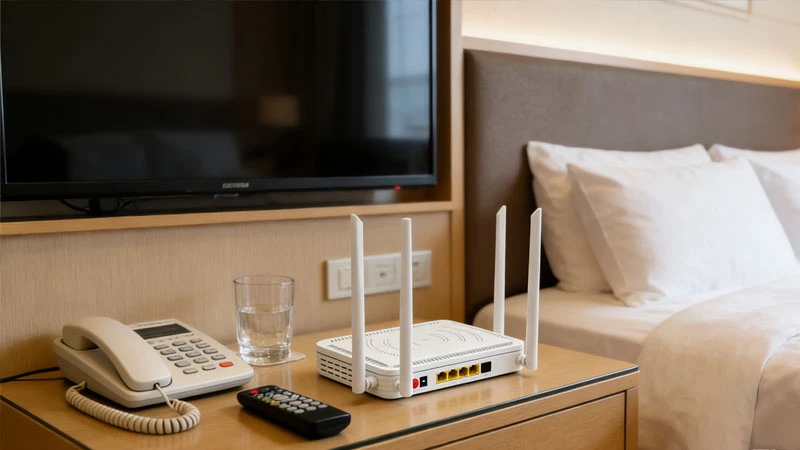

Qhov zoo ntawm XPON ONU 4GE WiFi 5 hauv Hotel Applications
Qhov no yog ib qho khoom siv sib xyaw ua ke uas sib koom ua ke ntawm cov khoom siv kho qhov muag (PON), kev hloov pauv, thiab kev sib txuas wireless (Wi-Fi 5). Hauv tsev so Passive Optical LAN (POL) cov kev daws teeb meem, nws ua lub luag haujlwm tseem ceeb ntawm "ib lub davhlau ya nyob twg hauv ib chav" kev xa tawm, txhim kho kev ua haujlwm hauv network, ua kom yooj yim txij nkawm, thiab txo cov nqi.
Integrated Deployment, Simplified Network
- Multi-Kev Pabcuam dhau ib Fiber Ib Leeg: Ib qho fiber ntau optical tuaj yeem muab tag nrho cov kev pabcuam hauv network rau cov chav qhua, suav nrog kev siab - internet ceev, TV, thiab xov tooj. Qhov no ua kom yooj yim rau kev xa xov cable hauv cov chav, ua kom lawv huv si thiab sib koom ua ke.
- High Bandwidth Assurance: PON thev naus laus zis nws tus kheej txhawb nqa gigabit- theem nkag bandwidth, ua kom muaj kev ua haujlwm zoo ntawm ntau yam khoom siv hauv chav qhua ib txhij. Nws ua tau raws li cov qhua 'siab -bandwidth xav tau xws li HD video streaming thiab video sablaj.
Ntev -Txuag Nqi Them Nqi
- Txo Cov Nqi Them Nqi: Siv fiber ntau optics es tsis txhob muaj ntau ntawm Ethernet cables txo cov nqi khoom thiab txo qhov chaw nyob ntawm cov kav dej.
- Zog Efficiency: Lub zog noj ntawm cov khoom siv feem ntau qis dua li ntawm kev hloov pauv ib txwm + AP kev sib txuas. Tsis tas li ntawd, splitters siv nyob rau hauv lub network yog cov khoom siv passive uas yuav tsum tsis muaj lub zog siv hluav taws xob, ua rau lub sijhawm ntev - txuag hluav taws xob.
Kev xa tawm yooj yim thiab kho yooj yim
- Plug-thiab-Play: Cov cuab yeej siv feem ntau txhawb cov chaw taws teeb tswj kev sib koom ua ke thiab kev tswj hwm (piv txwv li, ntawm TR-069 raws tu qauv). Tom qab kev teeb tsa, cov kev pabcuam tuaj yeem qhib tau nyob deb ntawm cov khoom siv los ntawm chav tsev, tshem tawm qhov xav tau ntawm kev teeb tsa nyuaj hauv txhua chav thiab txhim kho kev xa tawm zoo.
- Ceev Fault Localization: Cov thawj coj hauv network tuaj yeem saib xyuas qhov xwm txheej ntawm txhua chav ONU. Yog tias muaj teeb meem hauv network tshwm sim hauv ib chav qhua, lawv tuaj yeem txheeb xyuas tau sai, txo qis ntawm - lub sijhawm daws teeb meem ntawm qhov chaw.
Kev them nyiaj yug rau Unified Network Management
- Raws li lub network terminals, cov cuab yeej no tuaj yeem tswj hwm los ntawm lub tsev so OLT thiab kev tswj hwm network hauv chav tsev. Qhov no ua kom yooj yim rau kev siv cov cai hauv network, kev hloov kho software, thiab kev saib xyuas kev khiav tsheb, ua kom muaj kev txawj ntse thiab kev saib xyuas lub tsev so network.

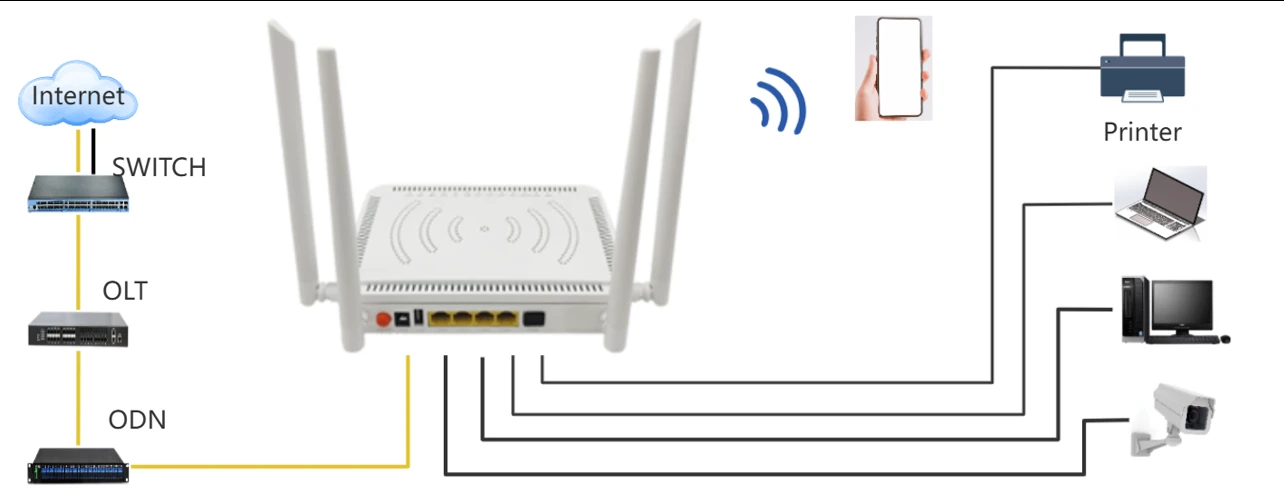

FTTx applacation

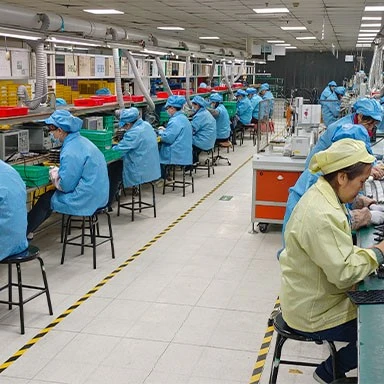

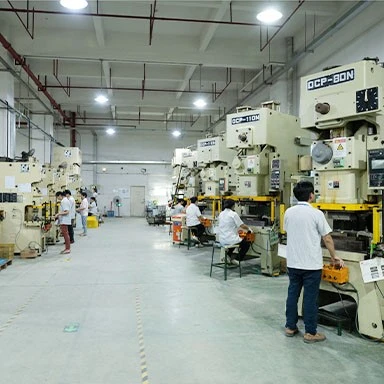

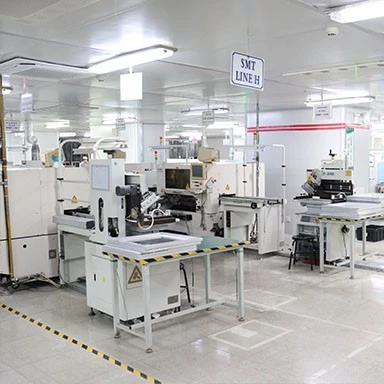

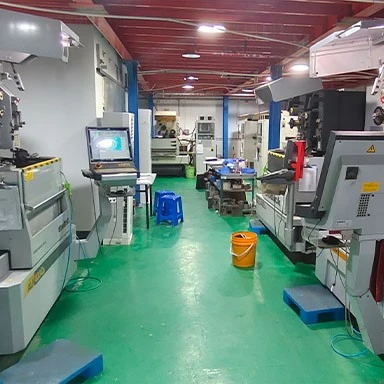

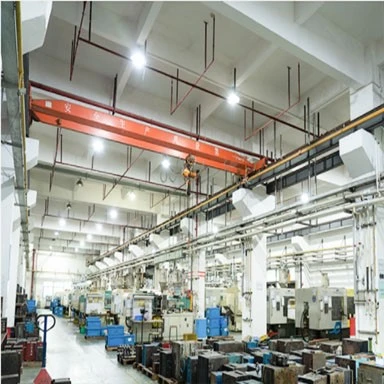

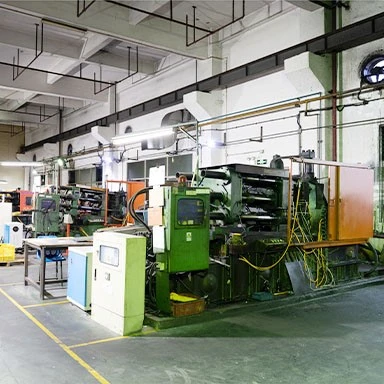

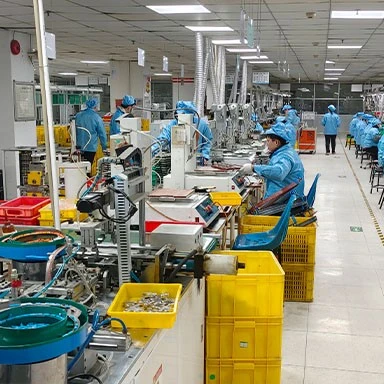

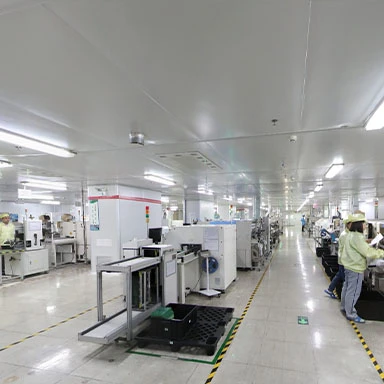

Peb lub Hoobkas tsim khoom

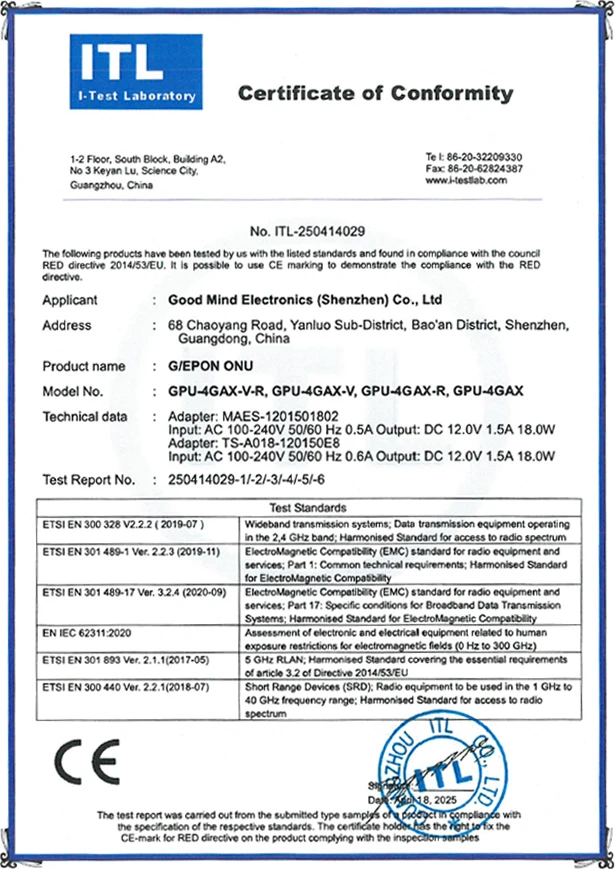

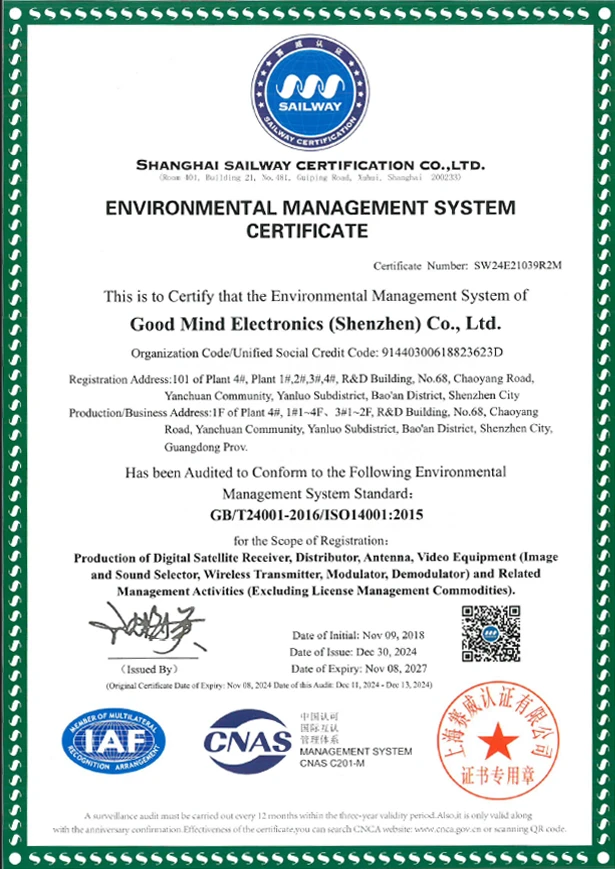

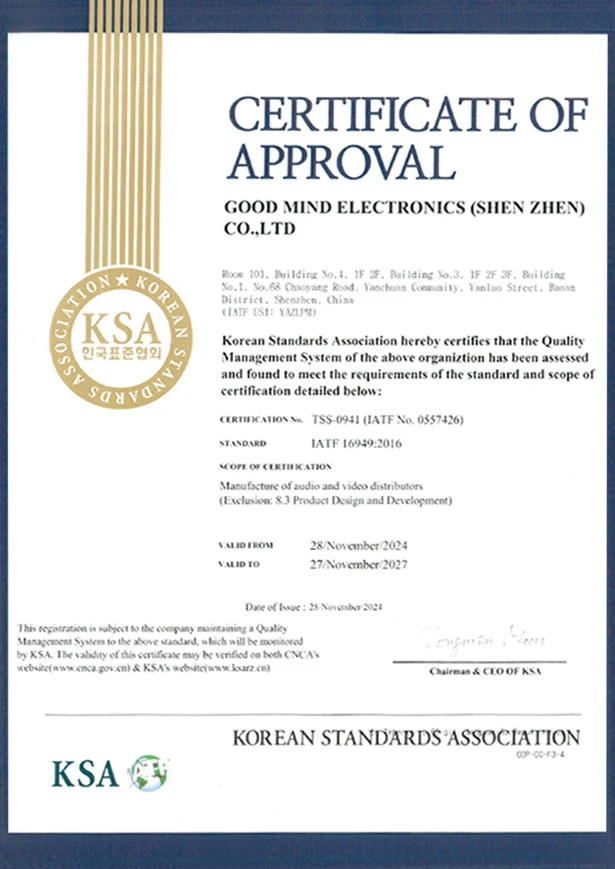

Peb Daim Ntawv Pov Thawj
txoj kev them nyiaj
Ntim & Thauj
Ntim & Thauj
Ntim
Peb yuav ntim peb cov khoom kom nruj kom ntseeg tau tias lawv tsis muaj kev puas tsuaj hauv kev thauj mus los.

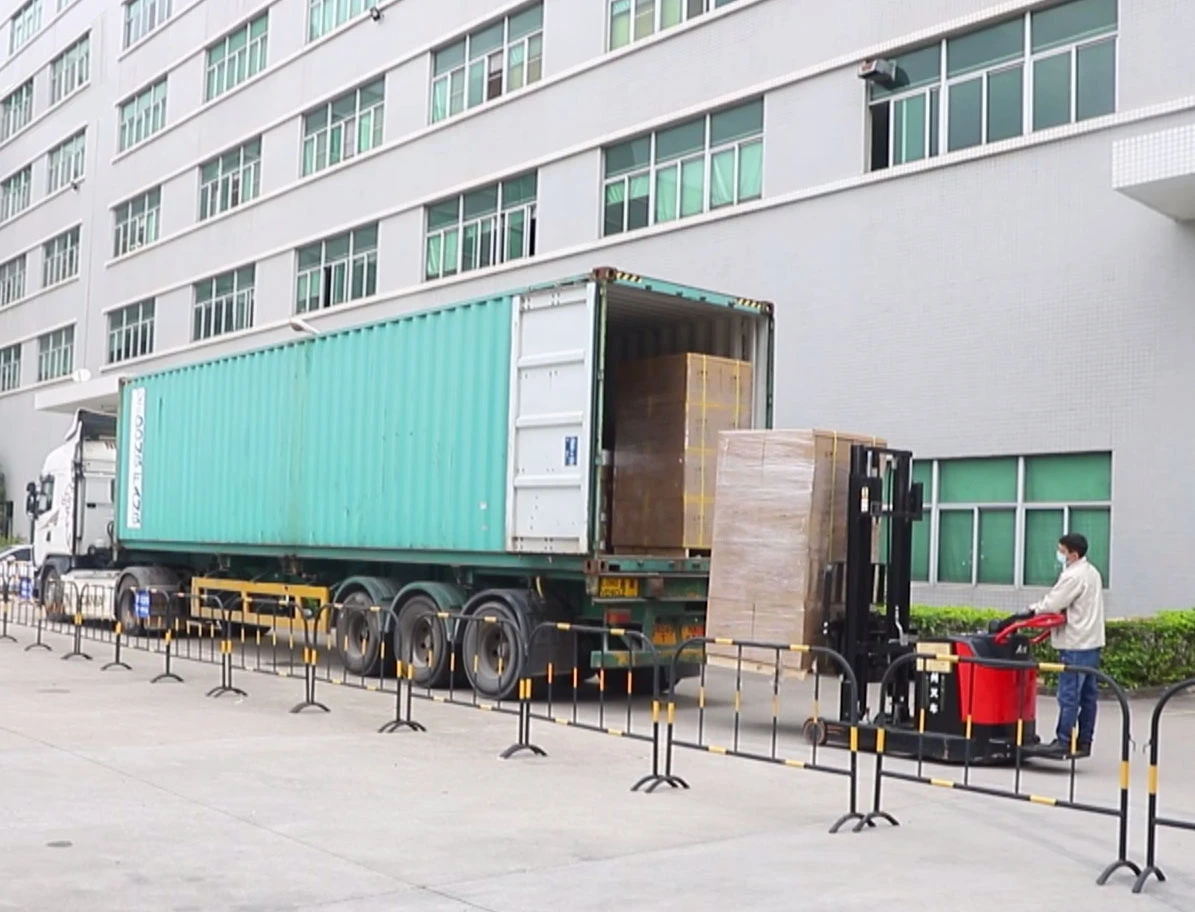

Kev thauj mus los
Peb txhawb nqa peb txoj kev thauj mus los loj los ntawm hiav txwv, av thiab huab cua kom ntseeg tau tias koj cov khoom tuaj yeem tuaj txog raws sijhawm.
