Kev piav qhia

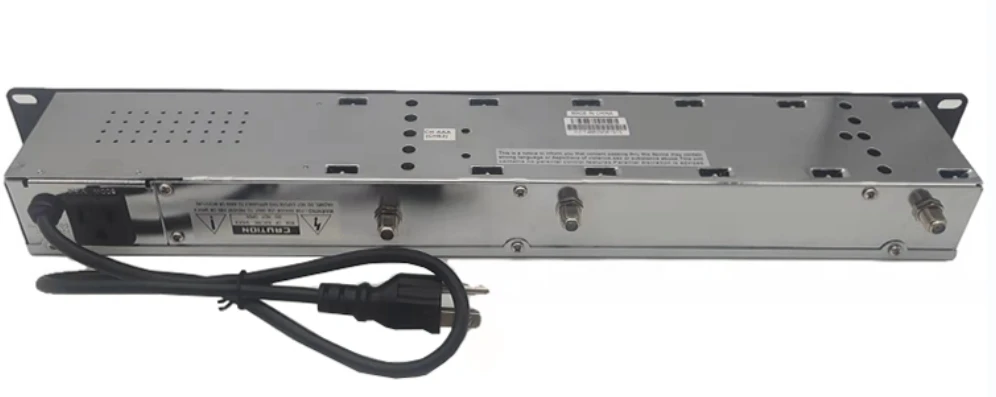

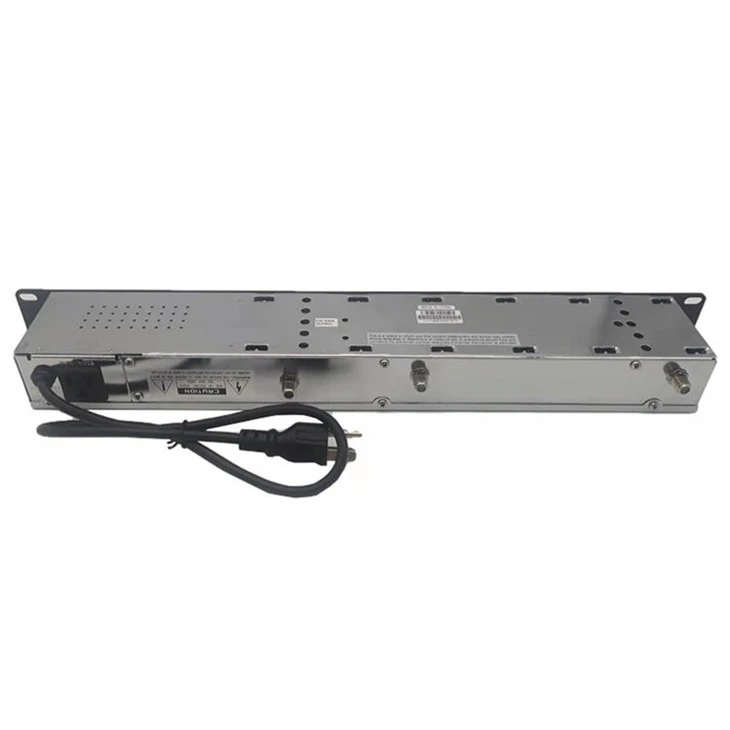

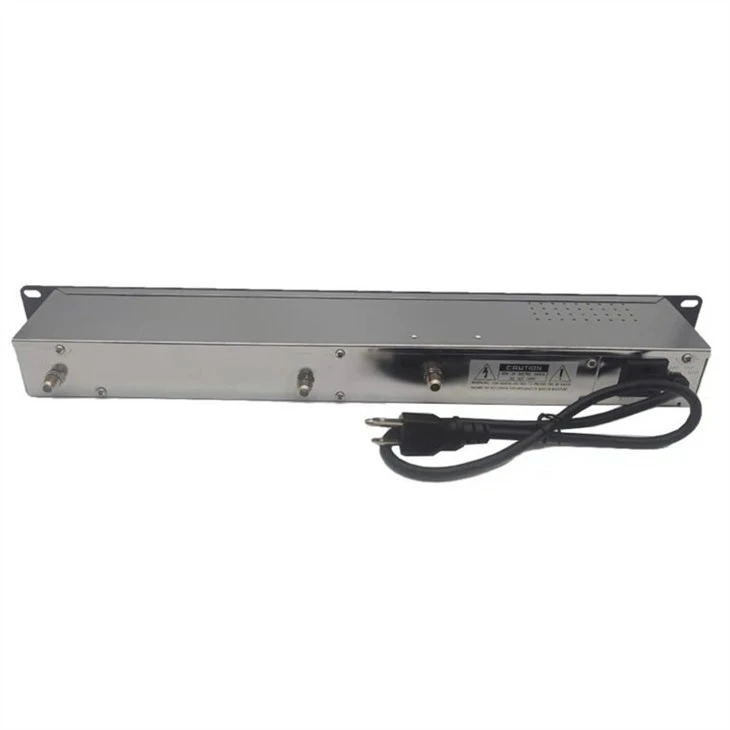

CT-SAW860 yog ib qho khoom siv tag nrho- lub xeev audio/video modulator uas muab cov video modulated andaural RF cab kuj tso zis rau ntawm ib tug ruaj channel ntawm 54MHz mus rau 860MHz.
Lub SAW Filtered Audio Video Modulator lees txais cov qauv polarity video ntawm 0.7-2.5 Vp-p qib los ntawm cov peev txheej video xws li satellite receiver, demodulator, TV camera, DVD player lossis video tape recorder.

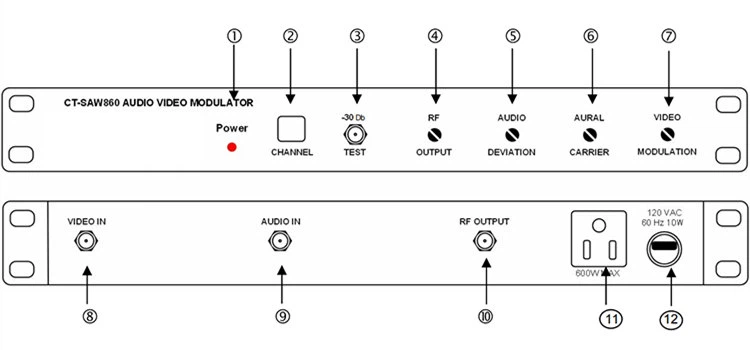

Chav tsev muab cov yeeb yaj kiab zoo, xim, thiab cov cim suab ntawm ib qho channel uas tsis siv nyob rau hauv lub kaw lus kaw MATV, SMATV, lossis CATV system. Rau kev ua haujlwm yooj yim, txhua theem tswj tau nyob ntawm lub vaj huam sib luag pem hauv ntej.
Specification
|
Qhov chaw ntawm Keeb Kwm: Guangdong, Suav |
|
|
Tus Qauv Zauv: GDM-004 (GLM-SAW860) |
|
|
RF |
|
|
1. Tso zis raws |
TV VHF: 2-13, UHF: 14-69, CATV: 2-127 |
|
2. Cov zis theem |
+55 dBmV (tsawg kawg) |
|
3. Tso zis ntau yam |
13dB ib |
|
4. A/V Carrier Ratio |
-7dB rau -22dB |
|
5. Spurious tso zis |
-60 dB hauv qab video cab kuj (@A/V carrier ration -15 dB, tso zis theem: +55dBmV) |
|
6. Qhov tseeb / ruaj khov |
± 5 KHz |
|
7. Tso zis impedance |
75 hmo |
|
8. Tso zis rov qab poob |
9dB ib |
|
VIDEO |
|
|
1. Video tswv yim theem |
0.7 Vp-p yam tsawg kawg nkaus @87.5% Modulation |
|
2. Qhov sib txawv tau txais |
<5% (10 to 90% APL) |
|
3. Phaj sib txawv |
<5˚ (10 to 90% APL) |
|
4. Hmoob thiab suab |
-60 dB @ 87.5% Modulation |
|
5. Visual Carrier rau Noise Ratio |
60 dB @ 4 MHz BW |
|
6. Zaus teb |
± 1.7 dB (30 Hz txog 4.2 MHz) |
|
AUDIO |
|
|
1. Qib nkag |
0.8 Vp -p rau ± 25 KHz Deviation |
|
2. Input Impedance |
600 Ohms Unbalanced |
|
3. Ua ntej-Kev tsom xam |
75 ;sec |
|
GENERAL |
|
|
1. Fais fab Input Range |
120 VAC, 60 Hz |
|
2. Kev ua haujlwm kub |
32 ˚F ~ 122 ˚F |
|
3. Cov khoom sib txuas |
Txhua yam "F" hom |
|
MECHANICAL |
|
|
1. Qhov ntev |
19" (W) x 1.75" (H) x 2.25" (D) |
|
2. Nyhav |
4.3 lbs ib |

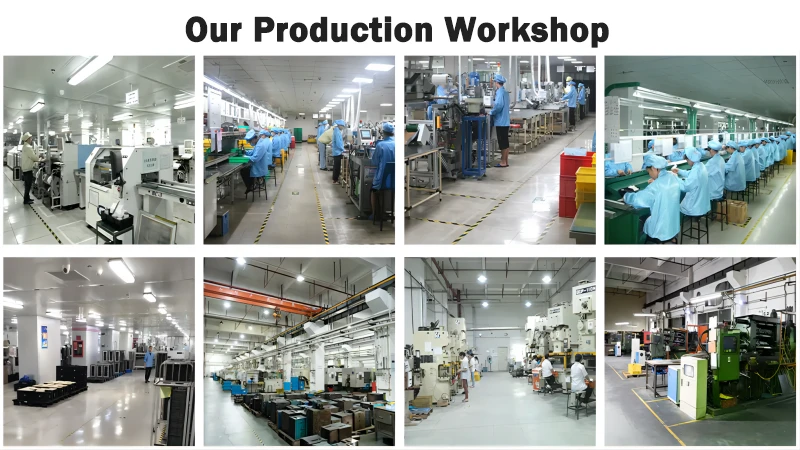

Goodmind Electronics (Shenzhen) Co., Ltd. yog tsim nyob rau hauv 1992 nrog ib tug sau npe peev ntawm 18 lab US dollars. Nws tus kheej lub Hoobkas nyob hauv Shenzhen thiab muaj ntau tshaj 1000 tus neeg ua haujlwm. Nws yog lub tuam txhab ua haujlwm siab -tech enterprise integrating R&D, ntau lawm, muag thiab kev pabcuam, Lub tuam txhab tshwj xeeb hauv Kav hlau txais xov / Network Kev sib txuas lus / Bluetooth / AV Accessories / Smart Home / Car Accessories kev tsim lub tuam txhab. Lub Hoobkas yog vertically integrated. Lub Hoobkas muaj kev ua cov yas, hlau stamping, zinc tuag casting, SMT, DIP thiab Assembly center. Lub tuam txhab muaj lub zog nyiaj txiag muaj zog, pab pawg R&D kws tshaj lij, cov cuab yeej tsim khoom zoo tshaj plaws thiab kev tsim khoom lag luam, thiab mob siab rau tsim cov khoom zoo rau cov neeg siv khoom.
SAW Filtered Audio Video Modulator yog dab tsi?
SAW Filtered Audio Video Modulator yog ib qho khoom siv feem ntau siv hauv analog TV systems rau kev tshaj tawm suab thiab video signals. Nws ntiav cov ntxaij lim dej Surface Acoustic Wave (SAW) kom meej meej thiab lim cov teeb liab modulated, kom ua raws li cov qauv tshwj xeeb thiab txo kev cuam tshuam.
SAW Filter ua haujlwm li cas hauv cov ntsiab lus no?
Lub Nto Acoustic Wave (SAW) lim yog ib qho khoom siv acoustic yoj uas lim thiab ua cov teeb liab hluav taws xob ntawm xov tooj cua zaus. Hauv qhov modulator no, nws pab kho cov yam ntxwv zaus ntawm lub suab - video teeb liab, xyuas kom nws nyob twj ywm nyob rau hauv cov zaus spectrum thiab txo kev cuam tshuam.
Lub hom phiaj ntawm SAW Filter hauv Audio Video Modulator yog dab tsi?
SAW lim nyob rau hauv lub modulator ua hauj lwm los tsim thiab lim cov teeb liab modulated. Nws pab ua kom tau raws li cov qauv zaus, tiv thaiv kev cuam tshuam nrog cov channel uas nyob ib sab, thiab txhim kho tag nrho qhov zoo ntawm lub suab sib kis- video teeb liab.
SAW Filtered Audio Video Modulator
SAW (Surface Acoustic Wave) Lim Suab Video Modulator yog ib qho cuab yeej siv hauv analog TV systems rau tshaj tawm suab thiab video signals. Nws suav nrog SAW lim, uas yog cov khoom siv acoustic yoj, kom ua kom zoo thiab lim cov teeb liab modulated. Qhov no yuav pab kom ua tau raws li cov qauv tshwj xeeb zaus thiab txo kev cuam tshuam.
Puas yog hom modulator no tseem cuam tshuam nrog kev hloov mus rau kev tshaj tawm digital?
Nrog rau kev hloov pauv mus rau kev tshaj tawm digital, ib txwm siv suab analog -video modulators nrog SAW lim tau dhau los ua tsawg dua. Cov tshuab tshaj tawm digital feem ntau siv cov kev hloov kho siab dua thiab cov txheej txheem encoding.
Tus modulator nyob li cas cuam tshuam los ntawm cov channel uas nyob ib sab?
SAW lim yog qhov cuab yeej siv los txo kev cuam tshuam los ntawm cov kab uas nyob ib sab lossis tsis xav tau cov cim. Nws ua kom ntseeg tau tias cov teeb liab modulated nyob hauv qhov sib faib ntau zaus, txo qhov kev pheej hmoo ntawm kev cuam tshuam.
FAQ
Q: Puas tuaj yeem SAW Filtered Audio Video Modulator tuav ntau txoj kev?
A: Yog lawm, nyob ntawm nws tus qauv tsim thiab kev qhia tshwj xeeb, tus modulator tuaj yeem ua ntau txoj hauv kev. Nws yog ib qho tseem ceeb los xyuas cov cuab yeej muaj peev xwm thiab ua raws li cov qauv kev tshaj tawm hauv cheeb tsam.
Q: Kuv yuav ua li cas thiaj ua tau raws li cov qauv kev tshaj tawm hauv cheeb tsam?
A: Nws yog ib qho tseem ceeb uas yuav tau sab laj nrog cov tuam txhab lag luam lossis cov neeg muag khoom kom ntseeg tau tias SAW Filtered Audio Video Modulator ua raws li cov qauv kev tshaj tawm tshwj xeeb thiab cov cai hauv koj cheeb tsam.
Q: Puas muaj kev txhawb nqa txuas ntxiv rau kev saib xyuas thiab hloov kho tshiab rau cov khoom siv no?
A: Raws li analog broadcasting systems yog phased tawm, kev txhawb nqa rau kev saib xyuas thiab kev hloov kho ntawm cov tshuaj analog modulators yuav raug txwv. Xav txog kev hloov mus rau cov kev daws teeb meem digital rau lub sijhawm ntev -.
