Lub hauv paus rau phau ntawv

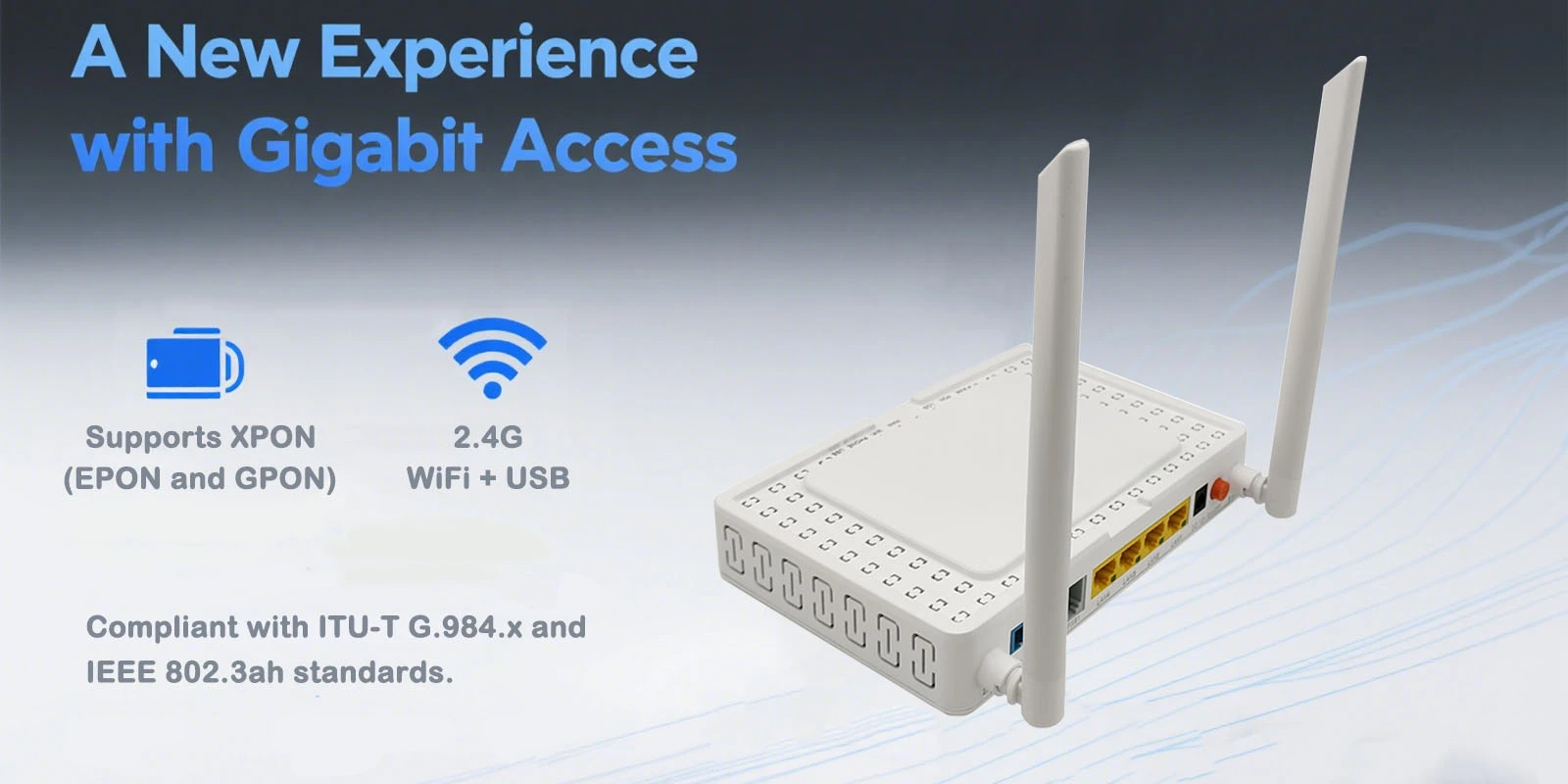

Qhov no ONU yog tsim rau FTH. Nws txhawb xpt dual-hom thev naus laus zis (epon thiab txuas ntxiv nrog rau 300mbps
Nta
- Nyob rau hauv Asiant nrog IEEE802.3ah & iTu-t G.984 tus qauv
- Kev them nyiaj yug - raws li kev txwv tsawg thiab bandwidth tswj
- Txog li 20km kis nrug deb
- Txhawb cov ntaub ntawv encryption, pawg tshaj tawm pawg, vlan sib cais, thiab lwm yam.
- Txhawb cov dynamic bandwidth faib (DBA)
- Kev them nyiaj yug rau nws pib - nrhiav \/ cov kab ntawv tshawb nrhiav \/ chaw taws teeb txhim kho ntawm software;
- Kev Txhawb Nqa Chaw nres nkoj VLAN Kev teeb tsa
- Txhawb zog tawm lub tswb muaj nuj nqi, yooj yim rau txuas cov teeb meem kom pom
- Txhawb DHCP Pab
- Txhawb QO Configuration
- Txhawb nqa chaw nres nkoj Khiav
- Txhawb nqa cov chaw nres nkoj xa mus
- Txhawb ACL los configure cov ntaub ntawv cov pob ntawv ntim fluidibly
- Kev tsim qauv tshwj xeeb rau cov kab ke tawg kev tiv thaiv kom tswj cov kab ke ruaj khov
- Txhawb Nqa software txhim kho
- Txhawb Tr069 rau ACS (Pib Config Server)
- Txhawb Auto Admm adpon thiab Epon hom
- Txhawb ipv4 \/ ipv6
- Txhawb DHCP server
Kev piav txog
|
Qho loj dav |
180mm × 147.5mm × 35 hli (L × w × h) |
|
Qhov hnyav |
0. 25kg |
|
Kev khiav hauj lwm mob |
Kev Ua Haujlwm Temp: -10} ~ {+55 degree Kev ua haujlwm vaum: 5 ~ 95% (tsis-condensed) |
|
Khaws Cia Mob |
Khaws cov temp: -40 ~ {+70 degree Khaws cov av noo: 5 ~ 95% (tsis-condensed) |
|
Hwjchim |
12V/1.5A |
|
Kev pab fais fab |
Tsawg dua los yog sib npaug rau 6w |
|
Ntsuas |
PWR, Pon, Lan1 ~ 4, wifi, wan, xov tooj, USB |
|
Lub tsev |
1xpon chaw nres nkoj (Epon PX 20+ thiab gon golon b +) SC nkaus xwb hom, SC \/ APC Connector TX Optical Zog: 0. {{{1} dbm Rx rhiab heev: -28 dbm Tshaj rau lub zog kho qhov muag: {-3 dbm (epon) lossis {{1} dbm (gpon) Kev nrug deb: 20km Tsov: TX 1310Nm, Rx1490NM |
|
Tus siv |
1 × 10\/100 \/ 1000mbps, kev sib haum xeeb pib 3 × 10 \/ 100mbps, kev sib haum xeeb pib 2 × RJ45 chaw nres nkoj |
|
Tus kab mob |
2.4ghz 2t2r |
|
O&M |
Web \/ Telnet \/ OAM \/ OMCI \/ TR0669 Txhawb nqa OAM \/ OMCI raws tu qauv |
|
Kev Txuas Txuas Hauv Is Taws Nem |
Txhawb kev hom |
|
Multicast |
IGMP v1 \/ v2 \/ v3 \/ v3, iGMP snooping MLD V1 \/ V2 snooping |
|
VOIP |
SIP thiab MMS G.711A \/ G.711U \/ G.722 \/ G.729 Codec ECHO CANCELLATION, VAD \/ CG, DTMF Relay Tus Hu Xov Tooj \/ Hu Tos \/ Hu Mus Rau \/ Hu Hloov Hloov \/ Hu Tuav \/ {{{} txoj kev sib tham Kab sim raws li gr -909 |
|
Wifi |
WiFi4: 802.11B \/ G \/ N, 2.4GHz WiFi: 2.4g 2x2,2 kav hlau txais xov. WiFi encryption: WPA \/ WPA2 Txhawb Nqa Momo-OFDM \/ DSSS \/ CCK, Dynamic Qos, {1}} deg |
|
Hluav taws kub |
Anti-DDos, lim raws li ACL \/ MAC \/ URL |

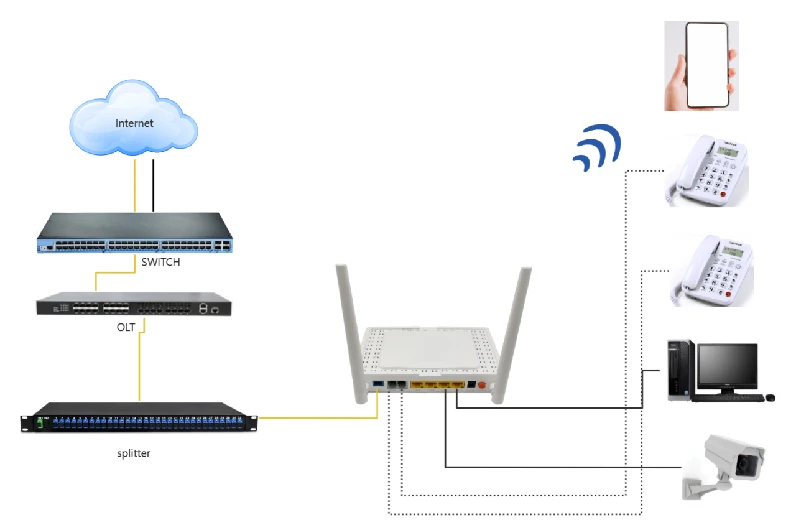

FTTX Appcacation
