Qhov ONU no yog tsim los rau FTTH. Nws txhawb XPON dual-mode thev naus laus zis (EPON thiab GPON), Nws yog dav siv nrog lub ntiaj teb kev lag luam tseem ceeb OLT hom, txhawb nqa ntsaws- thiab- ua si, OMCI thiab TR069 chaw taws teeb tswj cov yam ntxwv.
Nta
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Kev piav qhia
| Dimension | 100mm × 92mm × 30mm (L × W × H) |
| Netweight | 140g |
| Kev khiav haujlwm mob |
· Ua haujlwm kub: -10-+55 degree · Ua haujlwm av noo: 5-95% (tsis-condensing) |
| Kev khaws cia | · Cia kub: -40-+70 degree · Khaws cov av noo: 5-95% (tsis-condensing) |

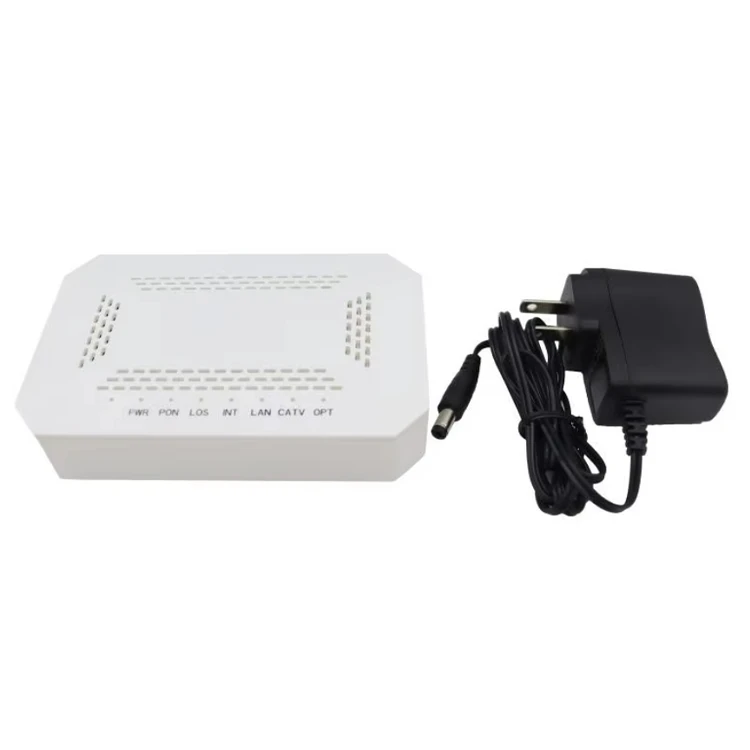

| Fais fab adapter | DC 12V / 0.5A, sab nraud AC -DC fais fab adapter |
| Fais fab mov | Tsawg dua lossis sib npaug li 4.2W |

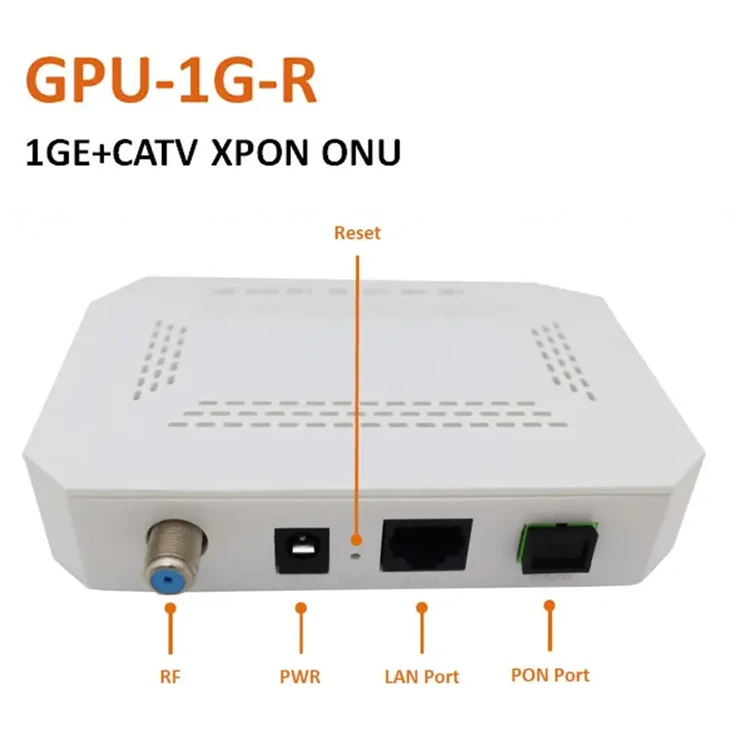

| Interfaces | 1 GE + CATV |

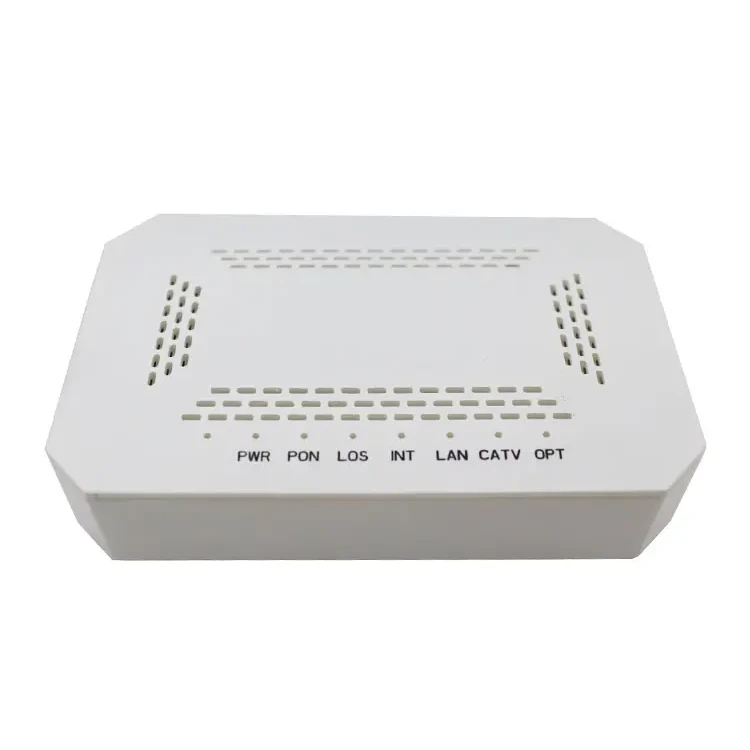

| Qhov taw qhia | POWER, LOS, PON, LAN, CATV |
| PON interface | · 1XPON chaw nres nkoj (EPONPX20+ thiab GPON Class B+) · SC ib hom, SC / APC connector ·TX optical zog: 0 ~ +4dBm RX rhiab heev: -28dBm · Tshaj tawm lub zog kho qhov muag:-3dBm (EPON) lossis - 8dBm (GPON) · kis nrug: 20KM wavelength: TX 1310nm, RX1490nm, CATV 1550nm |
| LAN interface | 1*GE Auto-kev sib tham RJ45 chaw nres nkoj |
|
CATV interface
|
· RF Optical zog: +2--18dBm Optical txais wavelength: 1550 ± 10nm RF zaus ntau: 47-1000MHz RF tso zis impedance: 750 RF tso zis theem: Ntau dua lossis sib npaug rau 70dBuV (0--15dBm) AGC ntau yam: 0--15dBm MER: Ntau dua lossis sib npaug rau 32dB (-14dBm optical input)\\ |
| PON hom | GPON lossis EPON hom |
| Uplink hom | Bridging thiab Routing Mode Zoo txuas nrog OLTs ntawm mainstream |
| CATV | Txhawb CATV Rmote tswj |
| Txuj | · Txhawb CTC OAM 2.1 thiab 3.0 · Txhawb ITUT984.x OMCI |
| Txheej 2 | · 802.1D & 802.1ad bridging · 802.1p Cos · 802.1Q VLAN |
| Txheej 3 | · IPv4 · DHCP Client/Server · PPPoE, NAT, DMZ, DDNS |
| Multicast | · IGMP v2N3, IGMP snooping |
| Kev ruaj ntseg thiab Hluav taws xob |
· Tiv thaiv Rogue ONU · DDOS, Lim Raws li ACL/MAC/URL |
| 0&M | Txhawb EMSIWEB\\Telnet\\CL thiab koom ua ke network tswj ntawm VSOL OLT |

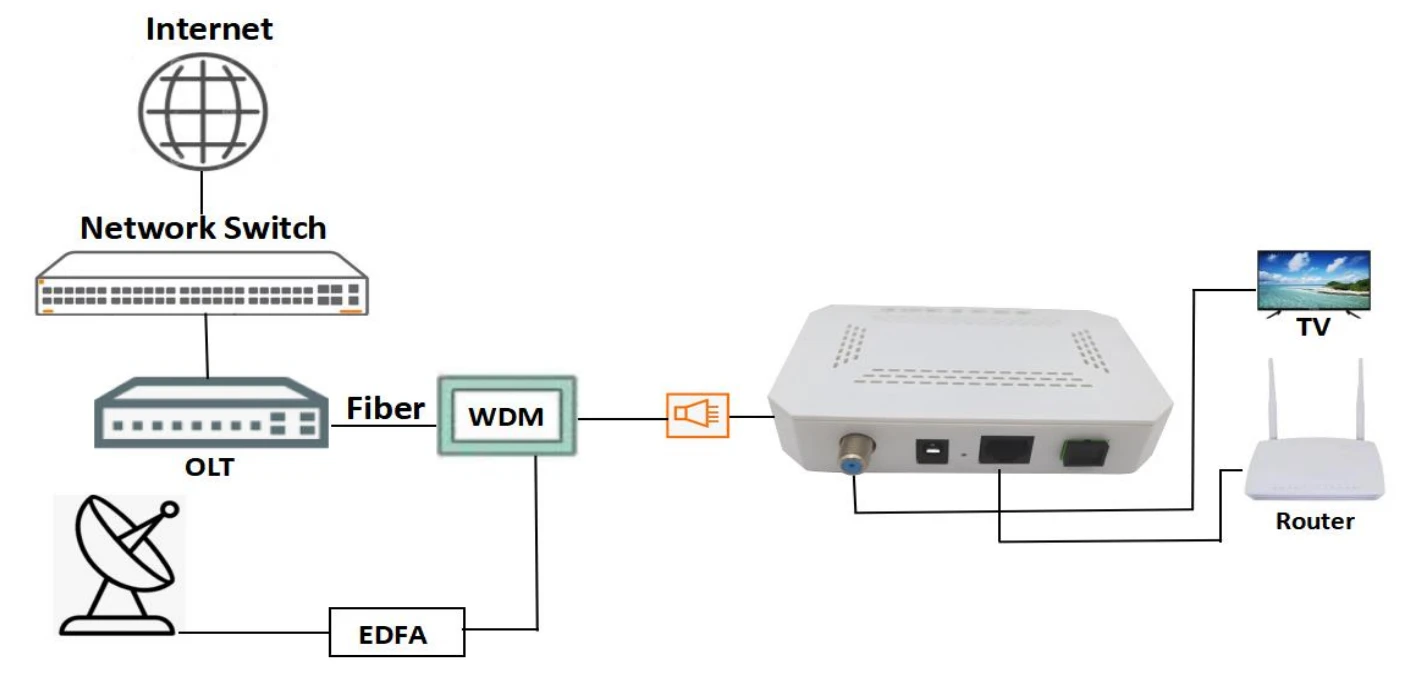

FTTx applacation:
