Taw qhia
Qhov ONU no yog tsim los rau FTTH. Nws txhawb XPON dual-mode thev naus laus zis (EPON thiab GPON), Nws yog dav siv nrog lub ntiaj teb kev lag luam tseem ceeb OLT hom, txhawb nqa ntsaws- thiab- ua si, OMCI thiab TR069 chaw taws teeb tswj cov yam ntxwv.
Nta
- Kev them nyiaj yug ntaus ntawv - raws li tus nqi txwv thiab tswj bandwidth
- Ua raws li IEEE802.3ah & ITU-T G.984 tus qauv
- Mus txog 20KM kis tau tus mob nrug
- Txhawb cov ntaub ntawv encryption, pab pawg tshaj tawm, chaw nres nkoj VLAN sib cais, thiab lwm yam.
- Txhawb nqa Dynamic Bandwidth Allocation (DBA)
- Txhawb ONU pib - nrhiav pom / Txuas kev tshawb nrhiav / kev hloov kho tej thaj chaw deb ntawm software;
- Txhawb chaw nres nkoj VLAN configuration
- Txhawb lub zog tawm lub tswb muaj nuj nqi, yooj yim rau kev txuas teeb meem nrhiav pom
- Txhawb QOS configuration
- Txhawb chaw nres nkoj khi
- Txhawb chaw nres nkoj xa mus
- Txhawb ACL kom teeb tsa cov ntaub ntawv pob ntawv lim tau yooj yim
- Kev tsim tshwj xeeb rau kev rhuav tshem kev tiv thaiv kom muaj kev ruaj ntseg
- Txhawb kev hloov kho software hauv online
- Txhawb TR069 rau ACS (Auto Config Server)
- Txhawb nqa kev pabcuam broadband thiab CATV
- Txhawb CATV kev pab cuam tej thaj chaw deb kaw muaj nuj nqi
- Txhawb IGMPv1/v2/Snooping
- Txhawb Dying Gasp
- Txhawb Port Loop Detect

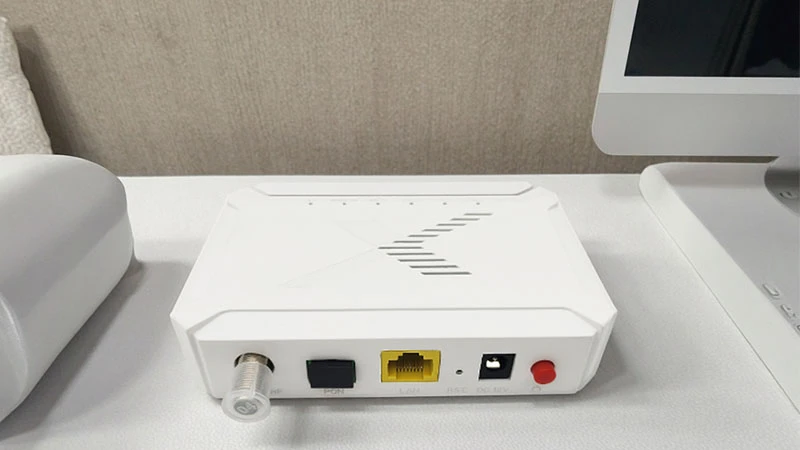

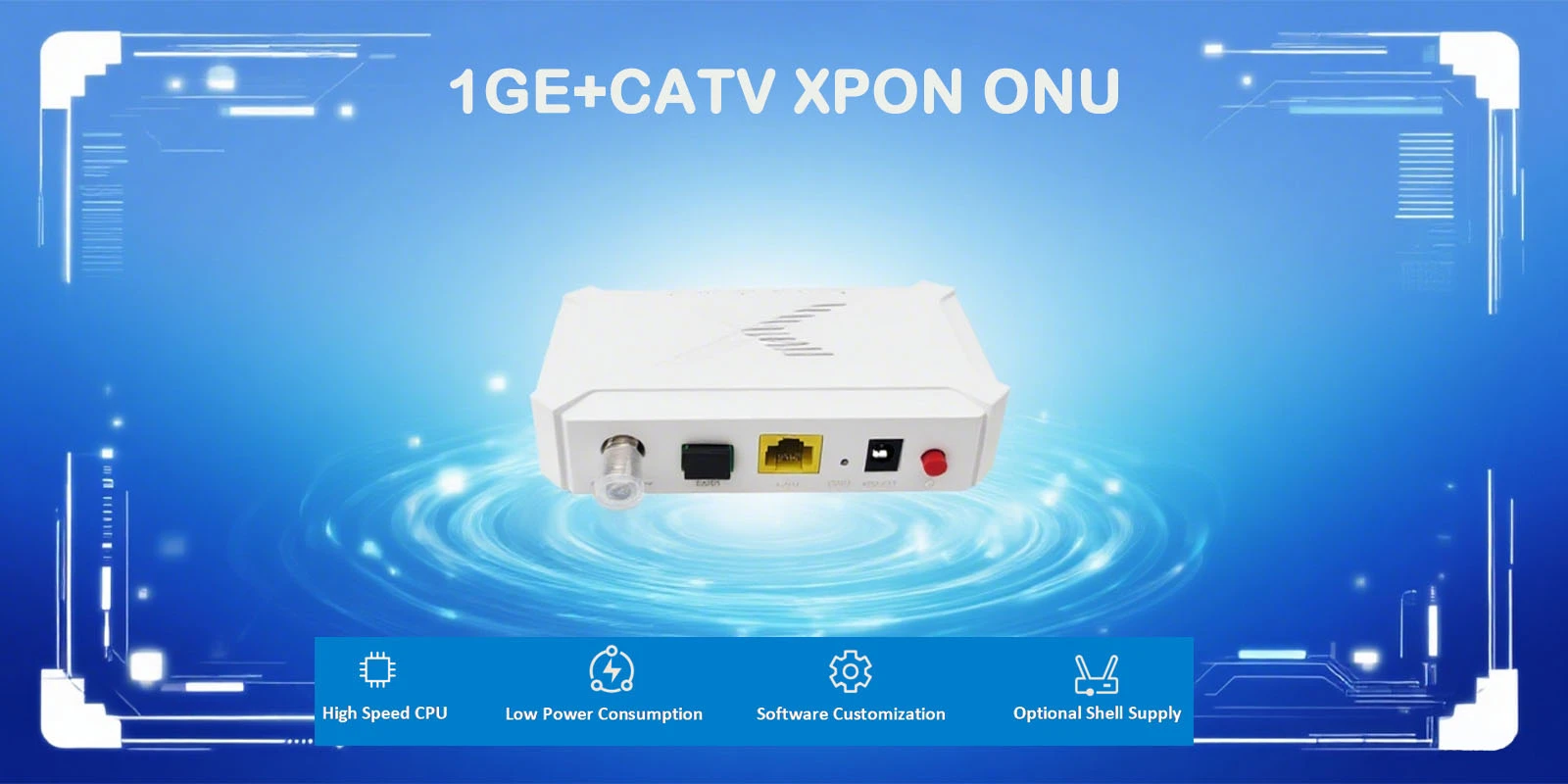

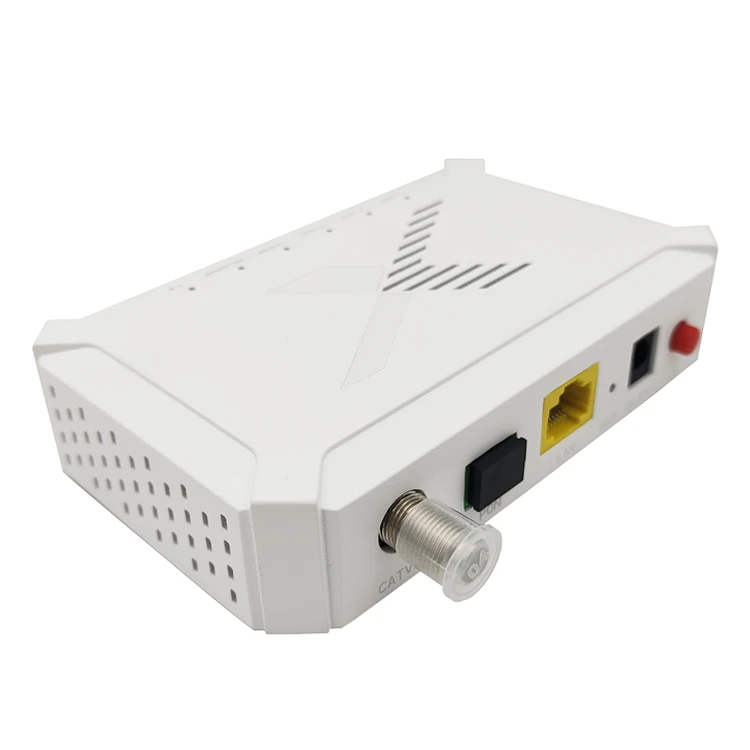

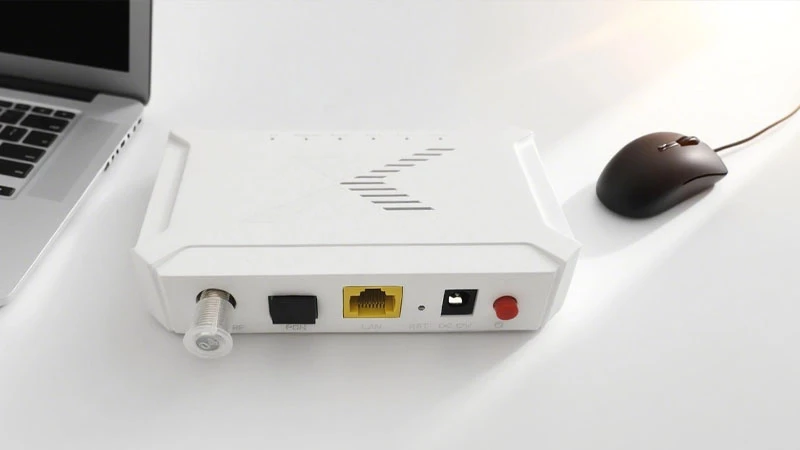

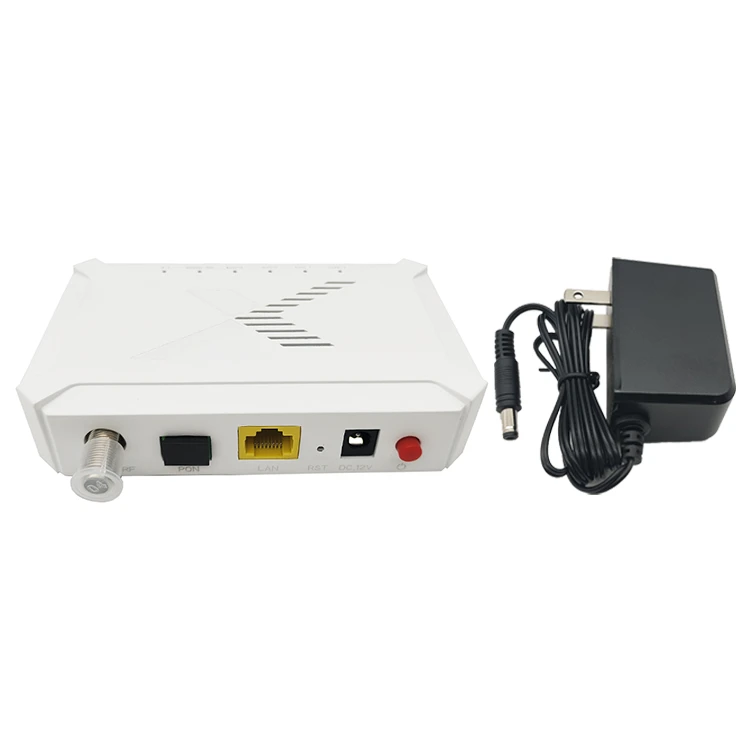

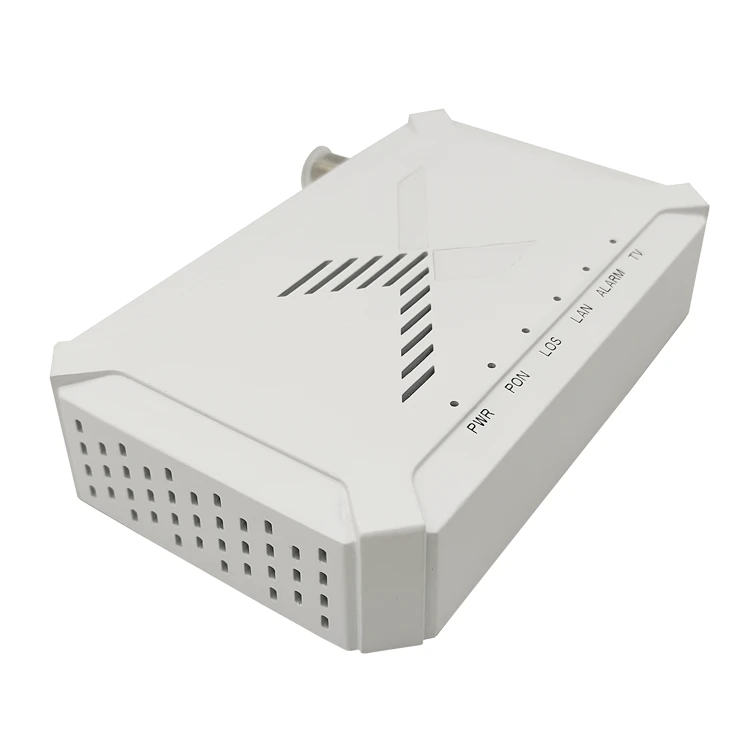

1GE + CATV XPON ONU
Ntau- kev pabcuam kev sib koom ua ke uas haum rau kev ua haujlwm, nqi, thiab kev ua haujlwm zoo
Dab tsi yog qhov zoo ntawm 1GE + CATV XPON ONU?
1GE + CATV XPON ONU yog ib hom XPON davhlau ya nyob twg ntaus ntawv uas ua ke nrog Gigabit Ethernet (1GE) thiab cable TV (CATV) kis tau tus mob, feem ntau siv fiber ntau - mus rau - lub -tsev (FTTH) scenarios.
Dual{0}}Mode Compatibility (GPON/EPON)
Tau tshaj XPON OLT cov khoom siv tseem ceeb, tuaj yeem hloov kho rau ob qho tib si EPON thiab GPON tes hauj lwm, txo cov kev xa tawm nyuaj thiab nqi rau cov neeg ua haujlwm.
Integrated Data thiab Video Services
Txhawb nqa Gigabit Ethernet nkag mus thiab CATV tshaj tawm xov xwm txais tos, ntsib cov neeg siv cov kev xav tau rau siab - internet ceev thiab TV lom zem ib txhij.
Tus nqi siab -Kev ua tau zoo
Muab cov ntaub ntawv thiab CATV ua haujlwm rau hauv ib lub cuab yeej, txuag ntawm cov nqi cabling thiab cov khoom siv, ua rau nws zoo tagnrho rau kev xa tawm loj -.
Independent CATV RF tso zis
Nruab nrog lub siab RF tso zis chaw nres nkoj, tso cai rau kev sib txuas ncaj qha rau TVs lossis teeb - cov thawv sab saum toj nrog ruaj khov thiab qis - suab nrov RF teeb liab kis tau tus mob.
Hom Daim Ntawv Thov Scenarios
Haum rau triple -ua si daws nrog ntau- kev pabcuam kev koom ua ke
Kev piav qhia
|
Dimension |
140mm × 90mm × 30mm (L × W × H) |
|
Net nyhav |
110g |
|
Kev ua haujlwm |
Ua haujlwm kub: -10 ~ +55 degree Kev khiav dej num: 5 ~ 95% (tsis yog -condensing) |
|
Kev khaws cia |
Cia kub: -40 ~ +70 degree Cia cov av noo: 5 ~ 95% (tsis yog -condensing) |
|
Fais fab adapter |
DC 12V / 0.5A, sab nraud AC -DC fais fab adapter |
|
Fais fab mov |
Tsawg dua lossis sib npaug li 4.2W |
|

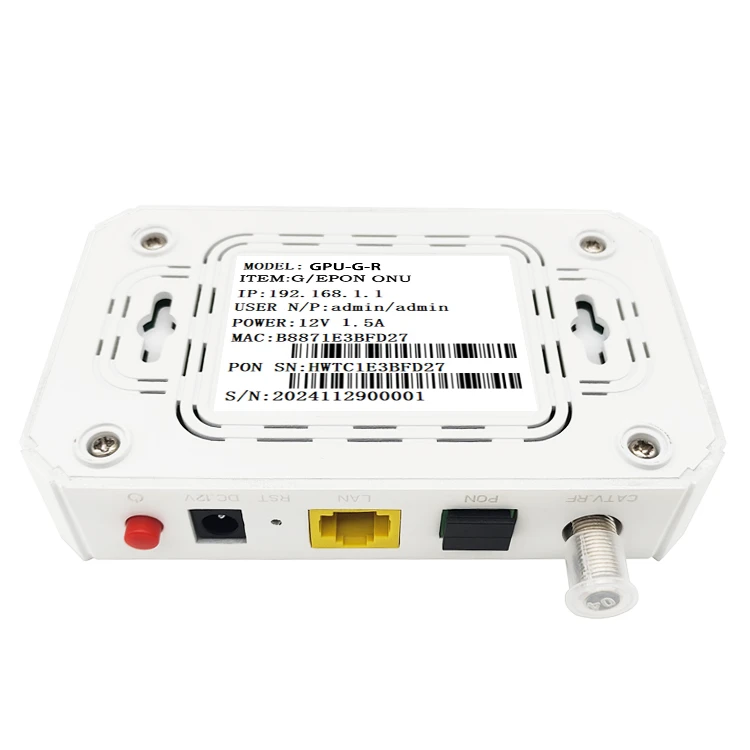

Interfaces |
1 GE + CATV |
|

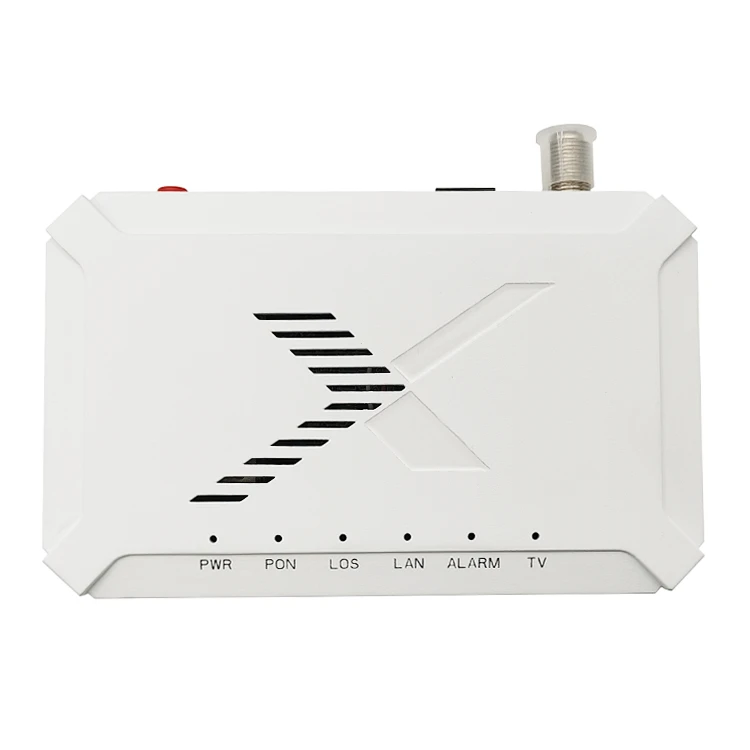

Qhov taw qhia |
PWR, LOS, PON, LAN, ALARM, TV |
|
PON interface |
1XPON chaw nres nkoj (EPON PX20+ thiab GPON Class B+) SC ib hom, SC / APC connector TX optical zog: 0-+4dBm RX rhiab heev: -28dBm Overload optical zog: -3dBm (EPON) lossis -8dBm (GPON) Transmission nrug: 20KM wavelength: TX 1310nm, RX1490nm, CATV 1550nm |
|
LAN interface |
1*GE Auto-kev sib tham RJ45 chaw nres nkoj |
|
CATV interface |
RF Optical zog: +2--18dBm Optical txais wavelength: 1550 ± 10nm RF zaus ntau: 47-1000MHz RF tso zis impedance: 75Ω RF tso zis theem: Ntau dua lossis sib npaug rau 70dBuV (0--15dBm) AGC ntau yam: 0--15dBm MER: Ntau dua lossis sib npaug rau 32dB (-14dBm optical input) |
|
PON hom |
GPON lossis EPON hom |
|
Uplink hom |
Bridging thiab Routing Mode Zoo txuas nrog OLTs ntawm mainstream |
|
CATV |
Txhawb CATV Rmote tswj |
|
Txuj |
Txhawb CTC OAM 2.1 thiab 3.0 Txhawb ITUT984.x OMCI |
|
Txheej 2 |
802.1D & 802.1ad bridging 802.1p wb 802.1 Q VLAN |
|
Txheej 3 |
IPv4 DHCP Client/Server PPPoE, NAT, DMZ, DDNS |
|
Multicast |
IGMP v2/v3, IGMP snooping |
|
Kev ruaj ntseg thiab Firewall |
Tiv thaiv Rogue ONU DDOS, Lim Raws li ACL/MAC/URL |

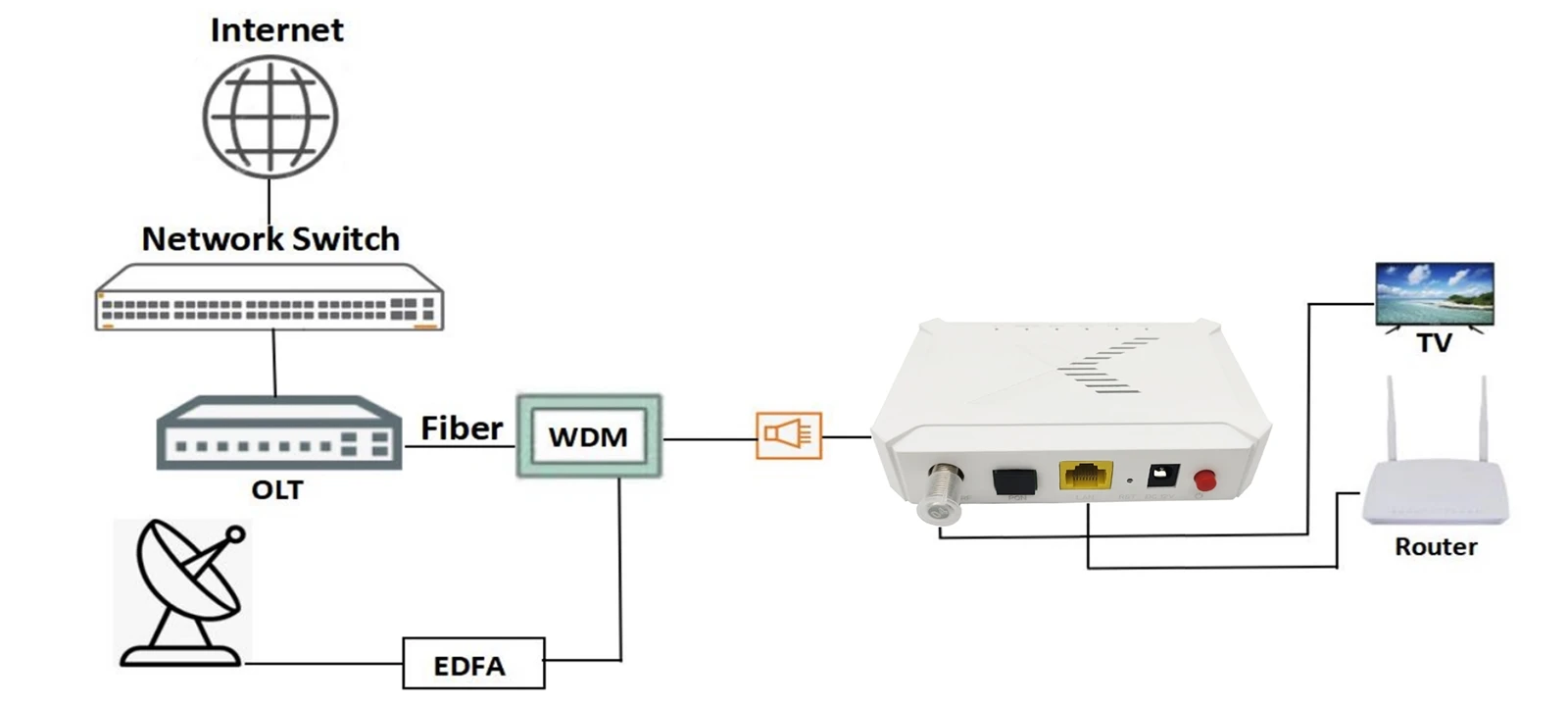

FTTx applacation

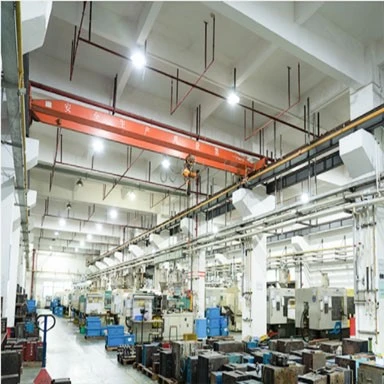

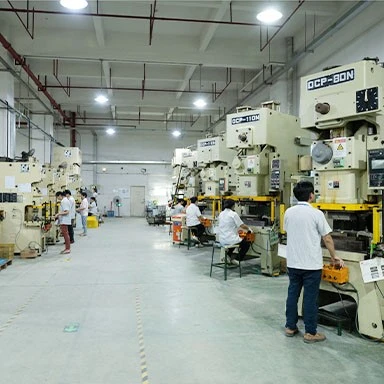

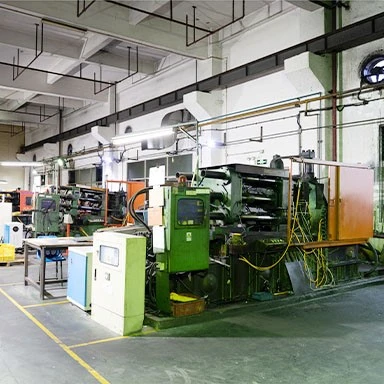

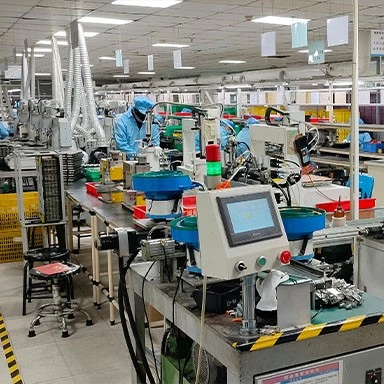

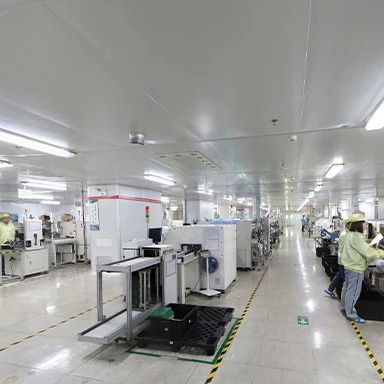

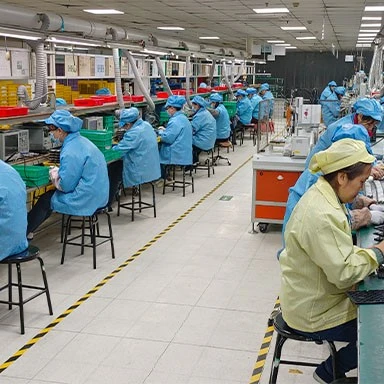

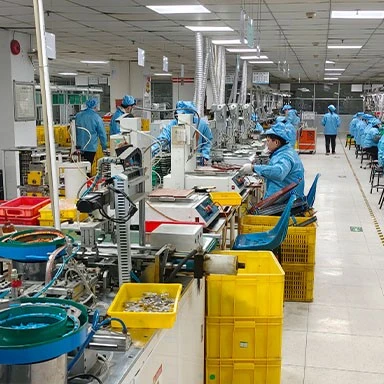

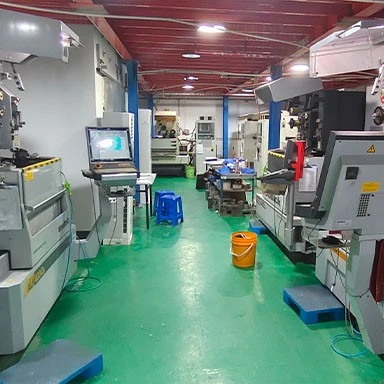

Peb lub Hoobkas tsim khoom

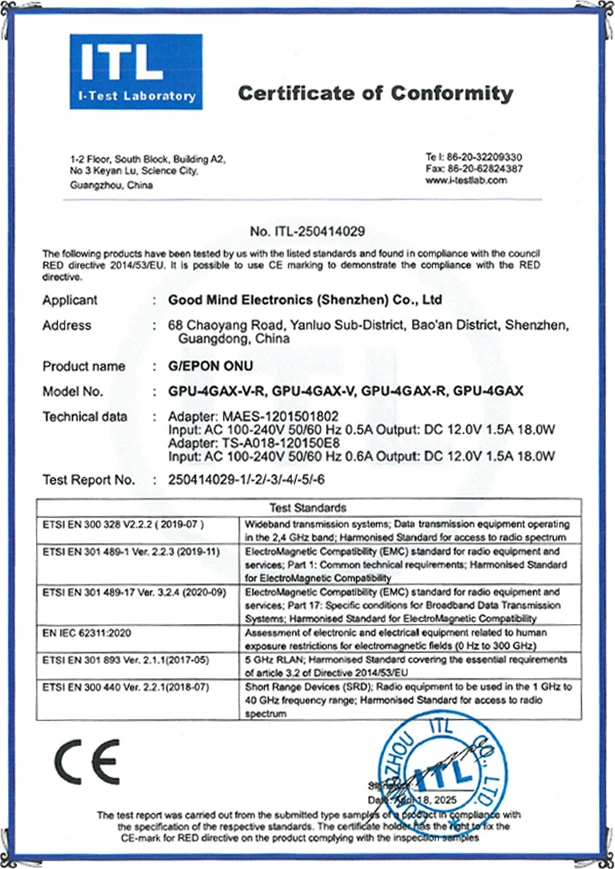

Peb Daim Ntawv Pov Thawj
txoj kev them nyiaj
Ntim & Thauj
Ntim & Thauj
Ntim
Peb yuav ntim peb cov khoom kom nruj kom ntseeg tau tias lawv tsis muaj kev puas tsuaj hauv kev thauj mus los.

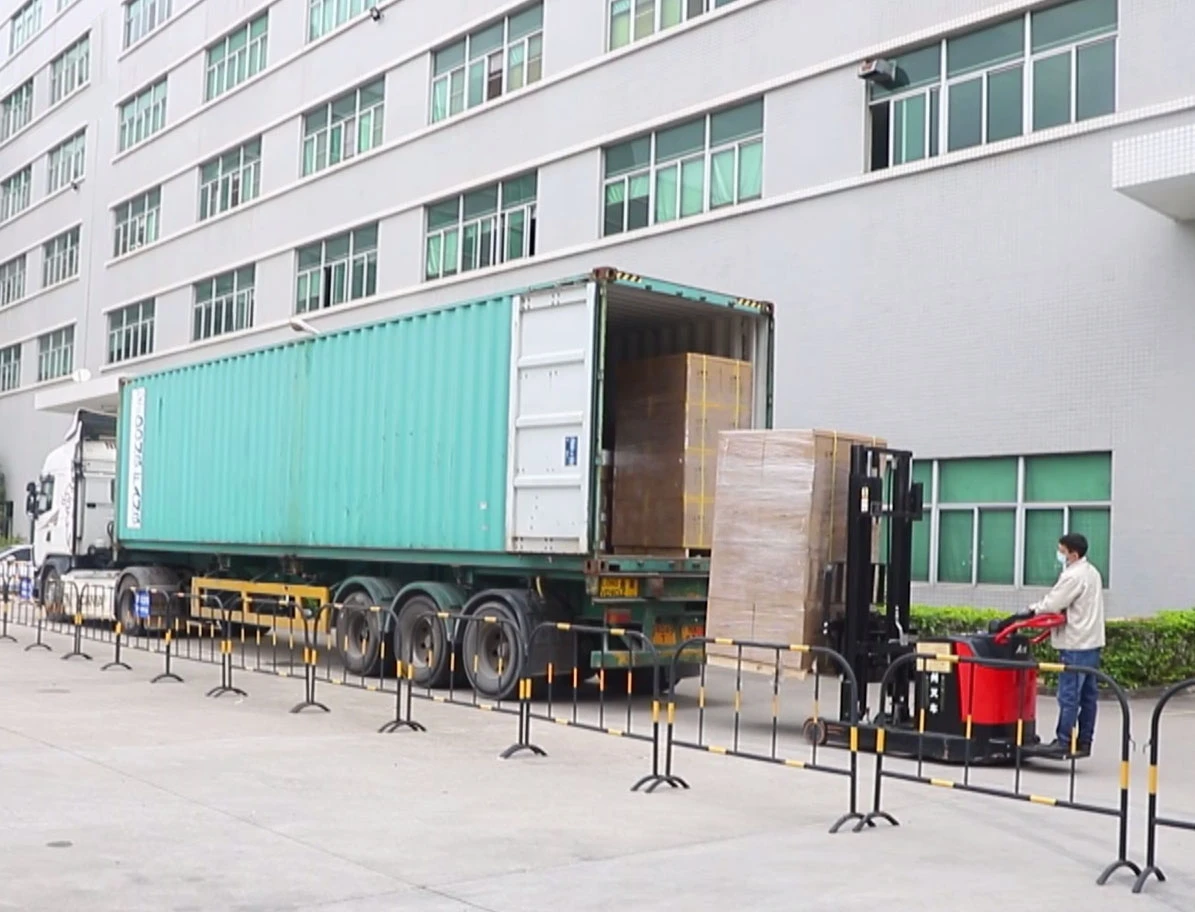

Kev thauj mus los
Peb txhawb nqa peb txoj kev thauj mus los loj los ntawm hiav txwv, av thiab huab cua kom ntseeg tau tias koj cov khoom tuaj yeem tuaj txog raws sijhawm.
FAQ
Q: Koj puas yog Hoobkas lossis tuam txhab lag luam?
A: Peb yog 100% Hoobkas thiab tseem ua lag luam online
Q: Koj txoj kev xa khoom yog dab tsi?
A: Peb feem ntau xa tuaj ntawm DHL / UPS / Fedex / TNT / Aramex. yog tias koj muaj ntau ntau -ty, koj tuaj yeem xaiv Air lossis Sea shipping.
Q: Koj lub sijhawm them nyiaj yog dab tsi?
A: T / T xaim txhab nyiaj hloov pauv, L / c, thiab lwm yam.
Q: Koj tuaj yeem tiv thaiv qhov teeb meem li cas yog tias peb tau txais cov khoom tsis raug?
A: Xa peb cov duab lossis video thawj zaug, peb xav muab kev hloov pauv dawb. muab cov khoom rau koj.
Q: Puas tuaj yeem coj tus qauv rau kev kuaj xyuas zoo?
A: Yog lawm, peb tuaj yeem muab cov qauv rau koj kuaj.
Q: Peb puas tuaj yeem muaj peb lub logo lossis lub npe tuam txhab luam tawm ntawm koj cov khoom lossis cov khoom?
A: Yog, koj paub tseeb. Peb lees txais OEM / ODM xaj thiab muab kev pabcuam rau kev luam ntawv logo, cov cim thawv nrog rau kev ntim khoom tsim.Koj tuaj yeem xa peb cov duab kos los ntawm email hauv jPG, TIF, Al, EPS, TIFF ntawm CorelDraw rau -mats Logo luam ntawv yuav xav tau MOQ uas yuav txawv ntawm txawv mod-el.Thov hu rau peb kom paub meej.
