Taw qhia
Qhov ONU no yog tsim los rau FTTH. Nws ua ke nrog G.hn interface.Nws tuaj yeem hloov koj lub network los ntawm Coaxial Cable rau PON nkag yam tsis muaj peev txheej ntxiv. Nws txhawb XPON dual-mode thev naus laus zis (EPON thiab GPON), Nws yog dav siv nrog lub ntiaj teb kev lag luam tseem ceeb OLT hom, txhawb nqa ntsaws- thiab- ua si, OMCI thiab TR069 chaw taws teeb tswj cov yam ntxwv.
Nta
- Kev them nyiaj yug ntaus ntawv - raws li tus nqi txwv thiab tswj bandwidth
- Ua raws li IEEE802.3ah & ITU-T G.984 tus qauv
- ITU-T G.9960/G.9961 G.hn dhau Coax
- Mus txog 20KM kis tau tus mob nrug
- Txhawb cov ntaub ntawv encryption, pab pawg tshaj tawm, chaw nres nkoj VLAN sib cais, thiab lwm yam.
- Txhawb nqa Dynamic Bandwidth Allocation (DBA)
- Txhawb ONU pib - nrhiav pom / Txuas kev tshawb nrhiav / kev hloov kho tej thaj chaw deb ntawm software;
- Txhawb chaw nres nkoj VLAN configuration
- Txhawb lub zog tawm lub tswb muaj nuj nqi, yooj yim rau kev txuas teeb meem nrhiav kom pom
- Txhawb QOS configuration
- Txhawb chaw nres nkoj khi
- Txhawb chaw nres nkoj xa mus
- Txhawb ACL kom teeb tsa cov ntaub ntawv pob ntawv lim tau yooj yim
- Kev tsim tshwj xeeb rau kev ua txhaum kev tiv thaiv kom muaj kev ruaj ntseg
- Txhawb kev hloov kho software hauv online
- Txhawb TR069 rau ACS (Auto Config Server)
- Txhawb nqa kev pabcuam broadband thiab CATV
- Txhawb CATV kev pab cuam tej thaj chaw deb kaw muaj nuj nqi
- Txhawb IGMPv1/v2/Snooping
- Txhawb Dying Gasp
- Txhawb Port Loop Detect
Kev piav qhia
|
Dimension |
143mm × 121mm × 30mm (L × W × H) |
|
Net nyhav |
330g |
|
Kev ua haujlwm |
Ua haujlwm kub: -10 ~ +55 degree Kev khiav dej num: 5 ~ 95% (tsis yog -condensing) |
|
Kev khaws cia |
Cia kub: -40 ~ +70 degree Cia cov av noo: 5 ~ 95% (tsis yog -condensing) |
|
Fais fab adapter |
DC 12V / 1A, sab nraud AC -DC fais fab adapter |
|
Fais fab mov |
Tsawg dua lossis sib npaug li 4.2W |
|

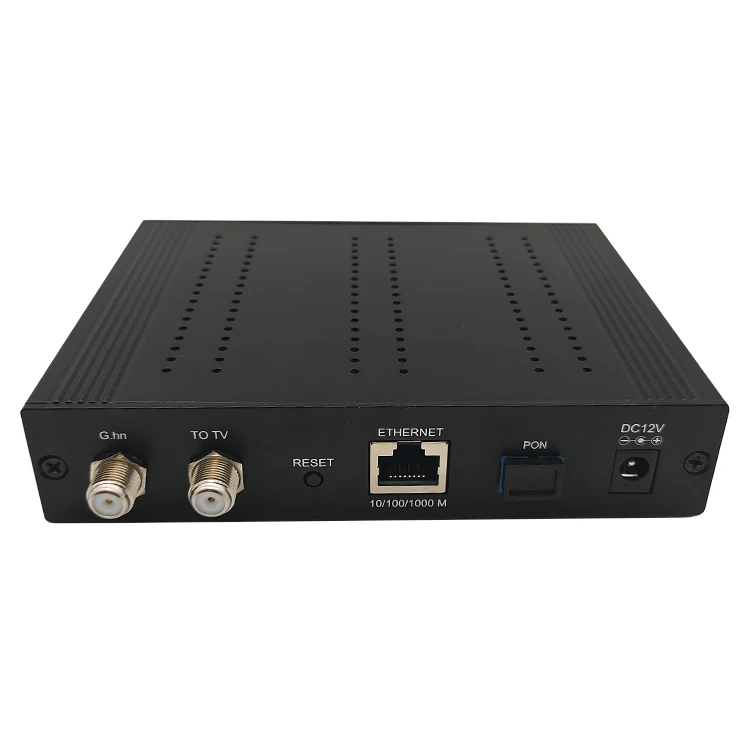

Interfaces |
1GE+CATV+G.hn |
|
Qhov taw qhia |

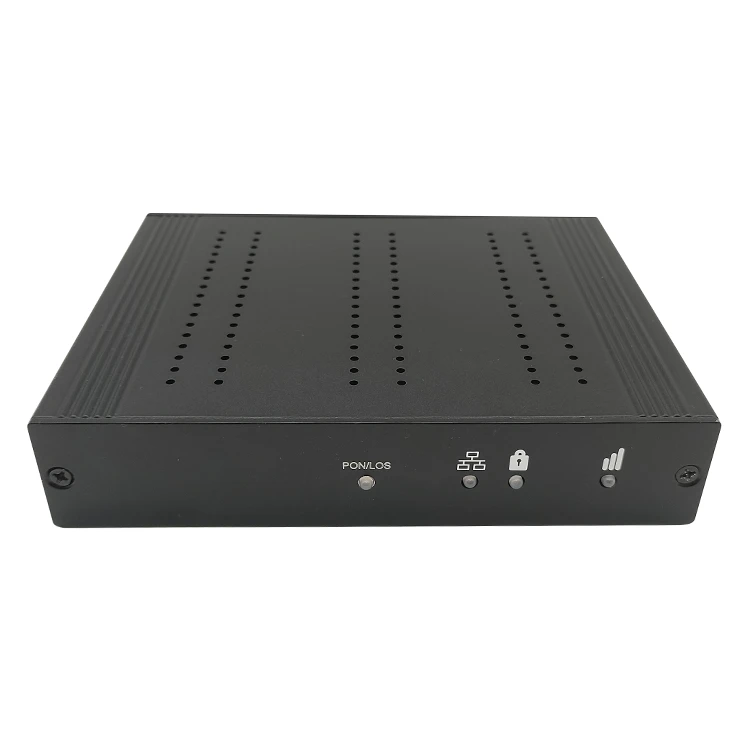

PWR, PON/LOS, LAN, TV |
|
PON interface |
1XPON chaw nres nkoj (EPON PX20+ thiab GPON Class B+) SC ib hom, SC / APC connector TX optical zog: 0-+4dBm RX rhiab heev: -28dBm Overload optical zog: -3dBm (EPON) lossis -8dBm (GPON) Transmission nrug: 20KM wavelength: TX 1310nm, RX1490nm, CATV 1550nm |
|
LAN interface |
1*GE Auto-kev sib tham RJ45 chaw nres nkoj 1 *F- poj niam lossis IEC poj niam connector, Max . 1.7 Gbps |
|
CATV interface |
RF Optical zog: +2--18dBm Optical txais wavelength: 1550 ± 10nm RF zaus ntau: 47-1000MHz RF tso zis impedance: 75Ω RF tso zis theem: Ntau dua lossis sib npaug rau 70dBuV (0--15dBm) AGC ntau yam: 0--15dBm MER: Ntau dua lossis sib npaug rau 32dB (-14dBm optical input) |
|
PON hom |
GPON lossis EPON hom |
|
Uplink hom |
Bridging thiab Routing Mode Zoo txuas nrog OLTs ntawm mainstream |
|
CATV |
Txhawb CATV Rmote tswj |
|
Txuj |
Txhawb CTC OAM 2.1 thiab 3.0 Txhawb ITUT984.x OMCI ITU-T G.9960/G.9961 G.hn dhau Coax |
|
Txheej 2 |
802.1D & 802.1ad bridging 802.1p wb 802.1 Q VLAN |
|
Txheej 3 |
IPv4 DHCP Client/Server PPPoE, NAT, DMZ, DDNS |
|
Multicast |
IGMP v2/v3, IGMP snooping |
|
Kev ruaj ntseg thiab Firewall |
Tiv thaiv Rogue ONU DDOS, Lim Raws li ACL/MAC/URL |

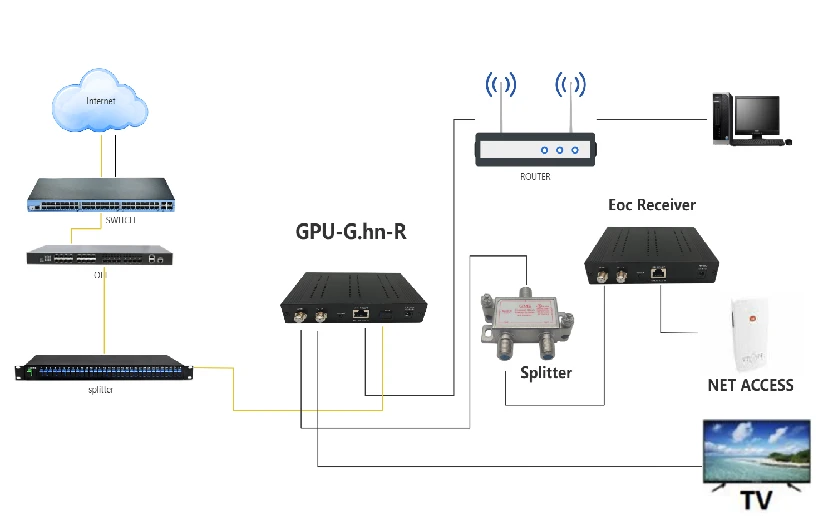

FTTx applacation
