Taw qhia
Qhov ONU no yog tsim los rau FTTH. Nws txhawb XPON dual-mode thev naus laus zis (EPON thiab GPON), Nrog rau WiFi nrawm txog 1200Mbps, nws kuj txhawb IEEE 802.11b/g/n/ac thev naus laus zis thiab lwm yam txheej txheem 2/Layer 3, Nws yog dav siv nrog lub ntiaj teb mainstream OLT hom, txhawb nqa plug thiab {{6} - tu nta.
Nta
- Ua raws li IEEE802.3ah & ITU-T G.984 tus qauv
- Kev them nyiaj yug ntaus ntawv - raws li tus nqi txwv thiab tswj bandwidth
- Mus txog 20KM kis tau tus mob nrug
- Txhawb cov ntaub ntawv encryption, pab pawg tshaj tawm, chaw nres nkoj VLAN sib cais, thiab lwm yam.
- Txhawb nqa Dynamic Bandwidth Allocation (DBA)
- Txhawb ONU pib - nrhiav pom / Txuas kev tshawb nrhiav / kev hloov kho tej thaj chaw deb ntawm software;
- Txhawb chaw nres nkoj VLAN configuration
- Txhawb lub zog tawm lub tswb muaj nuj nqi, yooj yim rau kev txuas teeb meem nrhiav pom
- Txhawb DHCP server
- Txhawb QOS configuration
- Txhawb chaw nres nkoj khi
- Txhawb chaw nres nkoj xa mus
- Txhawb ACL kom teeb tsa cov ntaub ntawv pob ntawv lim tau yooj yim
- Kev tsim tshwj xeeb rau kev rhuav tshem kev tiv thaiv kom muaj kev ruaj ntseg
- Txhawb kev hloov kho software hauv online
- Txhawb TR069 rau ACS (Auto Config Server)
- Txhawb ntau -SSID (Ntau tshaj 4 SSID)
- Txhawb kev xaiv tsis siv neeg channel
- Txhawb kev ruaj ntseg wireless ntawm 64/128 ntsis WEP, 802.1x, WPA thiab WPA2
- Txhawb nws pib hloov GPON thiab EPON hom
WiFi 5 ONU: Blazing Speeds, Seamless Streaming

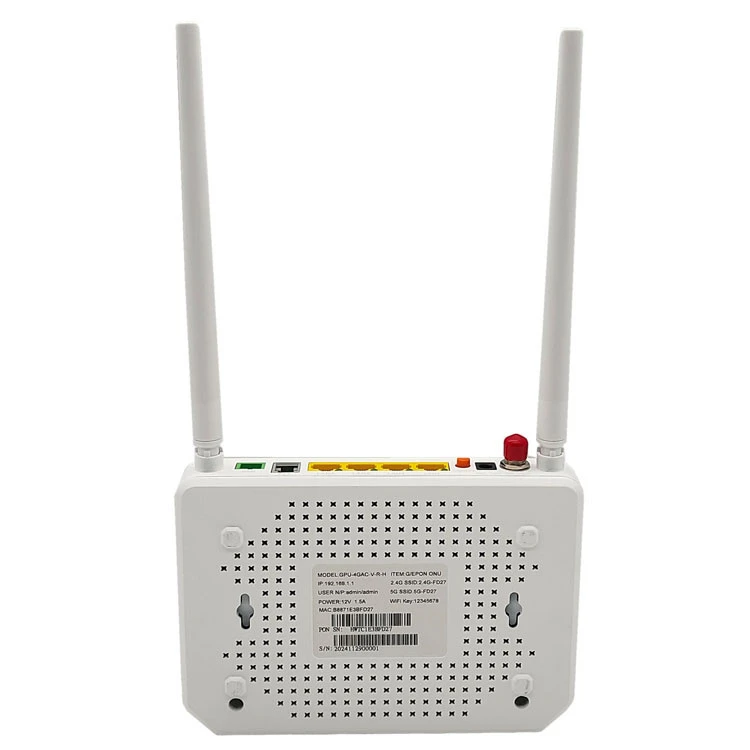

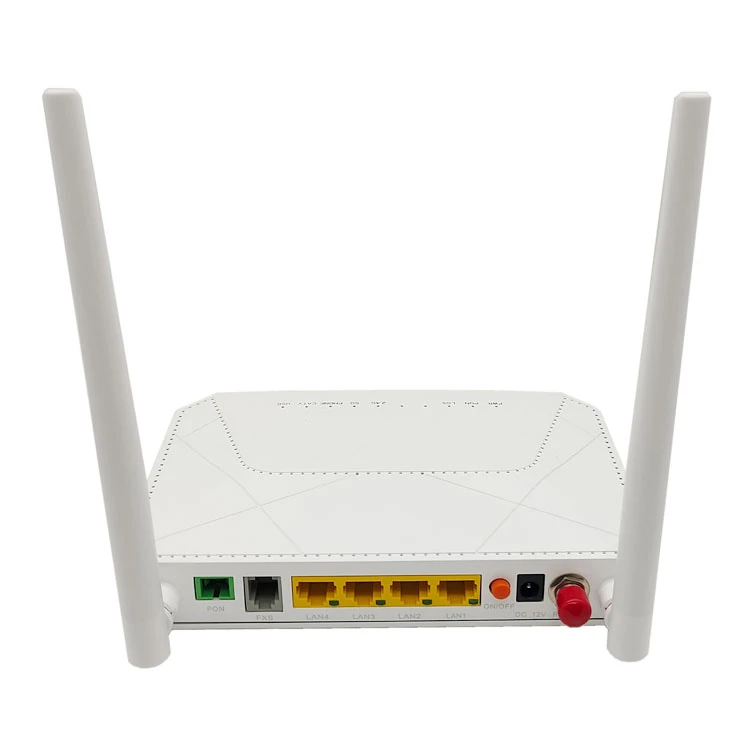

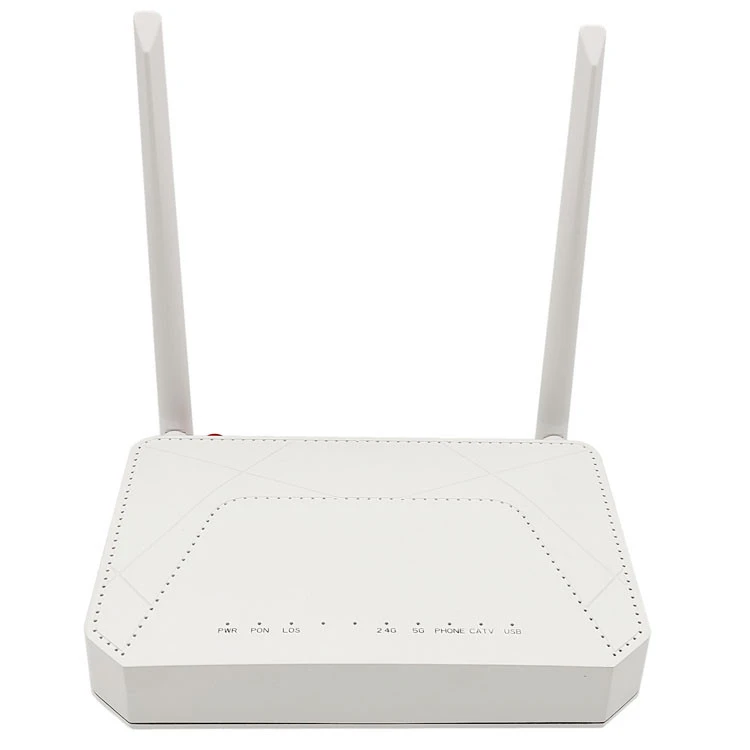

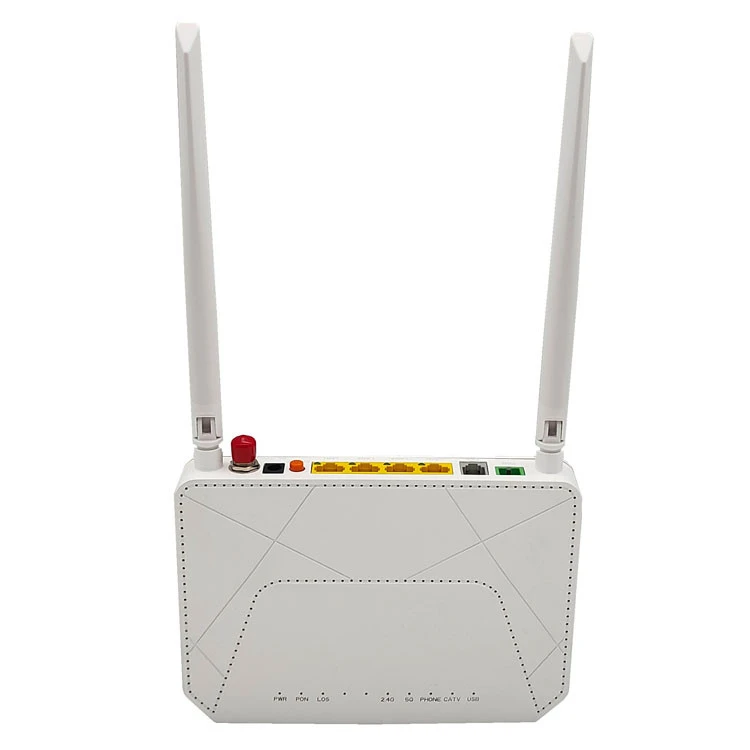

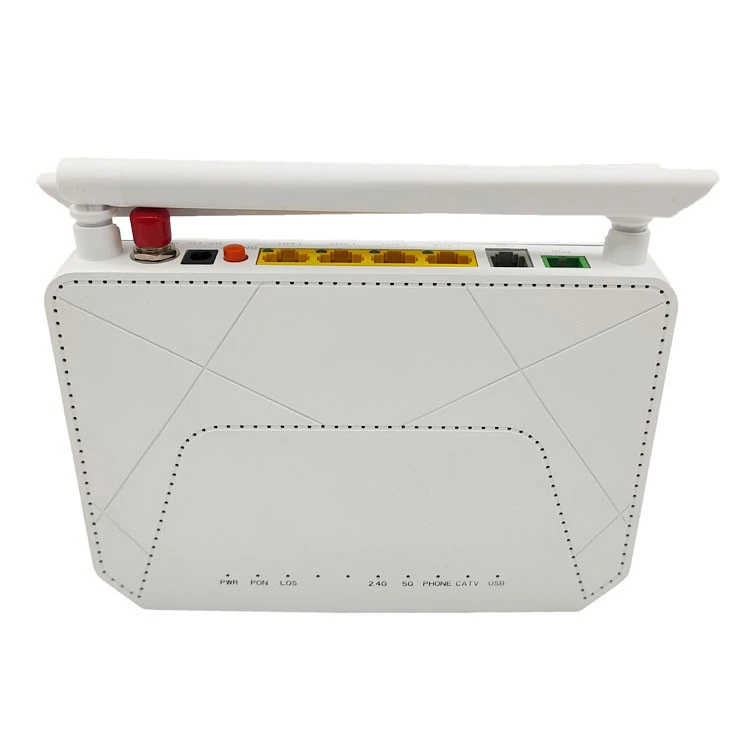

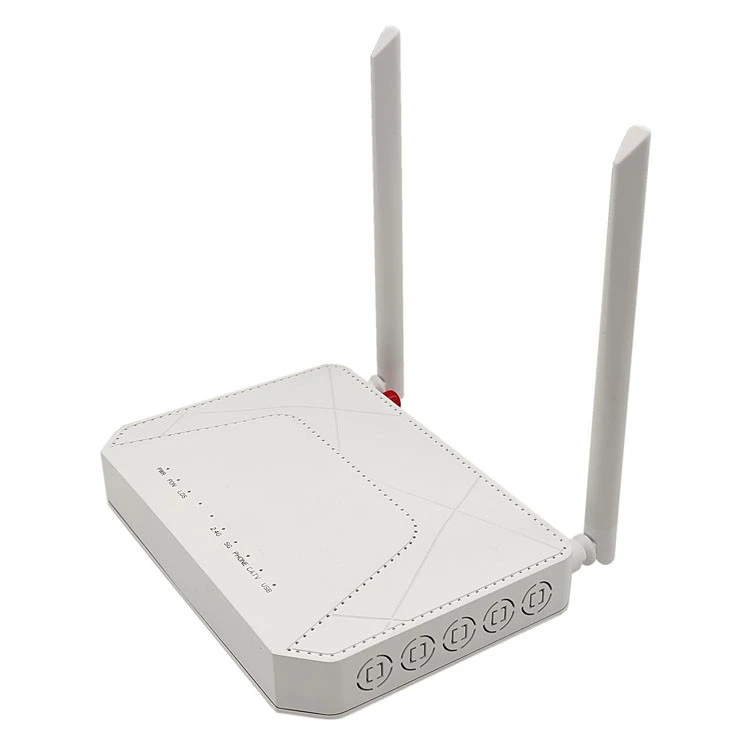

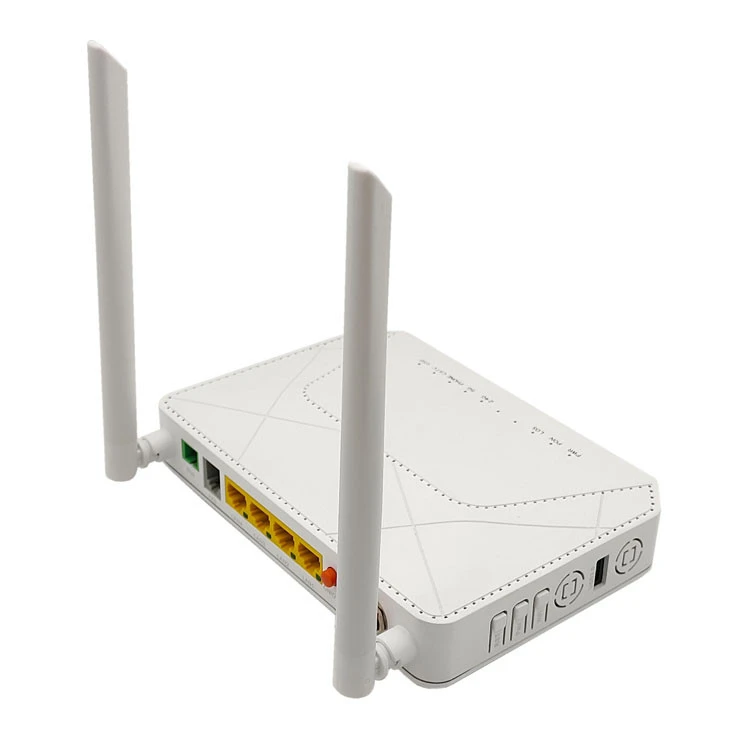

TSI 6155 4*GE+WiFi5+CATV(optional)+1POTS +USB3.0
Nta thiab Cov txiaj ntsig ntawm 4GE+1POTS + AC WiFi + CATV + USB 3.0
Multi-functional converged network device interface portfolio
Siab -Speed Wired Network (4 × GE)
Gigabit Ethernet (4 × GE):Muab siab -kev sib txuas ceev ceev rau ntau yam khoom siv (xws li PCs, NAS, smart TVs), zoo tagnrho rau kev sib txuas hauv tsev lossis chaw ua haujlwm.
Tsawg Latency & High Stability:Muab kev ruaj ntseg dua, zoo meej rau latency-sensitive scenarios xws li online gaming, 4K video streaming, thiab video conferencing.
Siab -Kev Ua Haujlwm Wireless (AC WiFi)
WiFi 5 (802.11ac): Txhawb dual-band (2.4GHz + 5GHz), nrog 5GHz band xa cov nrawm dua (txoj kev xav txog li 1.3Gbps) thiab cuam tshuam qis dua, ua rau nws zoo tagnrho rau cov khoom siv hauv tsev ntse, HD video streaming, thiab cov ntawv siv zoo sib xws.
Multi-Txoj kev sib txuam: MU-MIMO thev naus laus zis optimizes kev ua tau zoo thaum muaj ntau yam khoom siv txuas nrog ib txhij, ua kom lub router lub cuab yeej ua haujlwm ntau dua - tuav lub peev xwm.
CATV Convergence
Coaxial Cable Input (CATV):Txhawb kev tshaj tawm xov xwm hauv TV, ua rau "triple{0}}kev pabcuam ua si" (internet, xov tooj, thiab TV) kom txo qis kev sib txuas hauv tsev thiab txo tus nqi xa khoom xa mus.
Yeem Feature:Qee cov khoom siv txhawb nqa IPTV dhau CATV kom tau raws li cov neeg nqa khoom 'kev cai hloov kho.
Siab -Speed Expansion Interface (USB 3.0)
LSab nraud Cia / Devices:Txuas hard drives, tshuab luam ntawv, thiab lwm yam khoom siv ntawm USB 3.0 interface kom pab NAS hauv tsev, sib koom ua ntaub ntawv, lossis chaw taws teeb luam ntawv, nrog ceev txog 5Gbps (10x sai dua USB 2.0).
Portability:Txhawb 4G / 5G dongles rau thaub qab internet txuas lossis xa tawm cov kev pabcuam hnyav (xws li rub tawm cov cuab yeej) ntawm lub router.
Dual -Band Integrated Kav hlau txais xov rau qhov kawg hauv Internet
Dual sab nraud 2.4GHz / 5GHz kav hlau txais xov nrog tus nqi- tsim tau zoo thiab sib koom ua ke SSID rau kev sib txuas, ntse dua.
Kev piav qhia
|
Dimension |
186mm × 136mm × 33.5mm (L × W × H) |
|
Net nyhav |
0.35 Kg |
|
Kev ua haujlwm |
Ua haujlwm kub: -10 ~ +55 degree Kev khiav dej num: 5 ~ 95% (tsis yog -condensed) |
|
Kev khaws cia |
Cia kub: -40 ~ +70 degree Cia cov av noo: 5 ~ 95% (tsis yog -condensed) |
|
Hwj chim |
12V/1.5A |
|
Fais fab mov |
Tsawg dua los yog sib npaug rau 12W |
|
Qhov taw qhia |
PWR, PON, LOS/NET, LAN1 ~ 4, 2.4G, 5G, WPS, VOIP, USB, CATV |
|
PON |
1XPON chaw nres nkoj (EPON PX20+ thiab GPON Class B+) SC ib hom, SC / APC connector TX optical zog: 0.5-+4dBm RX rhiab heev: -28dBm Overload optical zog: -3dBm (EPON) lossis -8dBm (GPON) Transmission nrug: 20KM wavelength: TX 1310nm, RX1490nm |
|
Cov neeg siv |
4 × GE, Auto-kev sib tham 1 × RJ45 chaw nres nkoj 1 × RF lauj kaub rau CATV |
|
Kav hlau txais xov |
2.4GHz 2T2R, 5GHz 2T2R |
|
CATV |
Optical txais wavelength: 1550 ± 10nm Optical input range: +2--18dBm Optical reflection poob: Ntau dua lossis sib npaug li 40dB RF zaus ntau: 47-1000MHz RF tso zis impedance: 75Ω RF tso zis ntau dua los yog sib npaug rau 75 ± 2dBuv Txhawb AGC tswj MER: Ntau dua lossis sib npaug rau 32dB (-14dBm optical input) |
|
O&M |
WEB/TELNET/OAM/OMCI/TR069 Txhawb nqa tus kheej OAM / OMCI raws tu qauv |
|
Kev sib txuas hauv Is Taws Nem |
Txhawb Routing Hom |
|
Multicast |
IGMP v1/v2/v3, IGMP snooping MLD v1/v2 snooping |
|
VoIP |
SIP thiab IMS SIP G.711a/G.711u/G.722/G.729 Codec Echo tshem tawm, VAD / CNG, DTMF Relay Kev Qhia Tus Neeg Hu / Hu Tos / Hu Rau Forwarding / Hu Hloov / Hu Xov Tooj / 3-txoj Kev Sib Tham Kev kuaj kab raws li GR-909 |
|
WIFI |
WIFI5: 802.11b/g/n/a/ac 5GHz, 2.4GHz WIFI: 2.4G 2X2,5G 2X2,5 kav hlau txais xov.Multiple SSID WiFi encryption: WPA/WPA2 Txhawb OFDM, MU-MIMO, Dynamic QoS, 256-QAM Ntse Txuas rau ib qho Wi-Fi lub npe - Ib qho SSID rau 2.4GHz thiab 5GHz dual band |
|
Firewall |
Anti-DDOS, Lim Raws li ACL/MAC /URL |
FTTx applacation

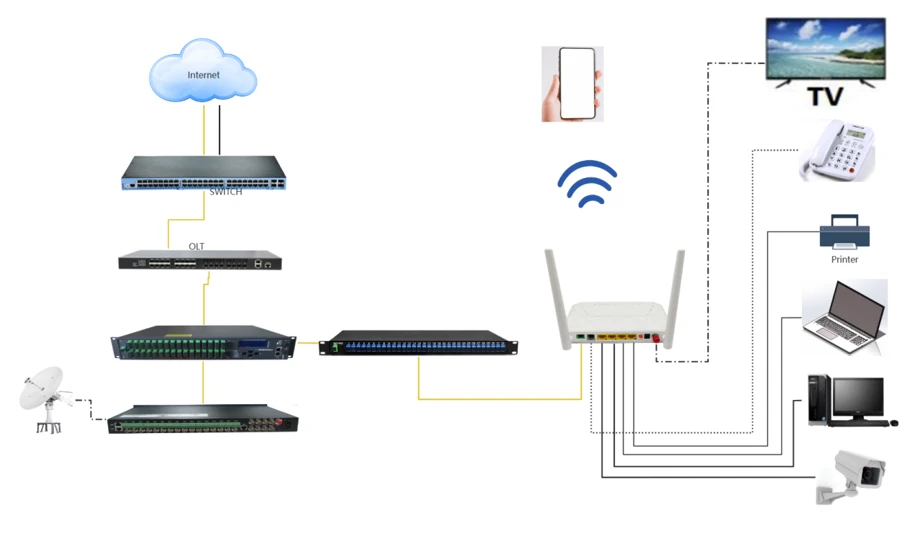

Tsev / Chaw Ua Haujlwm Me Me Network Topology Daim duab qhia txog kev siv Network thiab kev sib txuas ntawm cov cuab yeej
Txoj Kev Them Nyiaj
Ntim & Thauj
Ntim & Thauj
Ntim
Peb yuav ntim peb cov khoom kom nruj kom ntseeg tau tias lawv tsis muaj kev puas tsuaj hauv kev thauj mus los.
Kev thauj mus los
Peb txhawb nqa peb txoj kev thauj mus los loj los ntawm hiav txwv, av thiab huab cua kom ntseeg tau tias koj cov khoom tuaj yeem tuaj txog raws sijhawm.
FAQ
Q: Koj puas yog Hoobkas lossis tuam txhab lag luam?
A: Peb yog 100% Hoobkas thiab tseem ua lag luam online
Q: Koj txoj kev xa khoom yog dab tsi?
A: Peb feem ntau xa tuaj ntawm DHL / UPS / Fedex / TNT / Aramex. yog tias koj muaj ntau ntau -ty, koj tuaj yeem xaiv Air lossis Sea shipping.
Q: Koj lub sijhawm them nyiaj yog dab tsi?
A: T / T xaim txhab nyiaj hloov pauv, L / c, thiab lwm yam.
Q: Koj tuaj yeem tiv thaiv qhov teeb meem li cas yog tias peb tau txais cov khoom tsis raug?
A: Xa peb cov duab lossis video thawj zaug, peb xav muab kev hloov pauv dawb. muab cov khoom rau koj.
Q: Puas tuaj yeem coj tus qauv rau kev kuaj xyuas zoo?
A: Yog lawm, peb tuaj yeem muab cov qauv rau koj kuaj.
Q: Peb puas tuaj yeem muaj peb lub logo lossis lub npe tuam txhab luam tawm ntawm koj cov khoom lossis cov khoom?
A: Yog, koj paub tseeb. Peb lees txais OEM / ODM xaj thiab muab kev pabcuam rau kev luam ntawv logo, cov cim thawv nrog rau kev ntim khoom tsim.Koj tuaj yeem xa peb cov duab kos los ntawm email hauv jPG, TIF, Al, EPS, TIFF ntawm CorelDraw rau -mats Logo luam ntawv yuav xav tau MOQ uas yuav txawv ntawm txawv mod-el.Thov hu rau peb kom paub meej.
Hot Tags: GPON ONU 4GE 1POTS CATV AC1200, Tuam Tshoj GPON ONU 4GE 1POTS CATV AC1200 manufacturers, lwm tus neeg, Hoobkas
