Taw qhia
Qhov ONU no yog tsim los rau FTTH. Nws txhawb XPON dual-mode thev naus laus zis (EPON thiab GPON), Nrog rau WiFi nrawm txog 1200Mbps, nws kuj txhawb IEEE 802.11b/g/n/ac thev naus laus zis thiab lwm yam txheej txheem 2/Layer 3, Nws yog dav siv nrog lub ntiaj teb mainstream OLT hom, txhawb nqa plug thiab {{6} - tu nta.
Nta
- Ua raws li IEEE802.3ah & ITU-T G.984 tus qauv
- Kev them nyiaj yug ntaus ntawv - raws li tus nqi txwv thiab tswj bandwidth
- Mus txog 20KM kis tau tus mob nrug
- Txhawb cov ntaub ntawv encryption, pab pawg tshaj tawm, chaw nres nkoj VLAN sib cais, thiab lwm yam.
- Txhawb nqa Dynamic Bandwidth Allocation (DBA)
- Txhawb ONU pib - nrhiav pom / Txuas kev tshawb nrhiav / kev hloov kho tej thaj chaw deb ntawm software;
- Txhawb chaw nres nkoj VLAN configuration
- Txhawb lub zog tawm lub tswb muaj nuj nqi, yooj yim rau kev txuas teeb meem nrhiav pom
- Txhawb DHCP server
- Txhawb QOS configuration
- Txhawb chaw nres nkoj khi
- Txhawb chaw nres nkoj xa mus
- Txhawb ACL kom teeb tsa cov ntaub ntawv pob ntawv lim tau yooj yim
- Kev tsim tshwj xeeb rau kev rhuav tshem kev tiv thaiv kom muaj kev ruaj ntseg
- Txhawb kev hloov kho software hauv online
- Txhawb TR069 rau ACS (Auto Config Server)
- Txhawb ntau -SSID (Ntau tshaj 4 SSID)
- Txhawb kev xaiv tsis siv neeg channel
- Txhawb kev ruaj ntseg wireless ntawm 64/128 ntsis WEP, 802.1x, WPA thiab WPA2
- Txhawb nws pib hloov GPON thiab EPON hom
Kev piav qhia
|
Kev ua haujlwm |
Ua haujlwm kub: -10 ~ +55 degree Kev khiav dej num: 5 ~ 95% (tsis yog -condensed) |
|
Kev khaws cia |
Cia kub: -40 ~ +70 degree Cia cov av noo: 5 ~ 95% (tsis yog -condensed) |
|
Hwj chim |
12V/1.5A |
|
Fais fab mov |
Tsawg dua los yog sib npaug rau 12W |
|
Qhov taw qhia |
PWR, PON, LOS/NET, LAN1 ~ 4, 2.4G, 5G, WPS, VOIP, USB, CATV |
|
PON |
1XPON chaw nres nkoj (EPON PX20+ thiab GPON Class B+) SC ib hom, SC / APC connector TX optical zog: 0.5-+4dBm RX rhiab heev: -28dBm Overload optical zog: -3dBm (EPON) lossis -8dBm (GPON) Transmission nrug: 20KM wavelength: TX 1310nm, RX1490nm |
|
Cov neeg siv |
4 × GE, Auto-kev sib tham 1 × RJ45 chaw nres nkoj 1 × RF lauj kaub rau CATV |
|
Kav hlau txais xov |
2.4GHz 2T2R, 5GHz 2T2R |
|
CATV |
Optical txais wavelength: 1550 ± 10nm Optical input range: +2--18dBm Optical reflection poob: Ntau dua lossis sib npaug li 40dB RF zaus ntau: 47-1000MHz RF tso zis impedance: 75Ω RF tso zis ntau dua los yog sib npaug rau 75 ± 2dBuv Txhawb AGC tswj MER: Ntau dua lossis sib npaug rau 32dB (-14dBm optical input) |
|
O&M |
WEB/TELNET/OAM/OMCI/TR069 Txhawb nqa tus kheej OAM / OMCI raws tu qauv |
|
Kev sib txuas hauv Is Taws Nem |
Txhawb Routing Hom |
|
Multicast |
IGMP v1/v2/v3, IGMP snooping MLD v1/v2 snooping |
|
VoIP |
SIP thiab IMS SIP G.711a/G.711u/G.722/G.729 Codec Echo tshem tawm, VAD / CNG, DTMF Relay Kev Qhia Tus Neeg Hu / Hu Tos / Hu Rau Forwarding / Hu Hloov / Hu Xov Tooj / 3-txoj Kev Sib Tham Kev kuaj kab raws li GR-909 |
|
WIFI |
WIFI5: 802.11b/g/n/a/ac 5GHz, 2.4GHz WIFI: 2.4G 2X2,5G 2X2,5 kav hlau txais xov.Multiple SSID WiFi encryption: WPA/WPA2 Txhawb OFDM, MU-MIMO, Dynamic QoS, 256-QAM Ntse Txuas rau ib qho Wi-Fi lub npe - Ib qho SSID rau 2.4GHz thiab 5GHz dual band |
|
Firewall |
Anti-DDOS, Lim Raws li ACL/MAC /URL |

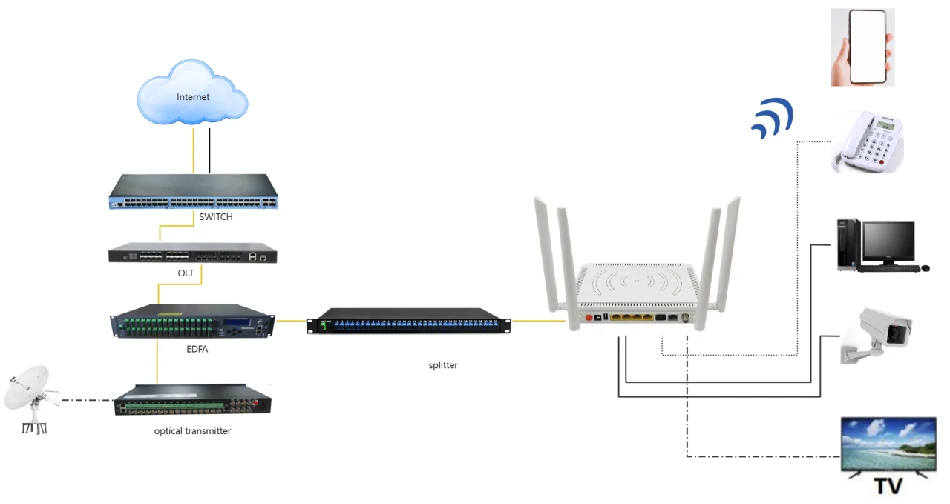

FTTx applacation
