Taw qhia
Qhov ONU no yog tsim los rau FTTH. Nws txhawb XPON dual-hom thev naus laus zis (EPON thiab GPON), Nrog WiFi nrawm txog 3000Mbps, nws kuj txhawb IEEE 802.11b/g/n/ac/ax technology thiab lwm yam txheej txheem 2/Layer 3, Nws yog dav siv tau nrog lub ntiaj teb mainstream OLT6}} thiab ntsaws{{ TR069 tej thaj chaw deb tu nta.
Nta
- Ua raws li IEEE802.3ah & ITU-T G.984 tus qauv
- Kev them nyiaj yug ntaus ntawv - raws li tus nqi txwv thiab tswj bandwidth
- Mus txog 20KM kis tau tus mob nrug
- Txhawb cov ntaub ntawv encryption, pab pawg tshaj tawm, chaw nres nkoj VLAN sib cais, thiab lwm yam.
- Txhawb nqa Dynamic Bandwidth Allocation (DBA)
- Txhawb ONU pib - nrhiav pom / Txuas kev tshawb nrhiav / kev hloov kho tej thaj chaw deb ntawm software;
- Txhawb chaw nres nkoj VLAN configuration
- Txhawb lub zog tawm lub tswb muaj nuj nqi, yooj yim rau kev txuas teeb meem nrhiav kom pom
- Txhawb DHCP server
- Txhawb QOS configuration
- Txhawb chaw nres nkoj khi
- Txhawb chaw nres nkoj xa mus
- Txhawb ACL kom teeb tsa cov ntaub ntawv pob ntawv lim tau yooj yim
- Kev tsim tshwj xeeb rau kev ua txhaum kev tiv thaiv kom muaj kev ruaj ntseg
- Txhawb kev hloov kho software hauv online
- Txhawb TR069 rau ACS (Auto Config Server)
- Txhawb ntau -SSID (Ntau tshaj 4 SSID)
- Txhawb kev xaiv tsis siv neeg channel
- Txhawb kev ruaj ntseg wireless ntawm 64/128 ntsis WEP, 802.1x, WPA thiab WPA2
- Txhawb nws pib hloov GPON thiab EPON hom
Kev piav qhia
|
Dimension |
186mm × 136mm × 33.5mm (L × W × H) |
|
Net nyhav |
0,42 Kg |
|
Kev ua haujlwm |
Ua haujlwm kub: -10 ~ +55 degree Ua haujlwm av noo: 5 ~ 95% (tsis yog-condensed) |
|
Kev khaws cia |
Cia kub: -40 ~ +70 degree Cia cov av noo: 5 ~ 95% (tsis yog -condensed) |
|
Hwj chim |
12V/1.5A |
|
Fais fab mov |
Tsawg dua lossis sib npaug li 12W |
|
Qhov taw qhia |
PWR, PON, LOS, NET, LAN1 ~ 4, 2.4G, 5G, WPS, VOIP, USB |
|
PON |
1XPON chaw nres nkoj (EPON PX20+ thiab GPON Class B+) SC ib hom, SC-UPC/SC-APC connector TX optical zog: 0.5-+4dBm RX rhiab heev: -28dBm Overload optical zog: -3dBm (EPON) lossis -8dBm (GPON) Transmission nrug: 20KM wavelength: TX 1310nm, RX1490nm |
|
Cov neeg siv |
4 × GE, Auto-kev sib tham, RJ45 chaw nres nkoj 1 × POTS RJ11 Connector |
|
Kav hlau txais xov |
2.4GHz 2T2R, 5GHz 3T3R |
|
O&M |
WEB/TELNET/OAM/OMCI/TR069 Txhawb nqa tus kheej OAM / OMCI raws tu qauv |
|
Kev sib txuas hauv Is Taws Nem |
Txhawb Routing Hom |
|
Multicast |
IGMP v1/v2/v3, IGMP snooping MLD v1/v2 snooping |
|
VoIP |
SIP thiab IMS SIP G.711a/G.711u/G.722/G.729 Codec Echo tshem tawm, VAD / CNG, DTMF Relay Kev Qhia Tus Neeg Hu / Hu Tos / Hu Xov Tooj Xa / Hu Xov Tooj Hloov / Hu Xov Tooj / 3-txoj Kev Sib Tham Kev kuaj kab raws li GR-909 |
|
WIFI |
WIFI6: 802.11a/n/ac/ax 5GHz, 2.4GHz WIFI: 2.4G 2X2,5G 3X3,5 kav hlau txais xov.Multiple SSID WiFi encryption: WPA/WPA2/WPA3 Txhawb OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM Ntse Txuas rau ib qho Wi-Fi lub npe - Ib qho SSID rau 2.4GHz thiab 5GHz dual band |
|
Firewall |
Anti-DDOS, Lim Raws li ACL/MAC /URL |

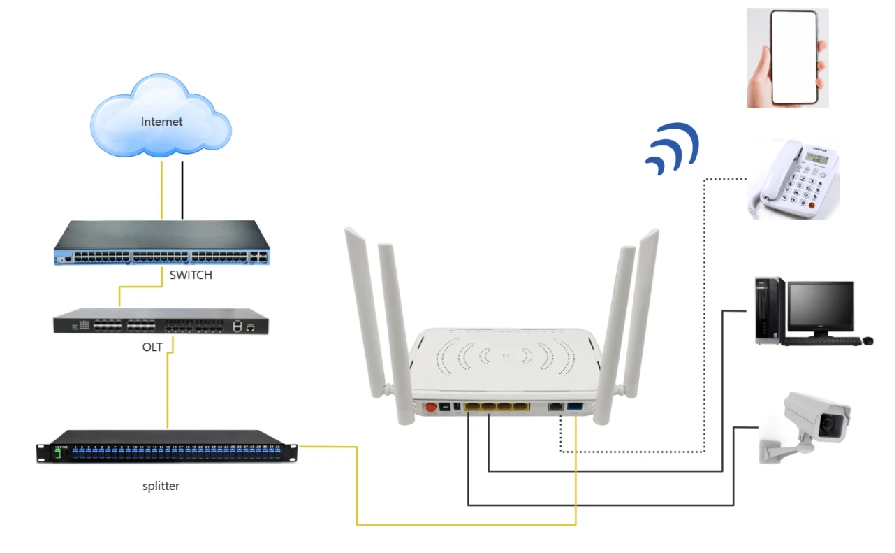

FTTx applacation
