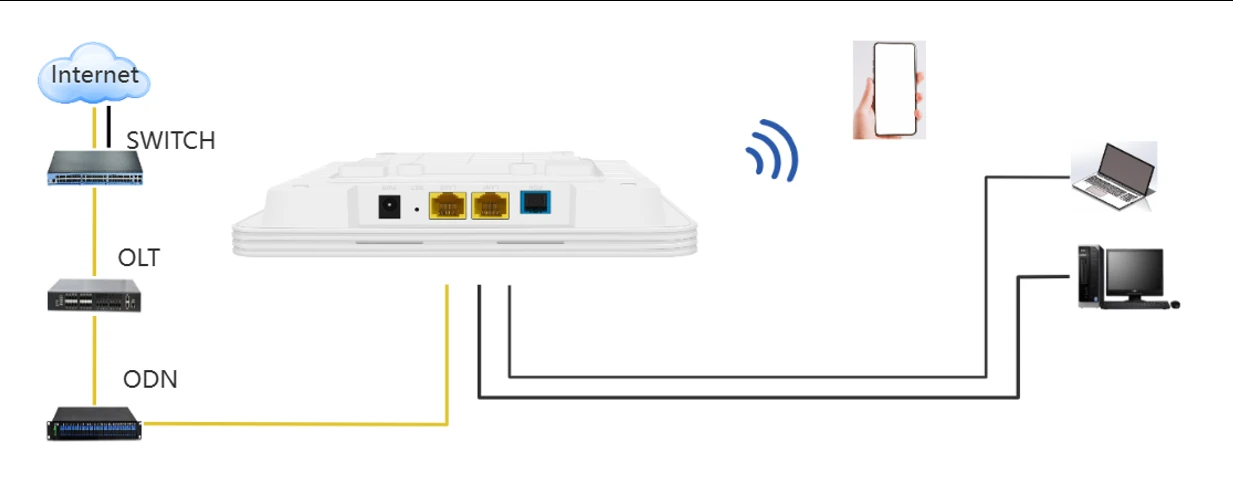

GPU 6260 yog qhov ntse routing passive PoF optical network davhlau ya nyob twg hauv FTTH daws. GPU 6260 muab 1 * GE LAN chaw nres nkoj, 1 * 2.5GE chaw nres nkoj thiab AX3000 WiFi, kev nkag siab nrawm nce 2.5Gbps qis qis thiab 1.25Gbps ntws. Nws yog dav siv tau nrog lub ntiaj teb no mainstream OLT hom, txhawb plug{10}}thiab{11}}play, OMCI thiab TR069 tej thaj chaw deb tu nta.
Nta
- Kev them nyiaj yug ntaus ntawv - raws li tus nqi txwv thiab tswj bandwidth
- Txhawb cov ntaub ntawv encryption, pab pawg tshaj tawm, chaw nres nkoj VLAN sib cais, thiab lwm yam.
- Txhawb ONU pib - nrhiav pom / Txuas kev tshawb nrhiav / kev hloov kho tej thaj chaw deb ntawm software;
- Txhawb chaw nres nkoj VLAN configuration
- Txhawb QOS configuration
- Txhawb chaw nres nkoj khi, chaw nres nkoj xa mus
- Kev tsim tshwj xeeb rau kev ua txhaum kev tiv thaiv kom muaj kev ruaj ntseg
- Txhawb kev hloov kho software hauv online
- Txhawb TR069 rau ACS (Auto Config Server)
- Txhawb PPPoE / DHCP Server / IPTV / POTS / NAT / TR069 / IPv6 / IPv4
- Txhawb kev ruaj ntseg wireless ntawm 64/128 ntsis WEP, 802.1x, WPA thiab WPA2
- Txhawb Mesh yooj yim
- Txhawb Cloud Management
Technical Parameter
|

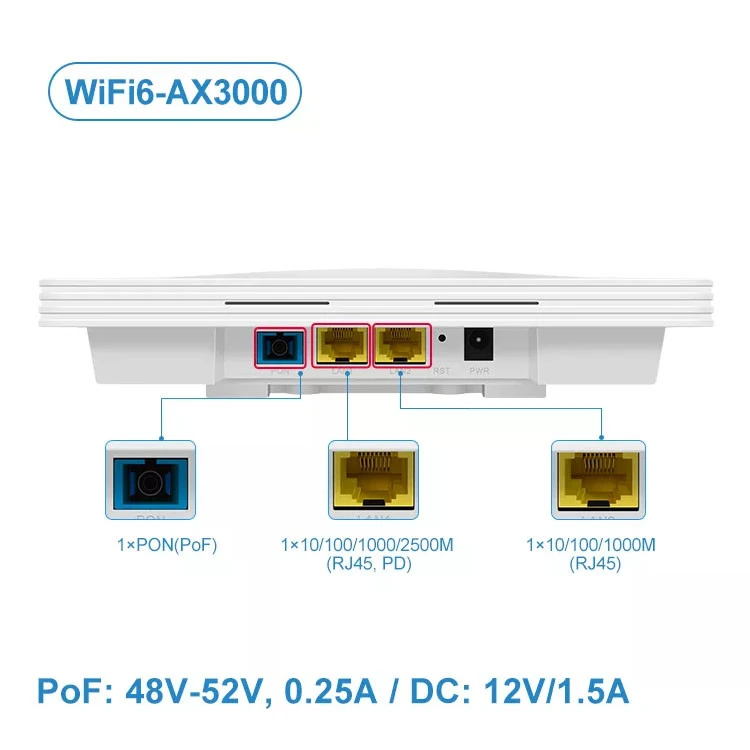

Tus neeg siv interface |
1 * GE RJ45 |
|
1 * 2.5GE RJ45 |
|
|
2.4GHz: 574Mbps, 5.8GHz: 2402Mbps |
|
|
PON |
EPON & GPON hom yoog raws Hom interface: SC-UPC/SC-APC Transmission nrug: 20KM |
|
GPON: nce 1.25Gbps / downstream 2.5Gbps Transmitting optical zog: 0 ~ 4dBm Optical txais rhiab heev: -7dBm ~ -28dBm |
|
|
EPON: nce 1.25Gbps / downstream 1.25Gbps Transmitting optical zog: 0 ~ 4dBm Optical receiver rhiab heev: -7dBm ~ -27dBm |
|
|
Ethernet |
1 * 10/100/1000/2500M pib-kev sib tham Full/half duplex hom RJ45 connector Auto MDI/MDI-X 100 m nrug |
|
Loj |
188 * 188 * 43.6 hli |
|
Ib puag ncig |
Ua haujlwm kub: 0 ° ~ 50 ° C Kev khiav dej num: 0％ ~ 85% (tsis yog -condensing) Cia kub: -40 ℃ ~ 80 ℃ Cia cov av noo: 5% ~ 95% (tsis yog -condensing) |
|
Fais fab mov |
12V / 1.5A DC fais fab mov Lub zog interface loj: 2.1mm / 5.5mm |
|
Hwj chim Kev noj haus |
＜12W |
