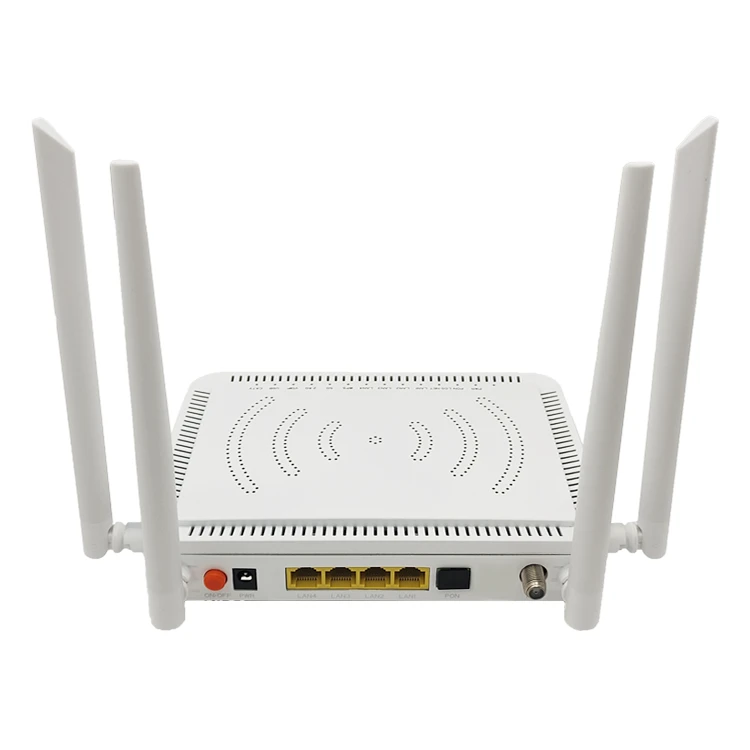

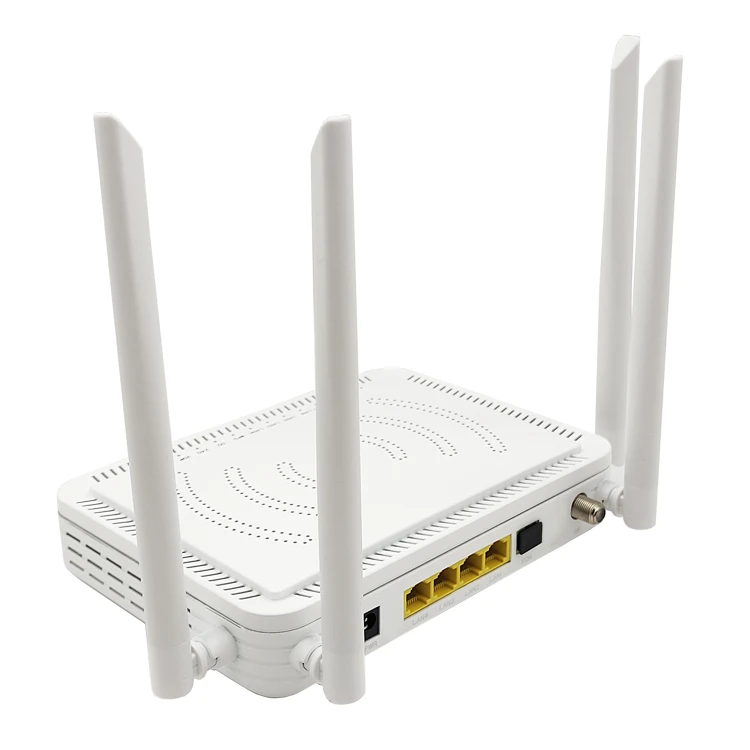

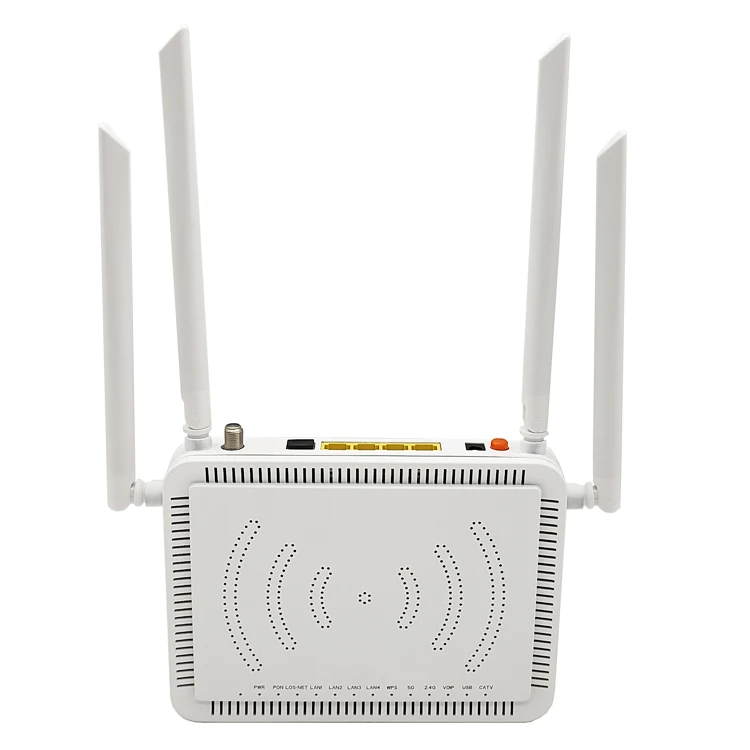

Cov khoom lag luam ONU no ua ke nrog 4GE (4 Gigabit Ethernet ports) + AC WiFi (dual-band wireless) + CATV (RF TV interface), xa high- internet ceev, wireless txuas, thiab cable TV cov kev pabcuam hauv ib lub cuab yeej. Nws yog tsim los rau FTTH (Fiber-mus rau--Home)) kev xa tawm, txhawb nqa triple-play applications.

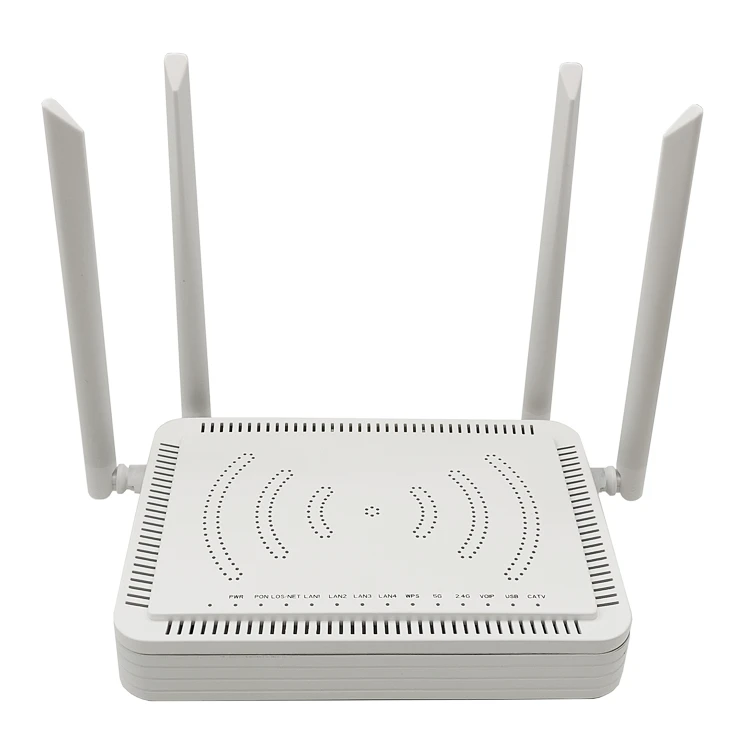

Gigabit Fiber XPON CATV ONT

4GE AC WIFI CATV

Cov yam ntxwv tseem ceeb:

4 Gigabit Ethernet ports - Rau kev sib txuas nrog (PC, IPTV, thiab lwm yam).
AC WiFi - Dual -band (2.4GHz + 5GHz) rau kev ceev ceev thiab ruaj khov wireless.
CATV (RF tso zis) - Txhawb cov kab hluav taws xob hauv TV.
GPON / EPON tau tshaj - Ua haujlwm nrog cov qauv fiber ntau.
Compact & yooj yim rau nruab - Zoo tagnrho rau kev siv hauv tsev lossis kev lag luam me.

Cov cuab yeej no zoo meej rau ISPs muab siab - internet ceev + WiFi + TV kev pab cuam dhau ib qho kev sib txuas fiber ntau.

AC1200 Dual Gigabit Interfaces rau Gigabit Broadband Access Applications

4GE AC WIFI CATV

Specifications

Kev ua haujlwm	Ua haujlwm kub: -10 ~ +55 degree Ua haujlwm av noo: 5 ~ 95% (tsis yog-condensed)
Kev khaws cia	Cia kub: -40 ~ +70 degree Cia cov av noo: 5 ~ 95% (tsis yog -condensed)
Hwj chim	12V/1.5A
Fais fab mov	Tsawg dua lossis sib npaug li 12W
Qhov taw qhia	PWR, PON, LOS/NET, LAN1 ~ 4, 2.4G, 5G, WPS, VOIP, USB, CATV

PON	1XPON chaw nres nkoj (EPON PX20+ thiab GPON Class B+) SC ib hom, SC / APC connector TX optical zog: 0.5-+4dBm RX rhiab heev: -28dBm Overload optical zog: -3dBm (EPON) lossis -8dBm (GPON) Transmission nrug: 20KM wavelength: TX 1310nm, RX1490nm
Cov neeg siv	4 × GE, Auto-kev sib tham 1 × RJ45 chaw nres nkoj 1 × RF lauj kaub rau CATV
Kav hlau txais xov	2.4GHz 2T2R, 5GHz 2T2R
CATV	Optical txais wavelength: 1550 ± 10nm Optical input range: +2--18dBm Optical reflection poob: Ntau dua lossis sib npaug li 40dB RF zaus ntau: 47-1000MHz RF tso zis impedance: 75Ω RF tso zis ntau dua los yog sib npaug rau 75 ± 2dBuv Txhawb AGC tswj MER: Ntau dua lossis sib npaug rau 32dB (-14dBm optical input)

O&M	WEB/TELNET/OAM/OMCI/TR069 Txhawb nqa tus kheej OAM / OMCI raws tu qauv
Kev sib txuas hauv Is Taws Nem	Txhawb Routing Hom
Multicast	IGMP v1/v2/v3, IGMP snooping MLD v1/v2 snooping
VoIP	SIP thiab IMS SIP G.711a/G.711u/G.722/G.729 Codec Echo tshem tawm, VAD / CNG, DTMF Relay Kev Qhia Tus Neeg Hu / Hu Tos / Hu Xov Tooj Xa / Hu Xov Tooj Hloov / Hu Xov Tooj / 3-txoj Kev Sib Tham Kev kuaj kab raws li GR-909
WIFI	WIFI5: 802.11b/g/n/a/ac 5GHz, 2.4GHz WIFI: 2.4G 2X2,5G 2X2,5 kav hlau txais xov.Multiple SSID WiFi encryption: WPA/WPA2 Txhawb OFDM, MU-MIMO, Dynamic QoS, 256-QAM Ntse Txuas rau ib qho Wi-Fi lub npe - Ib qho SSID rau 2.4GHz thiab 5GHz dual band
Firewall	Anti-DDOS, Lim Raws li ACL/MAC /URL

Tus nqi Embodiment ntawm 4GE AC WIFI CATV hauv tiag-Cov xwm txheej hauv ntiaj teb

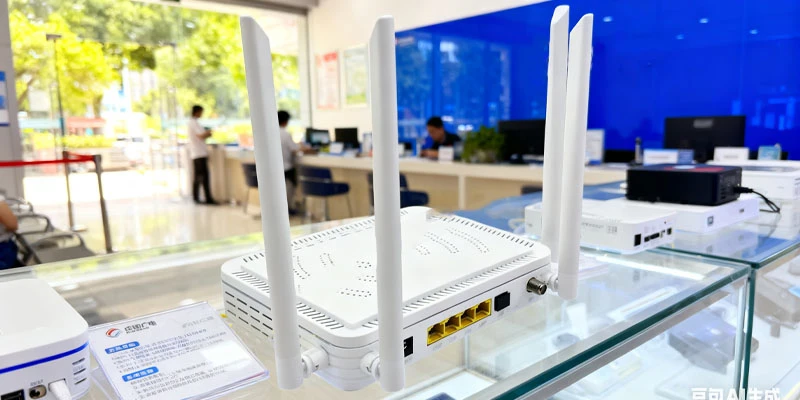

Hauv cov xwm txheej hauv tsev ntse, 4GE AC WIFI CATV cov khoom siv ua lub luag haujlwm tseem ceeb ua lub hub digital.

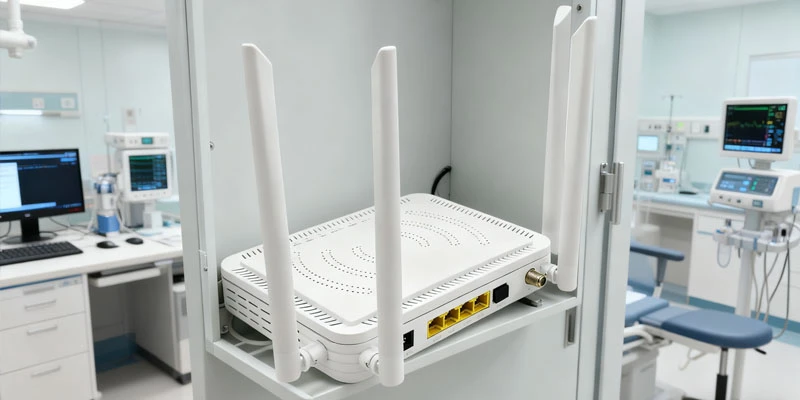

Kev Lag Luam Kev Kho Mob thiab Ntau - Cov Tsev Nyob

Siab -Speed Internet Access: Kev xaim xaim Ethernet thiab dual-band Wi-Fi kev pab them nqi

Entertainment Video Services: Live TV, video-ntawm-xav tau, thiab OTT cov ntsiab lus

Tshwj xeeb Hotel Services: Chaw ntiav pw cov ntaub ntawv xa tuaj ntawm nplooj siab SSID lossis nplooj ntawv portal

Smart Homes thiab Modern Residences

Ultra HD IPTV: Tau txais ntau yam 4K video signals ntawm CATV interface lossis IP video ntws

Huab Gaming: Nkag mus rau huab gaming platforms leveraging qis -latency yam ntxwv ntawm wired networks

Ntse Tsev Tswj: Txuas txhua yam khoom siv hauv tsev ntse los ntawm kev sib txuas wireless

Chaw Taws Teeb Ua Haujlwm: Nkag mus rau hauv kev lag luam network ruaj ntseg siv VPN ua haujlwm

Khoom Description

Peb Daim Ntawv Pov Thawj

txoj kev them nyiaj

4GE AC WIFI CATV

Ntim & Thauj

Ntim

Peb yuav ntim peb cov khoom kom nruj kom ntseeg tau tias lawv tsis muaj kev puas tsuaj hauv kev thauj mus los.

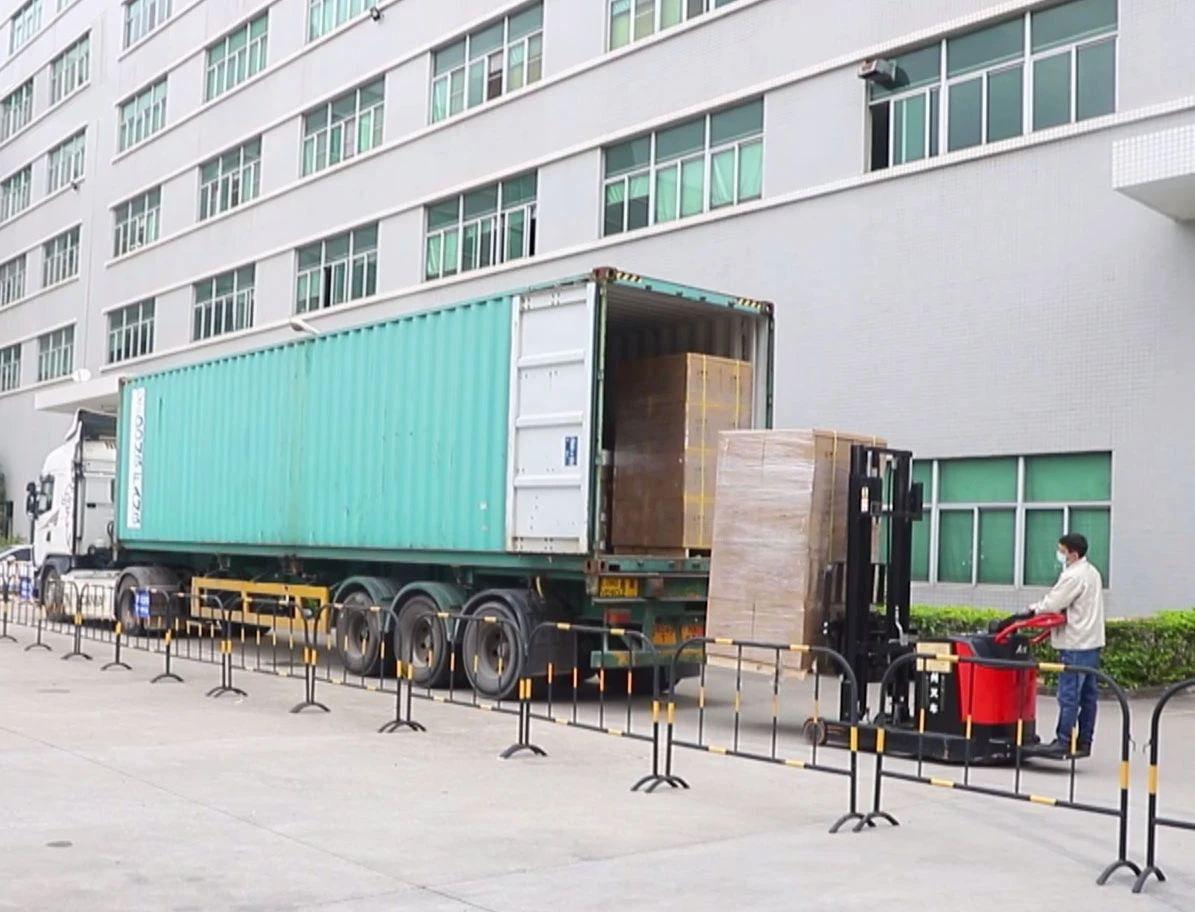

Kev thauj mus los

Peb txhawb nqa peb txoj kev thauj mus los loj los ntawm hiav txwv, av thiab huab cua kom ntseeg tau tias koj cov khoom tuaj yeem tuaj txog raws sijhawm.

4GE AC WIFI CATV

FAQ

Q: Koj puas yog Hoobkas lossis tuam txhab lag luam?

A: Peb yog 100% Hoobkas thiab tseem ua lag luam online

Q: Koj txoj kev xa khoom yog dab tsi?

A: Peb feem ntau xa tuaj ntawm DHL / UPS / Fedex / TNT / Aramex. yog tias koj muaj ntau ntau -ty, koj tuaj yeem xaiv Air lossis Sea shipping.

Q: Koj lub sijhawm them nyiaj yog dab tsi?

A: T / T xaim txhab nyiaj hloov pauv, L / c, thiab lwm yam.

Q: Koj tuaj yeem ua li cas rau qhov teeb meem yog tias peb tau txais cov khoom tsis raug?

A: Xa peb cov duab lossis video thawj zaug, peb xav muab kev hloov pauv dawb. muab cov khoom rau koj.

Q: Puas tuaj yeem coj tus qauv rau kev kuaj xyuas zoo?

A: Yog lawm, peb tuaj yeem muab cov qauv rau koj kuaj.

Q: Peb puas tuaj yeem muaj peb lub logo lossis lub npe tuam txhab luam tawm ntawm koj cov khoom lossis cov khoom?

A: Yog, koj paub tseeb. Peb lees txais OEM / ODM xaj thiab muab kev pabcuam rau kev luam ntawv logo, cov cim thawv nrog rau cov qauv tsim.Koj tuaj yeem xa peb cov duab kos los ntawm email hauv jPG, TIF, Al, EPS, TIFF ntawm CorelDraw rau -mats Logo luam ntawv yuav xav tau MOQ uas yuav txawv ntawm ntau yam mod-el.Thov hu rau peb kom paub meej.
