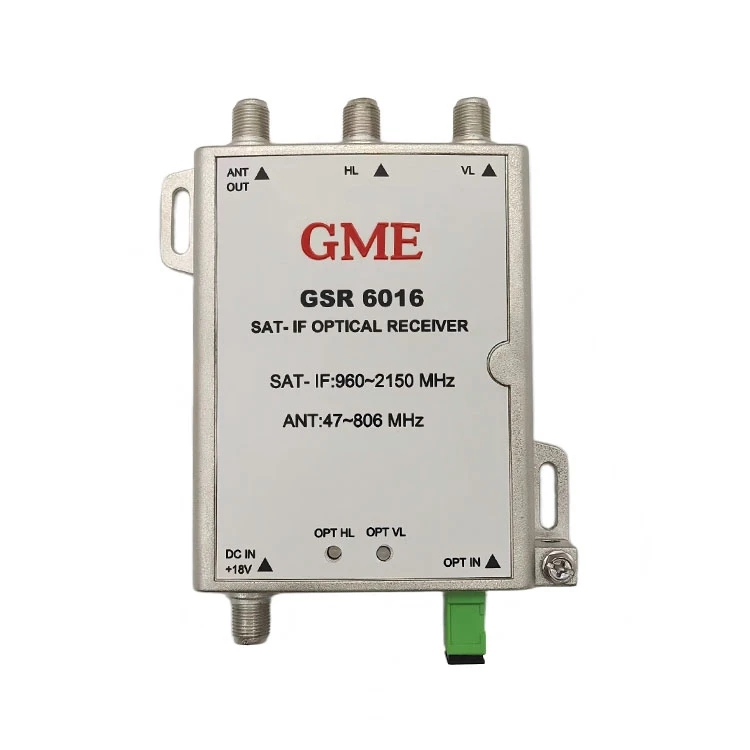

Nta
- Tsim los rau satellite optical system
- Kev ua haujlwm dav dav: 45-2150MHz
- Zoo heev linearity thiab flatness
- Ntau yam ntawm optical input zog
- Siv 1-core single-mode fiber ntau rov qab poob
- Siv GaAs amplifier nquag siv
- Ultra low nrov technology
- Tsim -hauv CWDM Siv High linear PD
- Tsim - hauv optical AGC muaj nuj nqi
Specification
|
Optical Parameter |
TERR+SAT-IF Parameter |
||
|
Kev teb (A/W) |
Ntau dua lossis sib npaug li 0.9 |
Ntau zaus |
45 ~ 2150 MHz |
|
Txais Optical Fais Fab |
-18-+3 -10-0 (AGC) |
Flatness |
±1.5 |
|
Optical Rov Los Poob |
Ntau dua lossis sib npaug li 45 |
Cov zis theem (AGC) |
Ntau dua lossis sib npaug rau 80@TERR Ntau dua lossis sib npaug rau 78@SAT-IF |
|
Txais Wavelength (nm) |
1510-1570 |
CNR |
Ntau dua lossis sib npaug li 50 |
|
Optical Connector |
SC/APC |
CSO |
Ntau dua lossis sib npaug li 65 |
|
Lwm yam Parameter |
CTB |
Ntau dua lossis sib npaug li 62 |
|
|
Fais fab mov |
DC-18V lub cev muaj zog |
Rov Los Los |
Ntau dua lossis sib npaug li 12 |
|
Kev siv hluav taws xob (W) |
<6 |
AGC Stability |
±1 |
|
Qhov Loj (mm) |
143x110x28.8 |
Cov zis impedance |
75Ω |
