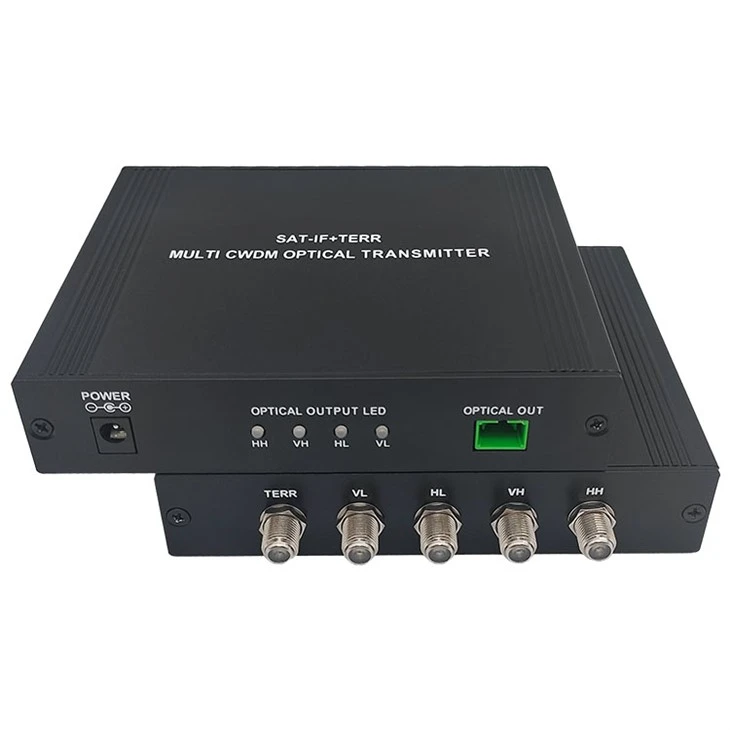

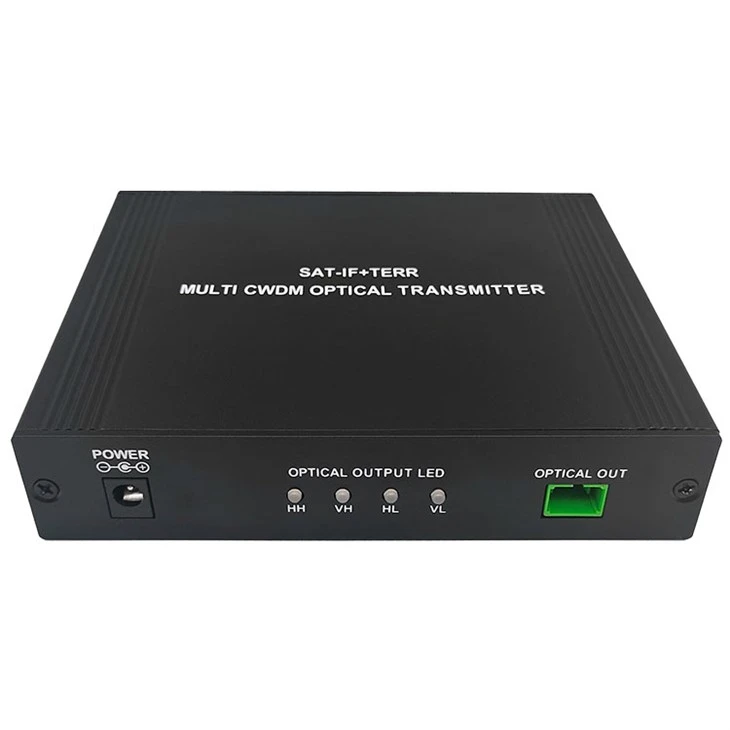

Optical Transmitteryog lub hauv paus tseem ceeb ntawm kev sib txuas lus kho qhov muag, lub luag haujlwm rau kev hloov hluav taws xob teeb liab rau hauv cov teeb liab kho qhov muag thiab xa mus los ntawm cov fibers optical.
Nta
- Tsim los rau satellite optical system
- Kev ua haujlwm dav dav: 45-2150MHz
- Zoo heev linearity thiab flatness
- Siv 1-core single-mode fiber ntau rov qab poob
- Siv GaAs amplifier nquag siv
- Ultra low nrov technology
- Tsim - hauv CWDM, siv DFB coaxial me me pob laser
- Outputs 13/18V, 0/22KHz rau LNB ua haujlwm
- Kev faib tawm txog li 32 qhov kho qhov muag
Specification
|
Optical Parameter |
TERR+SAT-IF Parameter |
||
|
Optical Rov Los Poob |
Ntau dua lossis sib npaug li 45 |
Ntau zaus |
45 ~ 2150 MHz |
|
Tso zis Optical zog |
4 x +3dBm |
Flatness |
±1.5 |
|
Optical Connector |
SC/APC |
Cov zis theem (AGC) |
Ntau dua lossis sib npaug rau 80 ± 5 @ TERR Ntau dua lossis sib npaug rau 78 ± 10@SAT-IF |
|
Optical Wavelength (nm) tso zis |
1510-1570 |
C/R |
Ntau dua lossis sib npaug li 52 |
|
Lwm yam Parameter |
CSO |
Ntau dua lossis sib npaug li 65 |
|
|
RF Connector |
F-poj niam |
CTB |
Ntau dua lossis sib npaug li 62 |
|
Fais fab mov |
DC-24V |
Rov Los Los |
Ntau dua lossis sib npaug li 12 |
|
Kev siv hluav taws xob (W) |
<6 |
22KHz Qhov tseeb |
22±4 |
|
Qhov Loj (mm) |
143x110x28.8 |
LNB Fais fab mov |
13/18 |
