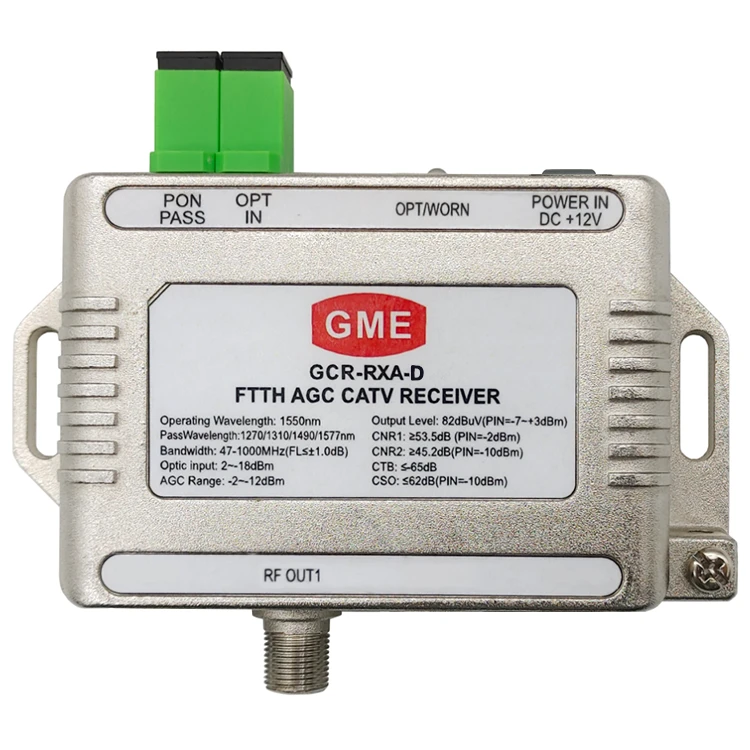

Optical receiver yog rau digital TV, fiber ntau rau hauv tsev. Lub tshuab no siv lub siab rhiab heev optical txais tube.Siv tau yooj yim daim ntawv thov kev koom ua ke, daim ntawv thov ntawm fiber ntau rau lub tsev network.It yog ua- hauv CWDM, haum rau ib leeg-fiber triple wavelength system, CATV kev khiav hauj lwm Wavelength 1550nm, pass wavelength 12170/170nm, yooj yim mus cuag ONU ntawm EPON, GPON.XG(S)PON
Nta
Specification
|
CATV Wavelength |
1550 ± 10nm |
Tso zis RF kuj |
75Ω |
|
|
PON Wavelength |
1270/1310/1490/1577nm |
Tso Tawm Rov Los Loss |
Tsawg dua lossis sib npaug li 14dB |
|
|
Optical Input zog |
-18-+2dBm |
Optical Rov Los Poob |
Ntau dua lossis sib npaug li 55dB |
-9dBm Optical input zog, 60 PAL channels |
|
Optical AGC Ntau |
-12-2dBm |
C/CSO |
Ntau dua lossis sib npaug li 55dB |
|
|
CATV Optical input chaw nres nkoj |
SC/APC |
C/CTB |
Ntau dua lossis sib npaug li 55dB |
|
|
PON Optical Reflect Port |
SC/PC |
MER |
Ntau dua lossis sib npaug li 31dB |
-15dBm Optical input zog |
|
RF connector |
Imperial F hom |
Input voltage |
+12V |
|
|
Ntau zaus |
47-1000MHz |
Lub zog Dissipation |
Tsawg dua los yog sib npaug li 2W |
|
|
Flatness |
Tsawg dua lossis sib npaug ± 1.25dB |
Kub |
-10-+50 degree |
|
|
RF tso zis theem (hauv AGC ntau) |
Ntau tshaj lossis sib npaug rau 80dBuV |
Dimension |
73 × 60 × 23 (L × W × H) mm |
|
Cov npe qauv
|
Qauv |
Hla Wavelength |
Reflect Wavelength |
Pass Interface |
RF tawm interface |
DC -in |
|
GCR-4RXA-F |
1550nm ± 10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/APC |
4 |
F- Poj niam: 12V 300mA |
|
GCR-2RXA-F |
1550nm ± 10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/APC |
2 |
F- Poj niam: 12V 300mA |
|
GCR-RXA-F |
1550nm ± 10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/APC |
1 |
F- Poj niam: 12V 300mA |
|
GCR-4RXU-F |
1550nm ± 10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/UPC |
4 |
F- Poj niam: 12V 300mA |
|
GCR-2RXU-F |
1550nm ± 10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/UPC |
2 |
F- Poj niam: 12V 300mA |
|
GCR-RXU-F |
1550nm ± 10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/UPC |
1 |
F- Poj niam: 12V 300mA |
|
GCR-4RXA-D |
1550nm ± 10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/APC |
4 |
DC-005: 12V 300mA |
|
GCR-2RXA-D |
1550nm ± 10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/APC |
2 |
DC-005: 12V 300mA |
|
GCR-RXA-D |
1550nm ± 10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/APC |
1 |
DC-005: 12V 300mA |
|
GCR-4RXU-D |
1550nm ± 10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/UPC |
4 |
DC-005: 12V 300mA |
|
GCR-2RXU-D |
1550nm ± 10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/UPC |
2 |
DC-005: 12V 300mA |
|
GCR-RXU-D |
1550nm ± 10nm |
1260nm ~ 1500nm 1575nm ~ 1625nm |
SC/UPC |
1 |
DC-005: 12V 300mA |
