Taw qhia
Optical receiver yog rau digital TV, fiber ntau rau hauv tsev. Lub tshuab no siv lub siab rhiab heev optical txais tube.Siv tau yooj yim daim ntawv thov kev koom ua ke, daim ntawv thov ntawm fiber ntau rau lub tsev network.It yog ua- hauv CWDM, haum rau ib leeg-fiber triple wavelength system, CATV kev khiav hauj lwm Wavelength 1550nm, pass wavelength 12170/170nm, yooj yim mus cuag ONU ntawm EPON, GPON.XG(S)PON.

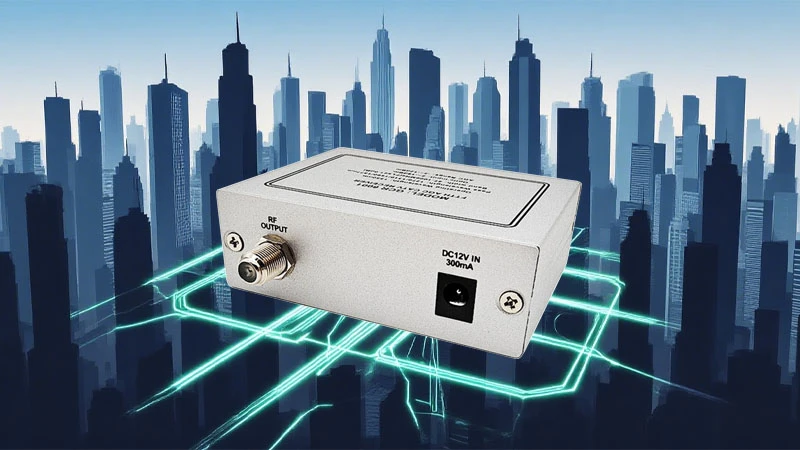

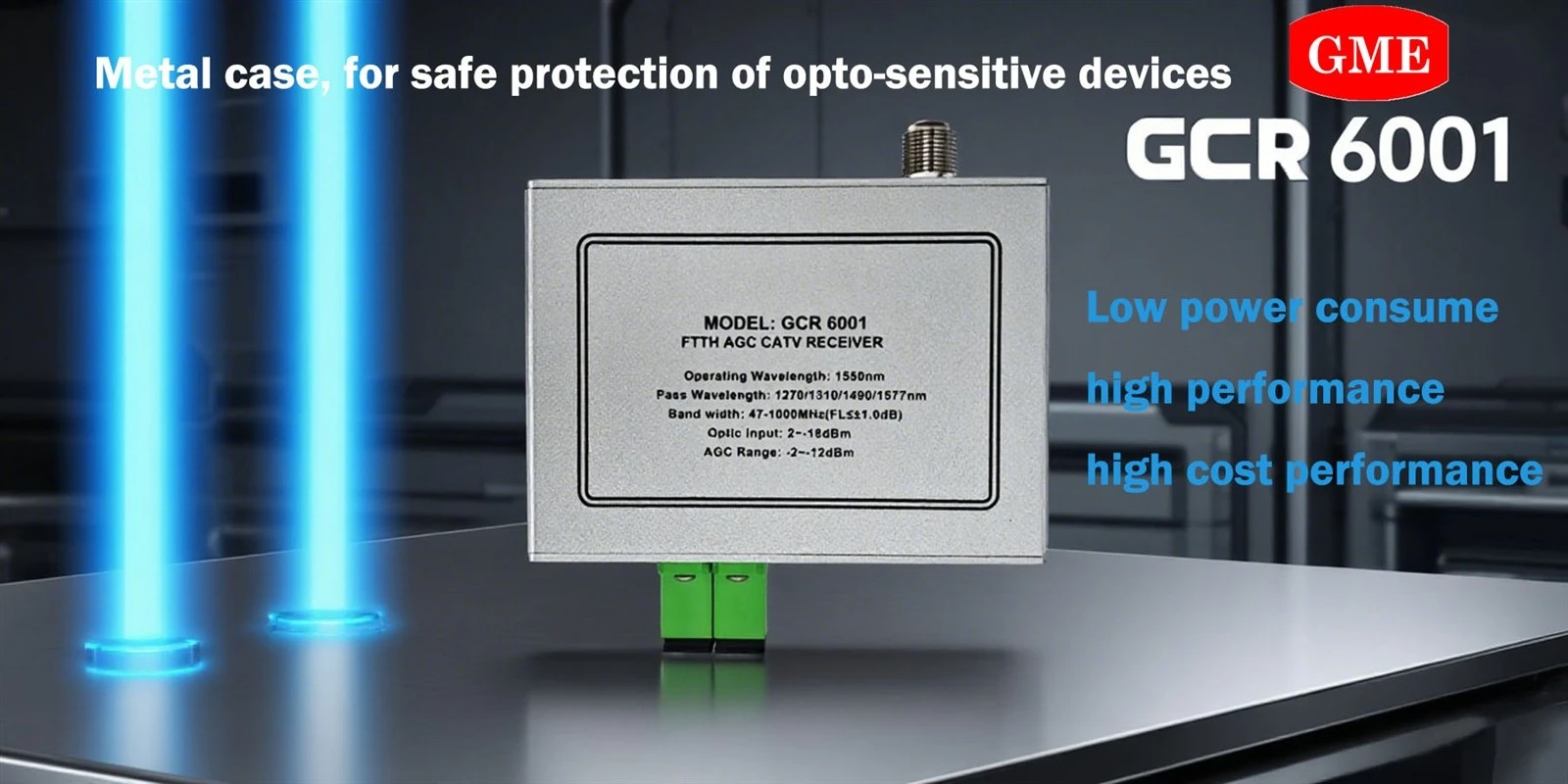

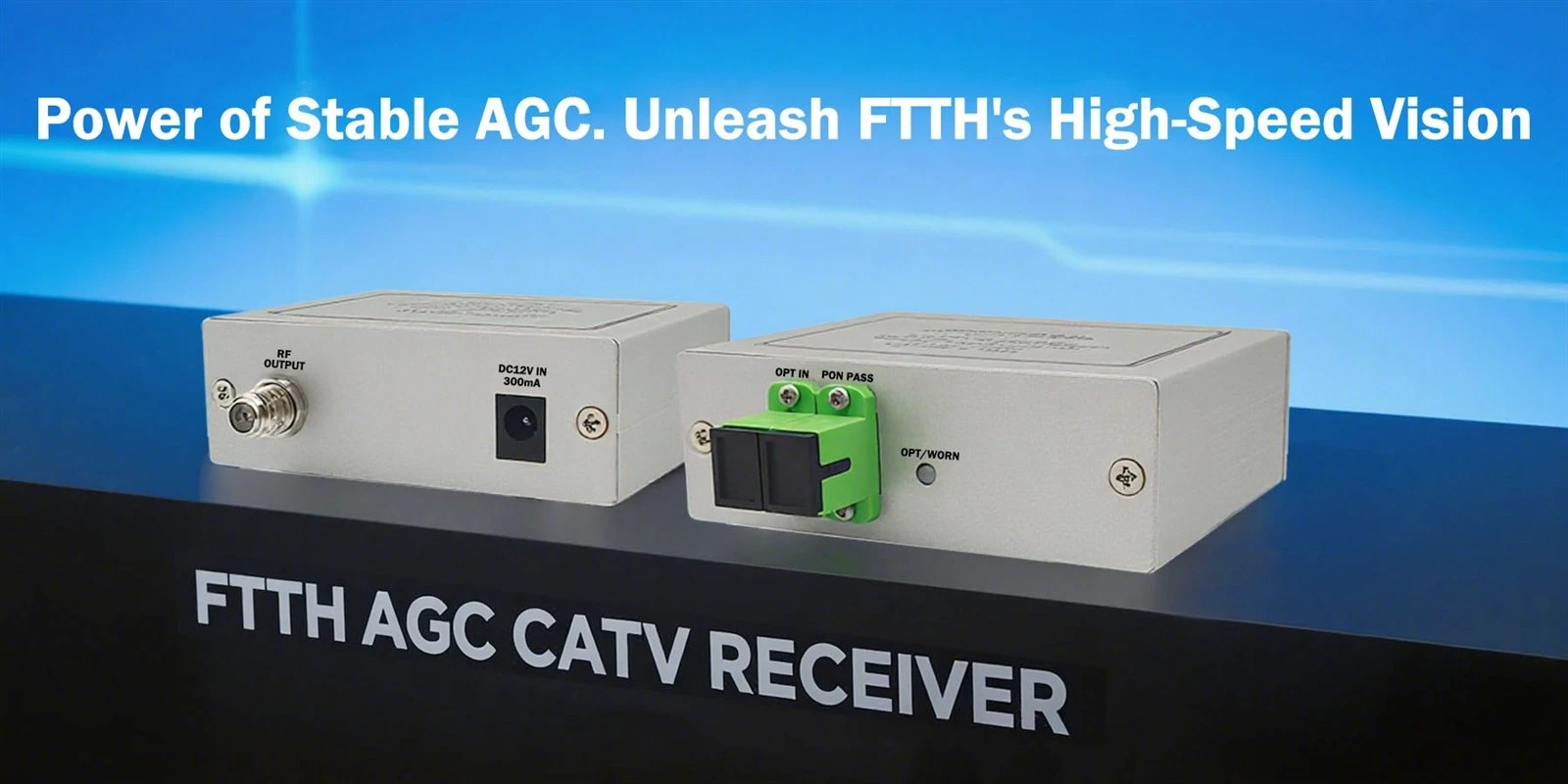

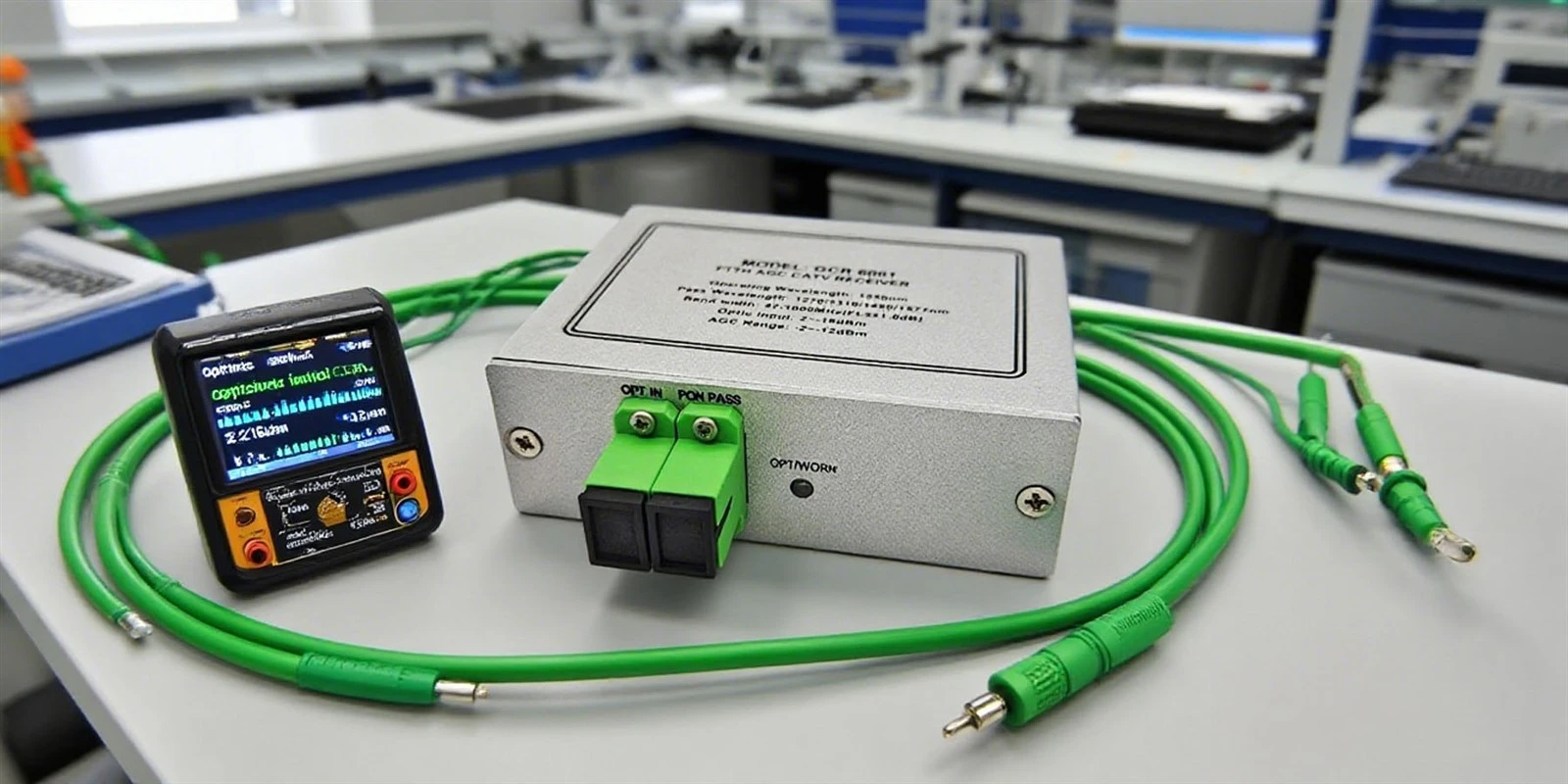

Professional FTTH AGC CATV Optical Receiver - Kev xa tawm ruaj khov, Crystal-Ntshiab Zoo
Qhov zoo ntawm Core FTTH AGC CATV Receiver
Zoo tshaj Compatibility thiab Flexibility
Nws tso cai rau peb npaug - wavelength (lossis ntau dua) kis tau tus mob hla ib qho fiber ntau, ib txhij nqa cov xov tooj cua hauv TV (CATV) thiab siab - cov ntaub ntawv hauv internet ceev (PON). Qhov no ua kom yooj yim rau lub network architecture, txo cov nqi xaim thiab tsis yooj yim, thiab yog qhov tsim nyog rau kev xa tawm ntawm kev sib koom ua ke niaj hnub (FMCG).
Kev ua haujlwm siab thiab kev lees paub zoo
Kev khiav hauj lwm bandwidth ranges ntawm 47 mus rau 1000 MHz, nrog tsawg heev nyob rau hauv -band fluctuation (tsawg dua los yog sib npaug rau ± 1.0 dB). Qhov tsawg kawg nkaus hauv -band flatness ua kom lub teeb liab muaj zog thoob plaws txhua txoj kab, tiv thaiv "ntsuab nyhuv" qhov twg qee cov channel muaj cov cim muaj zog thaum lwm tus tsis muaj zog. Raws li qhov tshwm sim, nws muab siab dua - txhais, ruaj khov dua, thiab cuam tshuam - tso tawm cov yeeb yaj kiab dawb, txhim kho qhov kawg - cov neeg siv saib kev paub.
Strong Environmental Adaptability thiab Stability
Thaum cov tswv yim kho qhov muag lub zog hloov pauv ntau vim yog yam xws li kab nrug, sib cais sib txawv, lossis kev laus ntawm fiber ntau, AGC ua haujlwm tau hloov kho kom tso tawm qhov tsis tu ncua - theem hluav taws xob teeb liab.
High Sensitivity thiab Dynamic Range
Qhov siab tshaj plaws tau txais kev pom zoo ua kom ntseeg tau tias txawm tias tom qab ntev - kis tau tus mob los yog kev sib cais siab sib faib, thaum lub teeb liab kho qhov muag tsis muaj zog, tus txais no tseem tuaj yeem txheeb xyuas tau zoo thiab hloov nws, lav kev sib kis ntev dua thiab kev pab cuam hauv lub network.
Nws muab lub siab -kev ua tau zoo analog/digital CATV teeb liab nyob rau hauv-kev daws teeb meem hauv tsev rau Fiber- rau- lub-Home (FTTH) tes hauj lwm, txhawb ultra- tsis tshua muaj hluav taws xob txais hluav taws xob thiab ua kom ruaj khov tso zis los ntawm AGC (Automatic Gain Control)
Specification
|
CATV Wavelength |
1550 ± 10nm |
Tso zis RF kuj |
75Ω |
|
|
PON Wavelength |
1270/1310/1490/1577nm |
Tso Tawm Rov Los Loss |
Tsawg dua los yog sib npaug rau -12dB |
|
|
Optical Input zog |
-18-+2dBm |
C/N |
Ntau dua lossis sib npaug li 43dB |
-9dBm Optical input zog, 60 PAL channels |
|
Optical AGC Ntau |
-12-2dBm |
C/CSO |
Ntau dua lossis sib npaug li 55dB |
|
|
CATV Optical input chaw nres nkoj |
SC/APC |
C/CTB |
Ntau dua lossis sib npaug li 55dB |
|
|
PON Optical Reflect Port |
SC/PC |
MER |
Ntau dua lossis sib npaug li 31dB |
-15dBm Optical input zog |
|
RF connector |
Imperial F hom |
Input voltage |
+12V |
|
|
Ntau zaus |
47-1000MHz |
Lub zog Dissipation |
Tsawg dua los yog sib npaug li 2W |
|
|
Flatness |
Tsawg dua lossis sib npaug ± 1.25dB |
Kub |
-10-+50 degree |
|
|
RF tso zis theem (hauv AGC ntau) |
Ntau tshaj lossis sib npaug rau 80dBuV |
Dimension |
86.6 × 99 × 29 (L × W × H) mm |
|

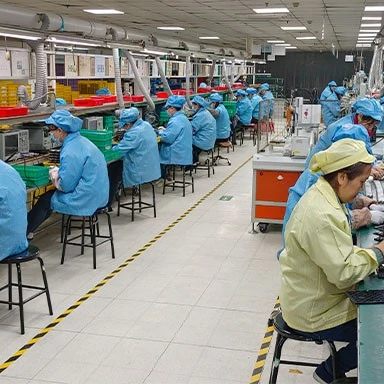

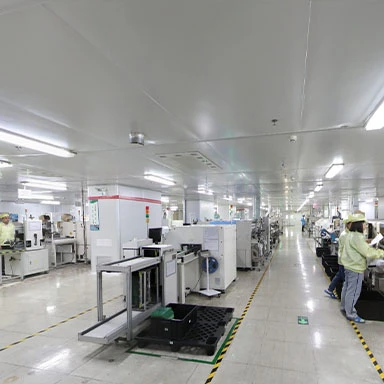

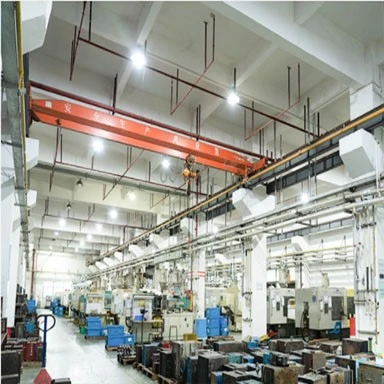

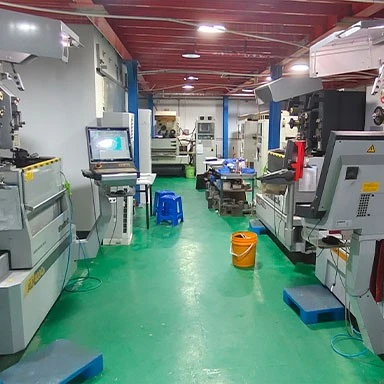

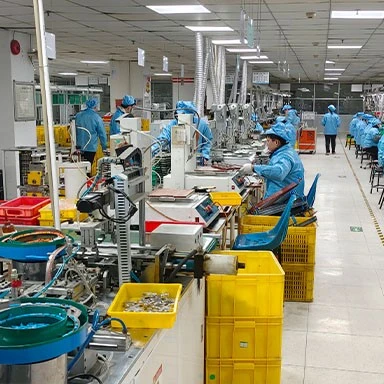

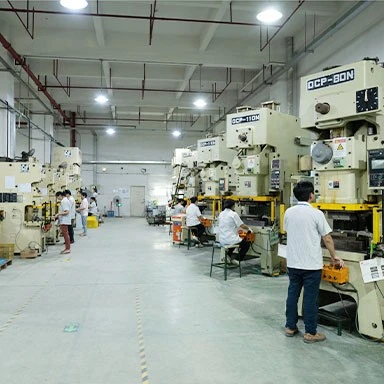

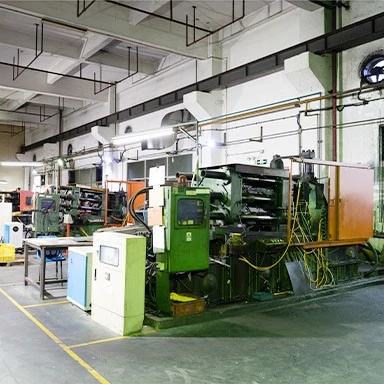

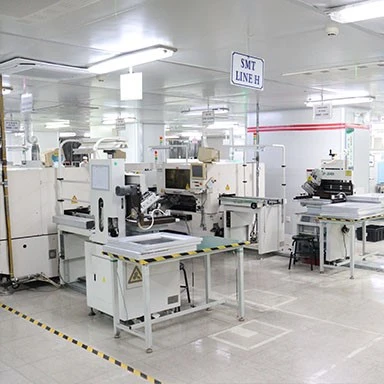

Peb lub Hoobkas tsim khoom
Peb Daim Ntawv Pov Thawj
txoj kev them nyiaj
Ntim & Thauj
Ntim & Thauj
Ntim
Peb yuav ntim peb cov khoom kom nruj kom ntseeg tau tias lawv tsis muaj kev puas tsuaj hauv kev thauj mus los.

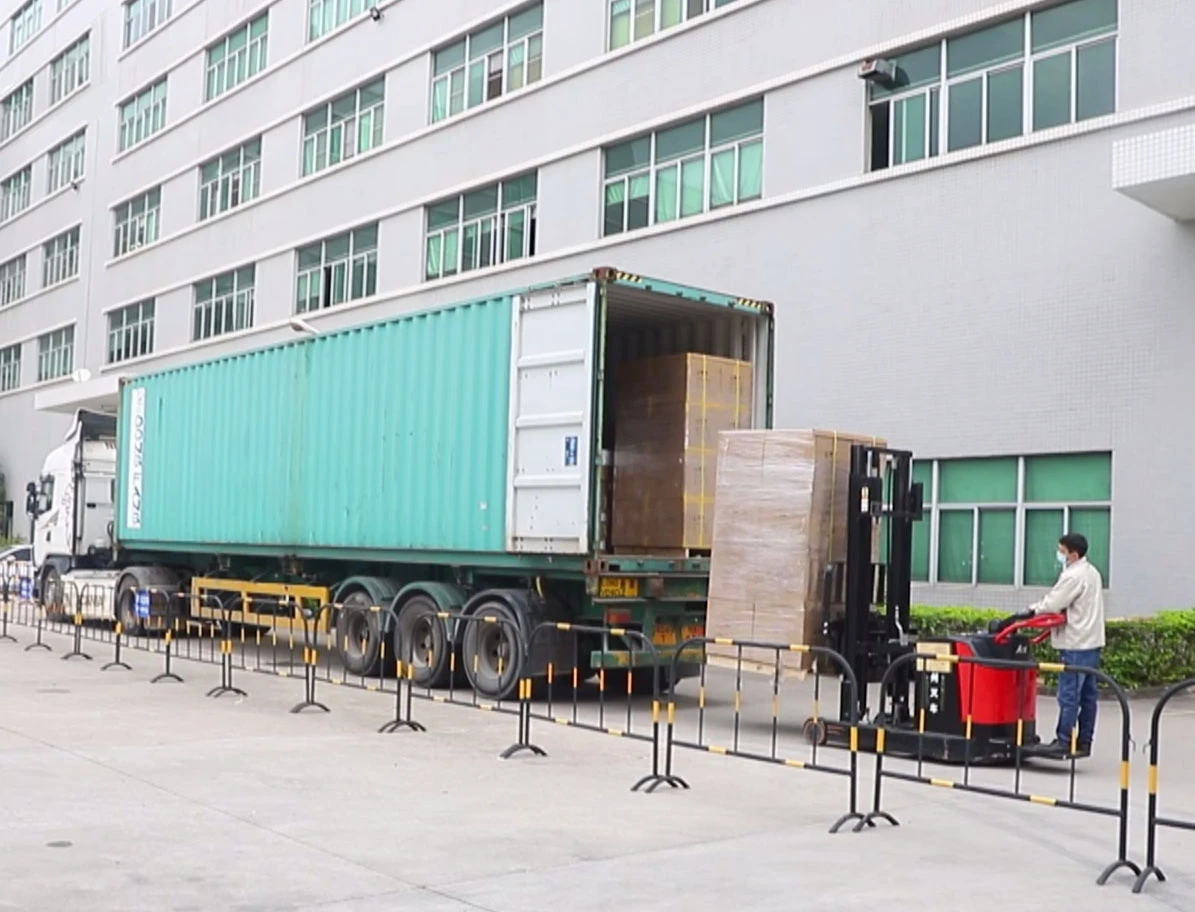

Kev thauj mus los
Peb txhawb nqa peb txoj kev thauj mus los loj los ntawm hiav txwv, av thiab huab cua kom ntseeg tau tias koj cov khoom tuaj yeem tuaj txog raws sijhawm.
FAQ
Q: Koj puas yog Hoobkas lossis tuam txhab lag luam?
A: Peb yog 100% Hoobkas thiab tseem ua lag luam online
Q: Koj txoj kev xa khoom yog dab tsi?
A: Peb feem ntau xa tuaj ntawm DHL / UPS / Fedex / TNT / Aramex. yog tias koj muaj ntau ntau -ty, koj tuaj yeem xaiv Air lossis Sea shipping.
Q: Koj lub sijhawm them nyiaj yog dab tsi?
A: T / T xaim txhab nyiaj hloov pauv, L / c, thiab lwm yam.
Q: Koj tuaj yeem tiv thaiv qhov teeb meem li cas yog tias peb tau txais cov khoom tsis raug?
A: Xa peb cov duab lossis video thawj zaug, peb xav muab kev hloov pauv dawb. muab cov khoom rau koj.
Q: Puas tuaj yeem coj tus qauv rau kev kuaj xyuas zoo?
A: Yog lawm, peb tuaj yeem muab cov qauv rau koj kuaj.
Q: Peb puas tuaj yeem muaj peb lub logo lossis lub npe tuam txhab luam tawm ntawm koj cov khoom lossis cov khoom?
A: Yog, koj paub tseeb. Peb lees txais OEM / ODM xaj thiab muab kev pabcuam rau kev luam ntawv logo, cov cim thawv nrog rau kev ntim khoom tsim.Koj tuaj yeem xa peb cov duab kos los ntawm email hauv jPG, TIF, Al, EPS, TIFF ntawm CorelDraw rau -mats Logo luam ntawv yuav xav tau MOQ uas yuav txawv ntawm txawv mod-el.Thov hu rau peb kom paub meej.
