Kev piav qhia

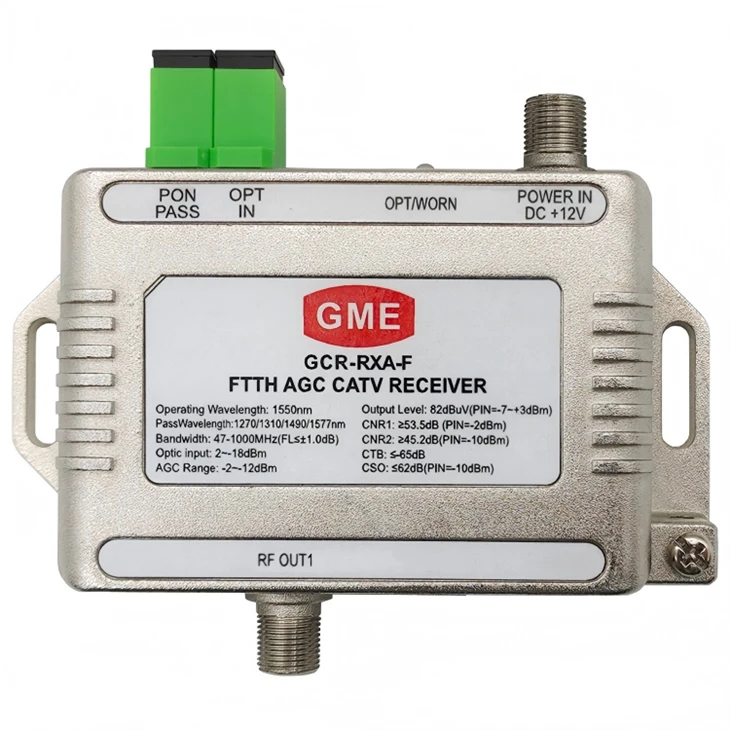

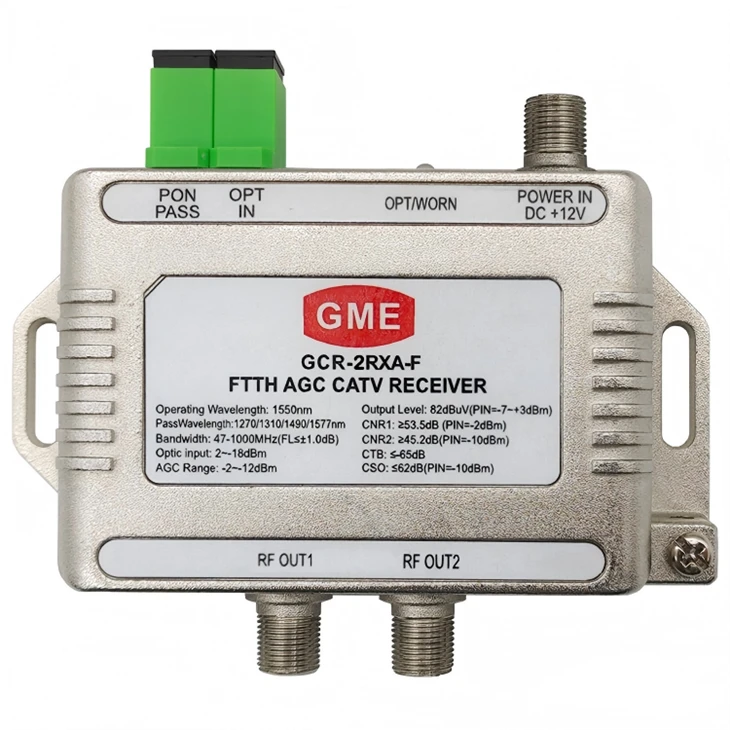

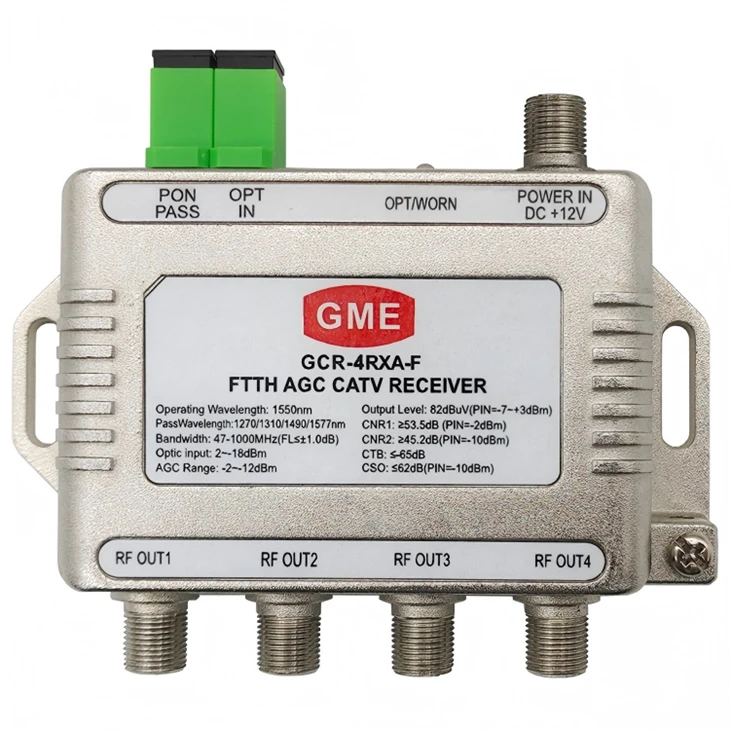

Optical receiver yog rau digital TV, fiber ntau rau hauv tsev. Lub tshuab no siv lub siab rhiab heev optical txais
tube.Flexible thov kev koom ua ke, daim ntawv thov fiber ntau rau hauv tsev network.
Nws yog Ua-hauv CWDM, haum rau ib zaug -fiber triple wavelength system, CATV kev khiav hauj lwm Wavelength 1550nm, dhau
wavelength 1310/1490nm, tuaj yeem yooj yim txuas ONU ntawm EPON, GPON.
Nta
• Mus txog 20KM kis tau tus mob nrug
• Ntxiv- suab nrov tsawg
• Dav dynamic txais optical zog ntau yam: nyob rau hauv Pin =-16, MER Ntau tshaj los yog sib npaug rau 36dB
• Muaj feem xyuam GPON, EPON, tau tshaj FTTx PON tshuab
• Muaj peev xwm txuag tau ntau qhov chaw siv hluav taws xob kho qhov muag, txo cov nqi kev teeb tsa network zoo heev
• Tsis pub dhau 47 ~ 1000MHz bandwidth, tag nrho nrog zoo flatness feature (FL Tsawg dua los yog sib npaug rau ± 1dB)
• Cov ntaub ntawv hlau, muab kev tiv thaiv rau cov khoom siv hluav taws xob optoelectronic
• qib siab tso zis, tuaj yeem siv los ntawm ntau tus neeg siv
• Kev siv hluav taws xob tsawg, kev ua haujlwm siab, kev ua haujlwm siab
• 6KV surge tiv thaiv ntawm txhua qhov chaw nres nkoj
• Txhawb 4 RF OUT max

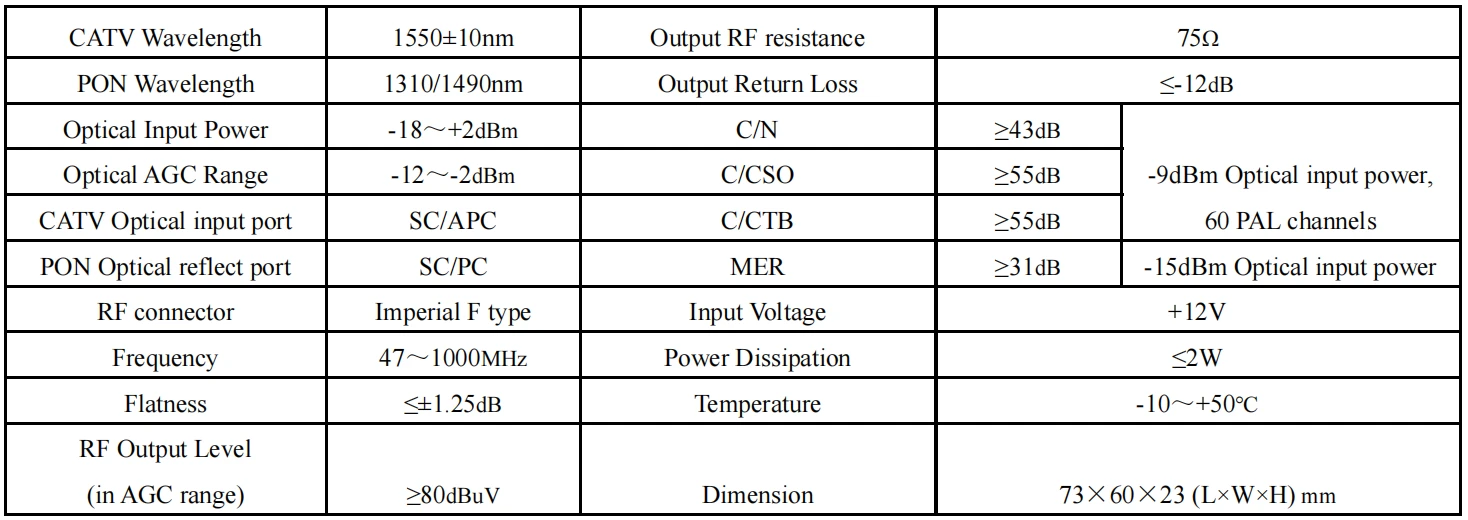

Technical Specification

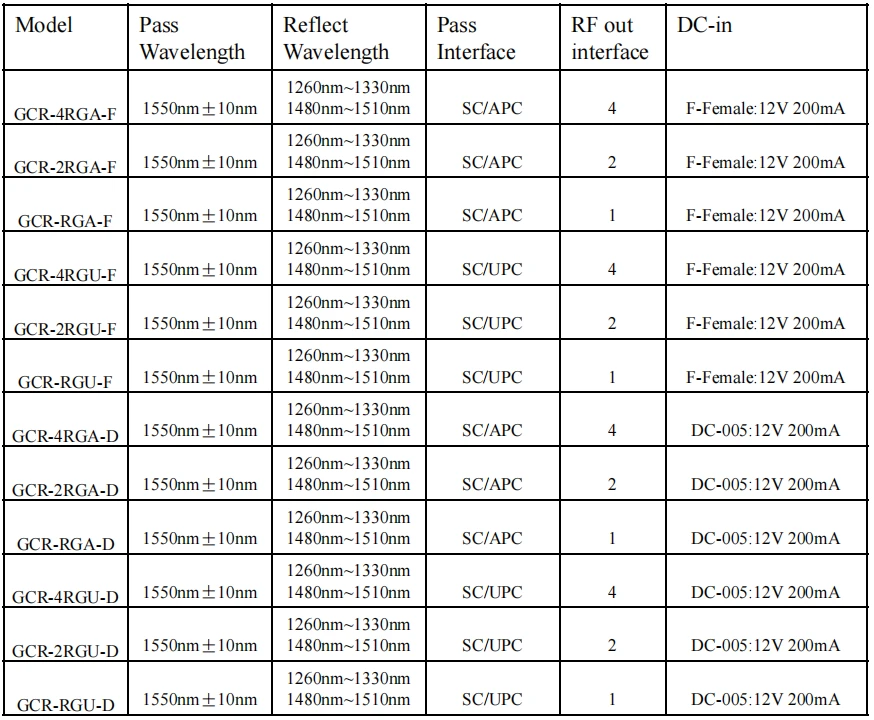

Cov npe qauv
