Product Overview
GCA 6051-YZ optical amplifier siv zoo-paub siab-kev ua tau zoo erbium-ytterbium co-doped ob-clad fiber ntau thiab lownoise twj laser. Nws muaj kev txhim khu kev qha hluav taws xob tsim hluav taws xob thiab kev tsim hluav taws xob zoo. Qhov siab tshaj plaws tso zis hluav taws xob ntawm tag nrho lub tshuab tuaj yeem ncav cuag +36dBm, thiab nws txhawb nqa mus txog 32 cov zis, nrog rau kev xaiv kho qhov muag, CWDM, thiab RF kuaj pom. Nws muab SNMP raws tu qauv network tswj software thiab WEB network tswj, haum rau amplified kis tau tus mob ntawm downstream 1550nm optical teeb liab nyob rau hauv FTTH network.

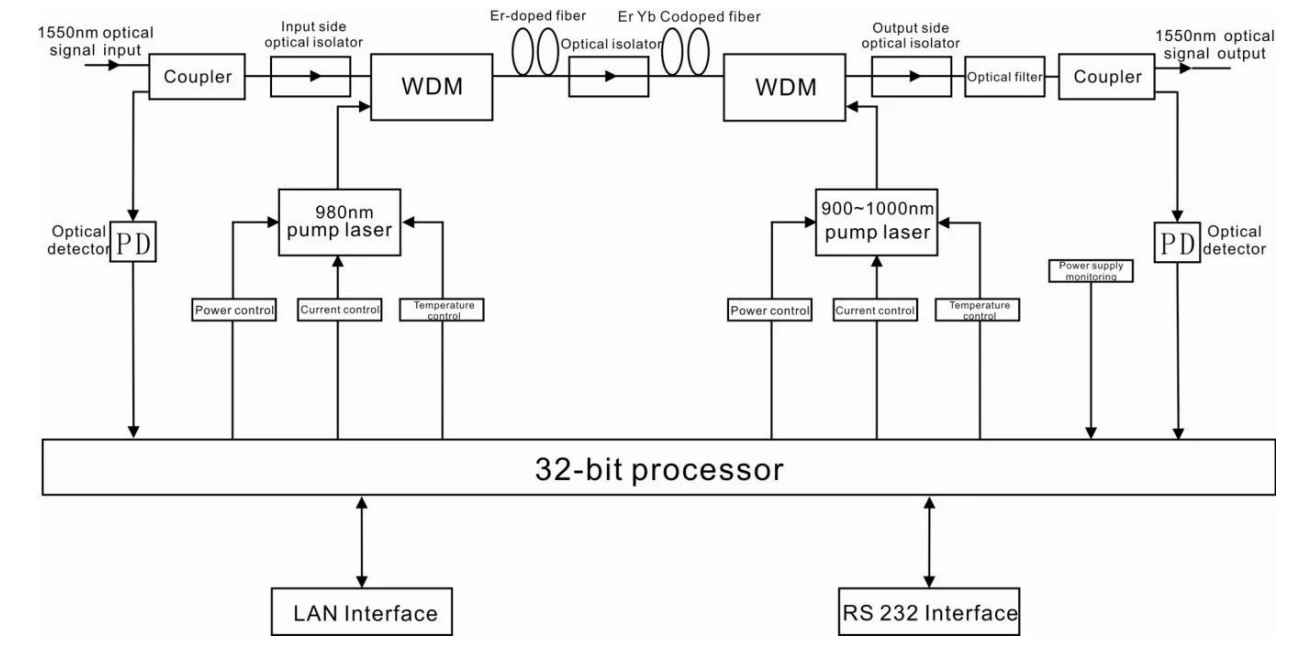

Thaiv daim duab
Cov txheej txheem Parameter
|
Yam khoom |
Chav tsev |
Cov txheej txheem parameter |
Lus ceeb toom |
|
|
Ua haujlwm bandwidth |
nm |
1545 - 1565 |
||
|
Optical input zog ntau yam |
dBm ib |
-5-+10 |
||
|
Maximum optical tso zis zog |
dBm ib |
36 |
||
|
Tso zis zog stability |
dBm ib |
±0.5 |
||
|
Nrov duab |
dB |
Tsawg dua los yog sib npaug rau 6.0 |
Optical input zog 0dBm |
|
|
Rov qab poob |
Tswv yim |
dB |
Ntau dua lossis sib npaug li 45 |
|
|
Tso zis |
dB |
Ntau dua lossis sib npaug li 45 |
||
|
Optical Connector Hom |
SC/APC LC/UPC |
|||
|
C/N |
dB |
Ntau tshaj los yog sib npaug rau 50 |
Kev kuaj mob raws li GT/T 184-2002 |
|
|
C/CTB |
dB |
Ntau dua lossis sib npaug li 63 |
||
|
C/CSO |
dB |
Ntau dua lossis sib npaug li 63 |
||
|
Lub zog hluav taws xob |
V |
AC160V - 250V (50 Hz), DC48V |
||
|
Kev siv fais fab |
W |
Tsawg dua los yog sib npaug li 65 |
|
|
Kev khiav hauj lwm qhov kub thiab txias |
degree |
-10 - +45 |
|
|
Cia qhov kub thiab txias |
degree |
-30 - +70 |
|
|
Qhov siab tshaj plaws kev khiav hauj lwm txheeb ze humidity |
% |
Max 95% Tsis Condensation |
|
|
Dimension |
mm |
437(L)×442(W)×44(H) |

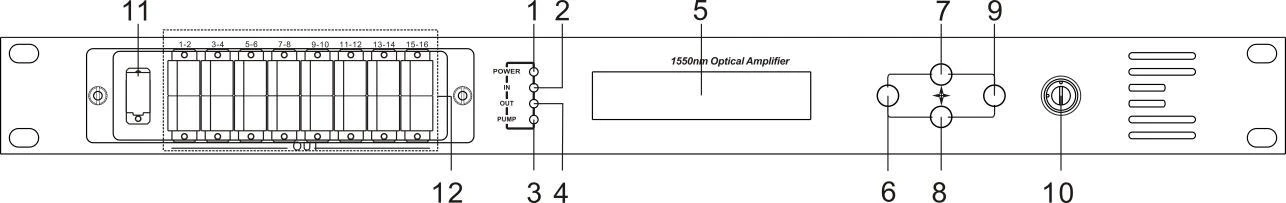

Pem hauv ntej vaj huam sib luag Description
|
1. Fais fab taw qhia: Ib qho kev hloov fais fab mov ua haujlwm - daj; ob lub zog hloov hluav taws xob ua haujlwm - ntsuab. |
|
2. Optical input power indicator: Lub teeb no tig rau thaum lub hwj chim kho qhov muag yog> -10dBm. |
|
3. Pump ua hauj lwm raws li txoj cai qhia: lub teeb liab txhais tau hais tias lub twj tso kua mis tsis ua hauj lwm, tab sis lub tshuab tsis zoo li qub; flashing lub teeb liab txhais tau hais tias lub tshuab tau tawg, cuam tshuam vim li cas pom lub tswb ceeb toom ntawm cov ntawv qhia zaub mov; lub teeb ntsuab txhais tau hais tias lub twj tso kua mis ua haujlwm li qub |
|
4. Optical output power indicator: Lub teeb no tig rau thaum lub hwj chim kho qhov muag yog > +10dBm. |
|
5. 160 × 32 dot-matrix LCD npo |
|
6. Tso saib qhov tawm lossis tshem tawm qhov tseem ceeb ntawm cov ntawv qhia zaub mov teeb tsa. |
|
7. Tso saib qhov nce lossis nce qhov tseem ceeb ntawm cov ntawv qhia zaub mov teeb tsa. |
|
8. Tso saib tus yuam sij nqis los yog txo qis ntawm cov ntawv qhia zaub mov teeb tsa. |
|
9. Tso saib tus yuam sij nkag ntawm cov ntawv qhia zaub mov teeb tsa. |
|
10. Pump laser switching key: "ON" txhais tau tias lub twj tso kua mis laser qhib thiab "OFF" txhais tau tias lub twj tso kua mis laser kaw. Xyuas kom tseeb tias tus yuam sij yog nyob rau "OFF" txoj hauj lwm ua ntej lub hwj chim qhib. Tom qab dhau tus kheej - xeem, tig tus yuam sij rau "ON" txoj hauj lwm raws li cov lus qhia. |
|
11. Optical teeb liab input |
|
12. Optical teeb liab tso zis |

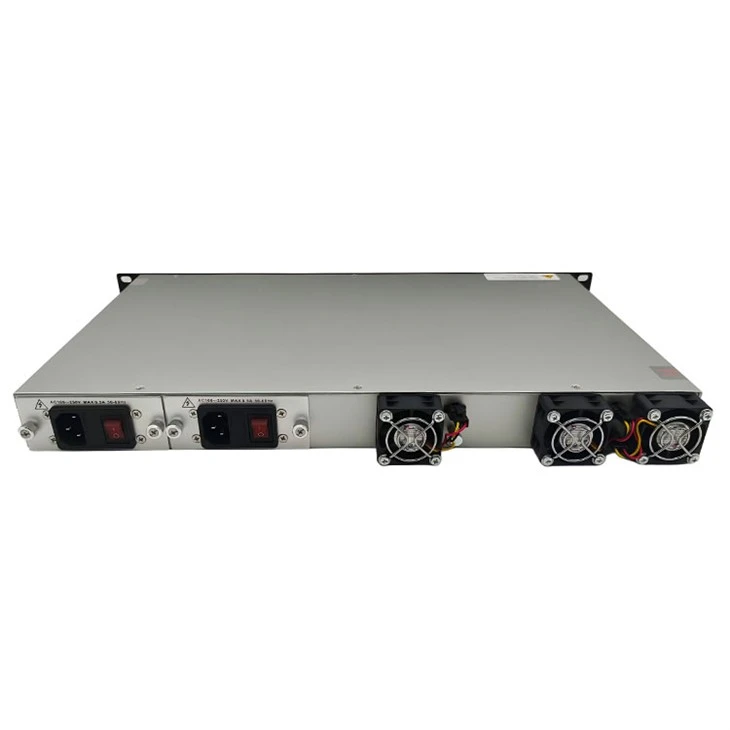

Lub Vaj Huam Sib Luag Piav Qhia
|
1. Ntxuam qhov hluav taws xob. |
2. RS232 interface. |
|
3. Lub AC 220V input chaw nres nkoj ntawm fais fab mov 1. |
4. Lub fuse ntawm lub hwj chim mov 1. |
|
5. Kev hloov hluav taws xob 1. |
6. Lub AC 220V input chaw nres nkoj ntawm fais fab mov 2. |
|
7. Lub fuse ntawm lub hwj chim mov 2. |
8. Qhov hloov ntawm lub hwj chim mov 2. |
|
9. Hauv av stud ntawm lub chassis |
10. LAN interface |
