Nta
- Tsim los rau satellite optical system
- Kev ua haujlwm dav dav: 45-2150MHz
- Zoo heev linearity thiab flatness
- Ntau yam ntawm optical input zog
- Siv 1-core single-mode fiber ntau rov qab poob
- Siv GaAs amplifier nquag siv
- Ultra low nrov technology
- Tsim -hauv CWDM Siv High linear PD
- Tsim - hauv optical AGC muaj nuj nqi
Specification
|
Optical Parameter |
TERR+SAT-IF Parameter |
||
|
Kev teb (A/W) |
Ntau dua lossis sib npaug li 0.9 |
Ntau zaus |
45 ~ 2150 MHz |
|
Txais Optical Fais Fab |
-18-+3 -10-0 (AGC) |
Flatness |
±1.5 |
|
Optical Rov Los Poob |
Ntau dua lossis sib npaug li 45 |
Isolation Hla Polarization
|
-25dB min (950 ~ 2150MHz) |
|
Txais Wavelength (nm) |
1510-1570 |
Isolation Out to Out |
-28dB min (950 ~ 2150MHz) -14dB min (40 ~ 806MHz) |
|
Optical Connector |
SC/APC |
Nres Band Attenuation |
15dB min Ant chaw nres nkoj @ 950MHz 15dB min Sat chaw nres nkoj @ 806MHz |
|
Lwm yam Parameter |
LHCP/RHCP |
14.0 ~ 15.0 Vdc |
|
|
Fais fab mov |
DC-24V |
Qhov ntev |
19"(L) x 5.5"(D) x 1.75"(H) |
|
Kev siv hluav taws xob (W) |
<6 |
Lub zog nkag |
110 ~ 240VAC 50/60Hz |
|
Qhov Loj (mm) |
143x110x28.8 |
Cov zis impedance |
75Ω |
FTTB Multiswitch
A SAT-IF Optical Receiver yog ib qho khoom siv tseem ceeb hauv kev sib txuas lus satellite, tsim kom tau txais cov teeb liab kho qhov muag thiab hloov lawv mus rau hauv satellite nruab nrab zaus hluav taws xob teeb liab.

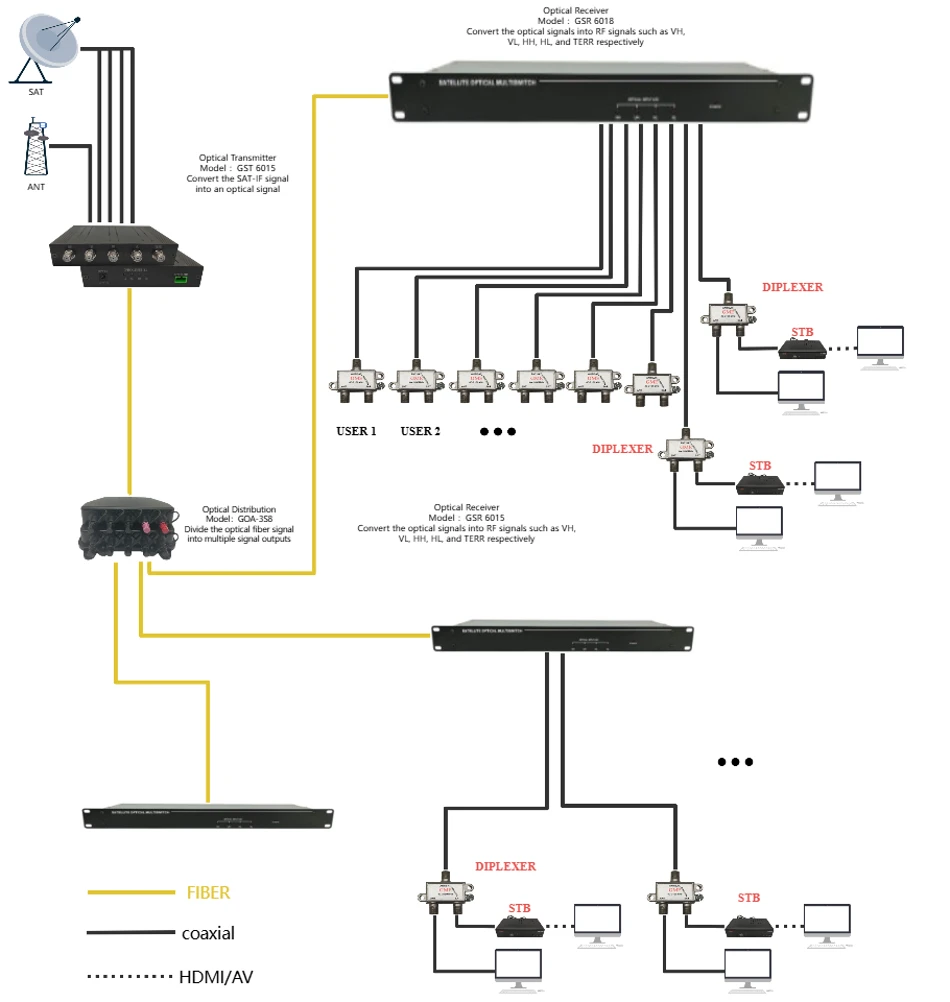

Daim ntawv thov
