Ntau tshaj li kaum xyoo tom qab "fiber-rau--tsev" tau dhau los ua cov lus piav qhia tseem ceeb hauv kev tsim network, coaxial cables txuas ntxiv ua haujlwm ntsiag to hauv ntau pua lab lub tsev thiab cov tsev thoob ntiaj teb. Yog tias koj xav tias cov cables tooj liab no tau dhau los ntawm lub sijhawm, MoCA 2.5 yuav rov sau dua qhov kev nkag siab ntawd - nws tsis yog tsuas yog txhawb nqa cov txheej txheem coaxial uas twb muaj lawm tab sis thawb dhau mus rau qhov siab tshiab ntawm 2.5 Gbps. Niaj hnub no, cia peb tshawb nrhiav cov thev naus laus zis hauv qab uas muab "lub neej tshiab rau qub tooj liab."
MoCA yog dab tsi?
MoCA (Multimedia tshaj Coax Alliance) tau tsim muaj nyob rau hauv 2004 los ntawm kev lag luam loj xws li Cisco, Motorola, Comcast, thiab Toshiba. Niaj hnub no nws muaj ntau tshaj 40 lub tuam txhab koom nrog thiab 220 cov khoom muaj ntawv pov thawj. Cov thev naus laus zis lub ntsiab lus yog siv cov coaxial cables uas twb muaj lawm hauv cov tsev los xa cov ntaub ntawv ceev ceev, tig txhua txoj kab coax mus rau "tsis pom Ethernet cable."
MoCA 2.5 specification tau raug tso tawm nyob rau hauv 2016, kos ib tug watershed nyob rau hauv MoCA evolution - throughput mus txog 2.5 npaug ntawm MoCA 2.0, thaum seem rov qab sib xws nrog MoCA 2.0 thiab 1.1. Txawm tias qhov zoo tshaj plaws, qhov kev qhia tshiab no tau los ntawm qhov project kick-off mus rau kev xa khoom hauv ib xyoos xwb, ua rau pom kev sib koom tes muaj peev xwm los teb sai sai rau kev lag luam xav tau.
Peb Qhov Zoo Tshaj Plaws: Ceev, Latency, Kev Ntseeg
① Mus txog 2.5 Gbps tiag tiag throughput
Tsis zoo li lwm yam thev naus laus zis uas muaj "theoretical siab tshaj tus nqi" cov ntawv,MOCA 2.5muab MAC-txheej net cov ntaub ntawv tus nqi. Kev ntsuam xyuas los ntawm cov neeg ua haujlwm hauv tsev qhia tau tias MoCA 2.5 tuaj yeem ua tiav cov nqi qis txog 2.5 Gbps thiab cov nqi nce mus txog 2 Gbps. MoCA 2.5 siv OFDM kev hloov kho thiab LDPC yuam kev-txhim kho coding, txhawb kev sib txuas ntawm cov channel sib txuas, thiab muaj qhov siab tshaj plaws muaj bandwidth ntawm 500 MHz, txhim kho spectral efficiency.
② Qhov kawg-rau-kawg latency qis dua 5 milliseconds
Raws li MoCA's official technical white paper, MoCA 2.5 qhov nruab nrab ib-txoj kev latency yog tsawg li 2.5 ms. Hauv MoCA Access scenarios, qhov kev ncig mus ncig kawg-rau-kawg latency (xws li PON fiber ntau) tsis pub tshaj 5 ms. Qhov kev ua tau zoo no sib tw cov kev sib txuas hauv Ethernet, muab lub hauv paus ruaj khov rau kev ua si hauv online, kev sib tham hauv video, thiab VR daim ntawv thov.
③ Ntuj kev ntseeg siab ntawm kev sib txuas nrog
Coaxial cables muaj cov khoom siv los tiv thaiv kev cuam tshuam thiab kev tiv thaiv, tsis cuam tshuam los ntawm Wi-Fi co-channel cuam tshuam lossis suab nrov los ntawm microwave ncu thiab lwm yam khoom siv. Kev ntsuas tiag tiag hauv ntiaj teb qhia tias MoCA 2.5 lub pob ntawv yuam kev yog tsawg li ib ntawm ib puas lab - yuav luag tsis poob. Qhov kev ruaj ntseg no yog vim li cas MoCA tau dhau los ua cov thev naus laus zis zoo tshaj plaws rau cov neeg ua haujlwm 'Wi-Fi hauv tsev tes hauj lwm - los ntawm Comcast mus rau Verizon, cov tswv lag luam loj hauv ntiaj teb suav nrog nws ua tus qauv kev teeb tsa.
Cov yam ntxwv tseem ceeb
Kev npaj ntau zaus thiab kev sib koom ua ke muaj peev xwm:MoCA 2.5 ua haujlwm hauv 400 MHz - 1675 MHz band. Qhov kev tsim high-band no tso cai rau MoCA cov teeb liab sib koom ua ke ntawm tib lub coaxial cable nrog cable TV, DOCSIS broadband, thiab cellular technologies (4G / 5G) - qhov tseeb multi-service enabler.
Point-to-multipoint topology:MoCA Access 2.5 siv lub point-to-multipoint architecture, qhov twg ib lub taub hau-kawg ntaus ntawv tuaj yeem txuas mus txog 63 tus neeg siv khoom-chaw modems (tseem hu ua CNUs) nrog lub vojvoog ib txwm muaj txog li 150 meters (txog 300 metres). Qhov no ua rau nws zoo tagnrho rau ntau chav tsev (MDUs), tsev so, thiab chav tsev. Nws yog ib qho txiaj ntsig zoo ntawm fiber-extension tov.
Kev ruaj ntseg thiab kev tswj hwm nta:MoCA 2.5 tau txais kev lees paub AES-128 encryption thiab ntxiv ntau yam kev tswj hwm tus neeg ua haujlwm zoo - MPS thawb-khawm kev muab, cov neeg ua haujlwm tswj hwm, kev tswj hwm lub zog thoob plaws lub zog, thiab kev tshawb nrhiav choj - ua kom yooj yim rau kev ua haujlwm nyuaj hauv kev xa tawm loj.
Ntau qhov kev ua tau zoo profiles:Dhau li ntawm tag nrho-ceev 2.5 Gbps Profile D, MoCA 2.5 khaws cia qis-ceev configurations rau rov qab compatibility: Profile B (400 Mbps net tus nqi, mus txog rau 16 nodes) thiab Profile C (800 Mbps nrog channel bonding, mus txog 16 nodes), seamlessly haum rau ntau yam khoom siv network.
Ob Qhov Kev Siv Loj: Nkag Mus Rau Network + Hauv Tsev Networks
Siv Case 1: Carrier-grade MoCA Access – Ua kom tiav "Mail Kawg" rau Fiber
MoCA Access yog ib qho kev daws teeb meem dav dav hauv nruab nrab ntawm MoCA 2.5 specification, positioned li fiber-extension technology. Qhov ntawd txhais li cas? Tom qab tus neeg teb xov tooj khiav fiber ntau mus rau hauv lub tsev hauv qab daus los yog chav tsev khoom siv rau ntawm ib qho hauv pem teb, tsis tas yuav tho los ntawm cov phab ntsa lossis rub cov Ethernet cables tshiab rau hauv txhua chav. Hloov chaw, cov coaxial cables uas twb muaj lawm nyob rau hauv lub tsev yog siv los xa multi-gigabit ceev mus rau txhua chav.
Qhov no txo qis cov nqi kho dua tshiab thiab lub sijhawm tsim kho (hauv cov tsev lag luam, tus nqi rov qab siv coax rau FTTB fiber ntau hloov dua tshiab feem ntau yog 60% lossis tsawg dua li ntawm cov fiber ntau-rau-lub tsev). Qhov tseem ceeb tshaj, nws daws qhov teeb meem "kawg mais broadband acceleration" rau cov tsev laus, tsev so, cov tsev ua haujlwm, cov chaw saib xyuas laus, thiab cov chaw zoo sib xws.
Thaum Lub Kaum Hli 2025, InCoax Networks tau mus ib kauj ruam ntxiv, tso tawm 5 Gbps symmetrical tov raws li MoCA Access 2.5 channel sib sau ua ke, ua ob npaug ntawm cov kev txwv ib leeg-channel 2.5 Gbps. Qhov no muab cov neeg ua haujlwm nrog tus nqi siab-kev ua tau zoo txhim kho txoj hauv kev uas cov neeg sib tw lossis txawm tias dhau DOCSIS 4.0.
Siv Case 2: Hauv Tsev MoCA Networks - Kev Kho Mob Tsis Muaj Teeb Meem rau Wi-Fi teeb liab teeb meem
MoCA lub luag haujlwm hauv tsev tseem ceeb heev. Yog tias koj nyob hauv ib lub tsev qub nrog cov phab ntsa cib tuab, lossis tshwm sim muaj cov phab ntsa pob zeb uas ua rau cov teeb liab Wi-Fi ib nrab, thiab rub cov Ethernet cables tshiab yuav cuam tshuam thiab ua haujlwm hnyav, MoCA yog qhov zoo tshaj plaws rau koj xaiv.

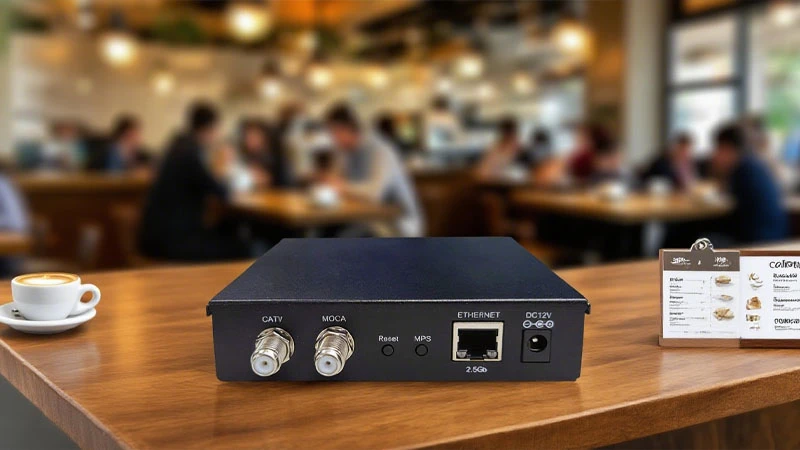

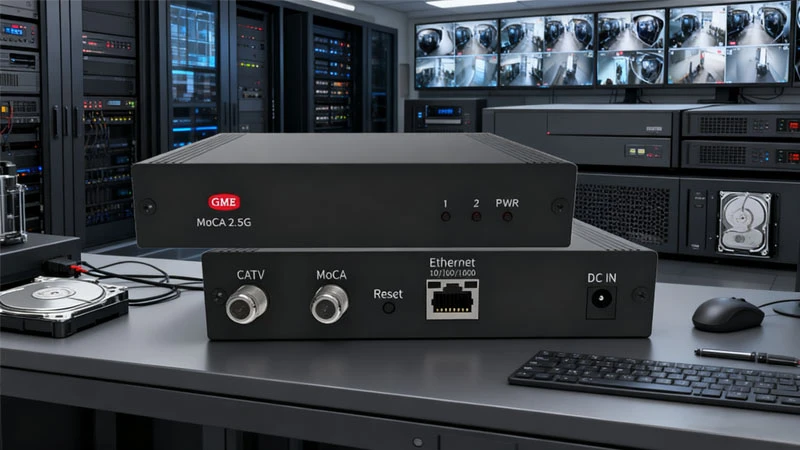

Ib tug qauvMoCA 2.5 adapterKev xa tawm zoo li no: router → Ethernet cable → MoCA adapter → coax phab ntsa qhov hluav taws xob → coax qhov hluav taws xob hauv lwm chav → MoCA adapter thib ob → Ethernet cable → kawg ntaus ntawv (lub computer, game console, AP, thiab lwm yam). Tsis muaj hluav taws xob hloov kho - ntsaws thiab ua si. Ib txheej txheej raug nqi ob peb lub kaum os. Cov neeg siv kev tawm tswv yim yog qhov zoo ib yam: txawm tias cov laus, tsis muaj npe coaxial cables, MoCA adapters tuaj yeem saturate qhov siab tshaj plaws Gigabit chaw nres nkoj ceev ntawm cov khoom siv - pob zeb-khoom sib txuas 1 Gbps.
Competitive Technology Comparison: MoCA 2.5 vs. G.hn vs. Powerline vs. Wi-Fi Mesh
| Dimension | MOCA 2.5 | G.hn (coax) | Powerline (HomePlug AV2) | Wi-Fi Mesh |
|---|---|---|---|---|
| PHY tus nqi | 2.5gbps ua | 1.7 gbps ua | 1300 Mbps (theoretical) | multi-gigabit (theoretical) |
| Kev xa tawm tiag tiag | 2.5 Gbps (MAC) | ~ 1.6 Gbps | 50-100 Mbps | heev variable los ntawm ib puag ncig |
| Yam latency | <5 ms | Tsawg dua los yog sib npaug li 5 ms | 10-30 hnub | 10-50 hnub |
| kis nruab nrab | Coaxial cable | Coax / powerline / xov tooj | Powerline | Cua |
| Max. kev pab them nqi | 150–300 m | 800–1500 m | ~300 m | txwv los ntawm kev tsim kho phab ntsa |
| Kev cuam tshuam rhiab heev | Tsawg heev (shielded) | Tsawg | High (lub suab nrov) | High (co-channel / phab ntsa) |
| DOCSIS coexistence | ✔ Neeg | ✗ Yuav tsum tau cais pawg | - | - |
| Max. nodes | 63 (kev nkag) / 16 (hauv tsev) | 16 (txog 64 virtual) | Ntau | Ntau |
| Tus nqi | Nruab nrab | Nruab nrab-siab | Tsawg | Nruab nrab-siab |
Nyob rau hauv lub ntiaj teb no tus neeg teb xov tooj nkag mus network (nrog ntau pob ntawv me me, ACKs, thiab kev tswj ntws), G.hn qhov kev teem caij nruab nrab ntawm TDMA yog me ntsis MAC-ntau dua MoCA 2.5. Txawm li cas los xij, MoCA 2.5's high-band DOCSIS coexistence ua rau nws txaus nyiam nyob rau hauv cov xwm txheej uas koj xav kom "them ncaj qha overlay ceev broadband yam tsis tau hloov kho cov txheej txheem." Rau kev siv dav hauv tsev, MoCA qhov kev ua si plug-and-plays yeej coax-based G.hn, thiab muaj kev ntseeg siab ntau dua li cov kev daws teeb meem hluav taws xob, uas tsis muaj npe nrov vim yog qhov chaw nyob hauv tsev hluav taws xob.
Ntxiv mus, qhov kev sim hauv ntiaj teb no tau pom tias thaum MoCA 2.0 siv los ua cov xaim rov qab rau Wi-Fi system, kev ua haujlwm ntawm cov neeg siv wireless txhim kho tau zoo heev piv rau cov ntshiab wireless Mesh backhaul - video buffering pauses thiab game ping spikes yuav luag ploj mus. MoCA tuaj yeem xav tias yog qhov muaj zog tshaj plaws ntxiv rau Wi-Fi Mesh, muab txhua qhov Mesh node "tsis pom Ethernet cable."
Qub Coax, New Future
Qhov kev thov loj tshaj plaws ntawm MoCA 2.5 yog nyob rau hauv "rov qab mus rau qhov tseem ceeb ntawm cov txheej txheem uas twb muaj lawm" - tsis muaj kev rhuav tshem, tsis muaj qhov drilling, tsis muaj nqi rewiring. Lub coaxial cable uas twb muaj lawm tuaj yeem hloov pauv los ntawm kev ntxiv me me MoCA nti. Raws li xyoo 2024, ntau dua 300 lab MoCA nodes tau xa mus thoob ntiaj teb, thiab tus lej ntawd tau nce zuj zus ntxiv.
