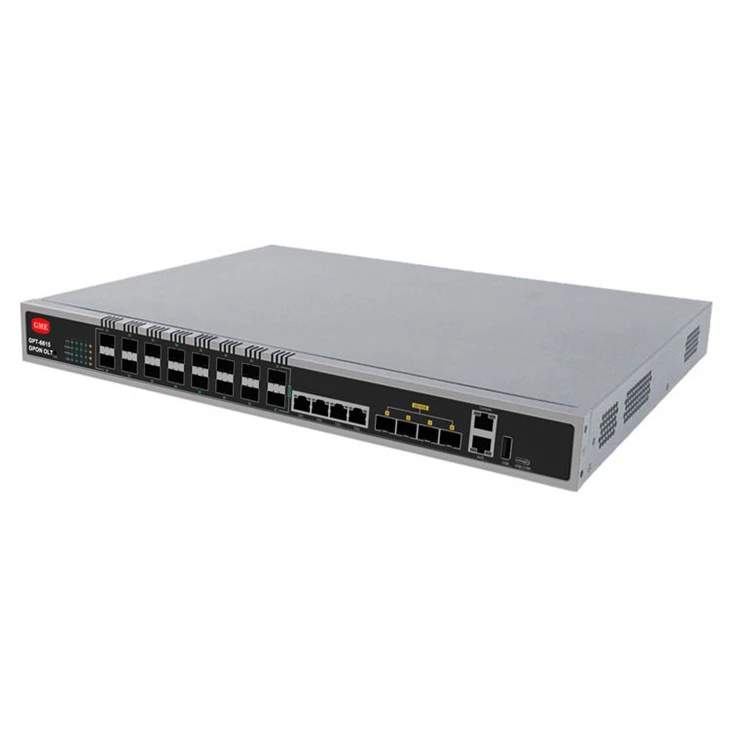

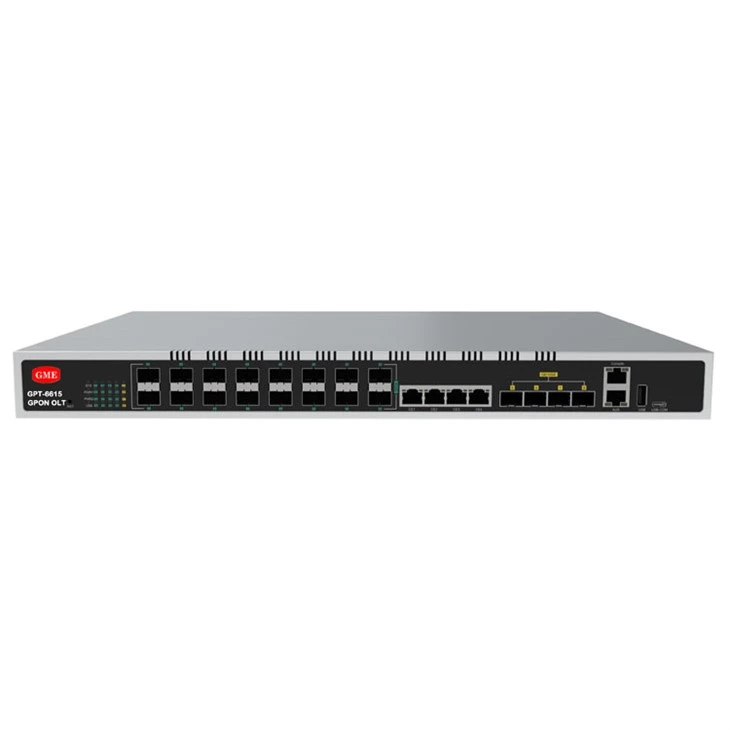

GPT-16G GPON OLT kuj muaj nyob rau hauv 4/8 PON chaw nres nkoj teeb tsa, ua kom yooj yim thiab ceev FTTX xa tawm. Nws yog qhov tsim nyog rau cov xwm txheej xws li sparse/remote/sensitive area, smart industrial parks, commercial buildings, and FTTM applications.

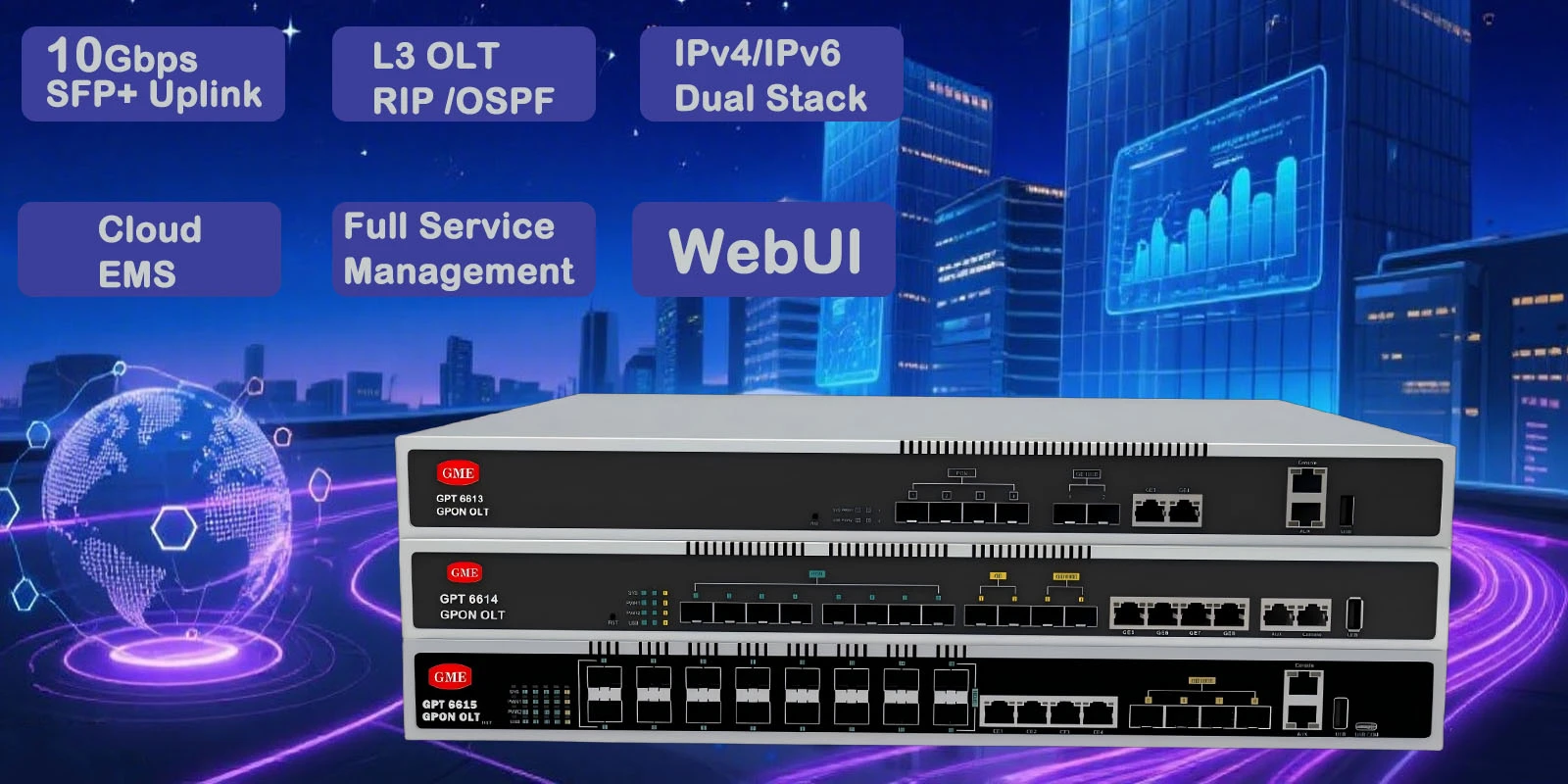

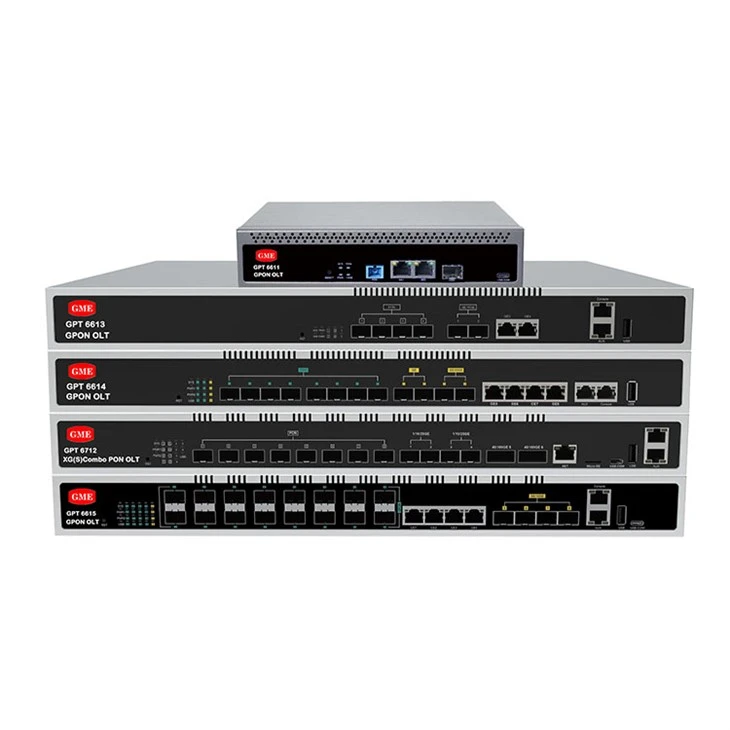

GPON OLT Series
GPON OLT: Lub Rooj Sib Tham Yooj Yim thiab Txhim Kho Cov Kev Xav Tau Broadband (4/8/16 Ports)
Daim ntawv thov scenarios ntawm 16-Port GPON OLT
Cov cuab yeej tseem ceeb tau siv dav los ntawm cov neeg ua haujlwm rau cov ntawv thov suav nrog FTTH, cov kab kev lag luam tshwj xeeb, thiab lub hauv paus chaw nres tsheb rov qab.
Loj -Kev xa tawm ntawm FTTH (Fiber mus rau Tsev)
- Muaj feem xyuam rau cov neeg siv xov tooj thiab cov chaw muab kev pabcuam broadband uas siv FTTH hauv nroog thiab cov zej zog tsim tshiab.
- Txhua qhov chaw nres nkoj PON tuaj yeem txhawb nqa txog 128 ONU / ONT cov neeg siv khoom; ib qho khoom siv 16-chaw nres nkoj tuaj yeem pab ntau txhiab tsev neeg ib txhij, xa Is Taws Nem ceev, IPTV (Internet Protocol TV), thiab VoIP (Voice over IP) cov kev pabcuam.
Enterprise Campus thiab Public Sector Networks
- Tsim los rau tsoomfwv cov koomhaum, cov chaw ua haujlwm thev naus laus zis, thaj chaw muaj kev lag luam, thiab lwm qhov chaw uas yuav tsum tau muaj kev sib koom tes nrog cov bandwidth siab, kev ruaj ntseg, thiab kev ruaj ntseg.
- Txhawb kev sib koom ua ke kom tau raws li qhov xav tau ntawm HD video conferencing, kev pabcuam huab nkag, thiab loj - hloov ntaub ntawv.
Smart Community Solutions nrog Triple -Play Convergence
- Kev koom ua ke nrog CATV, kev soj ntsuam kev ruaj ntseg, thiab lub tsev ntse kom xa cov ntaub ntawv sib koom ua ke, lub suab, thiab kev xa xov video.
- Txhawb nqa cov kev pabcuam dav dav suav nrog kev tswj xyuas ntse, saib xyuas video, thiab kev tswj vaj tsev.
Cov Tsev Kawm Ntawv thiab Kho Mob
- Siv Gigabit fiber ntau-optic broadband hauv tsev kawm ntawv cov tes hauj lwm los txhawb kev qhia ntau yam, huab-cov chav kawm, thiab kev kawm nyob deb.
- Ua kom muaj siab -Kev xa mus ceev ntawm PACS (Daim Duab Archiving thiab Kev Sib Txuas Lus System) cov ntaub ntawv, kev pabcuam kev khomob, thiab kev sib tham HD video rau tsev kho mob ntawm GPON.
Ntau txhim khu kev qha, ntau portable, ntau straightforward, thiab ntau economical.
Specifications
|
Yam khoom |
GPT-4G | GPT-8G | GPT-16G | |
|
Chassis (Rack) |
1U 19 nti txheem thawv |
|||
|
Uplink Chaw nres nkoj |
QTY |
4 |
8 |
8 |
|
RJ 45 |
2 |
4 |
4 |
|
|
SFP (1GE) |
/ |
2 |
/ |
|
|
SFP + (10GE) |
2 |
2 |
4 |
|
|
EPON |
QTY |
4 |
8 |
16 |
|
Lub cev interface |
SFP Slots |
|||
|
Max splitting ratio |
1:128 |
|||
|
Backplane Bandwidth (Gbps) |
104 |
|||
|
Port Forwarding tus nqi (Mpps) |
47.616 |
68.448 |
124.992 |
|
|
Qhov Loj (LxWxH) |
442 * 230 * 43.6 hli |
442 * 319 * 43.6 hli |
||
|
Qhov hnyav |
2, 95kg |
4.05kg ib |
4, 80kg |
|
|
Kev siv fais fab |
35W |
45W |
85W |
|
|
Fais fab mov |
AC |
Ua hauj lwm Voltage: 100 ~ 240V, Rated Voltage: 110V / 220V |
||
|
DC |
Ua Haujlwm Voltage: -36 ~ 75V, Rated Voltage: -48V / -60V |
|||
|
Kev khiav haujlwm Ib puag ncig |
Ua haujlwm kub |
-20 ~ +60 degree |
||
|
Cia Kub |
-40 ~ +70 degree |
|||
|
txheeb ze humidity |
5 ~ 95% (tsis yog -condensing) |
|||

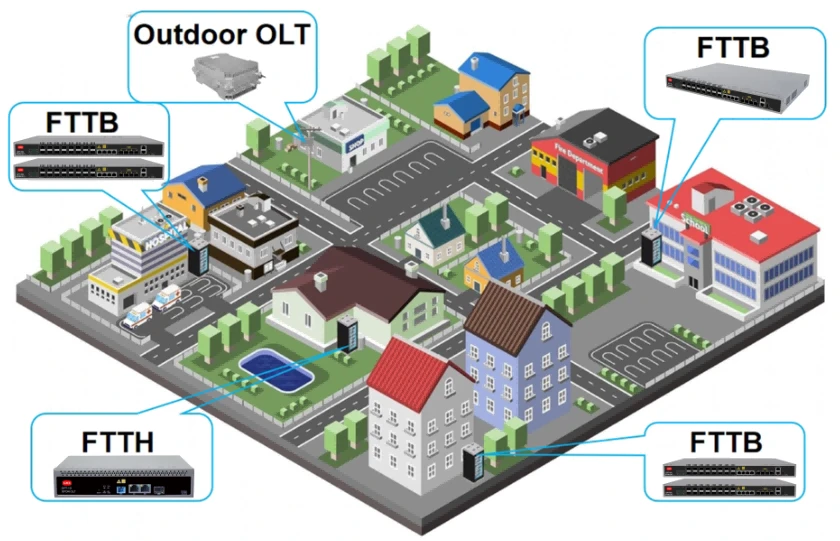

GPON OLT FTTH Daim Ntawv Thov

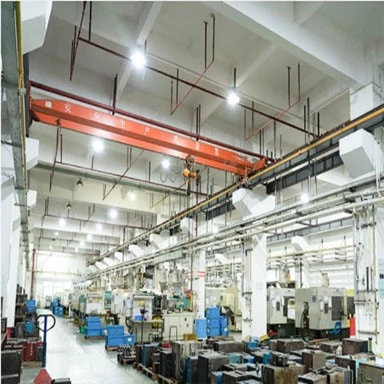

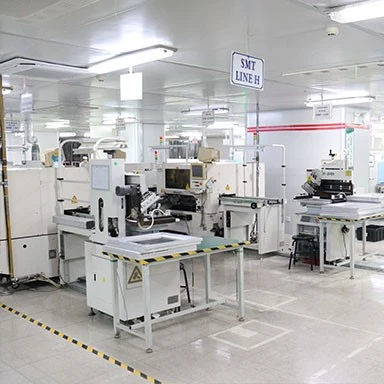

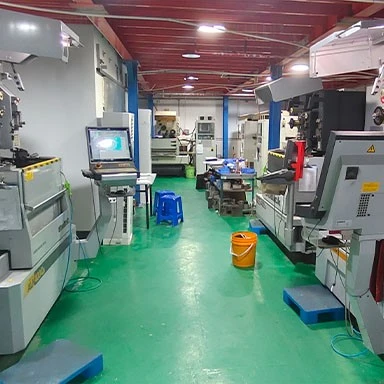

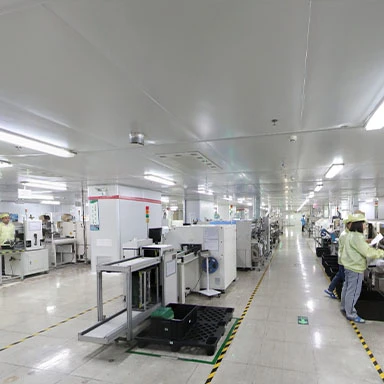

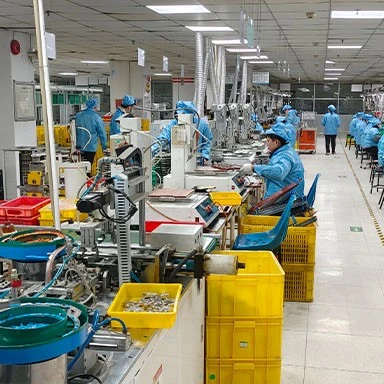

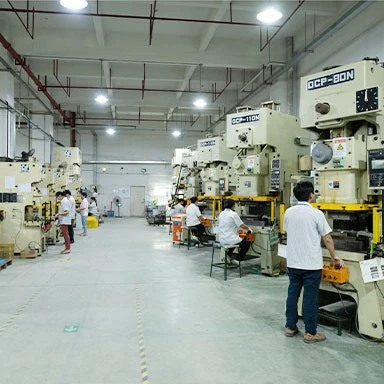

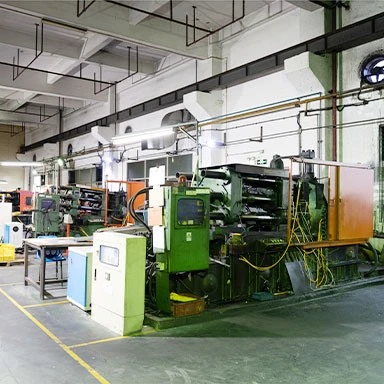

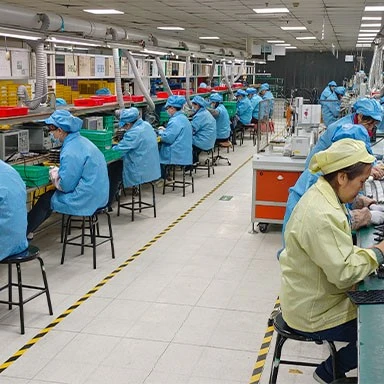

Peb lub Hoobkas tsim khoom
Peb Daim Ntawv Pov Thawj
txoj kev them nyiaj
Ntim & Thauj
Ntim & Thauj
Ntim
Peb yuav ntim peb cov khoom kom nruj kom ntseeg tau tias lawv tsis muaj kev puas tsuaj hauv kev thauj mus los.

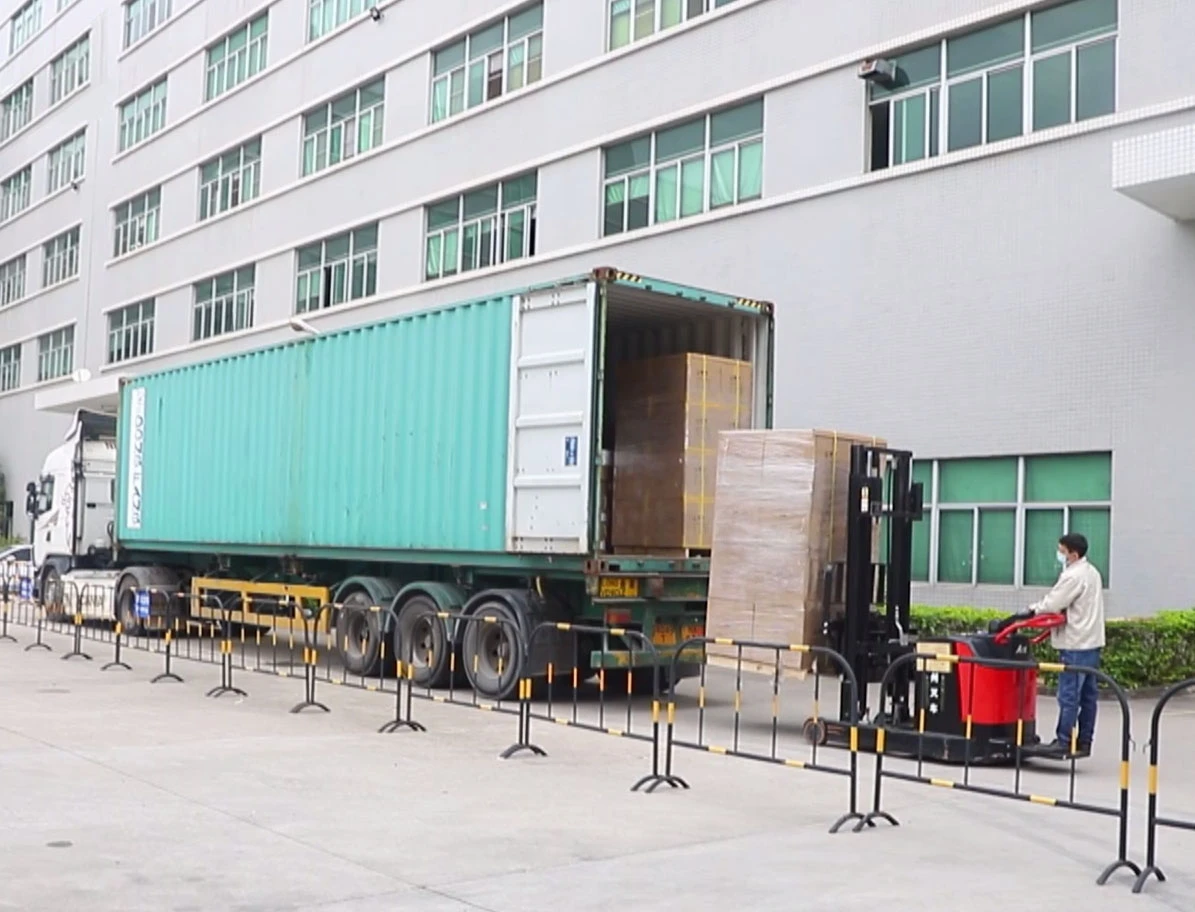

Kev thauj mus los
Peb txhawb nqa peb txoj kev thauj mus los loj los ntawm hiav txwv, av thiab huab cua kom ntseeg tau tias koj cov khoom tuaj yeem tuaj txog raws sijhawm.
FAQ
Q: Koj puas yog Hoobkas lossis tuam txhab lag luam?
A: Peb yog 100% Hoobkas thiab tseem ua lag luam online
Q: Koj txoj kev xa khoom yog dab tsi?
A: Peb feem ntau xa tuaj ntawm DHL / UPS / Fedex / TNT / Aramex. yog tias koj muaj ntau ntau -ty, koj tuaj yeem xaiv Air lossis Sea shipping.
Q: Koj lub sijhawm them nyiaj yog dab tsi?
A: T / T xaim txhab nyiaj hloov pauv, L / c, thiab lwm yam.
Q: Koj tuaj yeem tiv thaiv qhov teeb meem li cas yog tias peb tau txais cov khoom tsis raug?
A: Xa peb cov duab lossis video thawj zaug, peb xav muab kev hloov pauv dawb. muab cov khoom rau koj.
Q: Puas tuaj yeem coj tus qauv rau kev kuaj xyuas zoo?
A: Yog lawm, peb tuaj yeem muab cov qauv rau koj kuaj.
Q: Peb puas tuaj yeem muaj peb lub logo lossis lub npe tuam txhab luam tawm ntawm koj cov khoom lossis cov khoom?
A: Yog, koj paub tseeb. Peb lees txais OEM / ODM xaj thiab muab kev pabcuam rau kev luam ntawv logo, cov cim thawv nrog rau kev ntim khoom tsim.Koj tuaj yeem xa peb cov duab kos los ntawm email hauv jPG, TIF, Al, EPS, TIFF ntawm CorelDraw rau -mats Logo luam ntawv yuav xav tau MOQ uas yuav txawv ntawm txawv mod-el.Thov hu rau peb kom paub meej.
