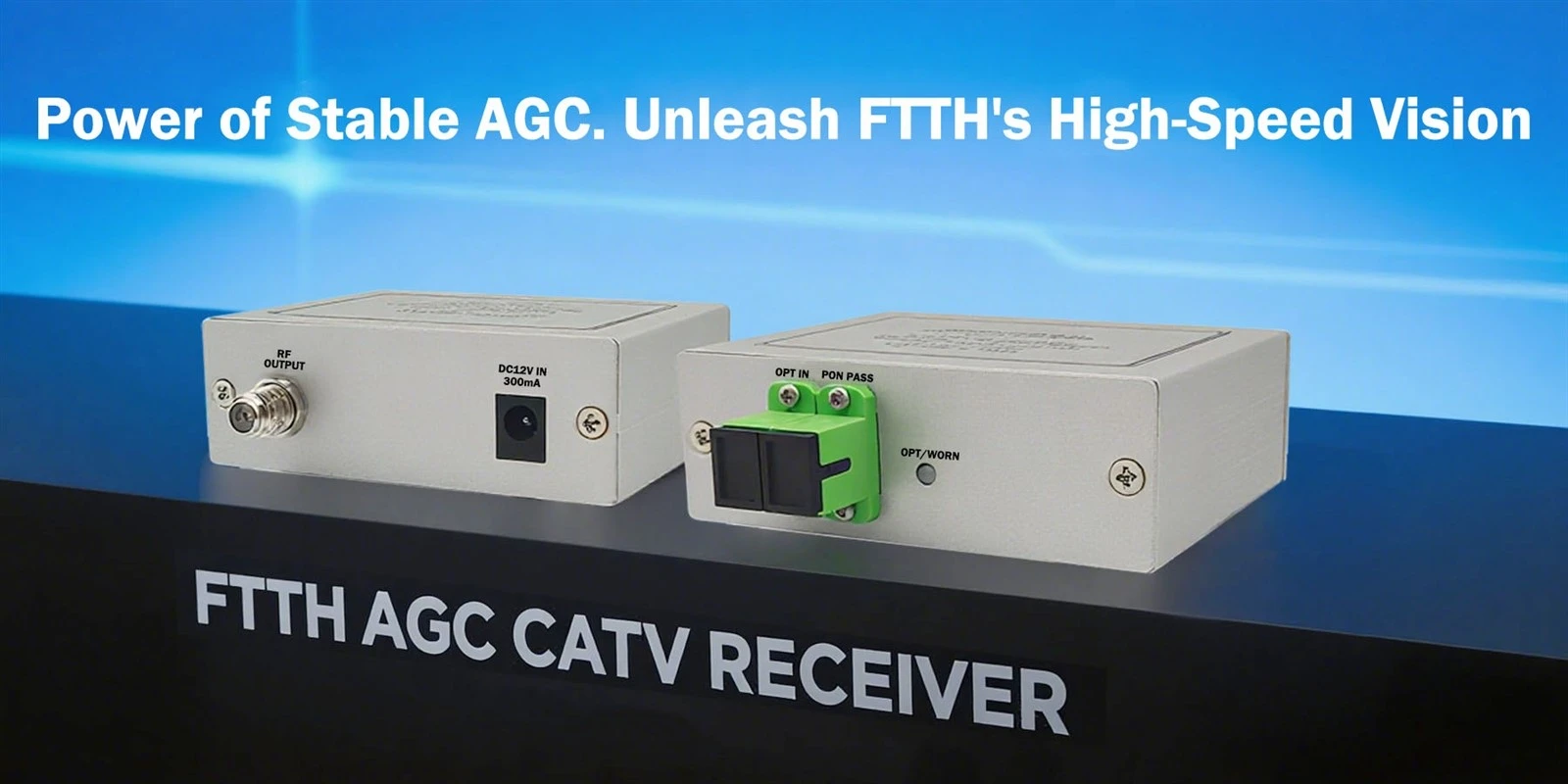

FTTH AGC CATV receiver yog cov khoom siv tseem ceeb hauv cov khoom siv niaj hnub Fiber- rau- lub -Home (FTTH) tes hauj lwm, ua hauj lwm ob lub luag hauj lwm ntawm ib tug "optical signal translator" thiab "sib nqus stabilizer." Nws lub hom phiaj tseem ceeb yog ua kom muaj txiaj ntsig thiab ntseeg tau sib cais thiab hloov pauv qhov sib xyaw ua ke kho qhov muag yoj- nqa high- cov ntaub ntawv hauv internet ceev thiab siab - zoo tshaj tawm xov xwm hauv TV xa tawm los ntawm ib qho fiber ntau - mus rau hauv cov teeb liab hluav taws xob uas tuaj yeem siv ncaj qha los ntawm cov khoom siv hauv tsev. Cov hauv qab no yog cov lus qhia dav dav thiab hauv - qhov tob ntawm nws cov lus qhia, kev ua haujlwm, thiab qhov tseem ceeb.
I. Core Function thiab Positioning
Hauv ib qho Triple -ua si FTTH network, ib qho poob fiber ntau yuav tsum xa mus ib txhij:
Downstream Data Signal:Feem ntau siv 1490nm wavelength, rau kev siv internet, VoIP, thiab lwm yam.
Upstream Data Signal:Feem ntau siv 1310nm wavelength, rau cov neeg siv upload cov ntaub ntawv.
Downstream CATV Video Signal:Feem ntau siv 1550nm wavelength, rau kev xa xov tooj cua analog thiab digital tshaj tawm hauv TV.
CovFTTH AGC CATV receiveryog lub luag haujlwm tshwj xeeb rau kev ua cov 1550nm wavelength CATV video teeb liab. Nws raug rho tawm cov teeb liab kho qhov muag los ntawm fiber ntau, hloov nws mus rau hauv Xov Tooj Cua Frequency (RF) hluav taws xob teeb liab, thiab tso tawm los ntawm coaxial cable rau TV lossis teeb - cov thawv sab saum toj. Nws ua tau -inTsis Siv Neeg Gain Control (AGC)yog qhov tseem ceeb los xyuas kom meej cov neeg siv kev paub. Nws cia li them rov qab rau qhov hloov pauv ntawm cov khoom siv hluav taws xob kho qhov muag uas tshwm sim los ntawm cov yam ntxwv xws li cov kab fiber ntau nyob deb, khoov, lossis hloov pauv qhov kub thiab txias, lav tias RF teeb liab theem tso tawm rau TV tseem nyob tas li. Qhov no tiv thaiv cov teeb meem duab xws li daus, mosaic qauv, lossis cuam tshuam.
II. Hauv -Kev tsom xam qhov tob ntawm Cov Ntsiab Lus Tseem Ceeb thiab thev naus laus zis
1. Optical Front-Xaiv thiab WDM Lim
Precision lim:Cov cuab yeej sib txuas ua ke siab -kev ua tau zoo Wavelength Division Multiplexing (WDM) lim. Nws cov yam ntxwv passband yog qhov zoo tshaj plaws rau 1550nm wavelength, ua kom muaj kev sib cais ntawm 1550nm CATV kho qhov muag teeb liab los ntawm kev sib xyaw 1310/1490/1550nm optical signals nrog tsawg heev nkag poob thiab crosstalk. Nws kuj tseem xyuas kom meej tias cov ntaub ntawv channel optical signals dhau mus yam tsis muaj kev poob (rau ONU / optical modem tom ntej rau kev ua haujlwm).
Photodetector (PIN lossis APD):Qhov no yog "qhov muag" ntawm tus txais. Nws hloov pauv qhov sib cais 1550nm optical teeb liab rau hauv lub teeb liab tsis muaj zog. Rau qhov ntev -nruab deb, siab- lub zog tawm tswv yim xwm txheej, Avalanche Photodiode (APD) yuav raug siv vim nws qhov nce hauv thiab siab dua.
2. Kev Ua Haujlwm Ncaj Ncees ntawm Tsis Siv Neeg Gain Control (AGC) System
Lub AGC system yog "lub siab ntse" ntawm tag nrho cov cuab yeej, ua haujlwm raws li kev kaw tas mus li -loop tawm tswv yim:
Kev kuaj pom teeb liab:Lub kaw lus tsis tu ncua saib xyuas RF teeb liab theem tom qab photoelectric hloov dua siab tshiab thiab pib amplification.
Kev sib piv thiab yuam kev tiam:Nws sib piv cov teeb liab pom theem nrog preset, zoo tagnrho siv qib los xam tus nqi yuam kev.
Dynamic Gain Adjustment:Qhov teeb meem yuam kev no tsav lub Variable Gain Amplifier (VGA) los yog tswj qhov tsis zoo ntawm qhov photodetector. Yog hais tias lub input optical zog txo (piv txwv li, mus rau -8 dBm), AGC commands nce nce. Yog hais tias lub input optical zog nce (xws li, mus rau +2 dBm), nws correspondingly txo qhov nce.
Cov zis ruaj khov:Los ntawm qhov kev hloov pauv hloov pauv no, tsis hais seb lub zog hluav taws xob kho qhov muag sib txawv li cas nyob rau hauv qhov dav dav (piv txwv li, +2 dBm rau -8 dBm), qhov kawg tso zis RF teeb liab theem (piv txwv li, ib qho nominal 65 dBµV) tuaj yeem tswj tau nrog kev ruaj ntseg siab, feem ntau nyob hauv qhov yuam kev ntawm ± 1 dB. Qhov no tshem tawm tag nrho cov duab zoo teeb meem tshwm sim los ntawm cov teeb liab hloov pauv.
3. RF Processing thiab Output Module
Multi-Stage Amplification thiab Equalization:Tom qab tau tswj hwm los ntawm lub ntsiab AGC, lub teeb liab nkag mus rau tom ntej RF amplification saw kom ua tiav cov zis muaj peev xwm txaus. Cov qauv Advanced kuj yuav suav nrogTsis Siv Neeg Slope Control (ASC), uas tuaj yeem them rov qab rau cov fiber ntau qhov sib txawv teb rau RF subcarriers ntawm ntau zaus, kom ntseeg tau tias flatness hla tag nrho TV zaus bandwidth (xws li, 47-1000 MHz lossis siab dua).
Output Ports thiab Isolation:Feem ntau muab 1 mus rau 4 RF tso zis ports (piv txwv li, F-hom connectors) nrog rau kev sib cais siab kom txo qis kev cuam tshuam ntawm ntau cov khoom tawm. Cov chaw nres nkoj muaj kev tiv thaiv zoo tiv thaiv hluav taws xob thiab hluav taws xob hluav taws xob (ESD).
4. Kev tsim qauv tsim thiab kev hloov pauv ib puag ncig
Rugged Enclosure:Feem ntau siv tuag- nrum aluminium alloy vaj tsev, ua haujlwm peb zaug ntawm cov cua sov dissipation (txhim kho cov cua sov los ntawm lub tshuab hluav taws xob sab hauv), electromagnetic shielding (EMI) (tiv thaiv kev cuam tshuam sab nraud thiab sab hauv teeb liab to), thiab kev tiv thaiv txhua yam.
Tag nrho - Kev Tiv Thaiv Huab Cua:Sab nraum zoov lossis sab hauv tsev / sab nraum zoov qauv muaj qhov muaj peev xwm tsis muaj dej tsis zoo thiab tsis muaj plua plav (piv txwv li, IP65 ntsuas), muaj peev xwm tiv taus ib puag ncig hnyav xws li txias txias, kub siab, thiab cov av noo siab, ua kom ntev - lub sijhawm ua haujlwm ruaj khov.
Flexible Installation:Compact tsim txhawb nqa phab ntsa-mounting, ncej-mounting, lossis desktop tso, yoog raws cov ntsiab lus sib txawv hauv tsev (xws li, lub thawv ntawv, ib sab TV txee).
III. Xaus-rau-Xaum Kev Ua Haujlwm hauv FTTH Network
Kev Txhaj Tshuaj:Lub 1550nm wavelength CATV kho qhov muag teeb liab los ntawm tus neeg teb xov tooj headend yog ua ke nrog 1490/1310nm cov ntaub ntawv kho qhov muag teeb liab los ntawm lub hauv paus chaw ua hauj lwm OLT ntawm ib tug sab nraud WDM combiner los yog optical amplifier. Cov teeb liab sib xyaw ua ke yog kis tau los ntawm cov caj qaum thiab faib cov fibers rau cov neeg siv khoom.
Teeb liab sib cais:Qhov poob fiber ntau ua ntej txuas mus rau ib qho optical splitter (yog tias tam sim no), ces mus rau cov neeg siv khoom hauv cheeb tsam. Ntawm no, lub input chaw nres nkoj ntawm lubFTTH AGC CATV receivertau txais cov teeb liab sib xyaw optical. Nws sab hauv WDM lim ua ntej "tshem tawm" 1550nm CATV kho qhov muag teeb liab, coj nws mus rau CATV receiver txoj kev. Qhov seem 1310/1490nm optical signals yog tso tawm los ntawm kev sib cais pigtail rau Optical Network Unit (ONU) rau kev ua haujlwm hauv internet thiab lub suab.
Photoelectric Conversion thiab Stabilization:Lub stripped 1550nm optical teeb liab tau hloov mus rau hauv RF hluav taws xob teeb liab los ntawm photodetector. Lub AGC Circuit Court ua haujlwm hauv lub sijhawm tiag tiag, kom ntseeg tau tias txawm tias lub zog kho qhov muag hloov pauv me ntsis vim huab cua hloov pauv lossis lub network zoo- tu, qhov hloov pauv RF teeb liab lub zog tseem nyob tas li.
Kev faib tawm:Lub stabilized thiab amplified siab - zoo RF teeb liab yog muab faib los ntawm coaxial cable rau ntau lub TVs los yog teem- lub thawv saum toj kawg nkaus hauv tsev, tso cai rau cov neeg siv saib meej, flicker- cov kev pab cuam hauv TV dawb.
IV. Summary of Core Advantages and Value
Qhov kawg Stable User Experience:AGC thev naus laus zis ua raws li tus neeg saib xyuas tsis pom, zoo kawg nkaus tshem tawm cov teeb liab hloov pauv tsis pom kev rau cov neeg siv, xa cov duab meej tsis tu ncua.
High Bandwidth thiab yav tom ntej Compatibility:Txhawb RF bandwidths mus txog 1 GHz lossis txawm tias 1.2 GHz, tshwj tseg qhov chaw txaus rau 4K / 8K Ultra HD TV, kev sib tham ntau dua, thiab kev pabcuam yav tom ntej.
Simplified Network thiab txuag nqi:Kev xa tawm tag nrho cov kev pabcuam dhau ib lub fiber ntau ua rau txo tus neeg teb xov tooj txoj kev sib txuas thiab cov nqi ua haujlwm. Rau cov neeg siv, kev sib koom ua ke siab ntawm cov cuab yeej txuag chaw thiab ua kom yooj yim installation.
Exceptional Reliability thiab Durability:Kev lag luam- qib tsim thiab kaw tag nrho kev tsim kho kom ntseeg tau 24/7 tsis cuam tshuam kev ua haujlwm ruaj khov nrog lub sijhawm ntev heev ntawm Lub Sijhawm Tsis Ua Haujlwm (MTBF), txo tus nqi tag nrho ntawm cov tswv cuab ntawm nws lub neej.
Plug-thiab-Kev Ua Si thiab Kev Kho Kom Zoo:Cov cuab yeej feem ntau yuav tsum tsis muaj kev teeb tsa hauv cheeb tsam nyuaj, vim tias qib tso zis tau txais kev ruaj khov. Kev saib xyuas lub network tuaj yeem saib xyuas nws cov xwm txheej ntawm tus neeg nqa khoom nthwv dej lossis lwm txoj hauv kev, ua kom yooj yim rau kev ceeb toom txhaum cai thiab hauv cheeb tsam.
CovFTTH AGC CATV receiveryog ntau tshaj qhov yooj yim "optical-rau-electrical" converter. Nws yog ib tug complex subsystem integrating advanced optical filtering, precision photoelectric hloov dua siab tshiab, ntse kaw - voj tswj, thiab rugged industrial tsim. Nws yog qhov txuas tseem ceeb hauv kev ua kom muaj kev sib txuas ntawm kev xa khoom zoo ntawm - cov kev pabcuam video zoo hauv "ntau pua meters" ntawm Fiber-rau--Tsev, ntsiag to lav tias ntau lab tsev neeg tuaj yeem txaus siab ruaj khov, meej, thiab nplua nuj tshaj tawm hauv TV. Nws yog ib qho indispensable ntse davhlau ya nyob twg ntaus ntawv nyob rau hauv niaj hnub tag nrho cov optical access tes hauj lwm.
