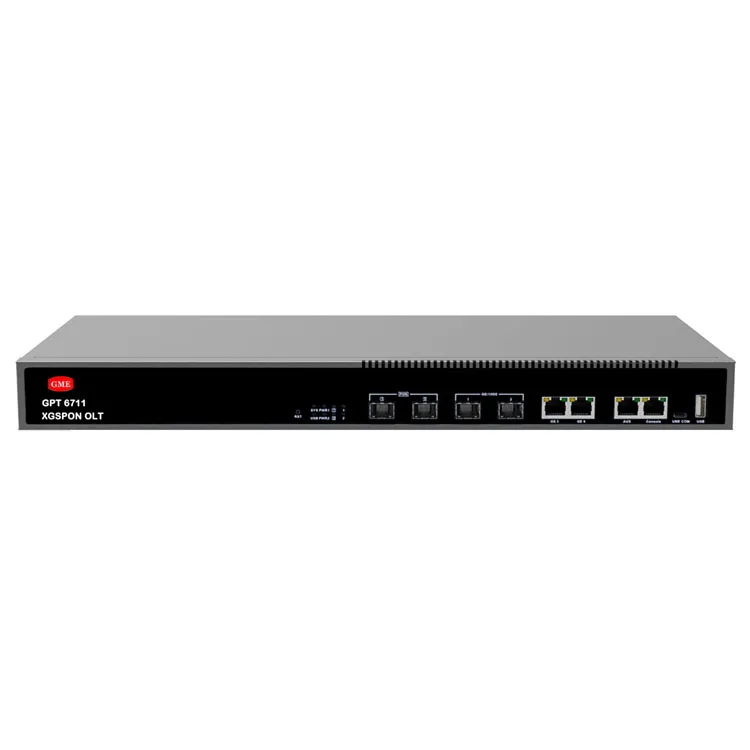

GPT 6711 yog lub compact OLT nkag ntaus ntawv nrog 2 PON ports (optional GPON, XG-PON, XGS-PON).Qhov sib cais ntawm nws qhov chaw nres nkoj PON yog 1:256(GPON 1:128).Nws yog tsim los rau cov lag luam me, khw muag khoom thiab vaj tse leasing, muab kev siv tau zoo thiab hloov tau.
Specifications
|
Yam khoom |
TIAB SA 6711 |
|
|
Chassis |
Khib |
1U 19Inch Standard Box |
|
Uplink Chaw nres nkoj |
QTY |
4 |
|
RJ45 (GE) |
2 |
|
|
SFP (GE) / SFP + (10GE) |
2 |
|
|
GPON Chaw nres nkoj |
QTY |
2 |
|
Lub cev interface |
SFP Slots |
|
|
Max splitting ratio |
1:256(Maximum), 1:128(pom zoo) |
|
|
Tswj Chaw nres nkoj |
1 * 10/100/1000BASE-T tawm-band chaw nres nkoj, 1 * CONSOLE chaw nres nkoj, 1 * USB2.0, 1 USB-COM |
|
|
Backplane Bandwidth (Gbps) |
208 |
|
|
Port Forwarding Rate (Mpps) |
124.992 |
|
|
PON Chaw nres nkoj Specification |
Kis qhov deb |
20 KM |
|
GPON chaw nres nkoj ceev |
Upstream 1.244Gbps, Downstream 2.488Gbps |
|
|
XG-PON posrt ceev |
Upstream 2.488Gbps, Downstream 9.953Gbps |
|
|
XGS-PON chaw nres nkoj ceev |
Upstream 9.953Gbps, Downstream 9.953Gbps |
|
|
Lub wavelength |
GPON: TX 1490nm, RX 1310nm |
|
|
Lub wavelength |
XG-PON,XGS-PON: TX 1577nm, RX 1270nm |
|
|
Txuas |
SC/UPC |
|
|
Hom Fiber |
9/125μm SMF |
|
|
Txhawb PON module qib |
Chav Kawm N2 |
|
|
Kev tswj hwm hom |
WEB, Telnet, CLI |
|
|
Muaj nuj nqi |
Layer2 Hloov, Multicast, DHCP, Txheej 3 Txoj Kev, IPv6 |
|
|
Qhov hnyav |
Net nyhav ntawm ib lub zog: 2.485kg |
|
|
Qhov Loj (L * W * H) |
442mm * 200mm * 43mm |
|
|
Kev siv fais fab |
40W |
|
|
Kub |
Ua haujlwm kub: 0 degree ~ +55 degree |
|
|
Cia Kub: -40℃~ +85 degree |
||
