Kev piav qhia

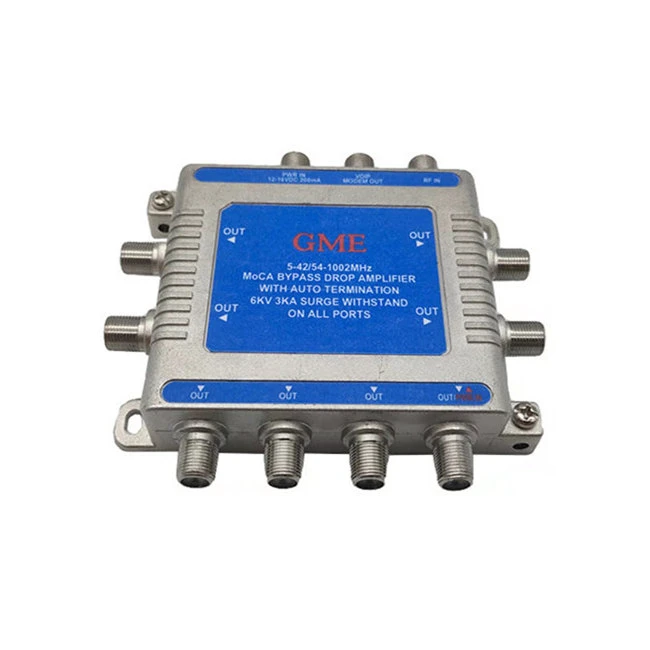

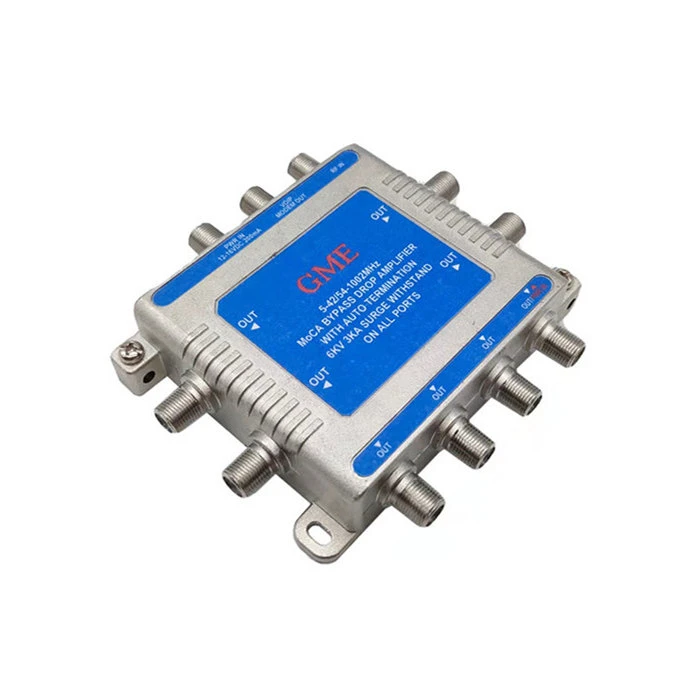

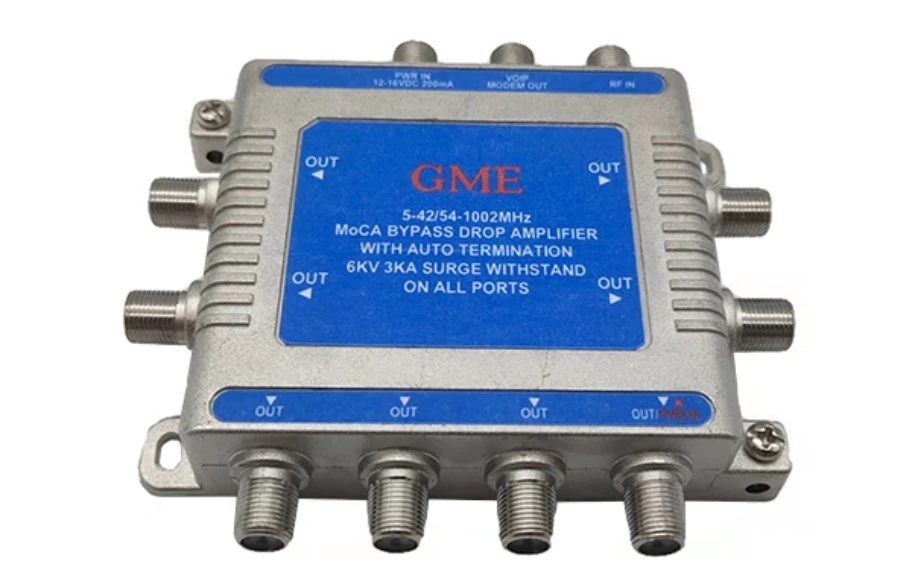

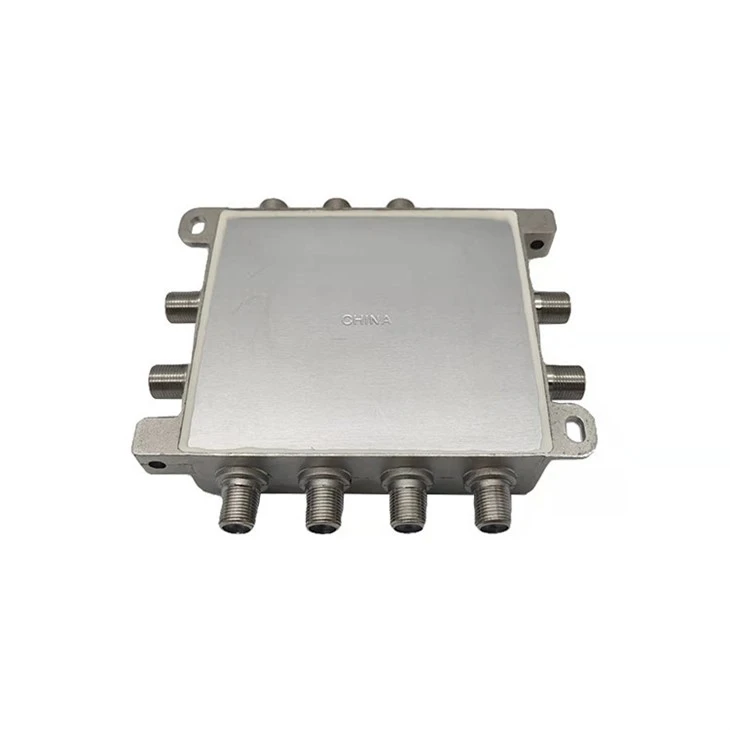

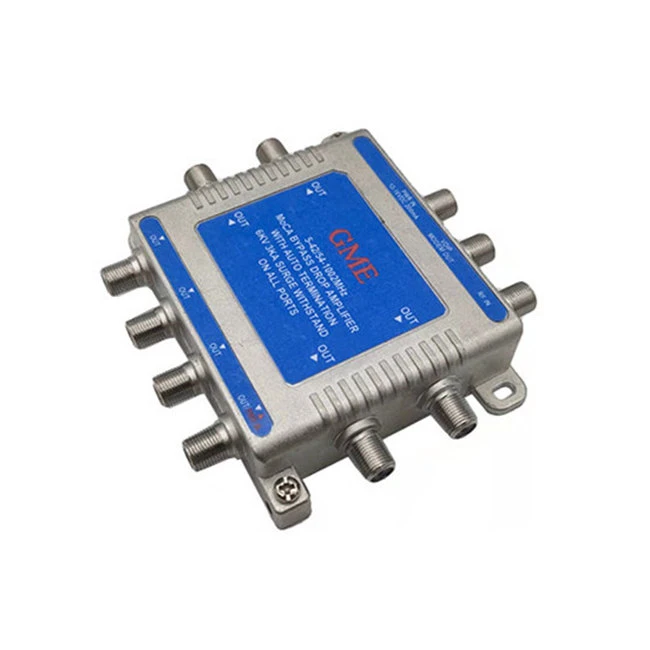

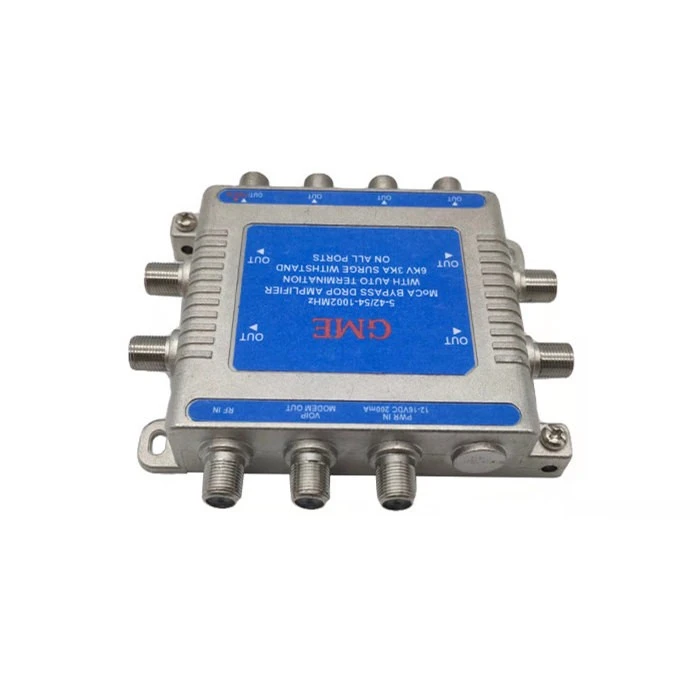

Lub 3306-8P 8 Txoj Kev MOCA Amplifier yog tsim los txhawb cov ntawv thov tseem ceeb xws li xov tooj uas xav tau cov kev ntseeg siab siab los muab kev pabcuam tsis cuam tshuam txhua lub sijhawm. 3306-8P 8 Txoj Kev MOCA Amplifier muaj 2 txoj kev sib cais sib xyaw ua ke ntawm RF cov tswv yim ua ntej lub lim dej diplex uas muab qhov chaw nres nkoj ntxiv rau ntawm lub tsev rau cable modem lossis eMTA kev sib txuas uas hla lub amplifier circuit. Qhov no tso cai rau cov ntawv thov tseem ceeb kom tsis txhob cuam tshuam los ntawm hluav taws xob hluav taws xob lossis amplifier tsis ua haujlwm. PCT amplifiers muaj lub teeb yuag hmoov coated thiab huab cua kaw vaj tse rau kev tiv thaiv corrosion zoo dua. PCT amplifiers muaj precision machined F ports (raws li SCTE cov qauv) uas muaj beryllium tooj liab qaug dab peg mechanisms muab kev pom zoo tis thiab amplification ntawm koj RF signals.
Nta
◆ 8 tso zis, 1 GHz RF MoCA amplifier nrog kev sib koom ua ke nce + 1 modem tso zis (-5 dB)
◆ 0 dB ib qhov tso zis
◆ Kev sib koom ua ke nce, tsim rau kev teeb tsa broadband (passive rov qab poob amps raug pom zoo rau kev teeb tsa kav hlau txais xov)
◆ Kev tsim tshwj xeeb rau cov tes hauj lwm nrog 85/102 MHz nruab nrab - cais - tsis sib haum nrog feem ntau cov cable sib txuas siv tus qauv 42/54 MHz cais
◆ Bypass feature muab kev pabcuam tsis cuam tshuam txhua lub sijhawm
◆ Nws pib txiav thaum fais fab tuag
◆ Kev ua tau zoo distortion qis tshaj plaws muaj
◆ IEEE 6 kV, B3 surge tiv taus ntawm txhua qhov chaw F
◆ Beryllium tooj liab patented DSM® qaug dab peg technology
◆ kaw F chaw nres nkoj ua raws li SCTE cov qauv
◆ SMPS512UTRH fais fab adapter suav nrog
Specification
|
Qhov chaw ntawm Keeb Kwm: Guangdong, Suav |
|||
|
Tus Qauv Zauv: GDMOCA-010 (3306-8P) |
|||
|
DESCRIPTION: 8-Txoj Kev CATV DROP AMPLIFIER nrog PASSIVE rov qab |
|||
|
Yam khoom |
TSEEM CEEB |
QCLIMIT |
TSEEM CEEB |
|
Forward Path: |
|||
|
Freq. Ntau yam |
|
54 ~ 1218 MHz |
|
|
Gain (RF nkag mus rau hauv) |
0.5dB ua |
0dB min |
54 ~ 1002 MHz |
|
|
-7.5dB |
-8.0dB min |
1003 ~ 1218 MHz |
|
Voip port insertion poob |
-4.8dB |
-5.5dB max |
54 ~ 1002 MHz |
|
-7.5dB |
-8.0dB max |
1003 ~ 1218 MHz |
|
|
Rov qab Loss (hauv / tawm) |
-16 dB |
-15dB Min. |
54 ~ 1218 MHz |
|
Suab nrov (54 ~ 1002 MHz) |
5 dB yam khoom siv NF (tsis suav nrog kev sib cais hluav taws xob) |
||
|
Pab pawg qeeb |
|
30 n Max. |
Rau 102MHz (3.58MHz Span) |
|
|
15 n Max. |
Rau 108MHz (3.58MHz Span) |
|
|
|
5 nhs max. |
Rau 112MHz & nce (3.58MHz Span) |
|
|
Tawm ntawm kev cais tawm |
-25dB |
-20dB min |
54 ~ 1218 MHz |
|
RF tiv thaiv kev ua haujlwm |
|
Tsawg dua lossis sib npaug rau -110 dB |
|
|
RF chaw nres nkoj rau fais fab chaw nres nkoj cais |
|
100 dBc |
54 ~ 1218 MHz |
|
MOCA Txoj Kev: |
|||
|
Freq. Ntau yam |
|
|
1275-1675 MHz |
|
Insertion poob (voip rau txhua qhov tso zis) |
-25 dB |
-28dBmax |
1275-1300 MHz |
|
-23 dB |
-25dBmax |
1301-1675 MHz |
|
|
Isolation (txhua qhov tso zis rau cov zis) |
-28dB |
-30dBmax |
1275-1675 MHz |
|
Rov qab poob (voip / txhua qhov chaw tso zis) |
-10 dB |
-5dB Min. |
1275-1675 MHz |
|
Rov qab txoj kev: |
|||
|
Freq. Ntau yam |
|
5 ~ 85MHz |
|
|
Tau txais |
-15dB |
-16dB min |
5 ~ 85 MHz |
|
Rov Los Loss (IN/OUT) |
-20 dB |
-18 dB Min. |
5 ~ 85 MHz |
|
Voip insertion poob |
- 3.5 dB |
-3.8 dB Max. |
5 ~ 85 MHz |
|
Flatness |
± 0.5 dB |
1.5dB Max. |
5 ~ 85 MHz |
|
Tawm ntawm kev cais tawm |
-25dB |
-20dB Min |
5 ~ 85MHz |
|
Pab pawg qeeb |
|
20 n Max. |
5 ~ 85 MHz Tshaj A 1MHz Span |
|
|
5 nhs max. |
10 ~ 80 MHz Tshaj A 1MHz Span |
|
|
Distortion: |
|||
|
Composite Second Order * |
|
-62 dBc Max. |
|
|
Composite Triple Beat * |
|
-75 dBc Max. |
|
|
Hla Modulation * |
|
-75 dBc Max. |
|
|
Hum Modulation |
|
-90dBc Max. |
|
|
REV : *79 NTSC analog+33 256/QAM digital @4dBmv/ch all/channels flat |
|||
|
Surge Withstand Peev Xwm: |
|
CAT B3, 6 KV, 3 KA |
Input port-IEEE C62.41-1991 Qeb B-3 Combo wave, 6kV, 3kA |
|
|
Output chaw nres nkoj -IEEE C62.41-1991 |
||
|
Qeb B-3 Combo yoj, 6kV, 3kA |
|||
|
Lub zog xav tau: |
|||
|
Tswv yim |
|
120 VAC |
|
|
Ntau zaus |
|
60 Hz |
|
|
Tso zis |
|
12V DC, 400mA |
|
|
Ua haujlwm kub: |
|
-40℃rau + 60 degree |
|
|
MECHANICAL |
|||
|
Mounting |
|
Kab rov tav / ntsug |
|
|
Qhov ntev |
|
W: 179mm x D: 71mm x H: 43mm |
|
|
Av Thaiv suav |
|
1 - Bi-Kev taw qhia |
|
|
Vaj Tsev & Npog Khoom |
|
A360 Aluminium Alloy |
|
|
Ua tiav / Plating hom |
|
Hmoov txheej |
|
|
Kev sib khi |
|
Gasket 1-moisture 1 EMI/RFI |
|
|
F chaw nres nkoj Khoom siv |
|
C360 tooj dag |
|
|
F chaw nres nkoj Plating |
|
Nickel |
|
|
F chaw nres nkoj Spacing |
|
1.0" min. |
|
|
F chaw nres nkoj Torque |
|
60 lbs ib. min |
|
|
F chaw nres nkoj Pin Retention (RG-6 Center Pin) |
|
200 grams ntawm min. |
|
Goodmind Electronics (Shenzhen) Co., Ltd. yog tsim nyob rau hauv 1992 nrog ib tug sau npe peev ntawm 18 lab US dollars. Nws tus kheej lub Hoobkas nyob hauv Shenzhen thiab muaj ntau tshaj 1000 tus neeg ua haujlwm. Nws yog lub tuam txhab ua haujlwm siab -tech enterprise integrating R&D, ntau lawm, muag thiab kev pabcuam, Lub tuam txhab tshwj xeeb hauv Kav hlau txais xov / Network Kev sib txuas lus / Bluetooth / AV Accessories / Smart Home / Car Accessories kev tsim lub tuam txhab. Lub Hoobkas yog vertically integrated. Lub Hoobkas muaj kev ua cov yas, hlau stamping, zinc tuag casting, SMT, DIP thiab Assembly center. Lub tuam txhab muaj lub zog nyiaj txiag muaj zog, pab pawg R&D kws tshaj lij, cov cuab yeej tsim khoom zoo tshaj plaws thiab kev tsim khoom lag luam, thiab mob siab rau tsim cov khoom zoo rau cov neeg siv khoom.
Ib qho 8-txoj kev MoCA (Multimedia dhau Coax Alliance) amplifier yog ib qho cuab yeej siv hauv MoCA- raws li cov tes hauj lwm los ua kom nrov nrov thiab xa tawm MoCA cov cim hla cov kab coaxial. MoCA thev naus laus zis tso cai rau kev xa cov ntaub ntawv ceev ceev, xws li internet lossis multimedia cov ntsiab lus, dhau ntawm coaxial cable infrastructure uas muaj nyob hauv tsev lossis tsev.
MoCA amplifier yog dab tsi?
MoCA amplifier yog ib qho cuab yeej siv hauv MoCA tes hauj lwm los txhawb thiab faib MoCA cov cim ntawm cov kab coaxial cable. Nws amplifies cov teeb liab kom ntseeg tau tias kev ua tau zoo thiab kev ntseeg tau thoob plaws hauv lub network.
MoCA technology yog dab tsi?
MoCA (Multimedia dhau Coax Alliance) yog ib lub tshuab sib txuas uas ua rau kev xa cov ntaub ntawv siab -ceev, xws li internet, video, thiab lwm yam khoom siv multimedia, dhau ntawm coaxial cable infrastructure nyob rau hauv ib lub tsev lossis lub tsev.
Lub 8-txoj kev MoCA amplifier tau teeb tsa li cas?
Kev teeb tsa suav nrog kev sib txuas ntawm qhov chaw nres nkoj ntawm MoCA amplifier mus rau MoCA teeb liab qhov chaw, xws li MoCA-enabled router lossis modem. Tom qab ntawd cov suab nrov MoCA tau muab faib rau ntau qhov chaw lossis cov khoom siv uas siv cov chaw nres nkoj tawm ntawm lub tshuab hluav taws xob.

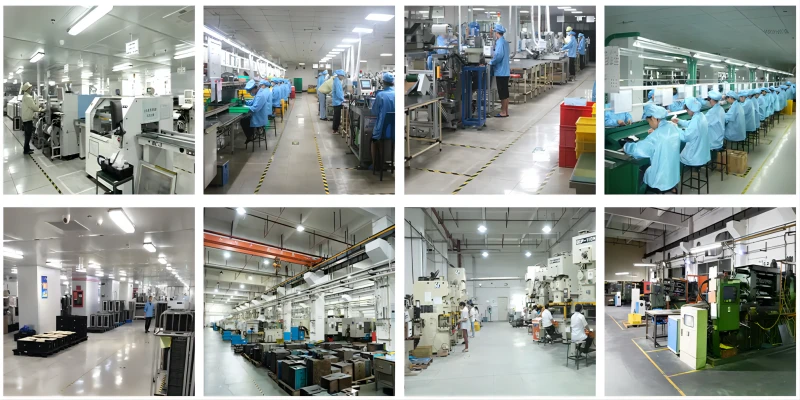

Peb lub Hoobkas tsim khoom
Peb daim ntawv pov thawj
FAQ
Q: Lub hom phiaj ntawm 8-txoj kev MoCA amplifier yog dab tsi?
A: Lub hom phiaj tseem ceeb ntawm 8-txoj kev MoCA amplifier yog kom nthuav dav thiab faib MoCA cov cim rau ntau qhov chaw lossis cov khoom siv hauv MoCA network. Nws ua kom ntseeg tau tias MoCA cov teeb liab tswj lawv lub zog thiab zoo thoob plaws hauv lub network.
Q: Muaj pes tsawg qhov chaw tso zis ntau npaum li cas 8-txoj kev MoCA amplifier muaj?
A: Raws li lub npe qhia, 8-txoj kev MoCA amplifier feem ntau muaj yim qhov chaw tso zis, tso cai rau nws faib cov suab nrov MoCA mus txog yim qhov chaw sib cais lossis cov khoom siv hauv lub network.
Q: Yuav ua li cas yog lub 8-txoj kev MoCA amplifier ntsia?
A: Kev teeb tsa suav nrog kev sib txuas ntawm qhov chaw nres nkoj ntawm MoCA amplifier rau MoCA teeb liab qhov chaw, xws li MoCA-enabled router lossis modem. Tom qab ntawd cov suab nrov MoCA tau muab faib rau ntau qhov chaw lossis cov khoom siv uas siv cov chaw nres nkoj tawm ntawm lub tshuab hluav taws xob.
Q: Puas tuaj yeem siv 8-txoj kev MoCA amplifier ua ke nrog lwm cov khoom siv MoCA?
A: Yog lawm, 8-txoj kev MoCA amplifier tuaj yeem siv ua ke nrog lwm cov khoom siv MoCA, xws li MoCA-enabled routers, modems, lossis MoCA adapters, los tsim lub MoCA network muaj zog thiab ceev ceev.
