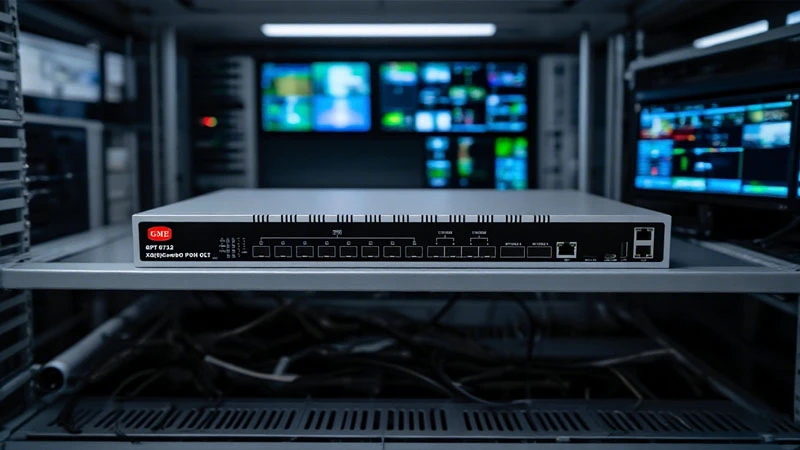

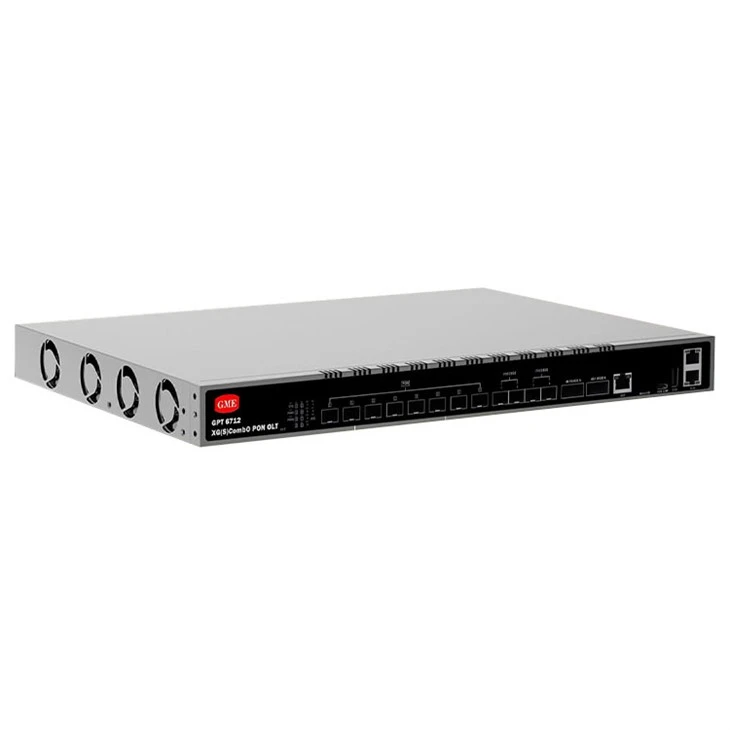

GPT 6712 yog lub compact OLT nkag ntaus ntawv nrog 8 PON ports (optional GPON, XG-PON, XGS-PON), thiab kuj txhawb ib hom GPON. Koj tuaj yeem xaiv qhov hloov kho du ntawm GPON mus rau XG(S)-PON, thiab hloov mus rau XG(S)-PON & GPON Combo hom nyob rau theem pib, xav txog kev ruaj ntseg ntawm cov lag luam qub thaum hloov kho yav tom ntej.

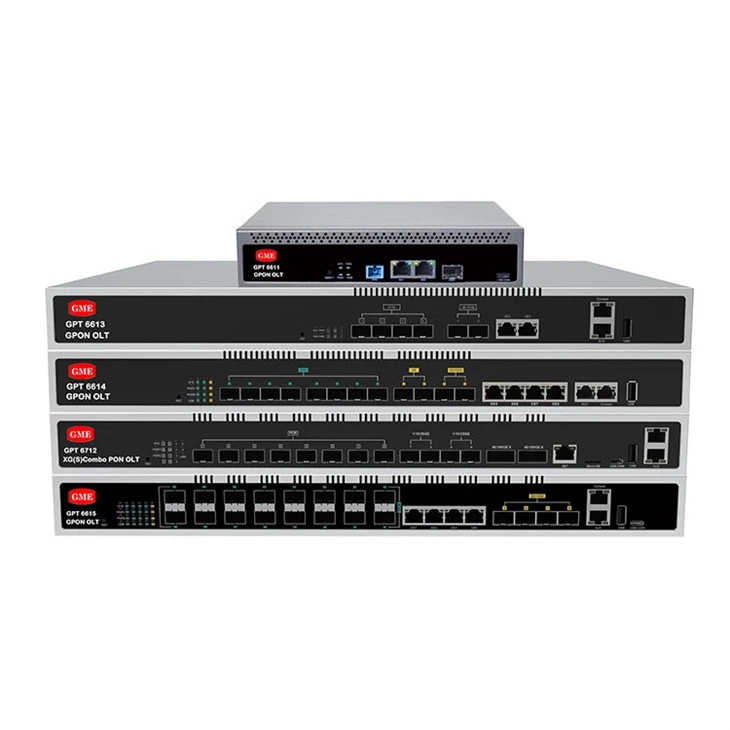

Compact High-Density 8-Port 10G Combo (GPON/XGS-PON) OLT
Qhov zoo thiab nta ntawm 8-Port 10G Combo PON OLT
8 Chaw Nres Nkoj XGS-PON OLT yog tsim los rau tom ntej- cov xwm txheej nkag mus rau fiber ntau hauv cov neeg siv xov tooj, cov chaw lag luam hauv tsev kawm ntawv, thiab cov zej zog ntse. Nrog rau qhov sib luag 10G nrawm, muaj peev xwm siab, thiab cov neeg nqa khoom- qib kev ntseeg tau, nws ua tau raws li qhov xav tau ntawm kev hloov kho dav dav yav tom ntej thiab ntau - kev pabcuam kev sib koom ua ke.
Muaj peev xwm Bandwidth
Txhua qhov chaw nres nkoj txhawb nqa 10G tus nqi sib npaug, nrog tag nrho cov bandwidth txog 80Gbps thoob plaws 8 PON chaw nres nkoj, ua tau raws li qhov xav tau ntau ntxiv rau cov kev pabcuam broadband yav tom ntej.
Cov neeg siv loj muaj peev xwm
Txhua qhov chaw nres nkoj PON txhawb nqa txog li 128 ONU cov khoom siv, tso cai rau tag nrho lub tsev tswj hwm ntau txhiab tus neeg siv, ua rau nws zoo tagnrho rau kev xa tawm loj -.
Flexible Network Architecture
Txhawb nqa kev hloov pauv ntawm GPON mus rau XG-PON thiab XGS-PON, nrog rau kev sib raug zoo rau seamlessly integrate nrog cov fiber ntau uas twb muaj lawm.
Ntau-Kev Pab Cuam Muaj Peev Xwm
Txhawb IPTV, CATV, VoIP, cov kab ntawv tshwj xeeb, thiab cov kev pabcuam IoT, ua kom muaj kev sib koom ua ke ntau - kev pabcuam, ua kom yooj yim network architecture, thiab txo cov nqi ua haujlwm.
Carrier -Qib Reliability
Txhawb nqa dual lub zog rov ua dua, kev tiv thaiv kev hloov pauv, thiab txuas cov txheej txheem tiv thaiv kom ntseeg tau tias kev ua haujlwm ruaj khov.
Kev Tswj Xyuas Kev Txawj Ntse
Muab ntau txoj kev tswj hwm suav nrog CLI, SNMP, thiab Web-raws li kev sib tshuam, txhawb kev teeb tsa chaw taws teeb thiab saib xyuas txhawm rau txhim kho kev ua haujlwm zoo.
Tus nqi -Kev xa tawm tau zoo
Piv nrog rau kev siv ib txwm siv los siv, PON thev naus laus zis txo qis kev siv fiber ntau thiab kev saib xyuas tus nqi, ua kom muaj txiaj ntsig zoo dua ntawm kev nqis peev (ROI).

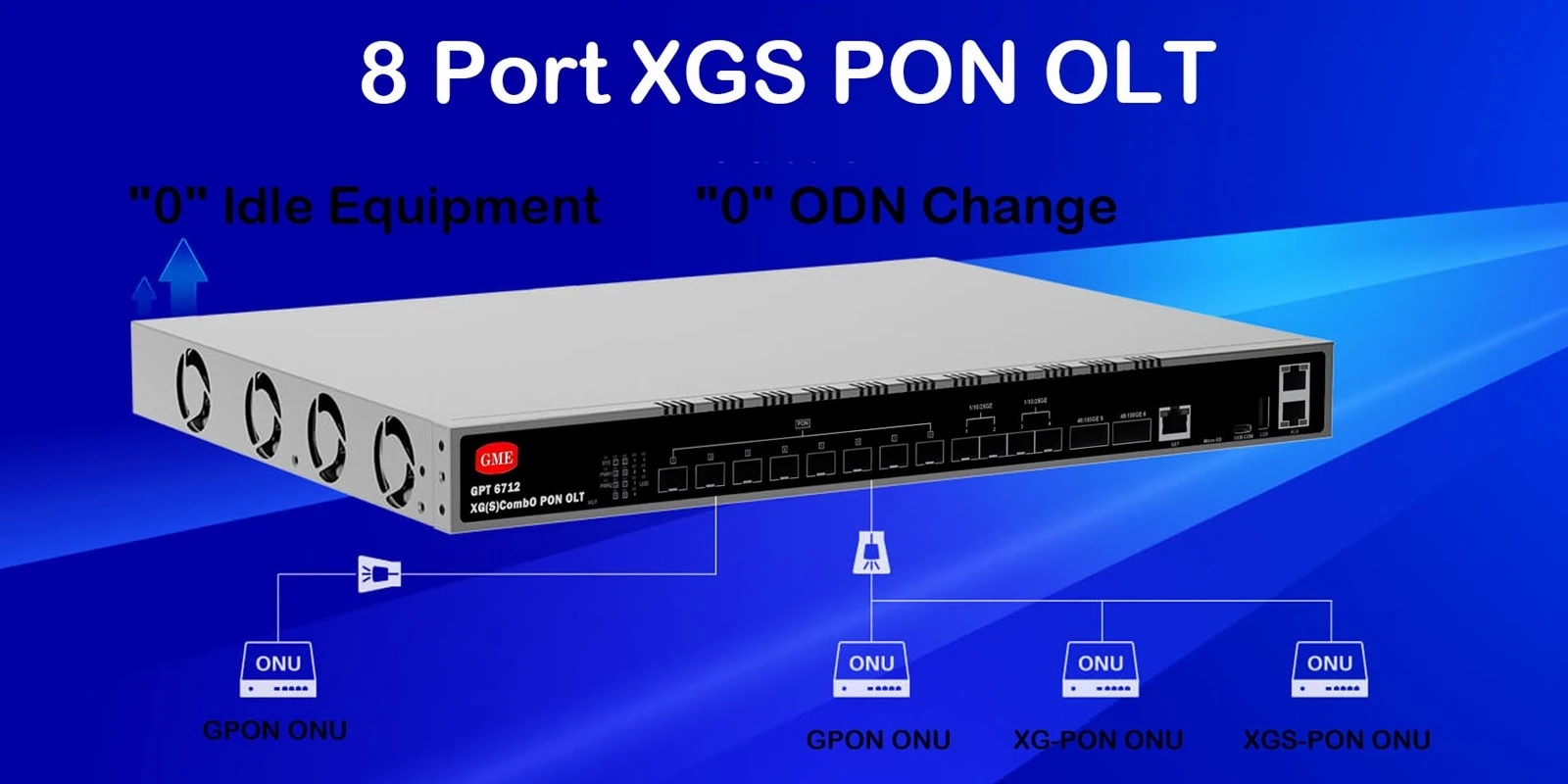

Hloov pauv hloov ntawm PON Chaw nres nkoj hom
Txhua qhov chaw nres nkoj muaj qhov xaiv tau GPON/XGS-PON kev khiav hauj lwm hom, ua kom yooj yim tsiv teb tsaws ntawm GPON mus rau XGS-PON thiab ua kom muaj kev hloov pauv mus rau 10Gbps network peev xwm.
Specifications
|
Yam khoom |
TIAB SA 6712 |
|
|
Chassis |
Khib |
1U 19Inch Standard Box |
|
Uplink Chaw nres nkoj |
QTY |
8 |
|
RJ45 (GE) |
1 |
|
|
SFP28 (25GE) |
4 |
|
|
QSFP28 (25GE/50GE/100GE) |
2 |
|
|
XG(S){0}}PON/GPON Chaw nres nkoj |
QTY |
8 |
|
Lub cev interface |
SFP + Slots |
|
|
Hom Connector |
XG(S)-PON&GPON Combo hom: N2_C+ |
|
|
Ib hom GPON: Chav B + / C / C + / C ++ / C +++ / C ++++ |
||
|
Optical Spliting Ratio |
1:256(Maximum), 1:128(pom zoo) |
|
|
Tswj Chaw nres nkoj |
1 * 10/100/1000BASE-T tawm-band chaw nres nkoj, 1 * CONSOLE chaw nres nkoj, 1 * USB 3.0, 1 * Hom -C USB console, 1 * MicroSD chaw nres nkoj |
|
|
Backplane Bandwidth (Gbps) |
1960 |
|
|
Port Forwarding Rate (Mpps) |
566.928 |
|
|
XG(S)-PON&GPON Combo Port Specification |
Kis qhov deb |
20 KM |
|
XG(S)-PON Chaw nres nkoj ceev |
GPON: Upstream 1.244Gbps, Hauv qab 2.488Gbps XG-PON: Upstream 2.488Gbps, Downstream 9.953Gbps XGS-PON: Upstream 9.953Gbps, Downstream 9.953Gbps |
|
|
Lub wavelength |
GPON: Upstream 1310nm, Downstream 1490nm XG(S)-PON: Upstream: 1270nm Downstream: 1577nm |
|
|
Txhawb PON chaw nres nkoj |
PON 1 ~ 8 (8 PON chaw nres nkoj nyob hauv XG(S)-PON & GPON Combo hom los ntawm lub neej ntawd) |
|
|
GPON Chaw nres nkoj Specification |
Kis qhov deb |
20 KM |
|
GPON Chaw nres nkoj ceev |
Upstream: 1.244Gbps, Hauv qab: 2.488Gbps |
|
|
Lub wavelength |
Upstream: 1310nm, Downstream: 1490nm |
|
|
Txhawb PON chaw nres nkoj |
PON 1 ~ 8 (Txhua qhov chaw nres nkoj PON tuaj yeem ua kub ntawm tes- hloov mus rau GPON hom) |
|
|
Kev tiv thaiv xob laim |
Hluav taws xob tiv thaiv |
6 kvu |
|
Kev tiv thaiv xob laim Interface |
4 KV |
|
|
Fais fab mov |
AC |
Ua hauj lwm Voltage: 100 ~ 240V, Rated voltage: 110V / 220V |
|
Tus naj npawb ntawm cov kiv cua |
4 |
|
|
Kev tswj hwm hom |
CLI(Console/Telnet/SSH)/WEB/SNMP |
|

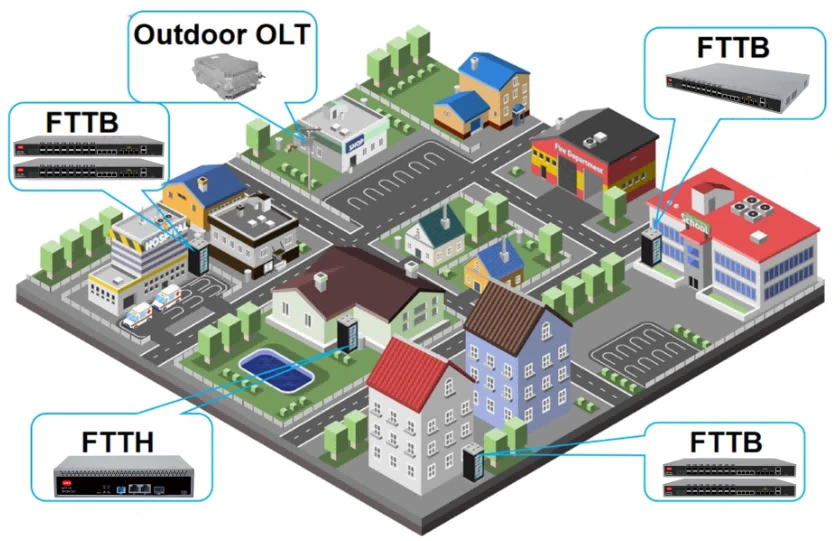

FTTx applacation

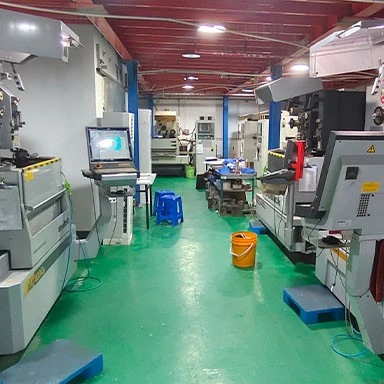

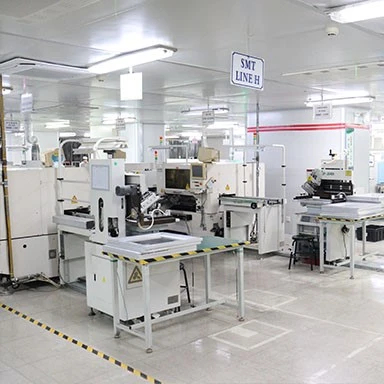

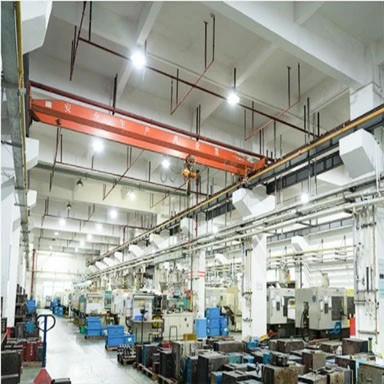

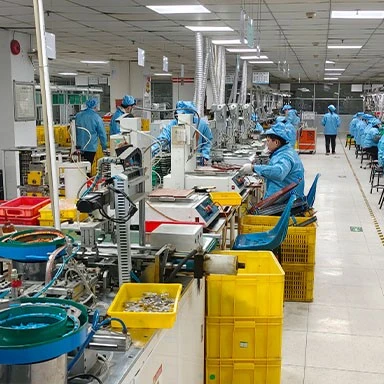

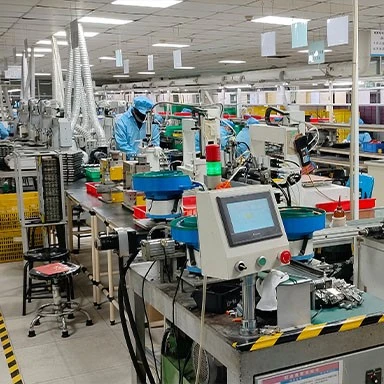

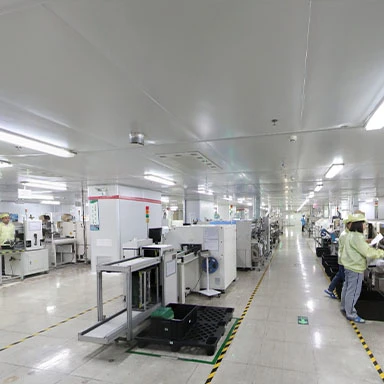

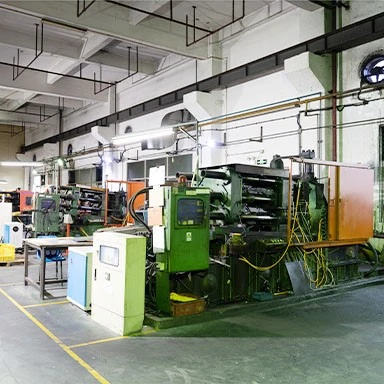

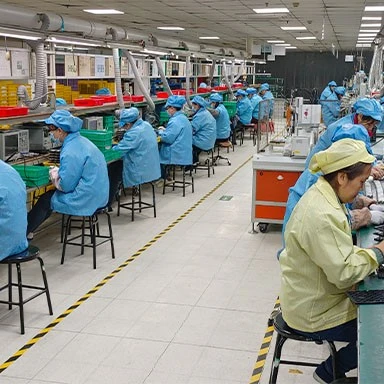

Peb lub Hoobkas tsim khoom

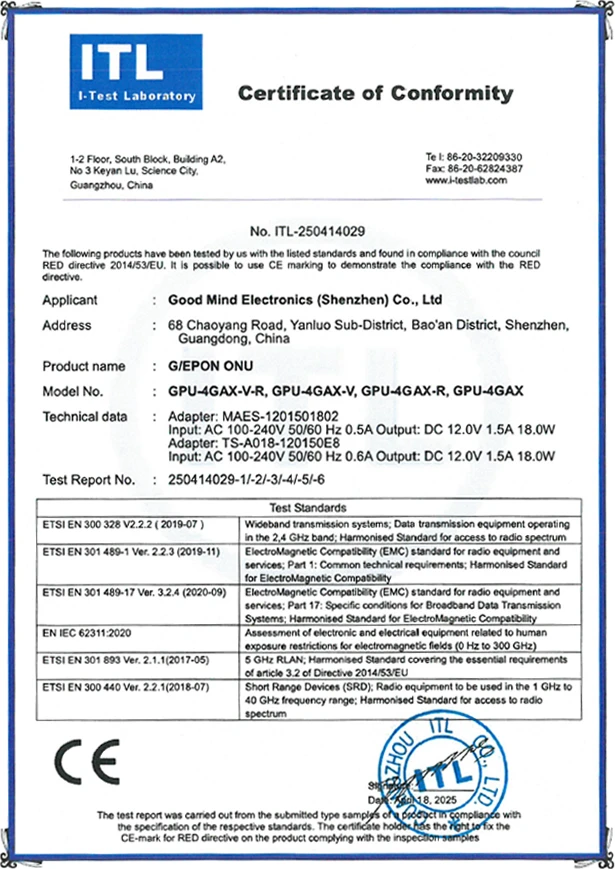

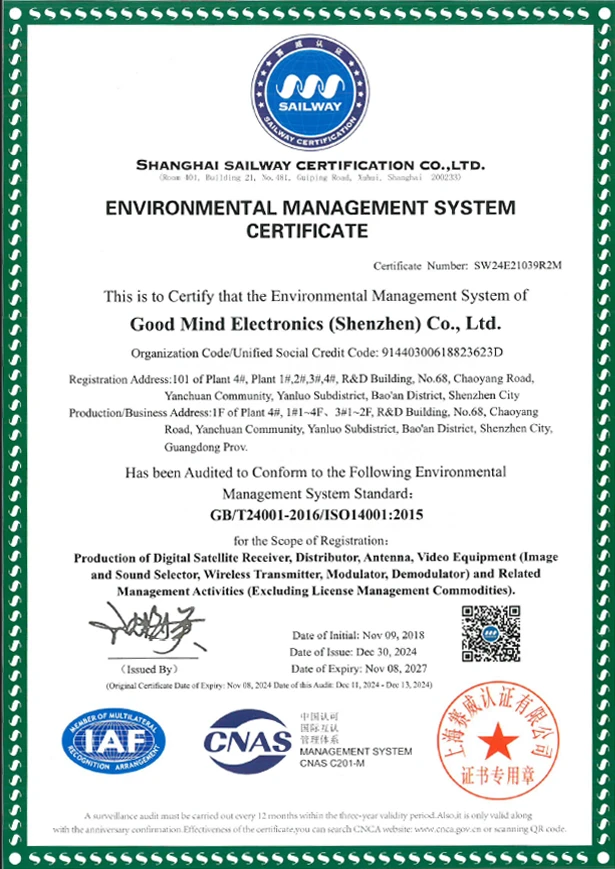

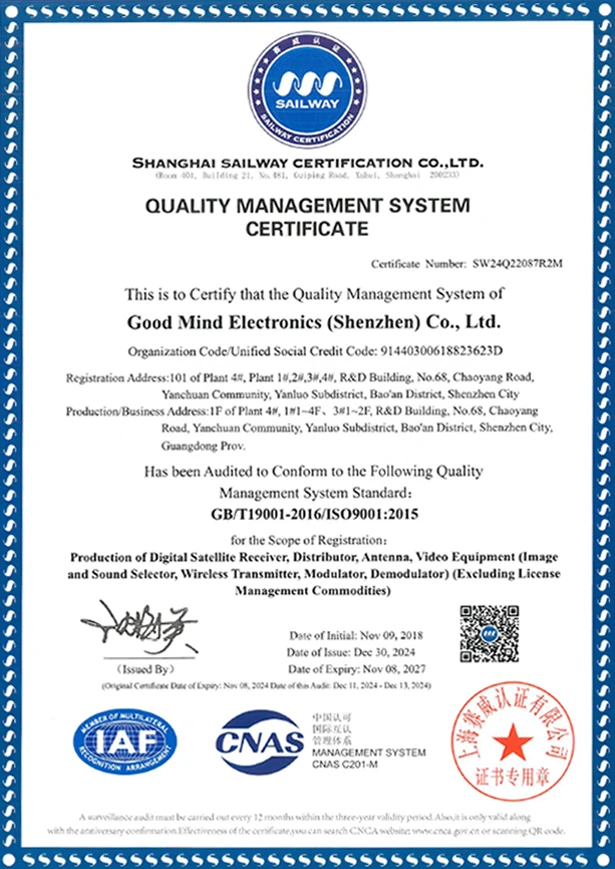

Peb Daim Ntawv Pov Thawj
txoj kev them nyiaj
Ntim & Thauj
Ntim & Thauj
Ntim
Peb yuav ntim peb cov khoom kom nruj kom ntseeg tau tias lawv tsis muaj kev puas tsuaj hauv kev thauj mus los.

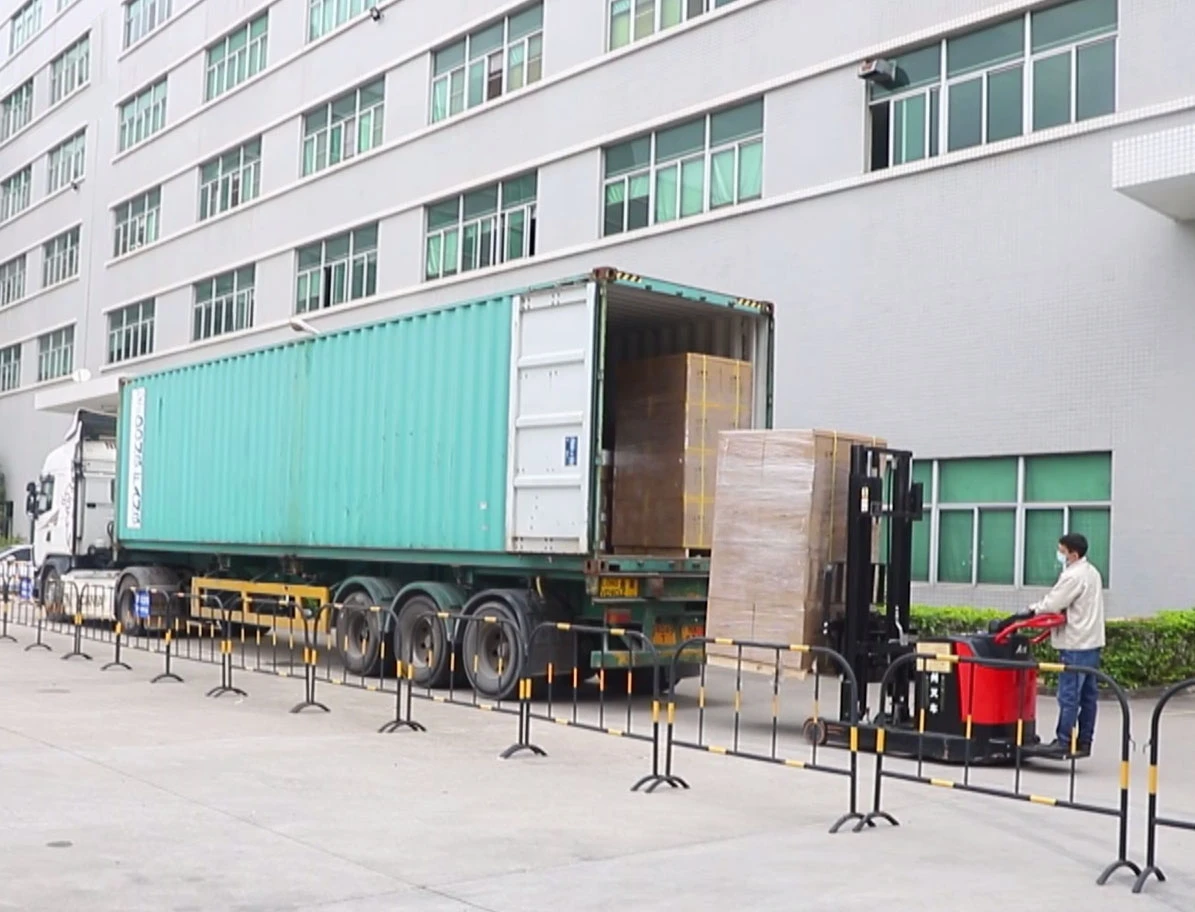

Kev thauj mus los
