Kev piav qhia

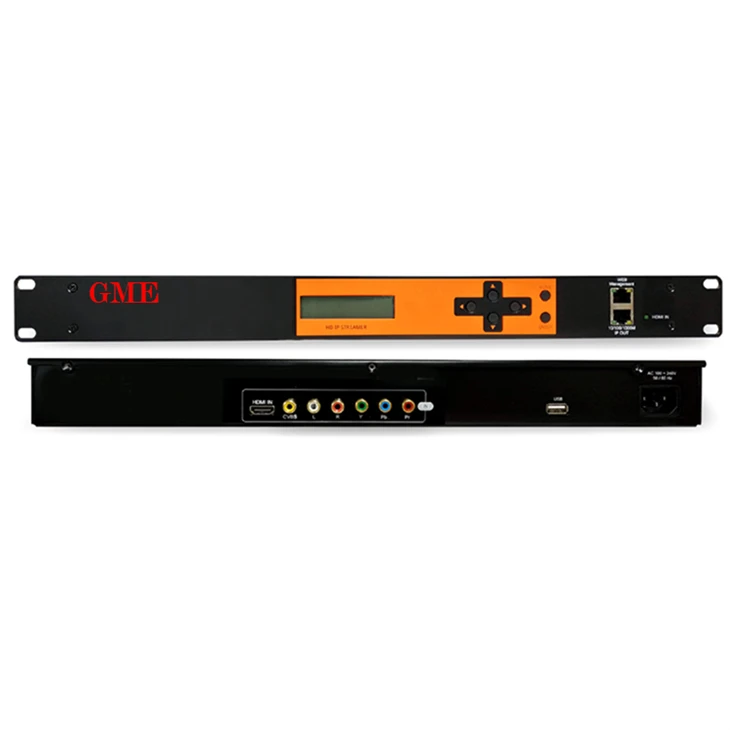

Tus kws tshaj lij Full HD IP Streamer Signal Channel IP Encoder Nrog RCA Input nrog 4 HDMI inputs, nws tso cai rau tus neeg siv los tshaj tawm ib qho audio / video los ntawm IP Network rau Smart HDTV's lossis teeb tsa saum lub thawv hauv IP Network.
Tus IP Streamer lees txais HDMI, Cheebtsam, lossis Composite video tawm tswv yim thiab chav tsev yog tsim los xa cov kev nplua nuj HD / SD Streaming rau nws cov neeg siv siv MPEG-2 lossis H.264 cov qauv.
Lub Signal Channel IP Encoder nrog RCA Input yog ib qho kev txiav -ntug khoom tsim los hloov cov suab analog los ntawm RCA inputs rau hauv cov kwj IP digital. Qhov no encoder yog ib qho cuab yeej tseem ceeb rau ntau yam kev siv suab, muab kev hloov pauv tsis tu ncua los ntawm kev teeb tsa analog rau niaj hnub IP-raws li systems.
Specification
|
Qhov chaw ntawm Keeb Kwm: Guangdong, Suav |
||
|
Tus Qauv Zauv: GDM-026 (IPE101) |
||
|
NPUT |
||
|
Input Interface |
1 x HDMI |
|
|
1 x ypb |
||
|
1 x CVBS |
||
|
Input daws teeb meem |
HD |
1080P 25/30, 1080i50/60Max: |
|
YPbPr |
1080i, 720P, 576i/P: |
|
|
CVBS |
NTSC, PAL |
|
|
Lwm yam |
||
|
USB lnput |
USB 2.0 hloov tshiab firmware |
|
|
Fais fab mov |
AC100 ~ 240V 50 / 60Hz |
|
|
Zaub |
LCD vaj huam sib luag @ 2x16 cim |
|
|
Dimension |
485mm x 320mm x 45mm |
|
|
Environmental rau Kev Ua Haujlwm |
txheeb ze humidity |
80% @ 30 degree |
|
OUTPUT |
||
|
Chaw nres nkoj 1 |
Web Management |
|
|
Chaw nres nkoj 2 |
IP Tawm, 10/100/1000M |
|
|
Streaming raws tu qauv |
DLNA, UDP/RTP, Multicasting & Unicasting |
|
|
H.264 ENCODER |
||
|
Video Format |
HD |
H.264 AVC/HP@L4.0 |
|
SD |
MPEG-2/MP@ML |
|
|
Audio Format |
MPEG-2/AAC |
|
|
Kev daws teeb meem |
HD |
1080P25, 1080P30Max |
|
SD |
480i, 576i |
|
|
Video Bit Rate |
H.264 12 Mbps MAX, MPEG-2 8 Mbps MAX |
|
|
Audio Bit Rate thiab Sample Rate |
384 Kbps / 48KHZ |
|
|
Configurable Parameters |
Kev Pabcuam Lub Npe, Kev Pabcuam ID, Video PID, Suab PID, PMT PID, PCR PID |
|
FAQ
Q: Koj puas tuaj yeem tsim qhov kev txiav txim nrog tus neeg siv khoom lub npe?
A: Yog lawm, tau kawg. OEM & ODM kev pabcuam yog sov so.
Q: Koj tswj cov khoom zoo li cas?
A: Zoo ua ntej. Tag nrho peb cov khoom raug xaiv raug kuaj xyuas ua ntej ntim thiab xa khoom.
Q: Koj yuav xa cov khoom li cas?
A: Peb feem ntau thauj los ntawm hiav txwv lossis huab cua.
Q: Koj lub lag luam loj yog dab tsi?
A: Tebchaws Europe, North America, South America, Middle East, thiab lwm yam.
