Kev piav qhia

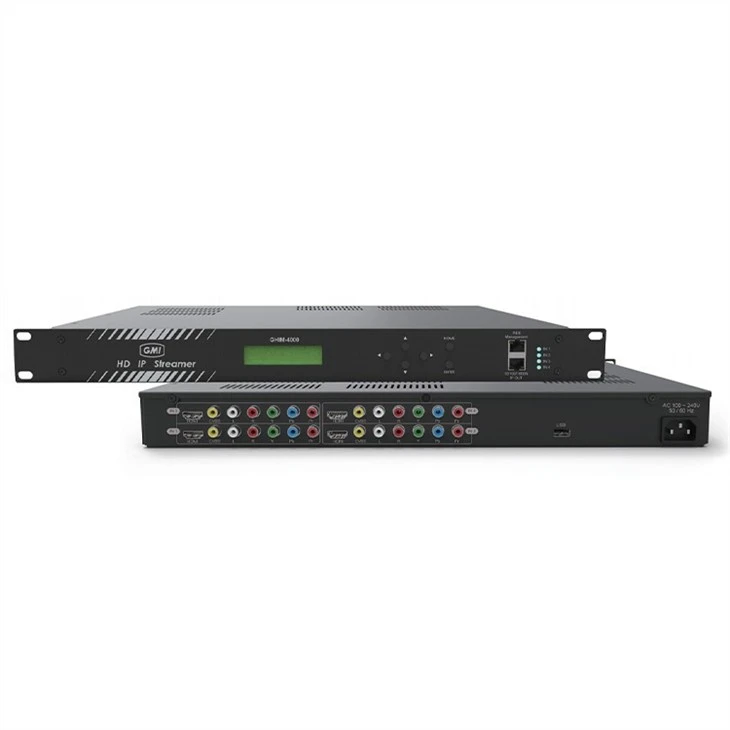

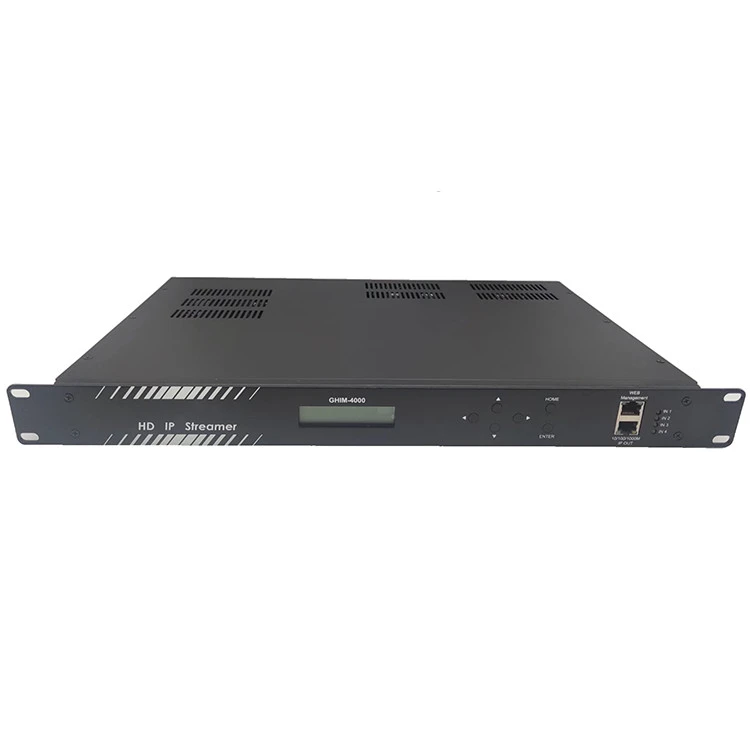

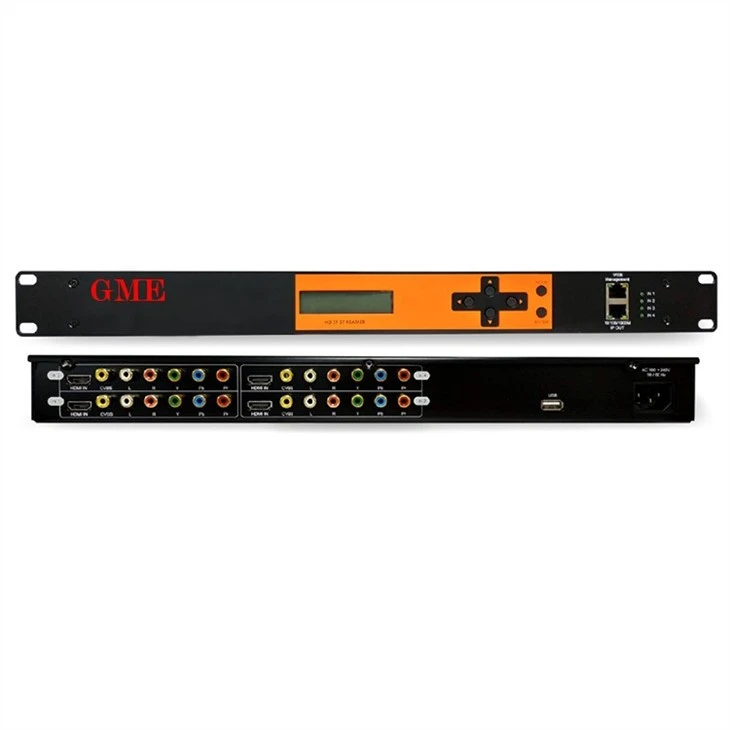

GME's 4 Channels IP Encoder Nrog RCA Input GHIM-4000 HD IP Streamer tso cai rau tus neeg siv los tshaj tawm ib qho audio / video los ntawm IP Network rau Smart HDTV's lossis cov khoos phis tawj txuas nrog hauv IP Network.
Tus IP Streamer lees txais HDMI, Cheebtsam, lossis Composite video tawm tswv yim thiab chav tsev yog tsim los xa cov kev paub nplua nuj HD / SD Streaming rau nws cov neeg siv siv MPEG-2 lossis H.264 cov qauv.
Specification
|
Qhov chaw ntawm Keeb Kwm: Guangdong, Suav |
|
|
Tus Qauv Zauv: GDM-028 (GHIM-4000) |
|
|
INTERFACES |
|
|
Ethernet x 2 |
1Gbps, RJ-45 (Web Management & IP Tawm) |
|

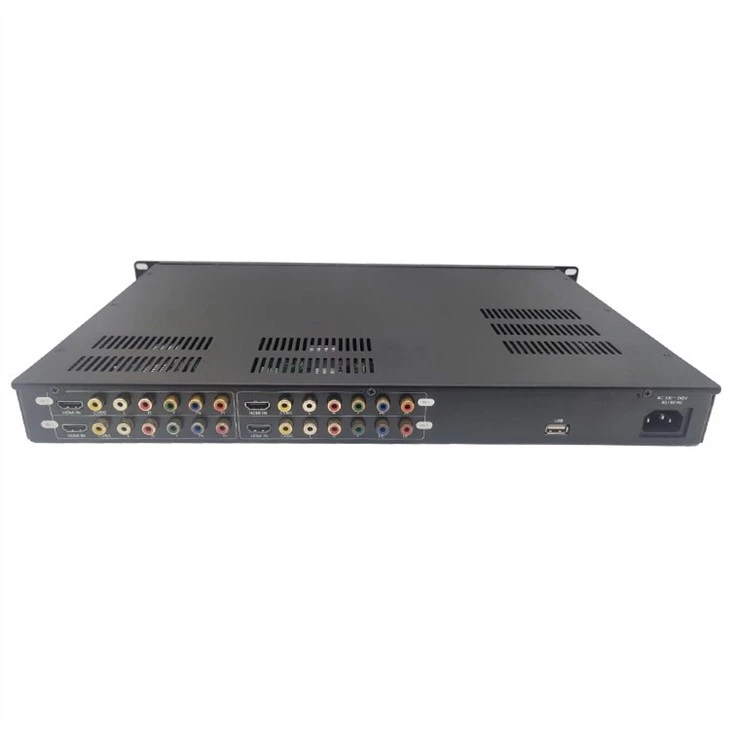

Input Channel x 4 |
HDMI, YPbPr, CVBS |
|
Suab Input |
Analog, Coaxial |
|
USB Input |
USB 2.0 nrog Media Player |
|
TXOJ CAI |
|
|
Video Format |
HD H.264 AVC/HP@L4.0 |
|
SD MPEG-2/MP@ML |
|
|
Audio Format |
MPEG2 / AAC |
|
Kev daws teeb meem |
HD 1080P25, 1080P30 Max |
|
SD 480i, 576i |
|
|
Video Bit Rrate |
H.264 12 Mbps MAX |
|
Audio Bit Rrate |
MPEG-2 8 Mbps MAX |
|
Audio Sample Rate |
384 Kbps 48KHz |
|
INTPUT |
|
|
Video tswv yim |
HDMI 1080P 25/30, 1080i 50/60 Max |
|
PYPbPr 1080i, 720P, 576i/P, 480i/ |
|
|
CVBS NTSC, PAL |
|
|
Y Input Level |
1V ± 0.2Vp -p |
|
Pb/Pr Input Level |
0.7V ± 0.1Vp -p |
|
CVBS Input Level |
1V ± 0.2Vp -p |
|
Streaming raws tu qauv |
DLNA |
|
UDP / RTP multicasting |
|
|
UDP / RTP unicasting |
|
|
HTTP Live Streaming (HLS) |
|
|
Lwm yam |
|
|
Fais fab mov |
AC100 ~ 240V 50 / 60Hz |
|
Zaub |
LCD vaj huam sib luag @ 2x16 cim |
|
Dimension |
485mm x 320mm x 45mm |
|
Environmental rau Kev Ua Haujlwm |
Kub 5 ℃ -40 ℃ |
|
Tus txheeb ze humidity 80% @ 30 degree |
|

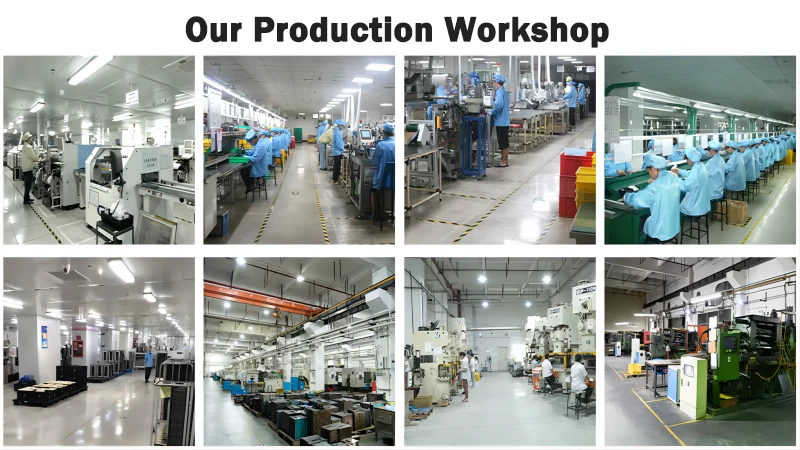

Goodmind Electronics (Shenzhen) Co., Ltd. yog tsim nyob rau hauv 1992 nrog ib tug sau npe peev ntawm 18 lab US dollars. Nws tus kheej lub Hoobkas nyob hauv Shenzhen thiab muaj ntau tshaj 1000 tus neeg ua haujlwm. Nws yog lub tuam txhab ua haujlwm siab -tech enterprise integrating R&D, ntau lawm, muag thiab kev pabcuam, Lub tuam txhab tshwj xeeb hauv Kav hlau txais xov / Network Kev sib txuas lus / Bluetooth / AV Accessories / Smart Home / Car Accessories kev tsim lub tuam txhab. Lub Hoobkas yog vertically integrated. Lub Hoobkas muaj kev ua cov yas, hlau stamping, zinc tuag casting, SMT, DIP thiab Assembly center. Lub tuam txhab muaj lub zog nyiaj txiag muaj zog, pab pawg R&D kws tshaj lij, cov cuab yeej tsim khoom zoo tshaj plaws thiab kev tsim khoom lag luam, thiab mob siab rau tsim cov khoom zoo rau cov neeg siv khoom.
Dab tsi yog 4-channel IP encoder nrog RCA cov tswv yim?
Ib tug 4-channel IP encoder nrog RCA cov tswv yim yog ib qho cuab yeej uas hloov cov yeeb yaj duab analog thiab audio signals los ntawm ntau tshaj plaub qhov chaw (channels) rau hauv hom digital rau kev sib kis ntawm IP network. RCA inputs feem ntau yog siv los txuas cov suab analog thiab video.
Dab tsi yog RCA inputs siv rau hauv IP encoders?
RCA inputs feem ntau yog siv los txuas cov suab analog thiab video, xws li lub koob yees duab, microphones, lossis lwm yam khoom siv suab / video, mus rau IP encoder. Tus encoder tom qab ntawd hloov cov teeb liab analog rau hauv cov hom ntawv rau kev sib kis ntawm IP network.
4-channel IP encoder ua haujlwm li cas?
Ib tug 4-channel IP encoder yuav siv analog audio thiab video signals los ntawm mus txog plaub qhov chaw ntawm RCA inputs. Nws digitizes thiab compresses cov teeb liab thiab tom qab ntawd xa cov ntaub ntawv dhau ntawm IP network. Qhov no tso cai rau cov neeg siv nkag mus thiab tswj cov suab / video kwj remotely siv software sib xws, network video recorders (NVRs), lossis video tswj systems (VMS).
Dab tsi yog 4-Channel IP Encoder nrog RCA Input?
A 4-Channel IP Encoder nrog RCA Input yog ib lub cuab yeej tsim los hloov cov yeeb yaj kiab analog thiab cov cim suab los ntawm txog plaub qhov chaw mus rau hauv cov hom ntawv rau kev xa tawm ntawm IP (Internet Protocol) network. Nws yog feem ntau siv hauv kev soj ntsuam kab ke los txhim kho cov koob yees duab analog thiab cov khoom siv suab los ua haujlwm hauv IP-raws li infrastructure.
RCA Inputs yog dab tsi, thiab vim li cas lawv tseem ceeb hauv qhov encoder?
RCA Inputs yog cov khoom sib txuas uas feem ntau siv rau cov suab analog thiab cov teeb liab video. Hauv no encoder, RCA Inputs tso cai rau koj los txuas cov koob yees duab analog thiab cov khoom siv suab los hloov lawv cov teeb liab mus rau hauv hom digital uas haum rau kev sib kis ntawm IP network.
FAQ
Q: Dab tsi video compression hom ntawv txhawb encoder?
A: Tus encoder feem ntau txhawb cov video compression hom xws li H.264 lossis H.265 (HEVC). Cov hom ntawv no tau txais txiaj ntsig zoo cov ntaub ntawv video digital thaum tswj hwm cov yees duab zoo.
Q: Kuv puas tuaj yeem siv tus encoder no nrog cov koob yees duab analog thiab cov khoom siv suab?
A: Yog, qhov ntawd yog ib lub hom phiaj tseem ceeb ntawm tus encoder no. Nws tso cai rau koj los txhim kho cov kev soj ntsuam analog uas twb muaj lawm los ntawm kev sib txuas cov koob yees duab analog thiab cov khoom siv suab los ntawm RCA inputs, hloov lawv cov teeb liab mus rau digital rau IP-raws li kev sib kis.
Q: Hom kev xaiv kev sib txuas network zoo li cas lub encoder muab?
A: Tus encoder feem ntau tuaj nrog Ethernet ports rau kev txuas mus rau IP network. Qhov no tso cai rau seamless kev koom ua ke rau hauv network infrastructures uas twb muaj lawm.
Q: Kuv tuaj yeem tswj thiab tswj tus encoder li cas?
A: Tus encoder feem ntau muaj cov yam ntxwv tswj chaw taws teeb, uas tuaj yeem suav nrog lub vev xaib -raws li kev sib txuas lossis kev siv software tshwj xeeb. Cov cuab yeej no tso cai rau cov neeg siv los teeb tsa, saib xyuas, thiab tswj tus encoder los ntawm qhov chaw nyob deb.
