Kev piav qhia
Lub HDMI digital modulator yog ib qho khoom siv uas hloov HDMI cov teeb liab mus rau hauv xov tooj cua zaus signals (RF), feem ntau yog siv los faib cov qib siab - zoo digital video thiab audio signals rau ntau yam khoom siv. Nws yog feem ntau siv hauv tsev so thiab tsev kho mob, tsev kawm ntawv, chaw ua kis las thiab cov chaw pej xeem, chaw ua haujlwm, chaw ua yeeb yam hauv tsev, thiab lwm yam.
Cov xwm txheej ntawm daim ntawv thov no siv lub peev xwm ntawm digital HDMI modulators kom ua tiav kev faib tawm thiab kev tswj hwm ntawm siab -cov lus txhais, txhim kho cov neeg siv kev paub thiab kev ua haujlwm yooj yim.

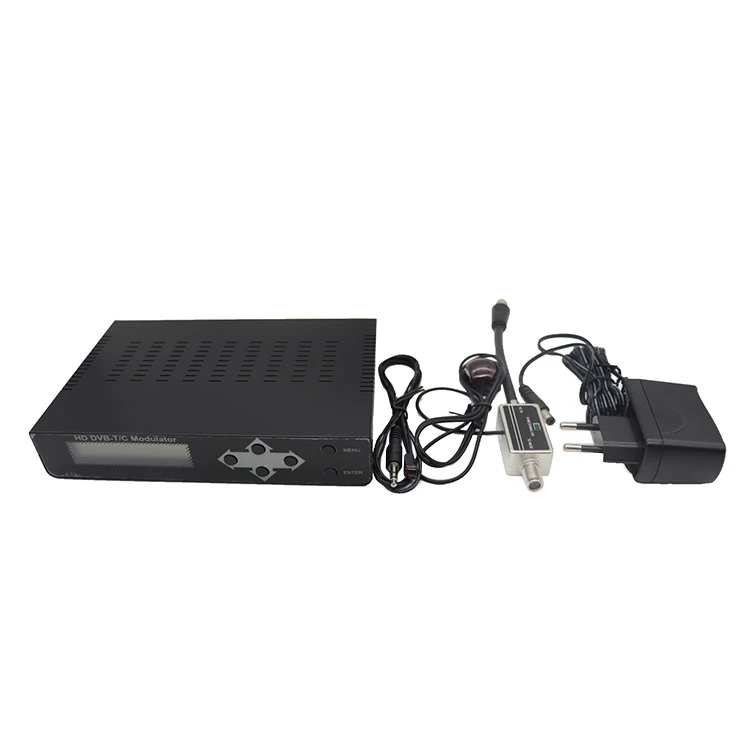

Peb cov HDMI digital modulator tuaj yeem tsim DVB-T / C hom (digital terrestrial TV) signals los ntawm HDMI input. H264 encoding, DVB-T/C modulation integrated device, converts HDMI signals rau DVB-T/C RF output. Nws yog txawm peem rau nrog ib tug channel HDMI input, HDMI tawm (HDMI pass-tab sis), thiab ib tug DVB-T / C RF tso zis.
Qhov digital HDMI modulator no siv cov kev hloov pauv DVB-T / C tsis txwv los kho tus nqi compression rau bandwidth muaj.

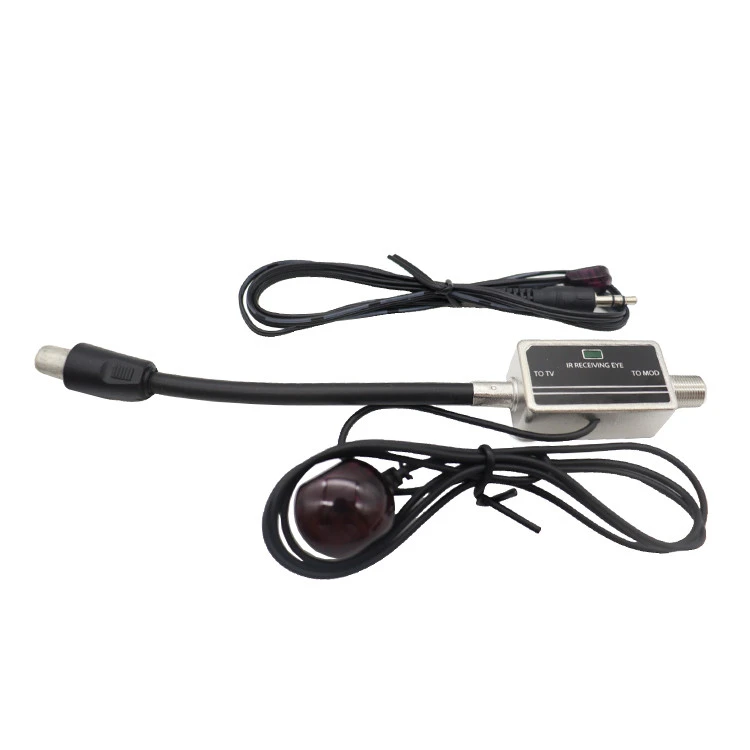

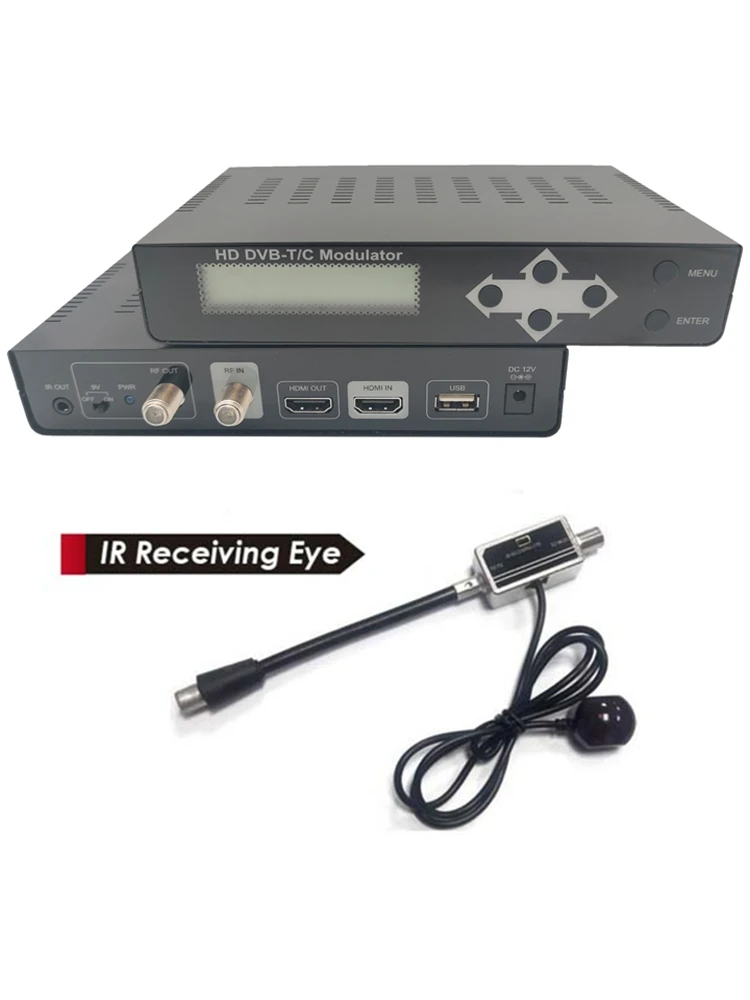

Nws hloov cov teeb liab HDMI rau hauv DVB-T / C RF tso zis thiab IR rov qab txoj hauv kev kom tso cai hloov pauv ntawm lwm chav. Tau yooj yim tswj cov chaw taws teeb tswj cov teeb liab los ntawm coaxial cables. Ntev kis tau tus mob, yooj yim installation, ntsaws thiab ua si.
Specification
| Qhov chaw ntawm Keeb Kwm: Guangdong, Suav | |
| Tus Qauv Zauv: GDM-034 | |

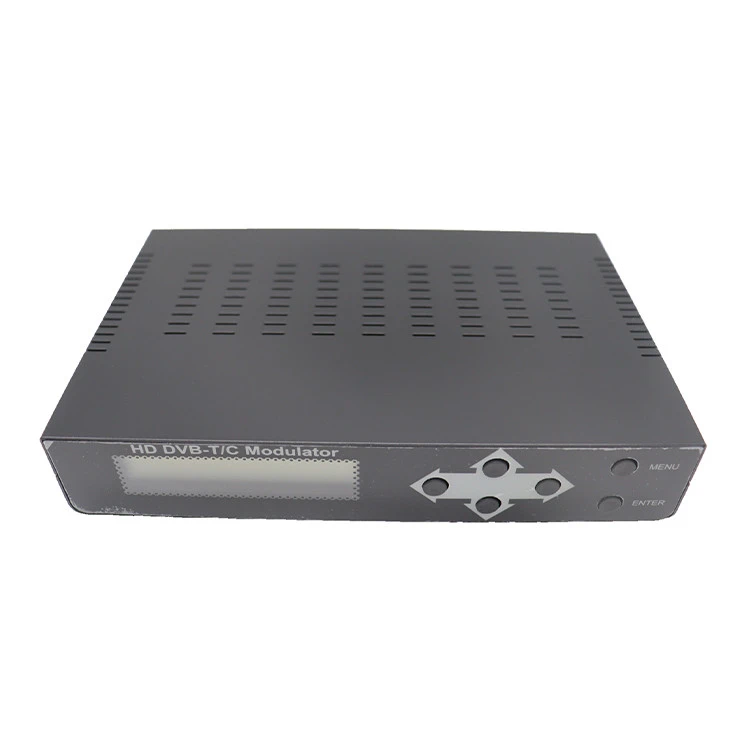

| DESCRIPTION: HD DVB-T/C Modulator | |
| TSEEM CEEB | |
| · Nkag Channel | :1 |
| · Video | : HDMI tso zis |
| · Video System | :480i/p,576i/p,720p,1080i/p |
| · Suab | : HDMI tso zis |
| COMPRESSION | |
| · Video | :H.264 Baseline Profile Qib 4.0 |
| · Video daws teeb meem | : 1080p 25/30 Max |
| · Video Bit Rate | : 12 Mbps Max. |
| · Suab | : MPEG-2/AAC |
| · Kho tau teb | :Service Name, TS ID, Network ID, Original NET ID, LCN, Network Name. |
| MODULATION | |
| · Txuj | :DVB-C(ETSI EN 300429V1.2.1) |
| · Cov hnub qub | 256 QAM, 128 QAM, 64 QAM, 32 QAM, 16 QAM |
| · Cim tus nqi | :2 ~ 6.96 MSymbols |
| · Bandwidth | Zaus: 6MHz, 7MHz, 8MH |
| · Txuj | :DVB-T (ETSI EN 300744 V1.5.1) |
| · Cov hnub qub | : QPSK, 16 QAM, 64 QAM |
| · Guard Interval | :1/4,1/8,1/16,1/32 |
| · Tus nqi Code | :1/2,2/3,3/4,5/6,7/8 |
| · FFT Carrier Hom | :2K,8K |
| · Bandwidth | Zaus: 6MHz, 7MHz, 8MHz, 7 ~ 8MHz |
| RF tawm | |
| · Hom | :1 Multiplex DVB-T/C Nrog Kev Pabcuam Digital TV |
| · Ntau zaus | Zaus: 177-858 MHz |
| · MER | : 30 dB Min |
| · Cov zis theem | : 100 dBuV |
| · RF Qib Adj | :0dB-20dB |
| · Cov Kauj Ruam Ua Ntej | : 1dB Ib Kauj Ruam |
| GENERAL | |
| · QHOV TSEEB | Tom ntej: 12V 1.0A ADAPTER |
| · DISPLAY | : LCD vaj huam sib luag @ 2 x16 Cim |
| · Environmental rau kev ua haujlwm | |
| Kub | Kub: 5℃-40 degree |
| txheeb ze humidity | 80% @ 30 degree |
| · DIMENSION | 172 x 113 x 32 mm |

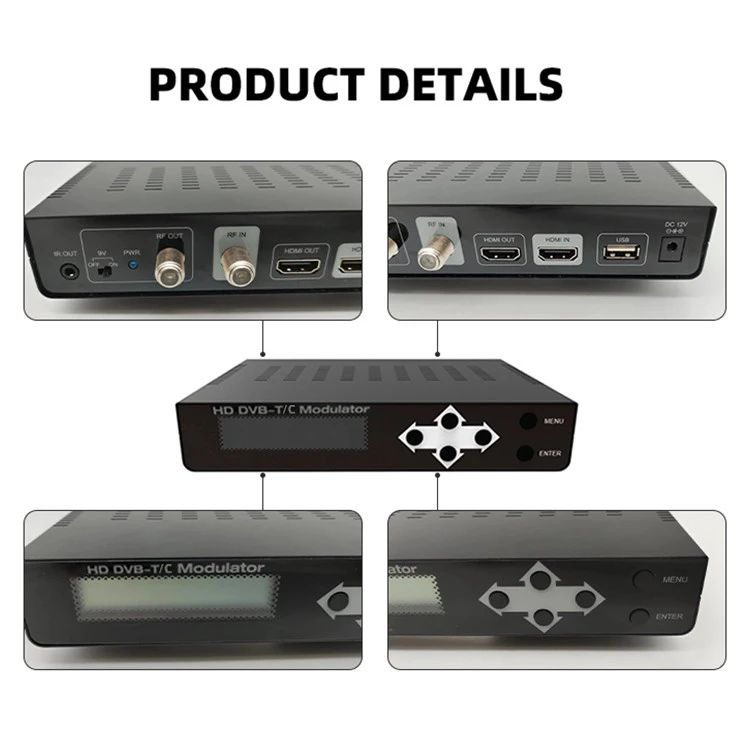

| · CONFIGURATION | : 6 Cov yuam sij hauv zos nyob rau pem hauv ntej vaj huam sib luag |

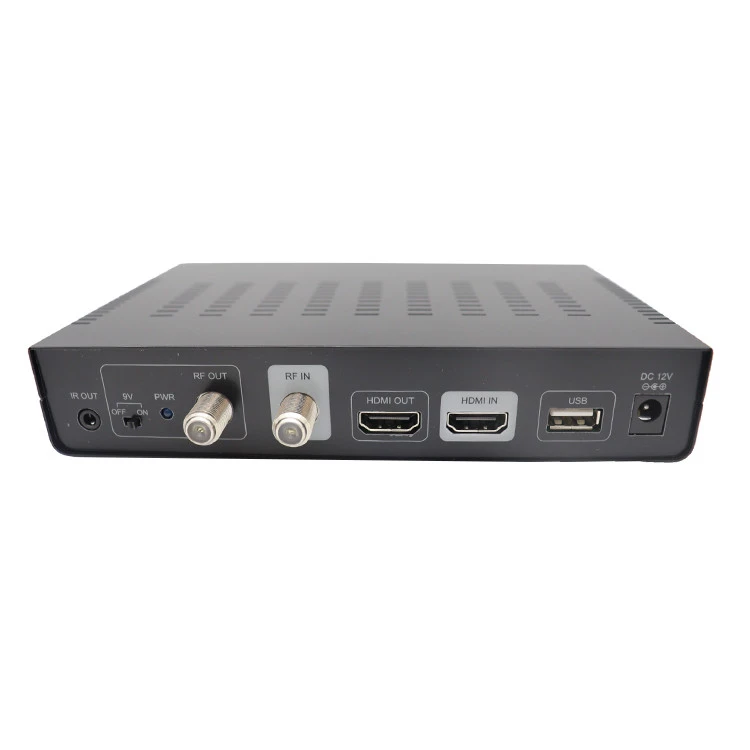

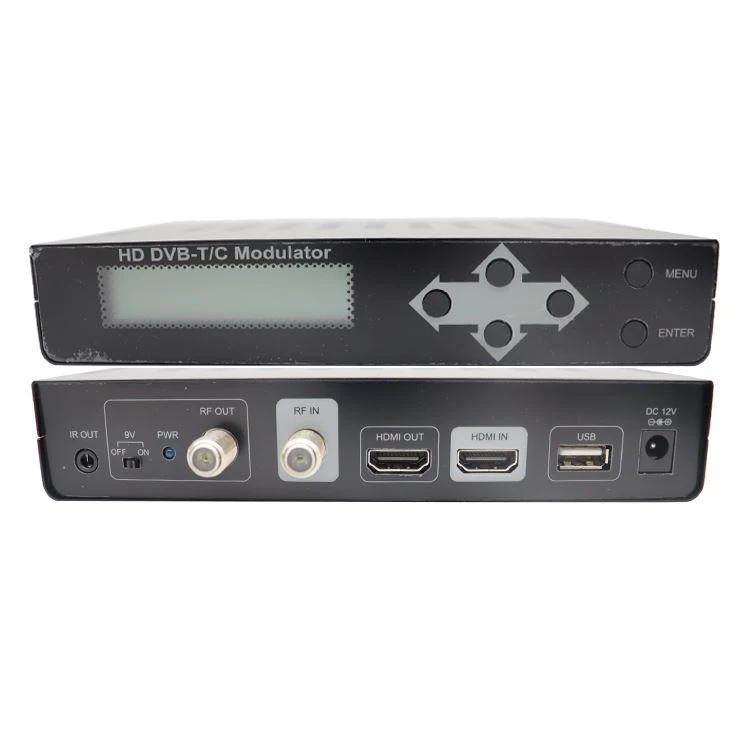

| Kev sib txuas | |
| · HDMI | : HDMI hauv |
| · HDMI tawm | : HDMI Hla Dhau |
| · RF tso zis | :1 DVB-T/C RF Outputs |
| · DC Hloov | : Fais fab mov 9 volts DC rau IR pass |
| · RF nkag | : RF sib txuas |
| · USB | : Txhim kho Fimware |
Zoo heev digital HDMI modulator chaw tsim tshuaj paus pab koj
Goodmind Electronics (Shenzhen) Co., Ltd. yog tsim nyob rau hauv 1992 nrog ib tug sau npe peev ntawm 18 lab US dollars. Nws tus kheej lub Hoobkas nyob hauv Shenzhen thiab muaj ntau tshaj 1000 tus neeg ua haujlwm. Nws yog lub tuam txhab ua haujlwm siab -tech enterprise integrating R&D, ntau lawm, muag thiab kev pabcuam, Lub tuam txhab tshwj xeeb hauv Kav hlau txais xov / Network Kev sib txuas lus / Bluetooth / AV Accessories / Smart Home / Car Accessories kev tsim lub tuam txhab. Lub Hoobkas yog vertically integrated. Lub Hoobkas muaj kev ua cov yas, hlau stamping, zinc tuag casting, SMT, DIP thiab Assembly center. Lub tuam txhab muaj lub zog nyiaj txiag muaj zog, pab pawg R&D kws tshaj lij, cov cuab yeej tsim khoom zoo tshaj plaws thiab kev tsim khoom lag luam, thiab mob siab rau tsim cov khoom zoo rau cov neeg siv khoom.
ntawm kev lag luam kev paub
thaj chaw tsim khoom
rhiav cov neeg ua haujlwm tsim khoom
R & D cov neeg ua haujlwm
Yuav ua li cas xaiv qhov tsim nyog digital HDMI modulator rau peb
Compatibility thiab technical specifications
Resolution thiab refresh npaum li cas txhawb nqa:Xyuas kom meej tias lub modulator txhawb kev daws teeb meem (xws li 1080p, 4K) thiab refresh npaum li cas (xws li 60Hz) koj xav tau.
Audio format:Paub meej tias tus modulator txhawb cov suab tawm tswv yim (xws li Dolby Digital, DTS).
Hom interface:Xyuas kom meej tias HDMI interface ntawm lub modulator yog sib xws nrog koj qhov chaw ntaus ntawv thiab txhawb tus naj npawb ntawm inputs thiab outputs koj xav tau.
Ntau zaus thiab xaiv channel
RF zaus ntau:Tshawb xyuas RF zaus ntau ntawm cov modulator kom paub meej tias nws haum rau koj qhov chaw thov.
Channel configuration:Xaiv lub modulator uas txhawb nqa ntau txoj hauv kev kom tsis txhob cuam tshuam nrog lwm yam khoom siv.
Muaj nuj nqi thiab nta
Ntau lub teeb liab input:Yog tias koj xav tau txuas ntau lub HDMI cov khoom siv rau lub modulator, xaiv tus qauv uas txhawb nqa ntau yam khoom siv.
Chaw taws teeb tswj thiab saib xyuas:Xav txog cov modulators nrog kev tswj chaw taws teeb thiab saib xyuas lub peev xwm los pab txhawb kev tswj hwm hauv nruab nrab hauv cov tshuab loj.
Firmware hloov tshiab thiab kev txhawb nqa:Xyuas kom meej tias tus modulator txhawb nqa firmware hloov tshiab thiab muaj kev txhawb nqa zoo thiab tom qab - kev muag khoom.
Daim ntawv thov tshwj xeeb scenarios
Tsev so thiab tsev kho mob:Xaiv cov modulators uas txhawb ntau chav teeb liab faib thiab tswj kev ua haujlwm.
Tsev kawm ntawv:Xaiv cov modulators uas yooj yim rau kev khiav lag luam thiab tswj, haum rau siv nyob rau hauv ntau chav kawm ib puag ncig.
Enterprise ib puag ncig:Xaiv cov modulators uas txhawb siab - cov rooj sib tham txhais lus thiab multimedia qhia kom paub meej cov teeb liab zoo thiab ruaj khov.
Hauv cov chav tsev so, siab - cov ntsiab lus txhais (xws li TV programs, tsos, thiab lwm yam) tuaj yeem faib rau cov TV hauv txhua chav los ntawm HDMI modulator los ntawm lub hauv paus media player. Ua li no, cov qhua hauv txhua chav tuaj yeem txaus siab rau siab -cov kev pabcuam suab thiab video zoo.
Cov lus qhia kev sib txuas
Media Player:Cov cuab yeej siv tau txuas nrog HDMI modulator ntawm HDMI cable.
HDMI modulator:converts HDMI signals rau hauv xov tooj cua zaus signals (RF) rau kev faib mus rau ntau yam tau txais los ntawm kav hlau txais xov.
TV:Txais cov teeb liab los ntawm HDMI modulators los ntawm RF input thiab tso saib cov ntsiab lus sib xws.
Chaw taws teeb tswj:siv los hloov cov channel thiab tswj hwm lwm yam haujlwm ntawm modulators lossis TVs.
Kav hlau txais xov:Siv los faib cov teeb liab RF ntawm lub modulator rau cov khoom siv tau txais hauv qhov kev pab cuam.
Qhov kev teeb tsa no tso cai rau ntau lub cuab yeej tso saib kom tau txais siab - cov ntsiab lus txhais los ntawm tib lub teeb liab, ua rau nws tsim nyog rau cov xwm txheej uas xav tau kev tswj hwm hauv nruab nrab thiab kev faib tawm ntawm cov teeb liab video.

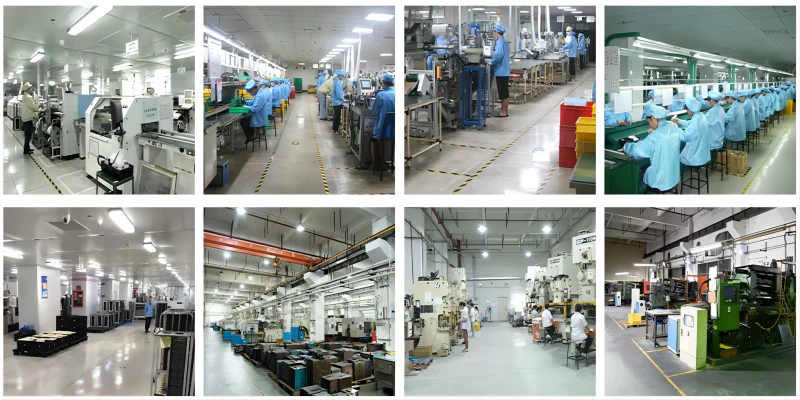

Peb lub Hoobkas tsim khoom
Peb Daim Ntawv Pov Thawj
FAQ
Q: Puas yog Digital HDMI Modulator siv nrog cov txheej txheem coaxial uas twb muaj lawm?
A: Yog lawm, Digital HDMI Modulators yog tsim los ua haujlwm nrog cov coaxial cables uas twb muaj lawm, ua rau lawv zoo tagnrho rau kev rov kho cov txheej txheem qub nrog cov teeb liab digital niaj hnub.
Q: Dab tsi yog lub zog noj ntawm Digital HDMI Modulator?
A: Kev siv fais fab sib txawv raws tus qauv thiab nta. Feem ntau, niaj hnub Digital HDMI Modulators yog tsim los ua lub zog -ntau zog nrog kev siv hluav taws xob tsawg. Cov ntsiab lus tshwj xeeb siv hluav taws xob tuaj yeem pom hauv cov khoom specifications.
Q: Cov kev daws teeb meem dab tsi ua Digital HDMI Modulators txhawb nqa?
A: Feem ntau niaj hnub Digital HDMI Modulators txhawb kev daws teeb meem txog 1080p thiab 4K, nyob ntawm tus qauv thiab cov chaw tsim khoom. Xa mus rau phau ntawv qhia khoom kom paub meej tias cov kev daws teeb meem txhawb nqa.
Q: Dab tsi yog qhov lifespan ntawm digital HDMI modulator?
A: Lub neej ntev ntawm lub modulator nyob ntawm qhov chaw siv thiab kev saib xyuas. Feem ntau hais lus, siab -zoo digital HDMI modulators tuaj yeem siv tau ntau xyoo hauv kev saib xyuas zoo. Kev tshuaj xyuas tsis tu ncua thiab ntxuav cov khoom siv kom ntseeg tau tias qhov cua zoo thiab cov cua kub dissipation tuaj yeem txuas nws lub neej kev pab cuam.
