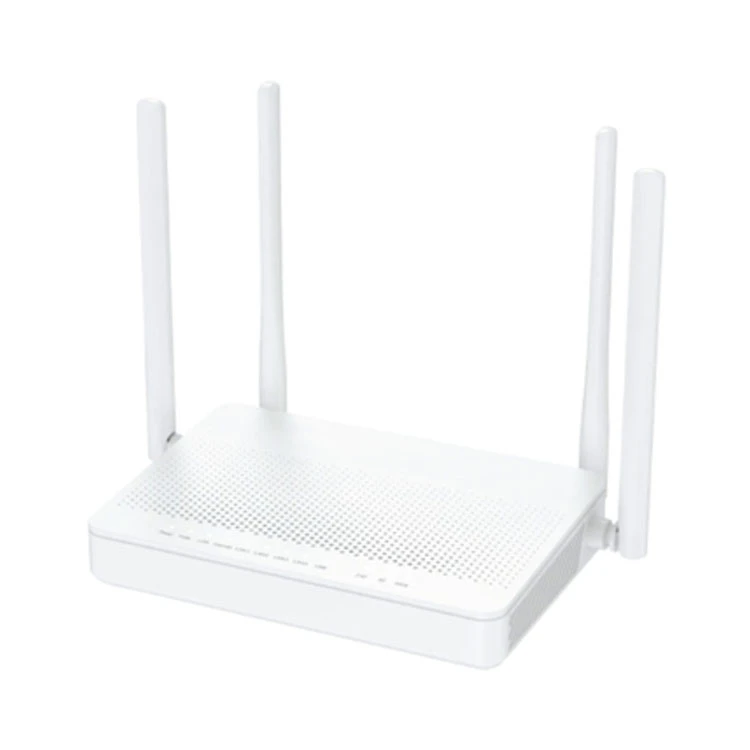

GPON WiFi 5 ONU

Qhov ONU no yog tsim los rau FTTH. Nws txhawb XPON dual-mode thev naus laus zis (EPON thiab GPON), Nrog rau WiFi nrawm txog 1200Mbps, nws kuj txhawb IEEE 802.11b/g/n/ac thev naus laus zis thiab lwm yam txheej txheem 2/Layer 3, Nws yog dav siv nrog lub ntiaj teb mainstream OLT hom, txhawb nqa plug thiab {{6} - tu nta.

Nta

• Txhawb QOS configuration
• Txhawb chaw nres nkoj khi
• Txhawb ACL kom teeb tsa cov ntaub ntawv pob ntawv lim tau yooj yim
• Txhawb TR069 rau ACS (Auto Config Server)
• Ua raws li IEEE802.3ah & ITU-T G.984 tus qauv
• Txhawb cov ntaub ntawv encryption, pab pawg tshaj tawm, chaw nres nkoj VLAN sib cais, thiab lwm yam.
• Txhawb nqa Dynamic Bandwidth Allocation (DBA)
• Txhawb ONU pib nrhiav pom / Txuas kev tshawb nrhiav / kev hloov kho tej thaj chaw deb ntawm software
• Txhawb kev ruaj ntseg wireless ntawm 64/128 ntsis WEP, 802.1x, WPA thiab WPA2

Specification

PON

•XPON chaw nres nkoj (EPON PX20+ thiab GPON Class B+)

• SC ib hom, SC / UPC connector

•TX optical zog: 0-+4dBm

•RX rhiab heev: -28dBm

•Optical optical zog: -3dBm (EPON) los yog -8dBm (GPON)

• kis nrug deb: 20KM

• wavelength: TX 1310nm, RX1490nm

•Ua raws li IEEE802 .3ah & ITU-T G.984 tus qauv

WiFi

•WIFI5: 802.11b/g/n/ac 5GHz, 2.4GHz

• Txhawb DSSS, CCK, OFDM, MU-MIMO, Dynamic QoS, 256-QAM

•Smart Txuas rau ib qho Wi--Fi lub npe - Ib qho SSID rau 2.4GHz thiab 5GHz dual band

• 2.4GHz 2T2R, 5GHz 2T2R

Tsis muaj

Qhov Loj: 246 × 157 × 38 mm (L × W × H)

• Net nyhav: 0.31Kg

• Ua haujlwm kub:-10 ~ +50 degree

• Ua haujlwm av noo: 10 ~ 95%

• Cia kub:-40 ~ +70 degree

• Khaws cov av noo: 5 ~ 95%

• Fais fab tuag: DC 12V / 1A
