Lub GPU 6266 yog GPON optical davhlau ya nyob twg nkag ntaus ntawv (AX3000Mbps) uas tau koom ua ke nrog dual - zaus Wi-Fi6. Nws yog ib qho khoom siv fiber ntau rau cov khoom siv hauv tsev ntawm tus neeg teb xov tooj. Nws txhawb ultra-bandwidth nkag los ntawm GPON upstream thev naus laus zis, thiab muab cov neeg siv nrog cov haujlwm yooj yim WIFI, routing, VOIP, gigabit Ethernet ua haujlwm thiab cov neeg siv khoom- sab CATV interface ua haujlwm. GPU 6266 upstream network ports yog GPON chaw nres nkoj. Cov chaw nres nkoj hauv qab no suav nrog plaub qhov chaw nres nkoj GE hluav taws xob, ib qho chaw nres nkoj USB, ib qho chaw nres nkoj VOIP, ib qho chaw nres nkoj CATV, thiab ib qho chaw nres nkoj AX3000 WiFi6 WLAN.
CNC machining Manufactruing txheej txheem
Lorem ipsum dolor sit amet consectetur, adipisicing elit
siab zoo
请替换当前 的更多内容
kev pabcuam
Lorem ipsum dolor sit ametli consectetur notted adipisicing elit sed do eiusmod.
siab zoo
Lorem ipsum dolor sit ametli consectetur notted adipisicing elit sed do eiusmod.
kev pabcuam
Lorem ipsum dolor sit ametli consectetur notted adipisicing elit sed do eiusmod.
|

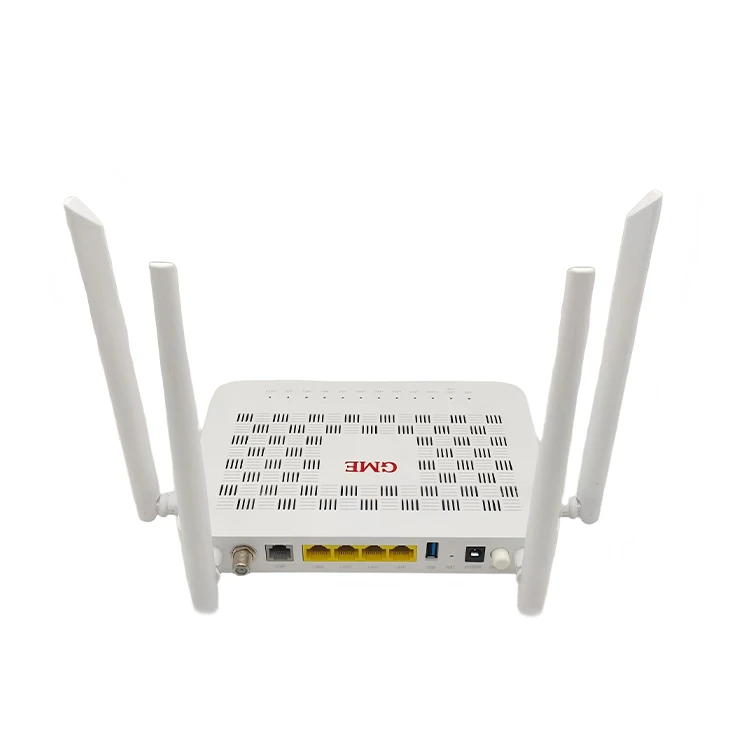

DESCRIPTION :4GE+1POTS+CATV WiFi6 AX3000 GPON ONT
|
|
|
Hardware Parameters
|
|
|
Flash
|
256 MB NAND
|
|
Nco
|
512 MB DDR3
|
|
LED
|
POWER+PON/LOS+NET+LAN+POTS+WiFi+CATV+WPS+USB
|
|
Chaw nres nkoj
|
4 * RJ45 (GE)
|
|
1 * RJ11 (POTS)
|
|
|
1*Reset+1*Power +1*LEDbutton+1*WiFi khawm+1*WPS
|
|
|
1 * SC / UPC (los yog SC / APC)
|
|
|
1 * DC
|
|
|
1 * USB 3.0
|
|
|
1 * CATV
|
|
|
Interface Parameters
|
|
|
Ethernet chaw nres nkoj
|
Ethernet chaw nres nkoj-raws li VLAN tag thiab tag
tshem tawm VLAN pob tshab thiab cim MAC chaw nyob kawm 10/100/1000Mbps Autonegotiation |
|
VolP Chaw nres nkoj
|
Hu rau tos, Inconditional Hu Forward,
Hu rau Forward yog tsis khoom, Hu Forward yog tsis muaj teb thiab peb- tog hu. G711A/G711U/G729/G722 SDP raws tu qauv (RFC 2327 thiab RFC 4566) T.30/T.38/G.711 fax mode DTMF |
|
WiFi 6 (AX3000)
|
|
|
WiFi raws tu qauv
|
2.4GHz txhawb
802.11b/g/n/ax 5GHz txhawb 802.11a/n/ac/ax |
|
Xa lub zog
|
2.4G 100mW, 5G / 200mW,
|
|
Kav hlau txais xov nce
|
5dBi ib
|
|
Kav hlau txais xov
|
dual{0}} kav hlau txais xov MIMO
(2*2) (2.4G&5G) |
|
WLAN nkag mus
|
ib phab ntsa reinforced
los yog ob qho tib si cib ntsa (tsis yog-cov pob zeb muaj zog), |
|
Muaj peev xwm nkag tau WLAN
|
64 / SIB
|
|
channel
|
2.4GHz (channel 1-13)
5GHZ (channel 36-161) |
|
WPS
|
WLAN cov khoom siv nrog
WPS Push Button muaj nuj nqi tsim kev sib txuas hauv 2 feeb |
|
WLAN kev ruaj ntseg muaj nuj nqi
|
WPA-PSK,WPA2-PSK,
WPA3,WPA-PSK/WPA2-PSK AES, AES + TKIP |
|
Cua Ceev
|
574 Mbps (2.4GHz), 2402
Mbps (5 GHz) |
|
Multicast
|
WMM(Wi-Fi Multi Media)
|
|
CATV
|
|
|
Chaw taws teeb tswj CATV
|
ON/OFF
|
|
Optical AGC
|
-10 ~ +2dBm
|
|
Cov zis theem
|
76dv wb
|
|
RF bandwidth muaj
|
47-1000 MHZ
|
|
Hauv band flatness
|
+1.25dB
|
|
Tso zis rov poob
|
>12dB ib
|
|
CATV system parameters
|
C / N: Ntau dua lossis sib npaug rau 43dB, C / CTB: Ntau dua lossis sib npaug
55dB, C / CSO Ntau dua lossis sib npaug rau 55dB, MER Ntau dua lossis sib npaug rau 32dB, BER Tsawg dua lossis sib npaug 1*10E-6 |
|
Ib puag ncig
|
|
|
Ua haujlwm kub
|
0℃~ 45 degree
|
|
Cia Kub
|
-20℃~ 70 degree
|
|
Kev khiav dej num
|
5% ~ 95% (tsis yog -condensing)
|
|
Fais fab mov
|
12V/1.5A
|
