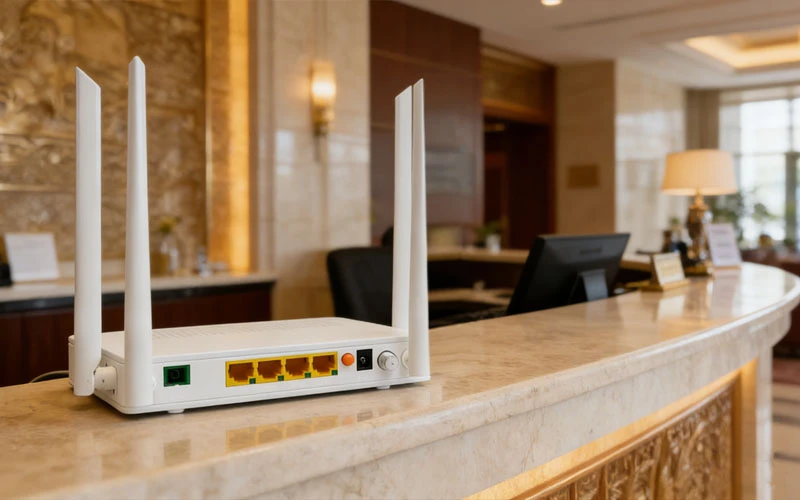

Lub "4GE AC WiFi CATV USB 3.0 WiFi5 ONU" yog ntau- kev pabcuam hauv tsev lub rooj vag uas sib txuas nrog fiber ntau optic, Gigabit wired networking, Wi-Fi 5 wireless txuas, cable TV, thiab USB expansion peev. Nws feem ntau yog tsim los rau Fiber-rau--Home (FTTH) xwm txheej, hloov cov teeb liab kho qhov muag los ntawm tus neeg teb xov tooj mus rau ntau yam kev pabcuam hauv lub network uas siv tau hauv tsev neeg.
Nta
- 4 Gigabit LAN chaw nres nkoj, muab ruaj khov thiab siab -kev sib txuas ceev rau txhua yam khoom siv hauv Is Taws Nem.
- WiFi muab WPS muaj nuj nqi nrog ib qho -nias WiFi txuam.
- Muab EasyMesh muaj nuj nqi rau WiFi roaming.
- Txhawb USB3.0 interface kom ceev cov ntaub ntawv hloov pauv hauv network.
Specification
|
○ Hardware Parameter |
|
|
Dimension |
178mm × 120mm × 30mm (L × W × H) |
|
Net nyhav |
420g |
|
Kev ua haujlwm |
Ua haujlwm kub: -10℃~ +55 degree Kev khiav hauj lwm av noo: 5% ~ 95% (tsis yog -condensing) |
|
Kev khaws cia |
Cia kub: -40 ~ +70 degree Cia cov av noo: 5 ~ 95% (tsis yog -condensed) |
|
Fais fab adapter |
DC 12V / 1A |
|
Fais fab mov |
12W |
|
Interface |
4GE+CATV+USB3.0+WiFi |
|
Qhov taw qhia LED |
11 Rau Cov Txheej Txheem ntawm POWER, LOS, PON, LAN1-4, 2.4G, 5.0G, USB, CATV |
|
USB |
1 x USB 3.0 |
|
○ Interface parameter |
|
|
PON interface |
l 1 G/EPON chaw nres nkoj (EPON PX20+ thiab GPON Class B+) l Tau txais rhiab heev: Tsawg dua lossis sib npaug rau -28dBm l Transmitting optical zog: 0-+4dBm l Transmission nrug: 20KM |
|
Lub wavelength |
Tx 1310nm, Rx 1490nm |
|
Optical interface |
SC / APC connector |
|
LAN interface |
4 x 10/100/1000Mbps auto adaptive Ethernet interfaces, Puv/ib nrab, RJ45 connector |
|
USB interface |
USB 3.0, kis tus nqi: 4.8Gbps |
|
WLAN interface |
l Ua raws li IEEE802.11b/g/n/ac l 2.4GHz Kev khiav hauj lwm zaus: 2.400-2.483GHz (WiFi4) l 5.0GHz Kev khiav hauj lwm zaus: 5.150-5.825GHz (WiFi5 yoj 2) l WiFi: 2 * 2 MIMO, 5dBi kav hlau txais xov, tus nqi mus txog 1.167Gbps, Ntau SSID l TX zog: 11n–22dBm/11ac–24dBm |
|
CATV interface |
l Optical txais wavelength: 1550 ± 10nm l Optical input range: +2--18dBm l Optical reflection poob: Ntau dua lossis sib npaug li 40dB l RF zaus ntau: 47-1000MHz l RF tso zis impedance: 75Ω l RF tso zis theem thiab AGC ntau yam: Ntau dua lossis sib npaug rau 81 ± 2dBuv@+1--10dBm Ntau dua lossis sib npaug rau 79 ± 2dBuv @ 0--11dBm Ntau dua lossis sib npaug rau 77 ± 2dBuv@-1--12dBm Ntau dua lossis sib npaug rau 75 ± 2dBuv@-2--13dBm Ntau dua lossis sib npaug rau 73 ± 2dBuv@-3--14dBm Ntau dua lossis sib npaug rau 71 ± 2dBuv@-4--15dBm l MER: Ntau dua lossis sib npaug rau 32dB (-14dBm optical input) |
|
○ Cov ntaub ntawv muaj nuj nqi |
|
|
Kev tswj hwm |
l OAM/OMCI,Telnet,WEB,TR069 l Txhawb nqa tag nrho kev tswj hwm ntawm HGU ua haujlwm los ntawm VSOL OLT |
|
Hom |
Txhawb nqa choj, router thiab choj / router sib xyaw hom |
|
Data Service Functions
|
l Kev nrawm nrawm tsis- thaiv kev hloov pauv l 2K MAC chaw nyob rooj l 64 tag nrho VLAN ID l Txhawb QinQ VLAN, 1: 1 VLAN, VLAN rov siv dua, VLAN lub cev, thiab lwm yam. l Integrated chaw nres nkoj saib xyuas, chaw nres nkoj mirroring, chaw nres nkoj tus nqi txwv, chaw nres nkoj SLA, thiab lwm yam. l Txhawb nws pib polarity nrhiav pom ntawm Ethernet ports (AUTO MDIX) l Integrated IEEE802.1p QoS nrog plaub theem tseem ceeb queues l Txhawb IGMP v1/v2/v3 snooping/proxy thiab MLD v1/v2 snooping/proxy |
|
Wireless |
l Integrated 802.11b/g/n/ac l Txhawb max 128 cov neeg siv l Authentication: WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) l Modulation hom: DSSS, CCK thiab OFDM l Encoding tswvyim: BPSK, QPSK, 16QAM thiab 64QAM |
|
Kev ruaj ntseg |
l Txhawb NAT, Firewall l Txhawb IPv4 / IPv6 dual pawg l Txhawb SIP raws tu qauv |
|
Lwm txoj haujlwm |
l Integrated OAM / OMCI tej thaj chaw deb teeb tsa thiab kev saib xyuas ua haujlwm l Txhawb kev nplua nuj QinQ VLAN ua haujlwm thiab IGMP snooping multicast nta |

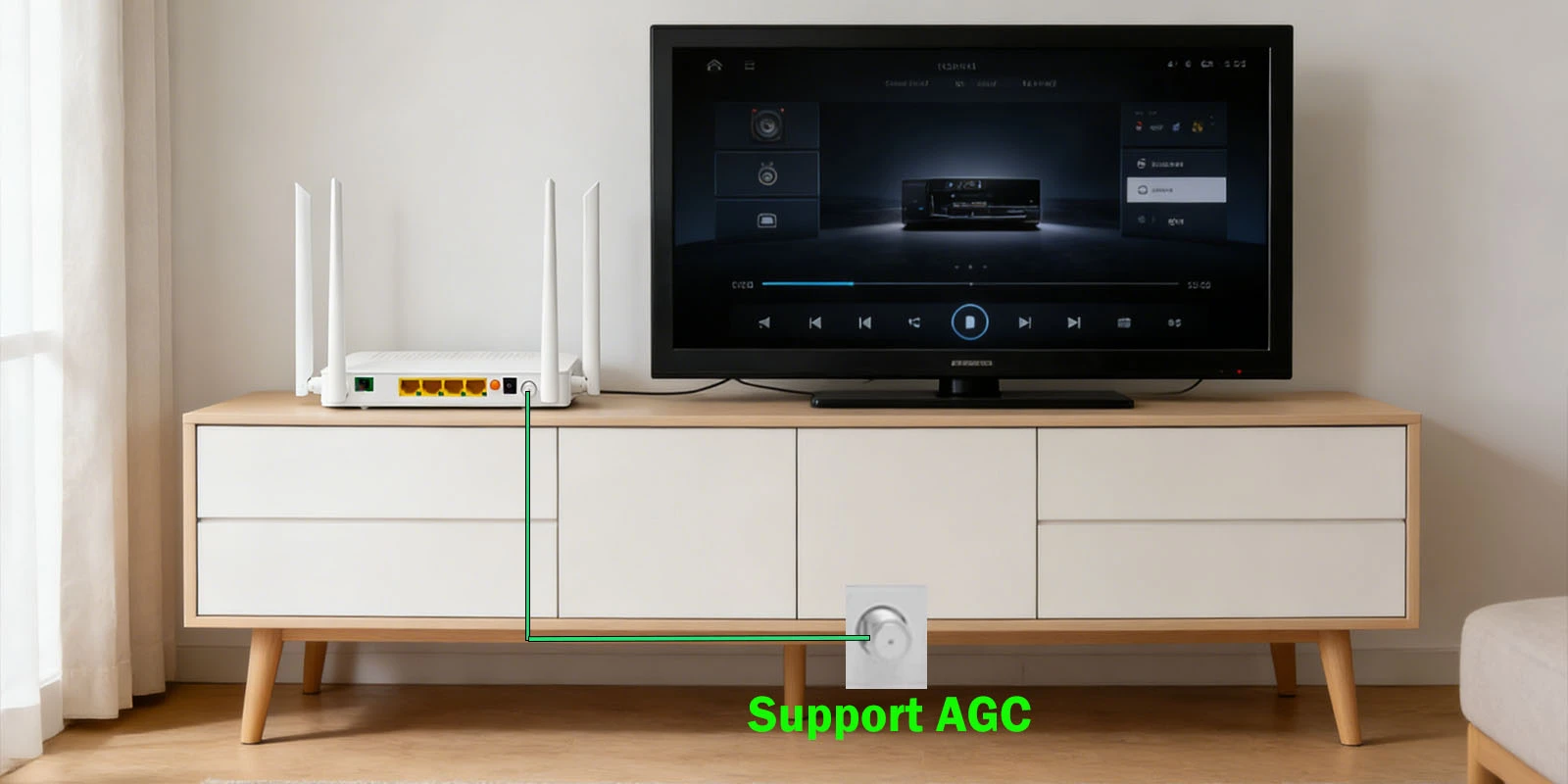

CATV RF nrog AGC kev txhawb nqa tau hloov kho lub xov tooj cua zaus teeb liab lub zog, ua kom ruaj khov thiab meej TV duab zoo thiab tiv thaiv cov daus los yog cuam tshuam los ntawm cov teeb liab hloov pauv.
Application Scenarios thiab Solutions
Lub 4Ge AC WiFi CATV USB 3.0 WiFi5 ONU yog lub network muaj zog heev rau cov tsev thiab chaw ua haujlwm me. Nws qhov txiaj ntsig zoo tshaj plaws nyob rau hauv kev hloov ntau yam khoom siv nrog ib chav tsev, ua kom yooj yim rau kev sib txuas hauv network thaum txhim kho nws lub zog.

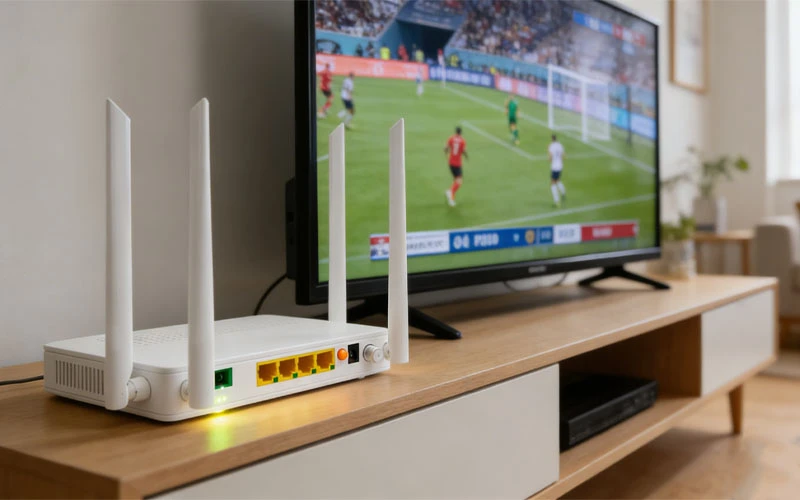

Cov tsev neeg loj thiab HD Audiovisual Enthusiasts
Scenario:Ntau lub TV ntse thiab gaming consoles hauv tsev xav tau kev sib txuas nrog, thaum txhua tus neeg hauv tsev neeg vam khom Wi-{0}}Fi rau lawv cov smartphones thiab ntsiav tshuaj. Cov neeg hauv tsev neeg tuaj yeem saib 4K IPTV ib txhij, ua kev sib tham video, thiab ua si hauv online.
Kev daws:Plaub Gigabit LAN chaw nres nkoj ua kom muaj kev sib txuas ruaj khov rau cov khoom siv tseem ceeb xws li chav nyob TV thiab chav kawm computer. AC Wi-Fi muaj nuj nqi muab siab- nkag ceev rau cov khoom siv wireless xws li smartphones thiab ntsiav tshuaj, ua tau raws li qhov xav tau ntawm ntau yam khoom siv streaming siab -txhais cov yeeb yaj kiab ib txhij. Kev sib xyaw CATV interface ncaj qha tau txais siab -txhais TV teeb liab los ntawm cov chaw muab xov tooj yam tsis tas yuav tsum tau teeb tsa ntxiv- lub thawv sab saum toj, ua kom yooj yim rau kev teeb tsa hauv chav nyob.
Chaw Ua Haujlwm Me / Tsev Chaw Ua Haujlwm (SOHO)
Scenario:Cov kev sib txuas uas muaj kev ntseeg siab yog xav tau rau cov khoos phis tawj hauv chaw ua haujlwm, lub tshuab luam ntawv network, tus tswv saib xyuas, thiab lwm yam, thaum qhua Wi-Fi yuav tsum muab rau cov neeg siv khoom thiab cov neeg ua haujlwm. Tsis tas li ntawd, tej zaum yuav muaj kev pabcuam fax thiab xov tooj.
Kev daws:Ntau qhov Gigabit Ethernet ports ua tau raws li cov kev cai tseem ceeb ntawm lub chaw ua haujlwm wired network. Enterprise-qib Wi-Fi kev pab them nqi ua kom siab -cov teeb liab wireless zoo hauv chaw ua haujlwm. USB 3.0 chaw nres nkoj tuaj yeem txuas mus rau lub tshuab luam ntawv sib koom lossis cov khoom siv cia, ua kom yooj yim sib faib cov ntaub ntawv hauv pab pawg. Qee cov qauv kuj txhawb VoIP xov tooj chaw nres nkoj (POTS), sib koom ua ke cov kev pabcuam hauv xov tooj hauv lub network.
Cov neeg siv nrog Advanced Network Demands
Scenario:Cov neeg siv yog cov neeg nyiam siv thev naus laus zis lossis gamers uas xav tau txuas mus rau NAS cov khoom siv rau cov ntaub ntawv loj - cov ntaub ntawv thaub qab, hloov cov ntaub ntawv video ntawm kev kub ceev hauv cheeb tsam hauv cheeb tsam network, lossis nrhiav tsis tshua muaj network latency.
Kev daws:Lub siab -bandwidth ceev ntawm USB 3.0 chaw nres nkoj yog qhov zoo tagnrho rau kev sib txuas cov khoom siv sab nraud lossis NAS, ua kom muaj huab cua ntawm tus kheej. Kev sib xyaw ua ke ntawm Gigabit wired ports thiab siab - nrawm Wi-Fi ua kom muaj kev hloov pauv hauv lub network sai thiab qis-latency xa mus ntawm cov ntaub ntawv twv txiaj.
Siv cov Coaxial Cables uas twb muaj lawm (CATV) los txhim kho Wi-Fi Kev Pabcuam
Scenario:Lub tsev muaj ib tug complex qauv (nrog ntau lub load-cov kabmob phab ntsa), ua rau nws nyuaj rau ib tug router muab tag nrho - tsev Wi-Fi kev pab them nqi. Muaj ntau qhov chaw tuag nrog cov teeb liab tsis zoo txais tos.
Kev daws:CATV muaj nuj nqi ntawm ONU no tsis tsuas yog tau txais TV teeb liab. Ua ke nrog cov thev naus laus zis hu ua "Cable Wi-Fi," nws tuaj yeem xa Wi-Fi cov cim los ntawm TV coaxial cables uas twb muaj lawm mus rau ntau chav hauv tsev. Txoj kev no txo cov teeb liab attenuation tshwm sim los ntawm cov phab ntsa, ua kom muaj kev ruaj ntseg thiab zoo ib yam piv rau yooj yim wireless relaying.

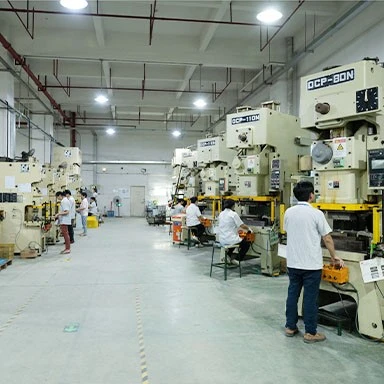

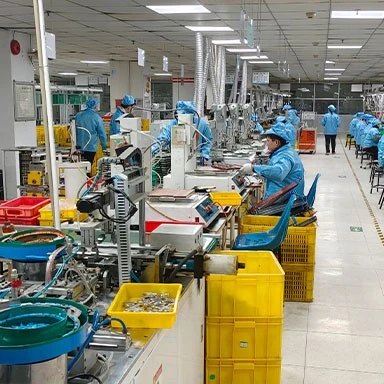

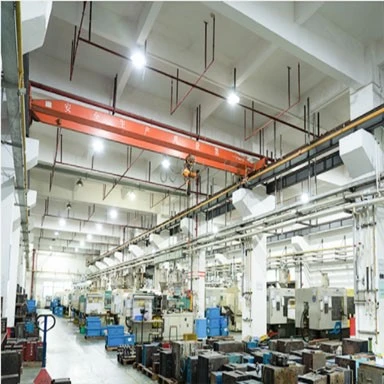

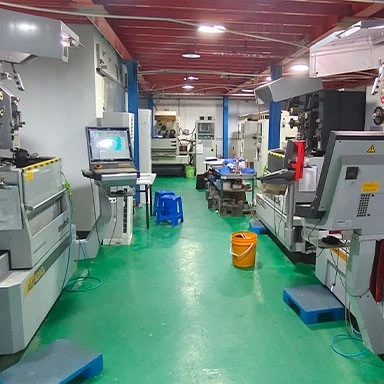

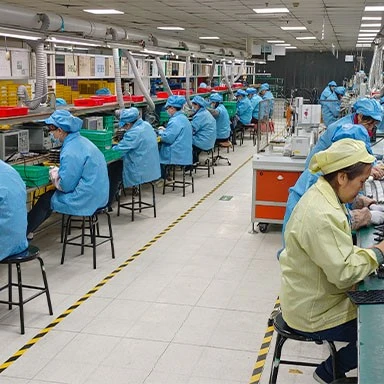

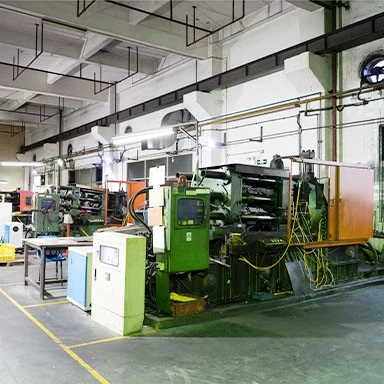

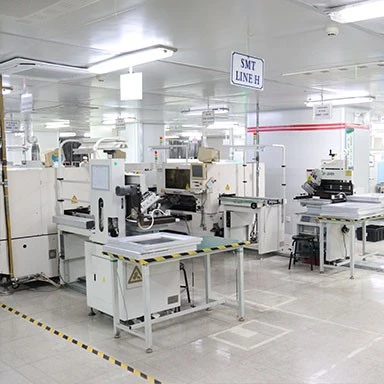

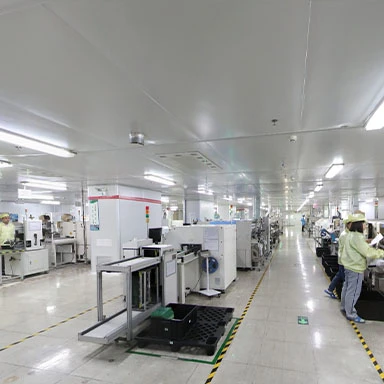

Peb lub Hoobkas tsim khoom

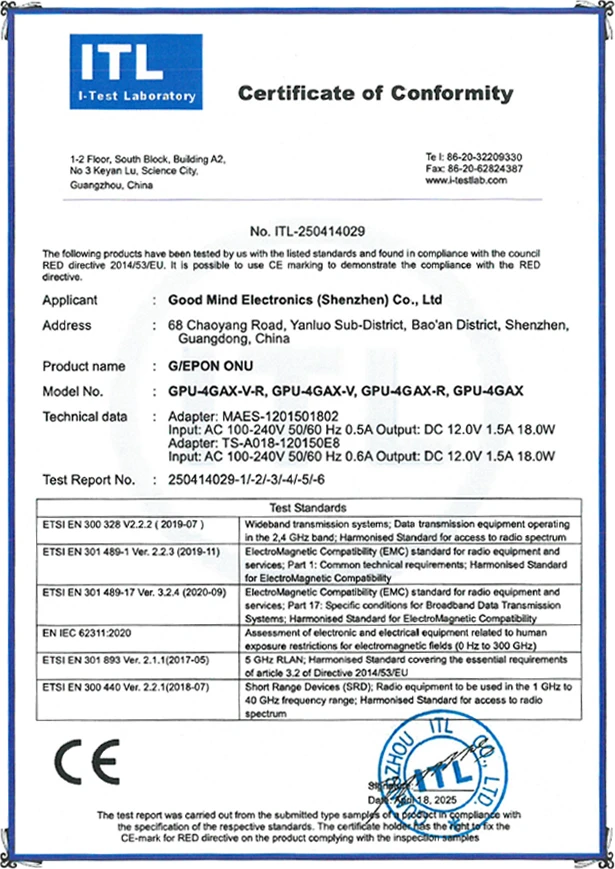

Peb Daim Ntawv Pov Thawj
