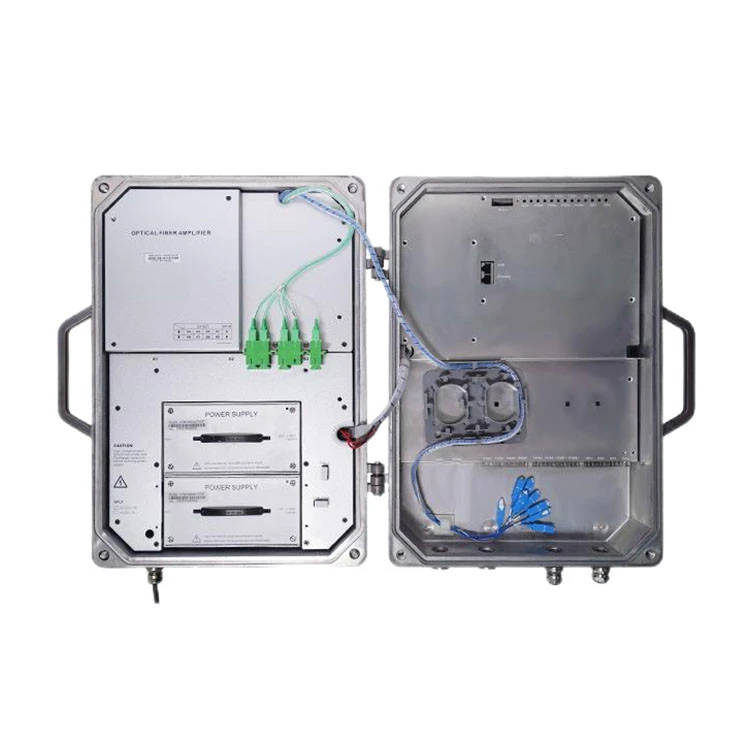

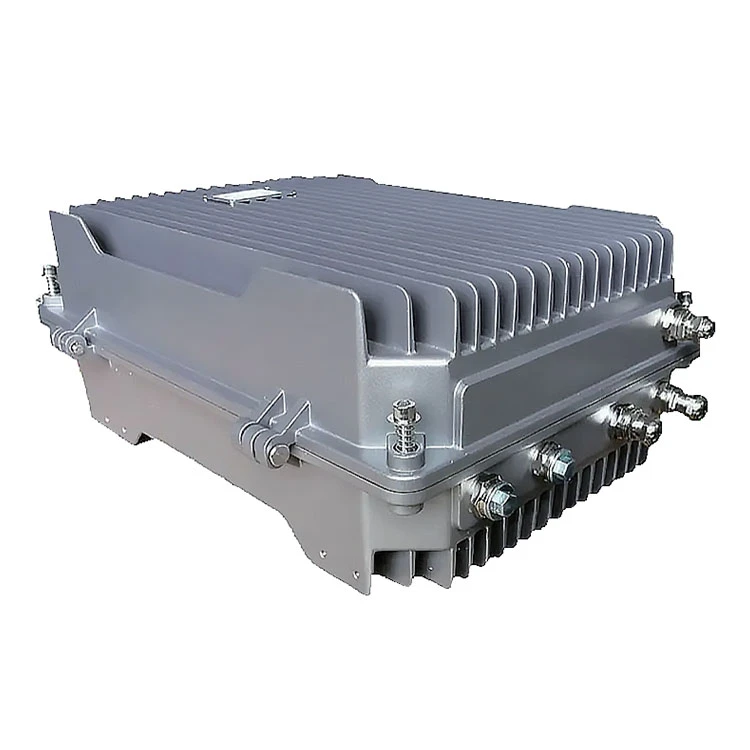

Sab nraum zoov 8 Chaw nres nkoj GPON OLT nrog EDFA

GPT-8G-W

Chassis

Hom

Hlau Plhaub Box (Sab nraum zoov Mounted)

GE/10 TSI

Uplink Chaw nres nkoj

QTY

4

SFP (GE)

2

SFP + (10GE)

2

GPON Chaw nres nkoj

QTY

8

Lub cev interface

SFP Slots

Max splitting ratio

1:128

Tswj Chaw nres nkoj

1 * 10/100/1000 BASE-T tawm-band chaw nres nkoj, 1 * CONSOLE chaw nres nkoj

PON Chaw nres nkoj Specification

(Class C +++ Module)

Kis qhov deb

20 KM

GPON chaw nres nkoj ceev

Upstream 1.244 Gbps,

Downstream 2.488 Gbps

Lub wavelength

TX 1490nm, RX 1310nm

Txuas

SC/UPC

Hom Fiber

9/125μm SMF

Txhawb PON module qib

Chav Kawm B+, C, C+, C++, C+++

Qhov Loj (L * W * H)

450 * 384 * 180mm

Ua haujlwm wavelength

1535nm - 1565nm

Input optical zog

-3dBm－+10dBm(ACC Mode) / -6dBm－+10dBm(APC Mode)

Output optical zog stability

Tsawg dua lossis sib npaug rau ± 0.25dB

Nrov duab

Tsawg dua los yog sib npaug rau 5.0dB(@Input optical zog yog +3dBm)

Input / output reflection poob

Ntau dua lossis sib npaug li 45dB

Input / output twj tso kua mis lub teeb to

Tsawg dua los yog sib npaug rau -30dBm

C/CTB

Ntau dua lossis sib npaug li 63dB

EDFA (option) input optical zog yog 3dBm, thiab qhov kev sib txuas kho qhov muag muaj li ntawm optical transmitter thiab receiver raug kuaj.

C/CSO

Ntau dua lossis sib npaug li 62dB

C/N

Ntau tshaj lossis sib npaug li 50dB

V1600G1WEO-PWR

Ua hauj lwm Voltage: 100 ~ 240V AC,

Rated Voltage: 110V AC / 220V AC;

Txhawb 24V DC Input; Dual Fais Fab Module Supply.

Qhov hnyav

10kg ib

Kev siv fais fab

Tsawg dua lossis sib npaug li 80W

Ua haujlwm kub

-40 ~ +70 degree

Cia Kub

-40 ~ +85 degree

txheeb ze humidity

5 ~ 95% (tsis yog - txias)

Kev tswj hwm hom

WEB/SNMP/Telnet/CLI/SSHv2
