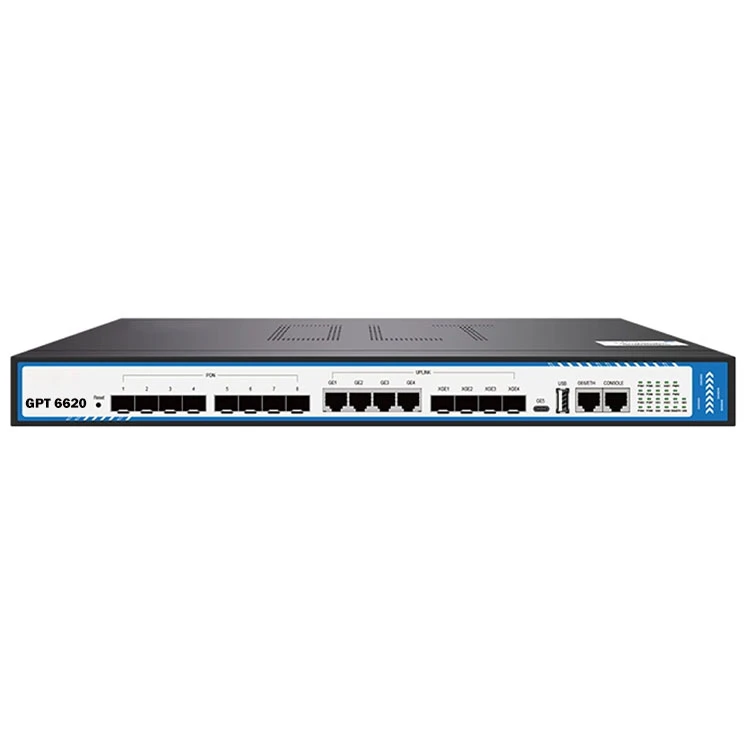

GPT 6620 yog ib qho compact OLT nkag khoom siv nrog 8 GPON ports tsim, ua tiav qhov sib npaug ntawm tus nqi - ua tau zoo thiab kev ua haujlwm. Qhov sib cais ntawm nws qhov chaw nres nkoj PON yog 1: 128, thiab qhov kev sib kis deb tshaj plaws yog 20KM. Nws uplink thiab downlink bandwidth yog siab li: 1.25Gbps/2 .5Gbps. Nws tuaj yeem siv dav hauv FTTH, SOHO, chaw ua lag luam me thiab lwm daim ntawv thov
xwm txheej.
Khoom nta
|
Yam khoom |
TIAB SA 6620 | |
|
Chassis |
Khib |
1U 19Inch Standard Box |
|
Uplink Chaw nres nkoj |
QTY |
8 |
|
RJ45 (GE) |
4 |
|
|
SFP + (10GE) |
4 |
|
|
GPON Chaw nres nkoj |
QTY |
8 |
|
Lub cev interface |
SFP Slots |
|
|
Max splitting ratio |
1:128 |
|
|
Tswj Chaw nres nkoj |
1 * ETH chaw nres nkoj, 1 * CONSOLE chaw nres nkoj, 1 * USB2.0, 1 * Hom-C |
|
|
Backplane Bandwidth (Gbps) |
122 |
|
|
Port Forwarding Rate (Mpps) |
90.77 |
|
|
PON Chaw nres nkoj Specification |
Kis qhov deb |
20 KM |
|
GPON chaw nres nkoj ceev |
Upstream 1.244Gbps, Downstream 2.488Gbps |
|
|
Lub wavelength |
TX 1490nm, RX 1310nm |
|
|
Txuas |
SC/UPC |
|
|
Hom Fiber |
9/125μm SMF |
|
|
Txhawb PON module qib |
Chav Kawm B+, C, C+, C++, C+++ |
|
|
Kev tswj hwm hom |
WEB, SNMP, Telnet, CLI |
|
|
Muaj nuj nqi |
Layer2 Hloov, Multicast, DHCP, Txheej 3 Txoj Kev, IPv6 |
|
|
Qhov hnyav |
Net nyhav ntawm ib lub zog: 4.05kg |
|
|
Tag nrho qhov hnyav ntawm ib lub zog: 5.0kg |
||
|
Qhov Loj (L * W * H) |
442mm * 260mm * 44mm |
|
|
Kev siv fais fab |
40W |
|
|
Kub |
Ua haujlwm kub: 0 degree ~ +55 degree |
|
|
Cia Kub: -40℃~ +85 degree |
||
