Kev piav qhia

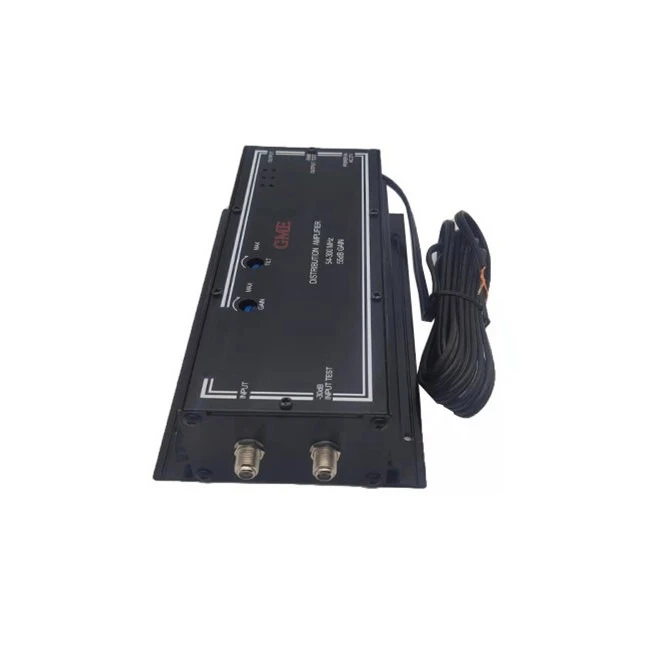

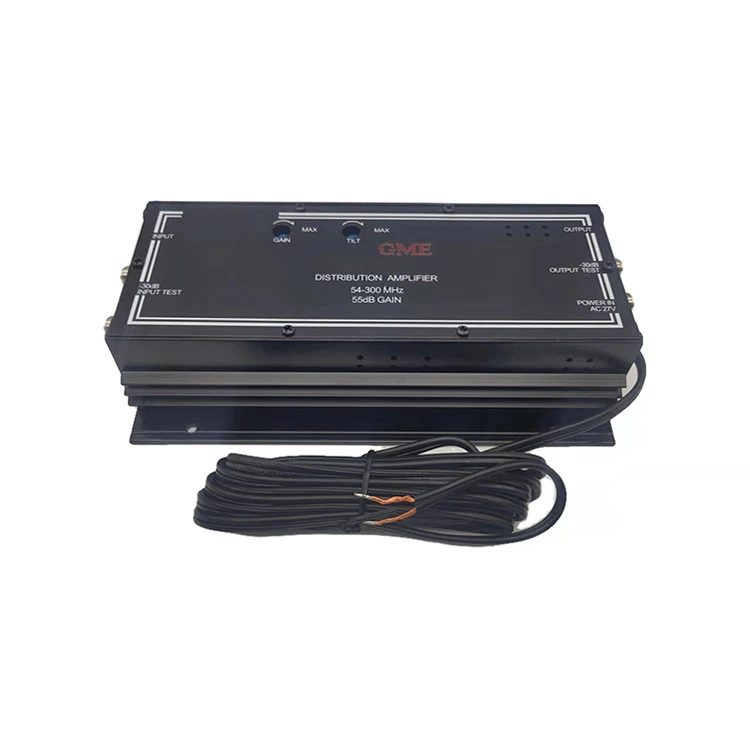

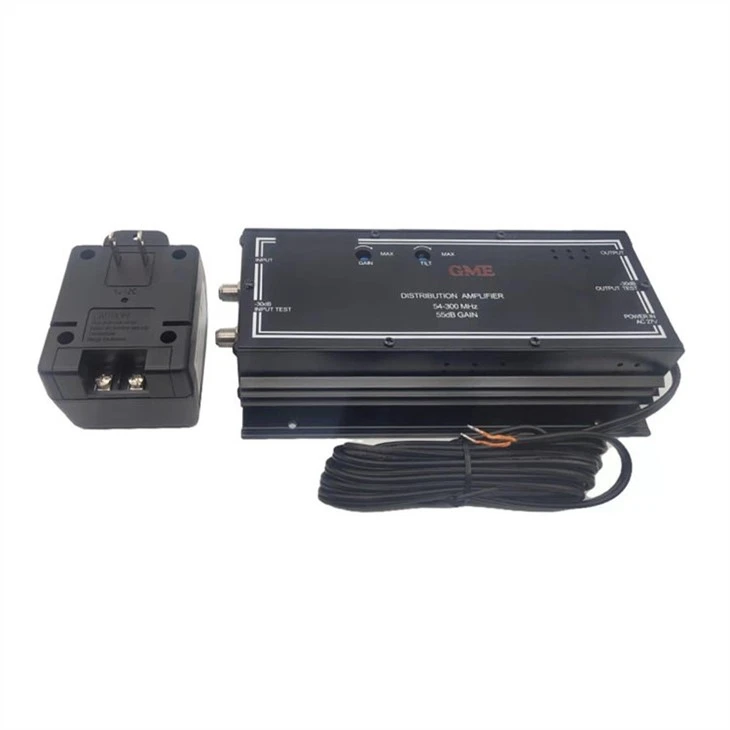

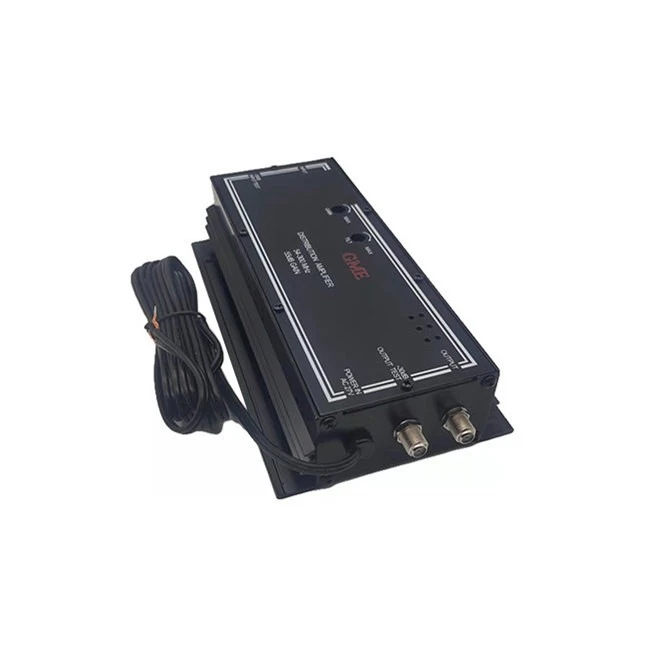

Pico Macom GMCM-55 yog qhov zoo tshaj plaws hybrid laub-rub phab ntsa-mounteddistribution amplifier ua cov teeb liab uas tsis tshua muaj siab heev- suab nrov thiab kev sib cuam tshuam. Cov amplifiers no muaj peev xwm ntawm 42 channel ua haujlwm dhau ntawm 54-300MHz ntau yam hauv MDUCATV lossis SMATV cov tshuab me me. Vim tias nws qhov nce siab thiab qis suab nrov, GMCM-55 kuj yog qhov zoo tshaj plaws rau kev siv headend nrog cov lus qhia qis qis. Lub hybrid module muab lub peev xwm ua kom sov zoo heev uas yuav tsum tau muaj rau kev ntseeg siab ntawm cov khoom siv hluav taws xob siab. Txhawm rau kom ntseeg tau tias muaj kev ntseeg siab thiab txo qis cov cua sov tsim nyob rau hauv chav tsev, sab nraud UL pom zoo fais fab adapter yog muab.
GME tshwj xeeb hauv kev tsim cov 300MHz VHF siab nce laub rub amplifiers, txais tos sab laj.
Specification
|
Qhov chaw ntawm Keeb Kwm: Guangdong, Suav |
|
|
Tus Qauv Zauv: GDAMP-030 (GMCM-55) |
|
|
Bandwidth |
54 - 550MHz |
|
Tau txais |
55dB ib |
|
Tau Txais Kho Ntau Yam |
0 rau 12 dB |
|
nqes hav |
0 mus rau 8 dB hloov pauv |
|
Flatness |
± 5 dB ib channel |
|

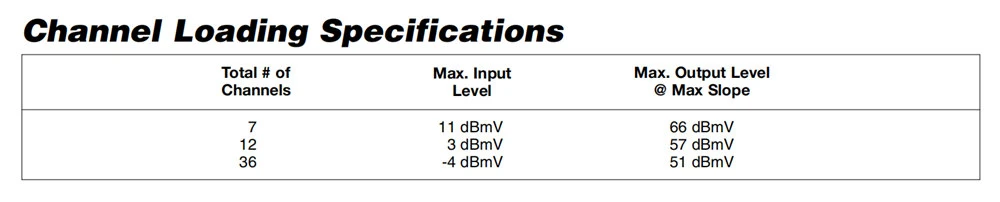

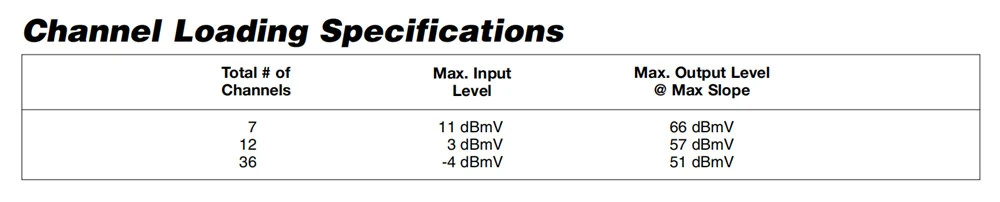

Cov zis ntau tshaj |
66 dB (7 raws, -57 dB hla kev hloov kho) |
|
Nrov duab |
6.5dB ib |
|
Thib Ob Order Beats |
-70dB |
|
Composite Triple Beat |
-61 dB |
|
Rov Loss hauv |
11 dB |
|
Rov Los Loss Out |
14dB ib |
|
Test Points |
-30 dB |
|
Kev xav tau lub zog |
108 ~ 125VAC, 50Hz, 4W |
|
Ua haujlwm kub |
-10℃txog 50 degree |
FAQ
Q: Koj puas tuaj yeem tsim qhov kev txiav txim nrog tus neeg siv khoom lub npe?
A: Yog lawm, tau kawg. OEM & ODM kev pabcuam yog sov so.
Q: Koj tswj cov khoom zoo li cas?
A: Zoo ua ntej. Tag nrho peb cov khoom raug xaiv raug kuaj xyuas ua ntej ntim thiab xa khoom.
Q: Koj yuav xa cov khoom li cas?
A: Peb feem ntau thauj los ntawm hiav txwv lossis huab cua.
Q: Koj lub lag luam loj yog dab tsi?
A: Tebchaws Europe, North America, South America, Middle East, thiab lwm yam.
